Overview

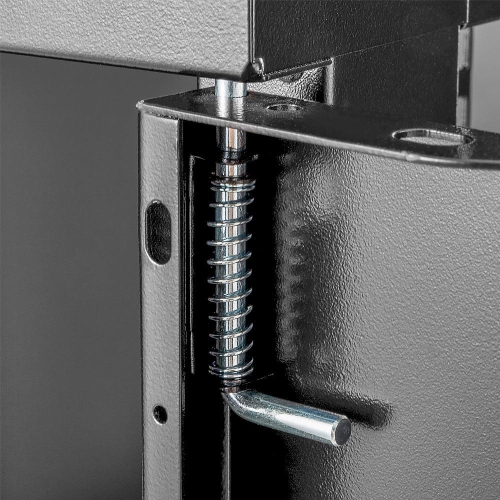

This 9U wall mount cabinet comes with a lockable front door, removable side panels and two fans. The cabinets are fully vented with a lockable steel framed glass door for safety and security. Quick release hinges allow for easy access to the cabinet for loading equipment and cables

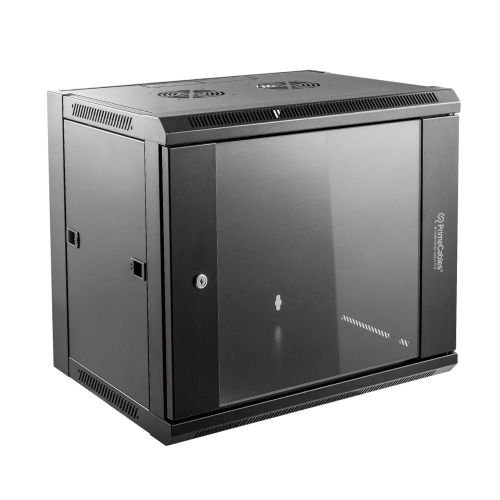

9U Wall Mount Network Server Cabinet Rack with Glass Door, 2 AC Powered Ventilation Fans with Hardware Including

Model: Cab-WMC05-2
Web Code: 15298936
Sold and shipped by | 4.2 seller rating (1,555 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

✅PRODUCT HIGHLIGHTS

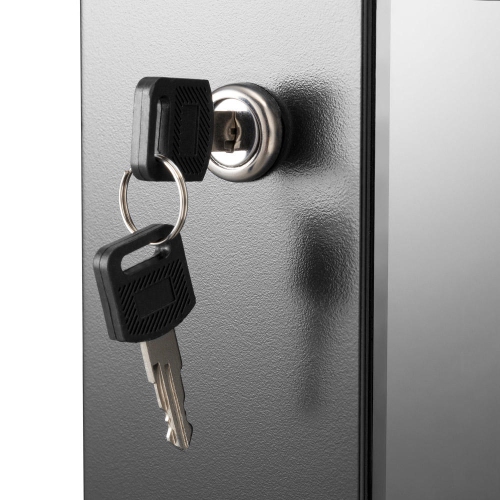

Supplied with a lockable door

Mountable to wall or backboard

Can accommodate a range of 19” products

Opening angle of front door is over 180 degrees

Glass front door can be assembled to open in either direction

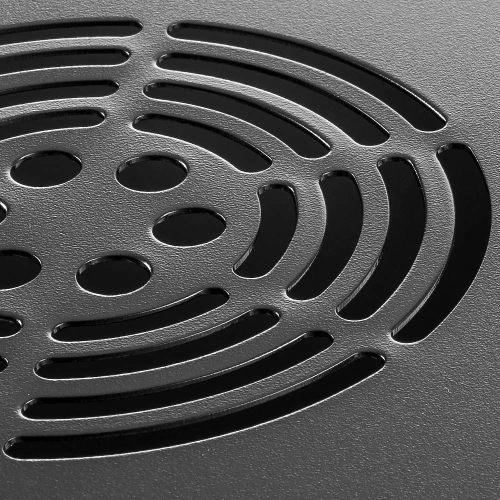

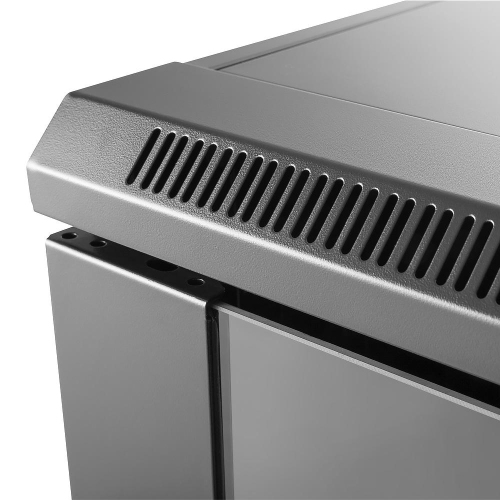

Standard ventilation top. Up to two fans can be fitted to top cover for cooling of active equipment

✅Specifications:

Color:Black - Powder Coated

Material:SPCC Cold Rolled Steel

Material Thickness:mounting profile: 1.2mm, others: 1.0mm

Doors:steel+glass front door, opening direction of door can be changed/turning angle of front door is over 180 degrees

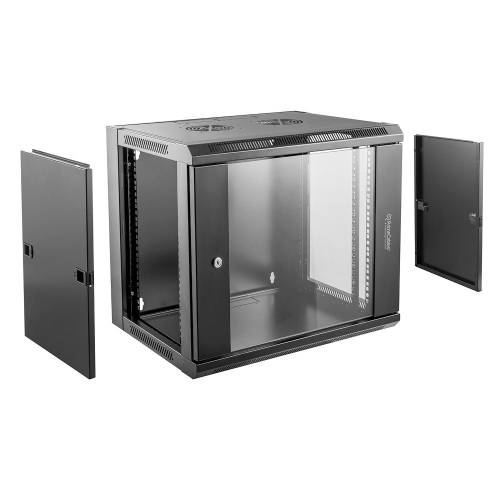

Removable Side Panels:Yes

Cooling Fans:2 fans located on top panel

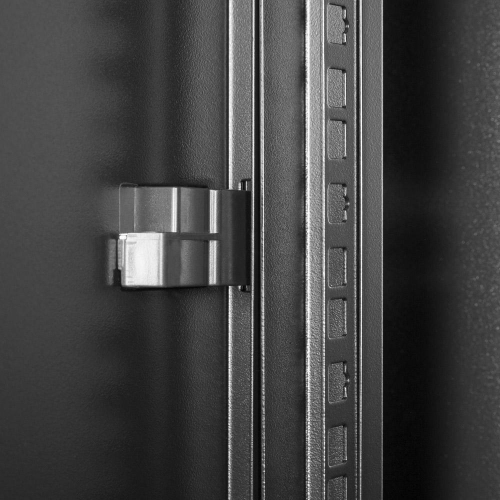

Adjustable Mounting Profile Installation : Yes

Assembly Required: Yes (Flat Packed)

Loading CapacityMaximum: 132 lbs [60 kg]

Cable Entries: Cable entry on both of top cover and bottom panel

Width: 19 inches

Capacity: 9U

Product Dimensions: 19.7 H, 22.5 W, 17.7 D inches [50 H, 57 W, 45 D cm]

Front Rail Depth: Adjustable depth 105mm 125mm 145mm 165mm 185mm 267mm 297mm 317mm 337mm 357mm

(Measured from the Glass to the Rail)

Usable Mounting Dimensions: 9U Height x 19" Wide x 14.5" Deep

ANSI/EIA: Yes

RS-310-D: Yes

IEC60297-2: Yes

DIN41494: Yes

PART1: Yes

PART7: Yes

RoHS: Yes

Reach: Yes

Package Quantity: 1 - Wall Mount Cabinet 9U (Unassembled)

Mounting Hardware:

M5X10 self-tapping screws---

8pcs

M6X12 screws ---8pcs

M6X12 screws&square nuts---10SET

Product Weight: 40.8 lbs [18.5kg]
