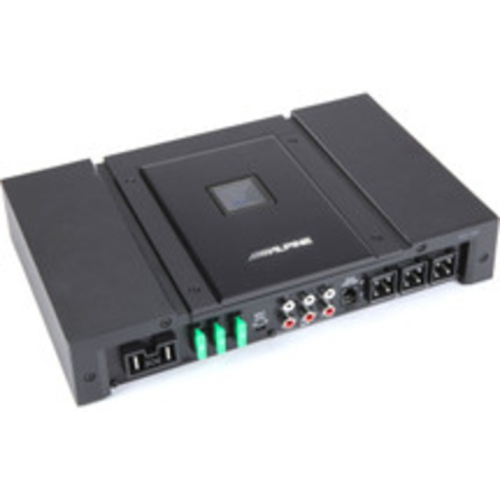

About: Alpine Status HDA-V90 Hi-Res 5-Channel Amplifier
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status System features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24Bit playback.
Impressive Output
Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-V90 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.
Precise Sound Reproduction
The HDA-V90 features a high-efficiency digital circuit design that ensures ultra-low distortion levels for precise sound reproduction and superb sound quality. Intentional designs, like a copper-plated chassis and black circuit board, bring the signal-to-noise ratio up to 87dB and minimize noise and distortion during playback for complete music fidelity that’s true to the original source.
Incredible Reliability
Featuring technology unique to Alpine, the amplifier features Alpine’s dual negative feedback control circuit to improve linearity for the most accurate sound amplification. This technology also stabilizes the amplifier output while driving the speakers and subwoofers for ultimate reliability.
Easy Installation

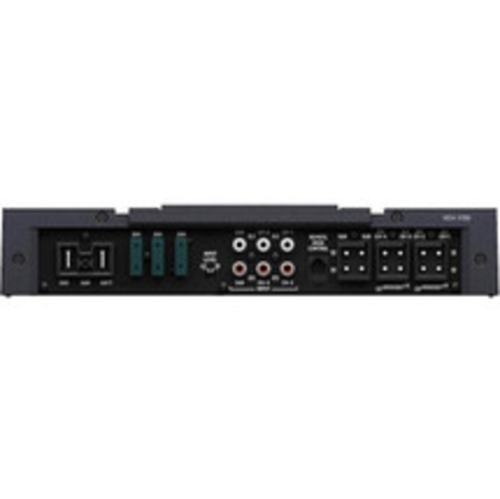

The HDA-V90 features Alpine’s quick-connect power and speaker connectors for quick and safe installation. The one-sided terminal layout and top-panel sound controls give the user quick access to controls on the amplifier.
Optimized for a Full System
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features:
5-channel car amplifier
75 watts RMS x 4 + 300 watts RMS x 1 at 4 ohms
100 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
200 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
Hi-Res Class-D amplifier technology
frequency response: (-3 dB) 8 to 60,000 Hz
variable high- and low-pass filters (50-400 Hz, 12 dB/octave)
variable subsonic filter (8-40 Hz, 24 dB/octave)
variable bass boost (0-12 dB, 50 Hz)
More info:
preamp and speaker-level (up to 10V) inputs
speaker-level inputs require speaker wire to RCA adapters
speaker-level inputs feature signal-sensing amplifier turn-on
optional RUX-KNOB.2 wired remote level control for sub channel

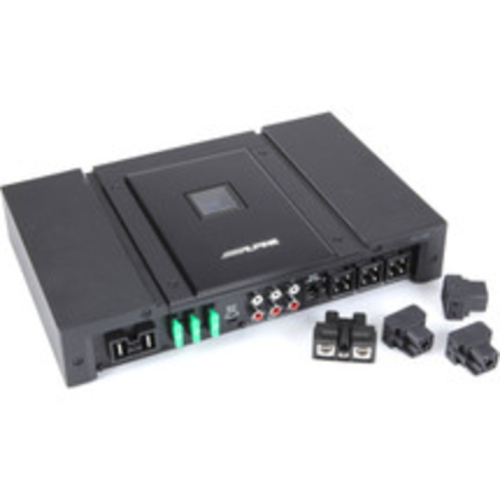

quick-connect power and speaker connectors
wiring and hardware not included with amplifier
4-gauge power and ground wire recommended
fuse rating: 30A x 3
11-7/16"W x 2-1/8"H x 7-1/2"D
