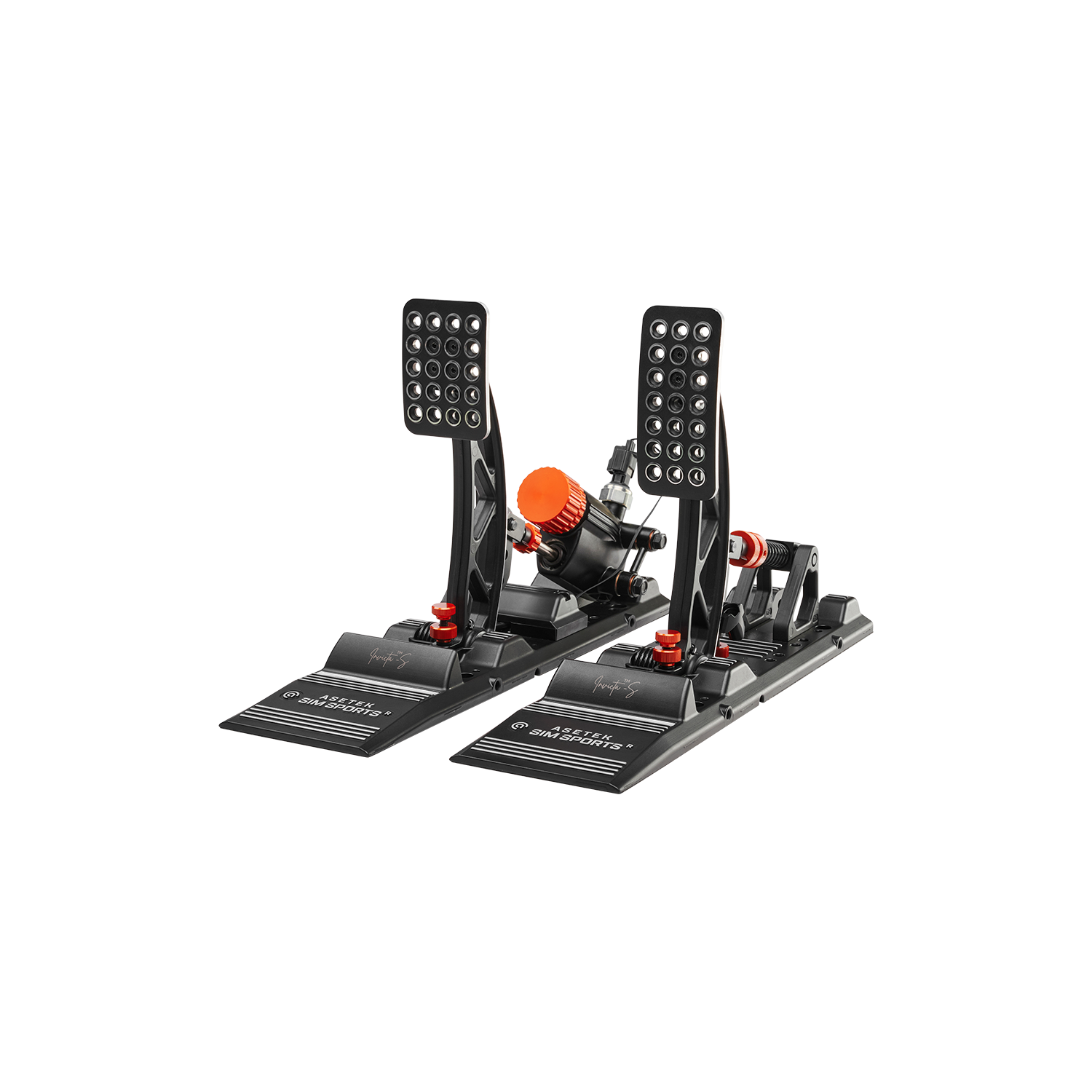

General specifications
· Exquisite, radical, and minimalistic industrial Danish design.
· Adjustable pedal stops
· Adjustable travel settings
· All black anodized aluminum pedal base, pedal arms, and pedal plates, with CNC machined contrast cut surfaces.
· Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed, or turned completely off in the RaceHub software
· Adjustable pedal plates that can be moved along the x- and y-axis
· Calibrations made in RaceHub will automatically be saved in our EPROM (Erasable Programmable Read-Only Memory). This results in calibration (pressures, deadzones and more) will remain saved for every simulator/game (You do need to set 0 and 100% value in the game).
· Only one USB connection to the PC from the pedal base regardless of 2 or 3 pedal utilization
· Each pedal can be calibrated through the intuitive and easy to use RaceHub software
· Pedal upper and lower dead zones can be set through the RaceHub software
· All adjustable mechanical features are by default colored orange
· Inhouse developed electronics with 16-bit resolution and automotive-grade pressure sensor
· Easy to add clutch pedal to the Throttle & Brake combo
· Designed and tested to 1,000,000 activations, which far exceeds any race car specification

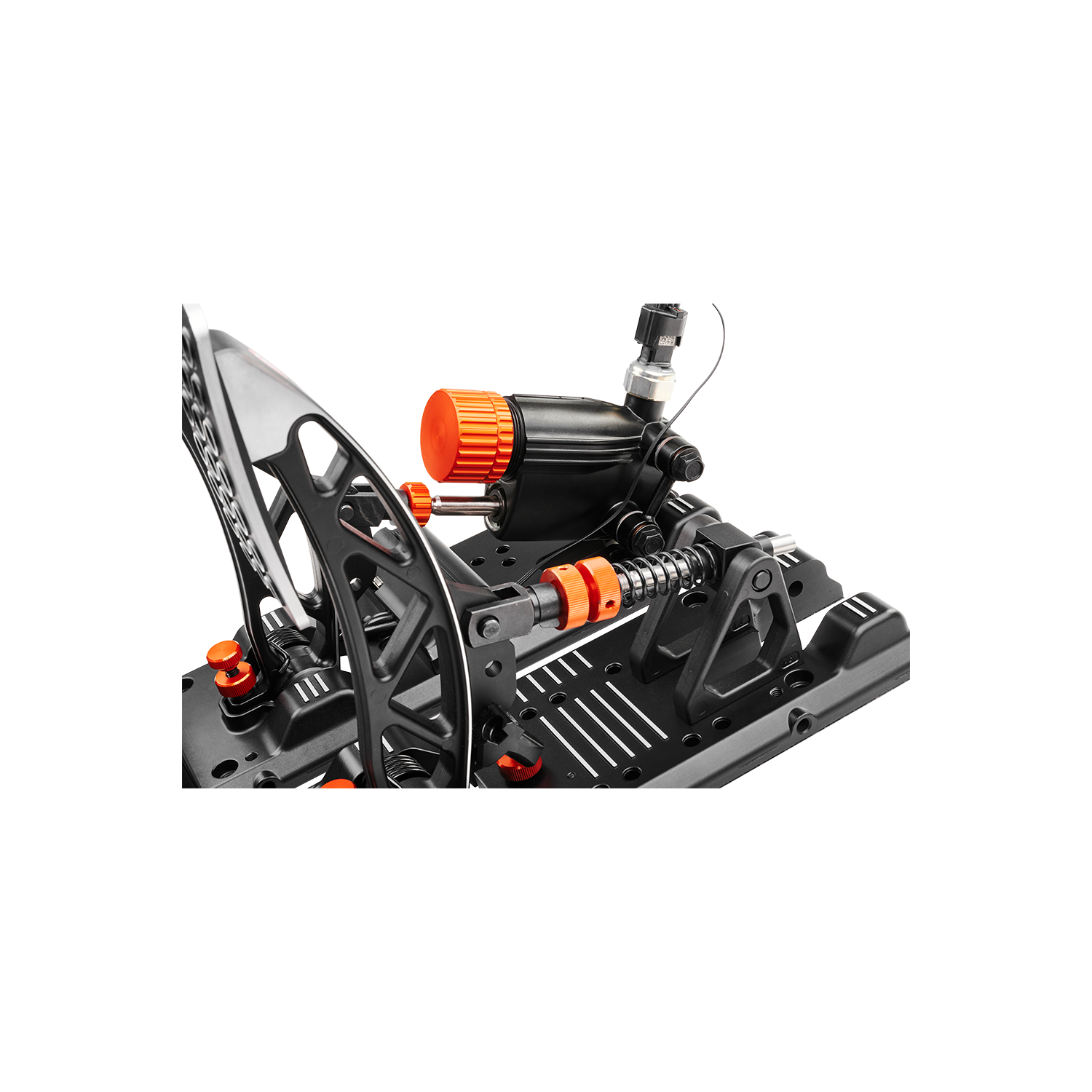

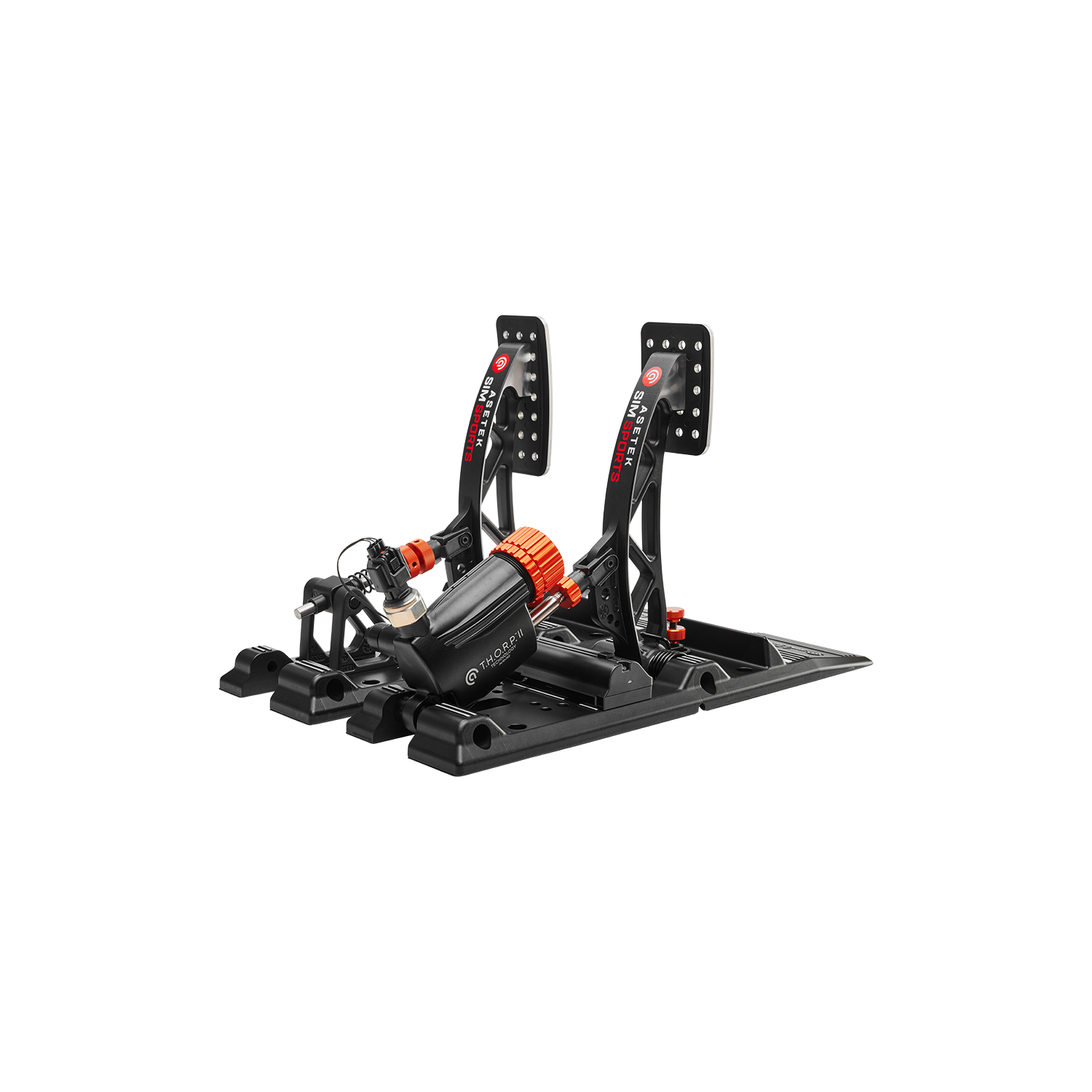

Brake System

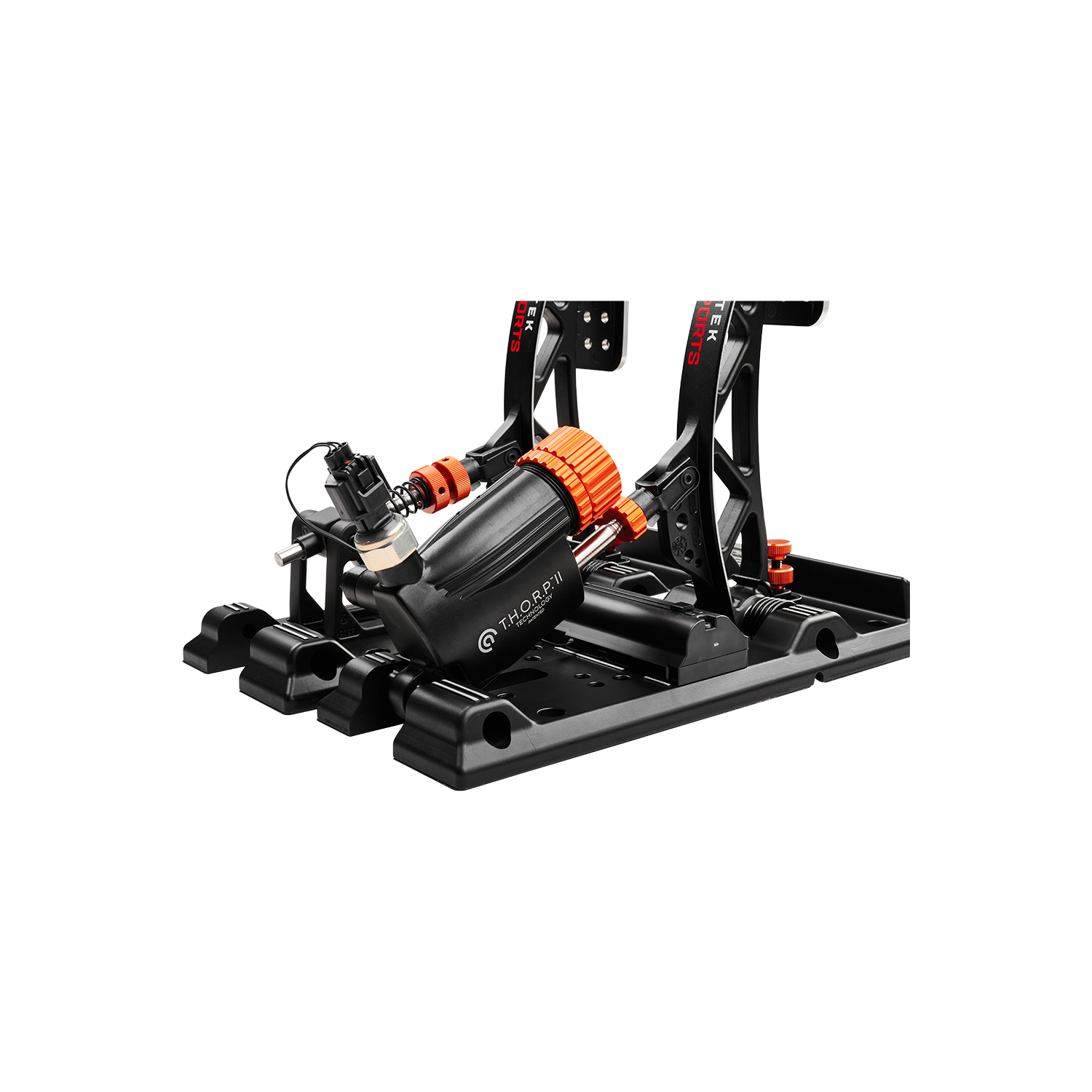

· The T.H.O.R.P. (Twin Hydraulic Opposing Rapid Pistons) patent-pending hydraulic brake cylinder gives the you the ultimate experience of driving a real racecar
· Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.
· Automotive-grade pressure sensor
· The inhouse designed brake cylinder features sleek CNC machined details, adding to the exquisite overall look.
· Three interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and an expansion chamber to mimic perfect racecar feel as well as not overloading the elastomer
· Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
· Pressure sensor measures 0-100 bar – tested to withstand a repetitive pressure of 100 bar (seal burst pressure 130 bar)
· 100 bar of pressure equals 180 kg of force on the face of the pedal plate
· Hydraulic Brake Cylinder made from forged aluminum
· Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!

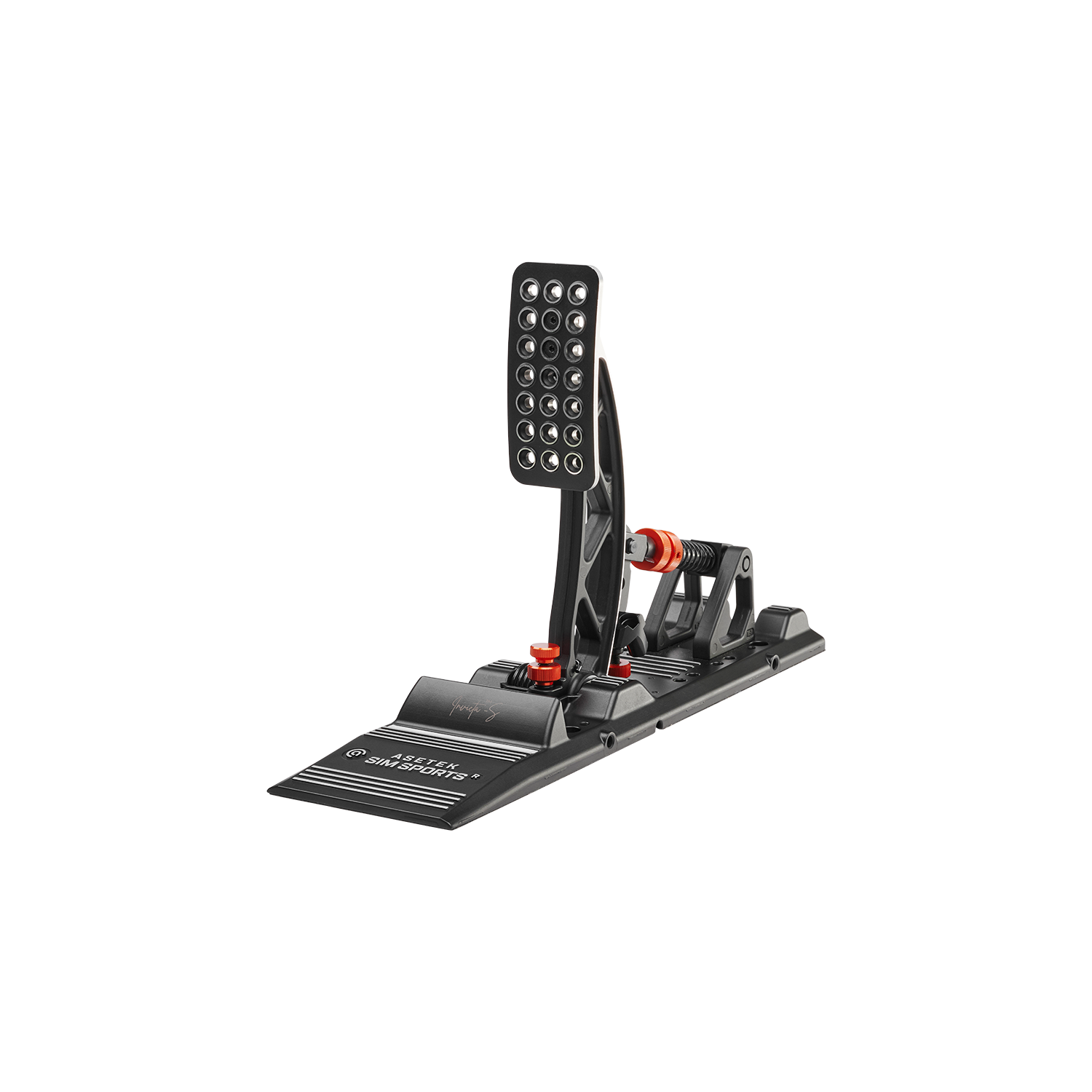

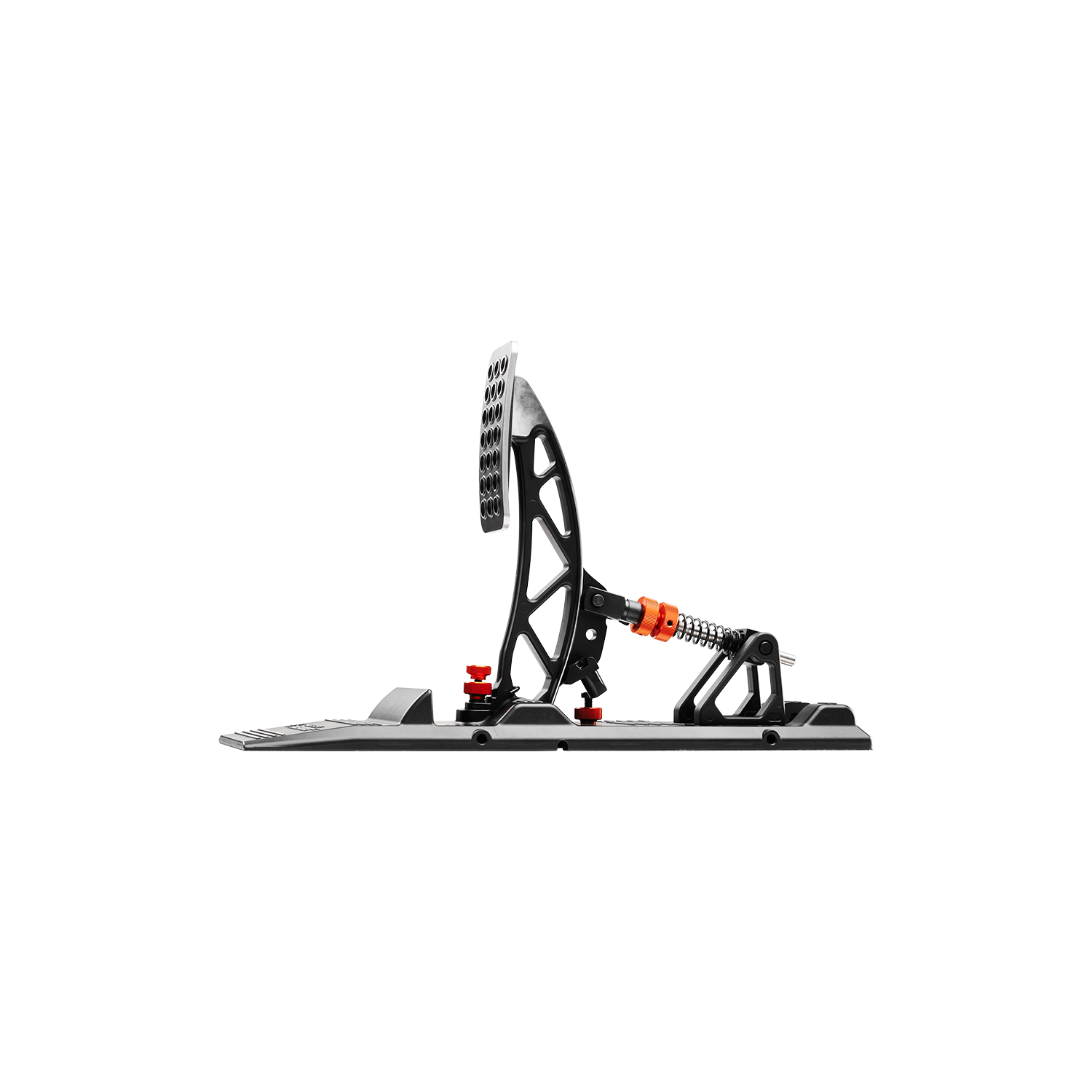

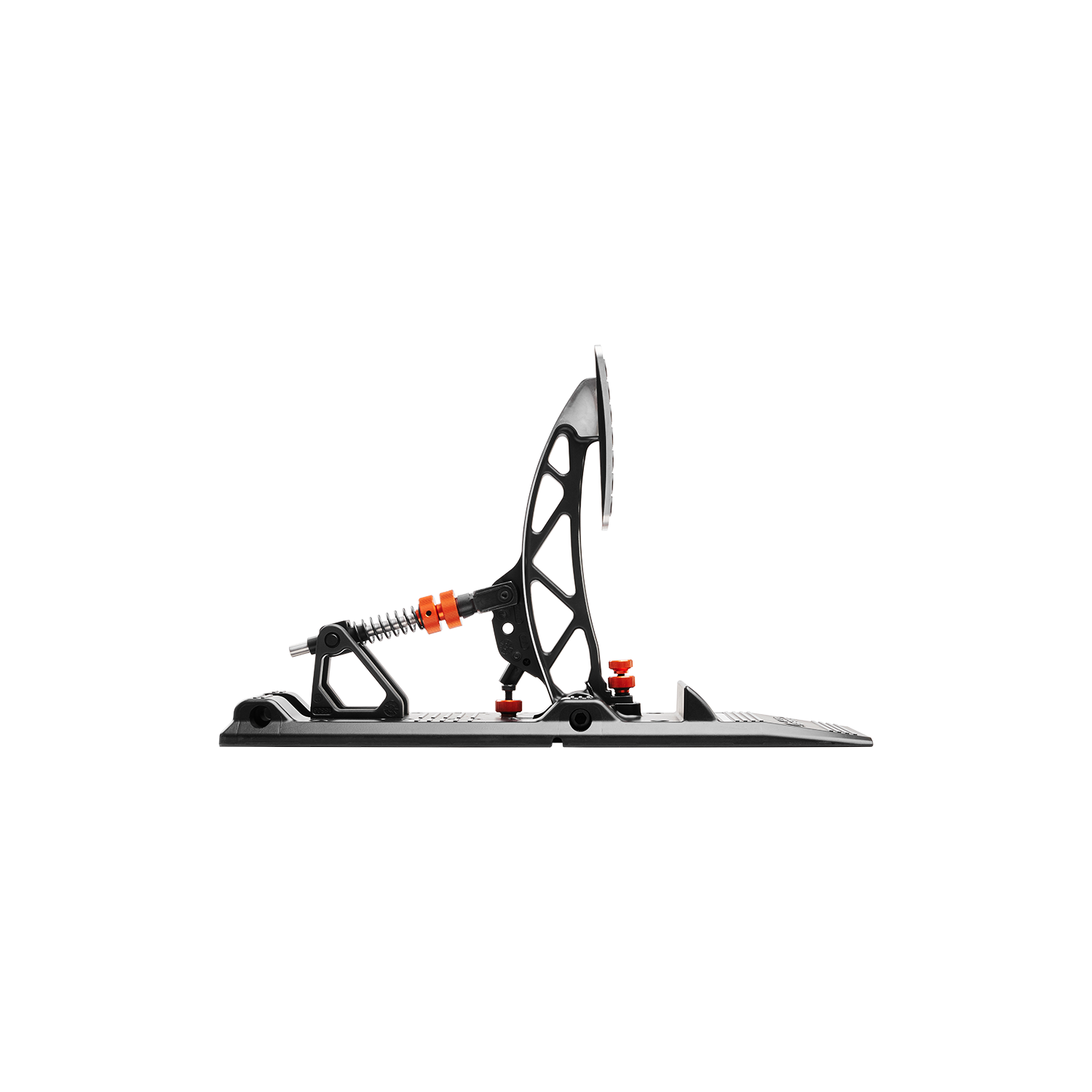

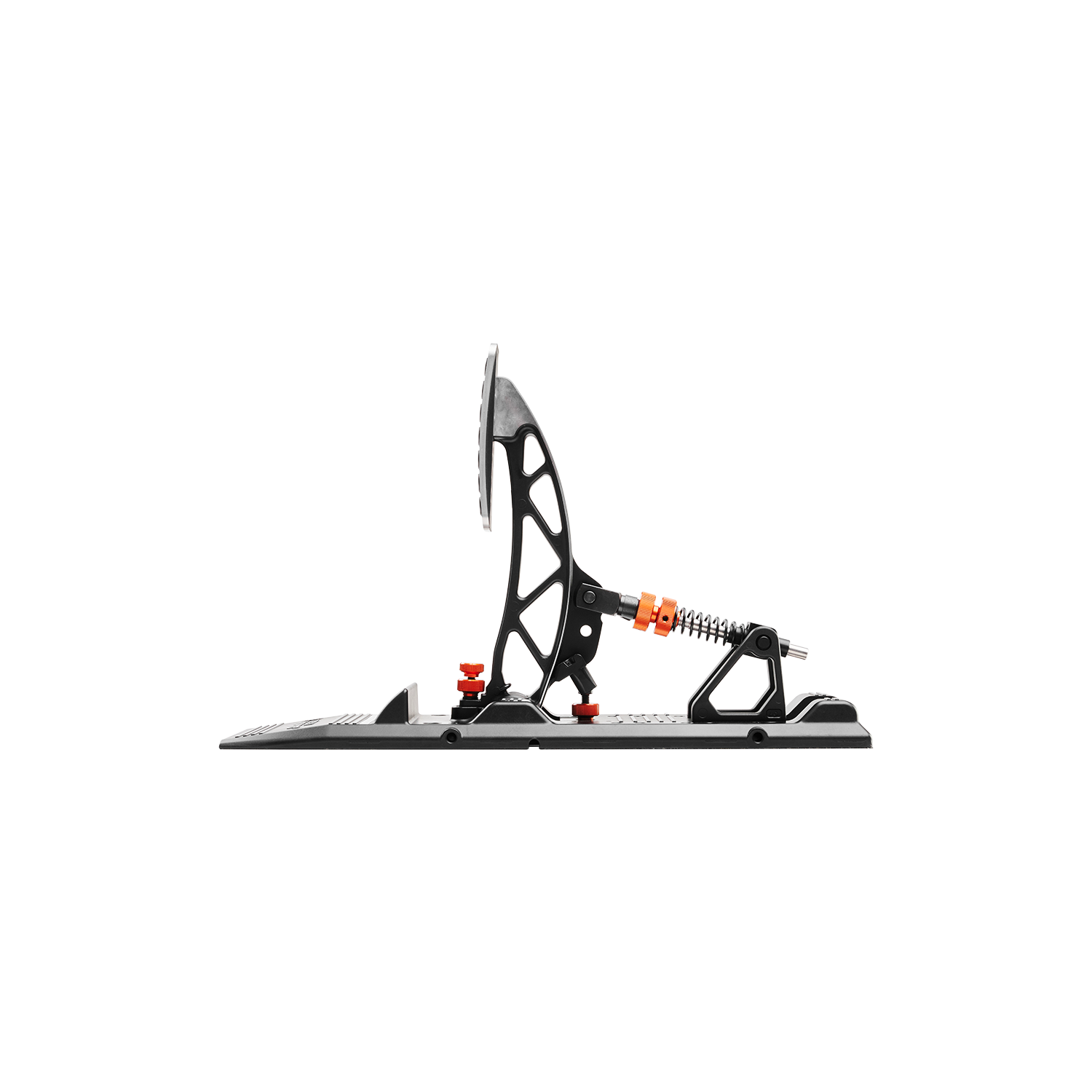

Throttle System
· Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point. Sustainable manufacturing with 100% on-site re-use of waste material
· 16-bit magnetic wireless hall TPS (throttle position sensor) with no mechanical wear and zero maintenance
· Custom throttle curves can be adjusted and 100% customized in the RaceHub Software to mimic real racecar butterfly opening. For example a linear curve in dry conditions and a progressive in wet conditions
· Adjustable pedal hardness, travel and stop
· Interchangeable spring for bigger step in pedal hardness
· Pedal arm is designed for 200 kg of force and a burst pressure of up to 700 kg!
Dimensions
· Depth, width, and height: 457 mm x 212 mm x 256 mm
· Weight: 3 kg
