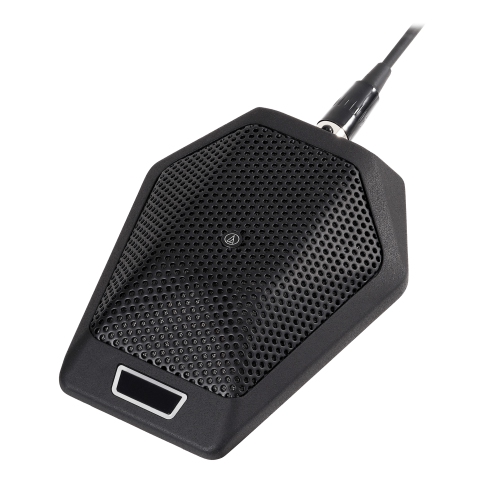

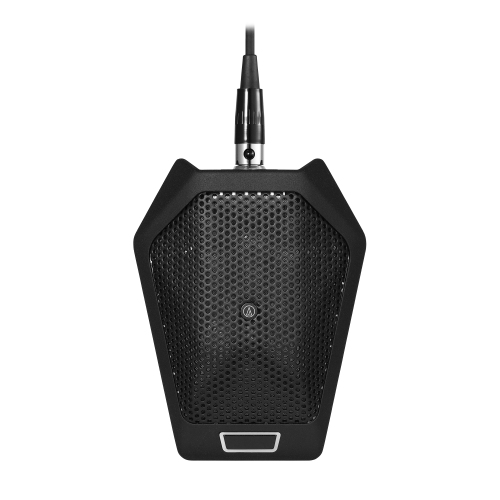

Designed to deliver easy, flexible control in conference and boardroom installations, the versatile U891RbO condenser boundary microphone features a touch-sensitive capacitive-type user switch that can be set to three modes: touch on/off, touch to talk, and touch to mute. The phantom-powered microphone is equipped with a unique PivotPoint rotating output connector and a two-state RGB LED status indicator.
UniGuard innovations offer unsurpassed immunity from radio frequency interference; additional interchangeable elements are available separately in omnidirectional (360°), cardioid (120°), and hypercardioid (100°) polar patterns; an 80 Hz low-cut UniSteep filter reduces pickup of low-frequency ambient noise.
The microphone's heavy die-cast case and silicon foam bottom pads minimise coupling of surface vibration to the microphone, while threaded inserts on the bottom of the microphone allow it to be mounted with screws for increased security. The unit's self-contained electronics eliminate the need for an external power module.
Features
* Omnidirectional condenser boundary microphone with switch
* Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
* The capacitive touch switch can be set to any of three operating modes: "touch-on/touch-off", "touch-to-talk" and "touch-to-mute"

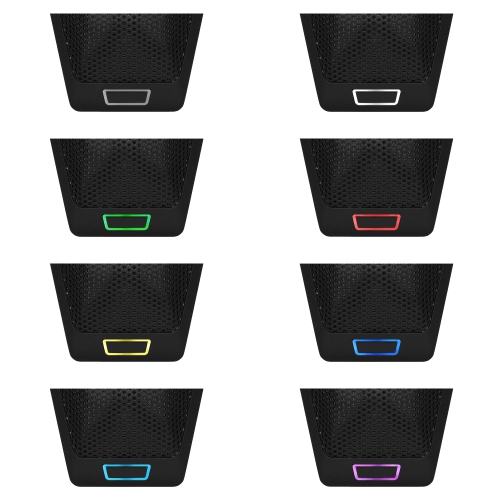

* Integral, phantom-powered, two-state RGB LED indicator displays on/off status of microphone
* PivotPoint rotating output connector allows cable to exit from either the rear or the bottom of the microphone
* UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
* Small-diameter UniPoint capsule near boundary eliminates phase distortion and delivers clear, high-output performance
* Heavy die-cast case and non-slip silicone foam bottom pads minimise coupling of surface vibration to the microphone
* Low-profile design with low-reflectance finish for minimum visibility
* Threaded inserts on bottom of microphone allow it to be mounted with screws for increased security
Specifications
Element: Fixed-charge back plate, permanently polarised condenser
Polar pattern: Omnidirectional
Frequency response: 20 - 20,000 Hz
Low frequency roll-off: 80 Hz, 18 dB/octave
Open circuit sensitivity: -31 dB (28.2 mV) (0dB=1V/Pa, 1kHz)
Impedance: 50 ohms
Maximum input sound level: 128 dB SPL (1kHz at 1% THD)
Noise: 21 dB SPL (A-weighted)
Dynamic range: 107 dB (1kHz at Max SPL)
Signal-to-noise ratio: 73 dB (1kHz at 1Pa, A-weighted)
Phantom power requirements: 11 - 52 V DC, 9.3 mA
Weight: 253 g (8.9 oz)
Dimensions: 23 x 83.9 x 108 mm (0.91 x 3.3 x 4.25")
Output connector: TB3M-type (Microphone), 3-pin XLRM-type (Cable)

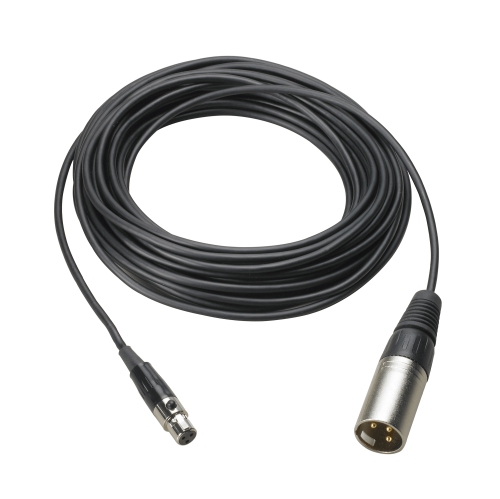

Included accessories: 7.6 m (24.9') Microphone black cable (TA3F, XLRM), Pouch
