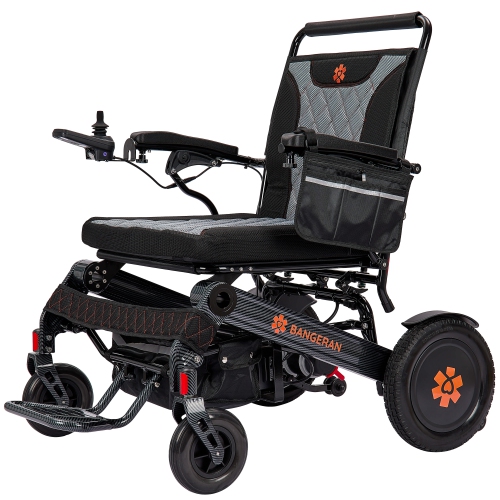

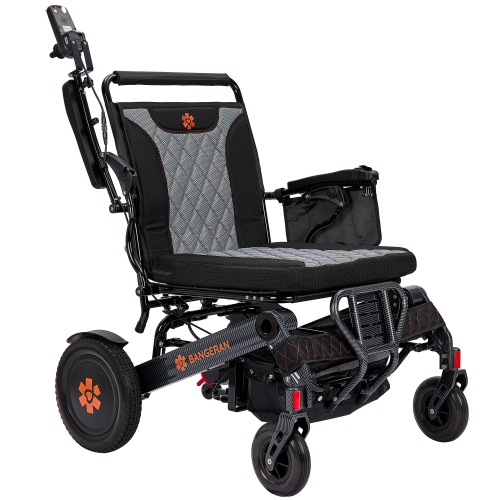

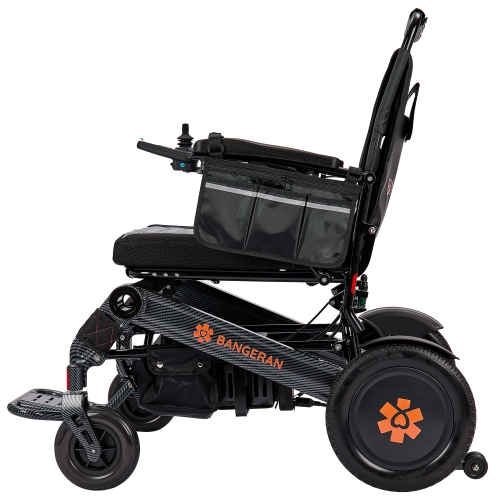

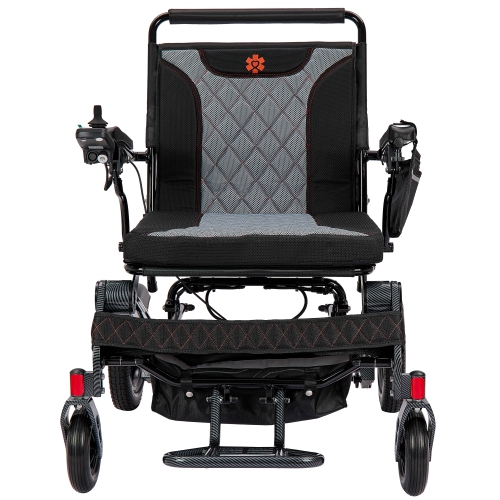

• 𝐂𝐎𝐍𝐕𝐄𝐍𝐈𝐄𝐍𝐓 𝐀𝐔𝐓𝐎𝐌𝐀𝐓𝐈𝐂 𝐅𝐎𝐋𝐃/𝐔𝐍𝐅𝐎𝐋𝐃 𝐅𝐄𝐀𝐓𝐔𝐑𝐄: The Mammoth EX Auto Fold is the upgraded version of the Mammoth EX, featuring a convenient one-click automatic folding and unfolding mechanism using the digital joystick or remote controller. Easily fits in most trunks, this wheelchair has a handle under the seat for easy lifting. The added feature makes storage and transportation easier for users, enhancing the overall user experience.
• 𝐋𝐈𝐆𝐇𝐓𝐖𝐄𝐈𝐆𝐇𝐓: It is just 72 lbs. / 32 kg with the Lithium battery! The versatile mobility chair is assembled with Aluminum Alloy material, a 12AH Lithium battery, and antiseptic breathable seat and back cushions. Speeds up to 4 MPH / 6 KPH. Ample of room with 22 22-inch / 55 cm wide seat. Suitable for users up to 500 lbs. / 225 kg.
• 𝐋𝐎𝐍𝐆 𝐑𝐀𝐍𝐆𝐄 & 𝐄𝐋𝐄𝐂𝐓𝐑𝐎𝐌𝐀𝐆𝐍𝐄𝐓𝐈𝐂 𝐁𝐑𝐀𝐊𝐄: Experience effortless control and smooth braking with Mammoth EX Auto Fold. Inspired by modern vehicle technology, simply release the joystick to activate the electromagnetic brake, gradually slowing down your wheelchair until a gentle stop. Say goodbye to additional braking mechanisms—our new generation of wheelchairs offers exceptional convenience and safety.

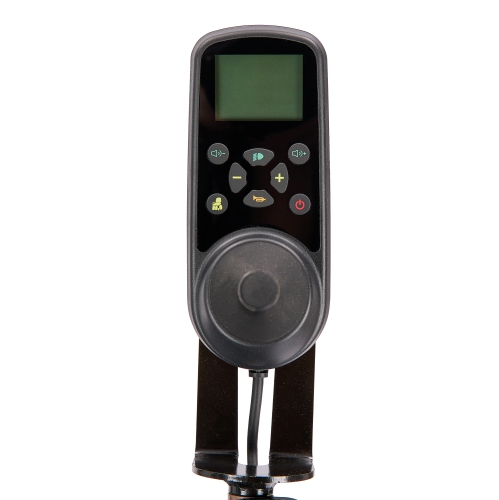

• 𝐒𝐌𝐎𝐎𝐓𝐇 𝐎𝐏𝐄𝐑𝐀𝐓𝐈𝐎𝐍 & 𝐑𝐄𝐌𝐎𝐓𝐄 𝐂𝐎𝐍𝐓𝐑𝐎𝐋: With an ergonomically designed 360° universal intelligent joystick, this wheelchair provides smooth operation and one hand free for quick stops. It has a power indicator light, power on/off, speed indication, speed up and down buttons on the LED Screen. This wheelchair also has a caregiver's remote control for distant operation.
• Introducing the Mammoth EX Auto Fold, an all-new and improved upgraded version of the Mammoth EX – featuring an automatic folding/unfolding mechanism in just one click.
• With the New Anti-Leaning Rear Design Mammoth Ex Auto Fold is Perfectly Stable. It rotates 360° on a 33-inch / 84 cm Radius (sharp turning radius).
*For returns outside of operational issues, the customer is responsible for the return shipping cost between CAD$350-450
• 𝐌𝐀𝐌𝐌𝐎𝐓𝐇 𝐄𝐗 𝐀𝐔𝐓𝐎𝐌𝐀𝐓𝐈𝐂 𝐅𝐎𝐋𝐃 - 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒 & 𝐃𝐈𝐌𝐄𝐍𝐒𝐈𝐎𝐍𝐒 •
• Box: 31.5 x 18 x 33 inches / 80 x 46 x 84 cm
• Unfolded: 38 x 28.5 x 37 inches / 97 x 72 x 94 cm

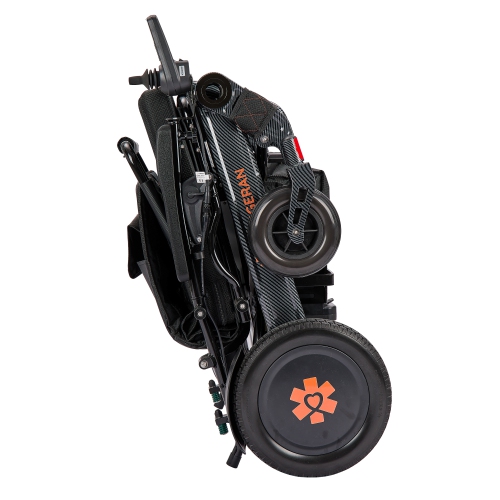

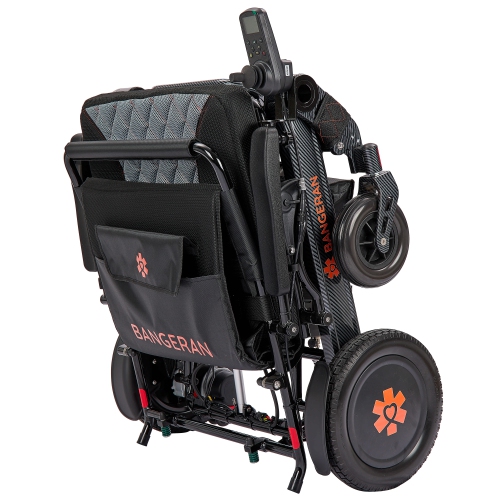

• Folded: 16.5 x 28.5 x 30 inches / 42 x 72 x 76 cm
• Seat Height (from ground): 18 inches / 46 cm
• Seat Width: 22 inches / 55 cm
• Seat Depth: 18 inches / 46 cm
• Backrest Height: 14 inches / 36 cm
• Backrest Width: 19 inches / 48 cm
• Armrest Height (from ground): 28 inches / 71 cm
• Space between Armrests: 22 inches / 56 cm
• Solid Front Wheel: 8 inches / 20 cm
• Solid Rear Wheel: 12.5 inches / 32 cm
• Product Weight (including battery): 72 lbs / 33 kg
• Lithium Battery Weight: 7 lbs / 3 kg
• Weight Capacity: 500 lbs / 225 kg (UPGRADED)
• Box Weight: 80 lbs / 36 kg
• Motor Type: Brushless DC Electric
• Motor Power: 250W X 2 (500W)
• Motor Voltage Input: DC 24V
• Voltage Output Current: DC 24V, 2A
• Controller Power: AC 100-220V, 50-60Hz
• Max Output Current of Controller: 50A
• Max Output Current of Charger: 2A
• Max Speed: 4 MPH / 6 KPH
• Distance Range: Up to 12 miles / 20 km
• Charging Time: 8-12 hours
• Brake System: Intelligent Electromagnetic Brake
• Controller Type: Detachable All-Direction Intelligent Digital Joystick
• Turning Radius: 33°
• Climbing Ability: ≤ 6°
• Automatic Fold: No
• Reclining: Yes (Automatic)
• Headrest: Yes
• 360° Waterproof Universal Joystick: Digital
• Can Joystick Use Both Side: Yes
• Quadruple Shock Absorber: Reduces vibration during the ride, located on the legs
• 𝐃𝐢𝐬𝐭𝐢𝐧𝐜𝐭 𝐅𝐞𝐚𝐭𝐮𝐫𝐞𝐬? •
The Mammoth series is known for being the most heavy duty. The Mammoth EX AF model is the Auto Folding version of the Mammoth EX. It has a 21.5 inches / 55 cm ultra wide seat and a weight capacity of 500 lbs. / 225 kg (upgraded capacity). Hence, we call it a bariatric wheelchair.
When the battery is discharged can this still be used like a regular wheelchair?

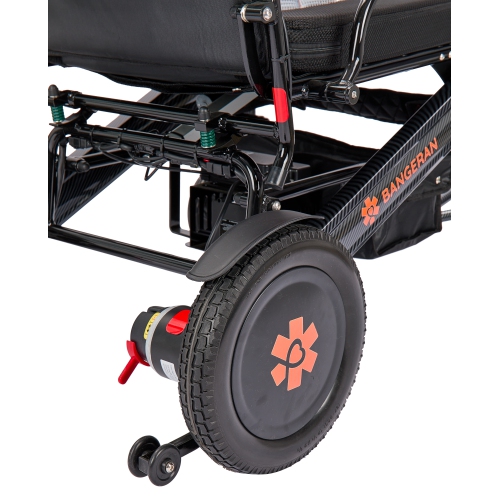

Yes; it can be used as a regular wheelchair. You just need to push the red levers on the rear wheels down so that the motors disengage from the wheelchair hence make the wheelchair in free wheel mode.
• 𝐇𝐨𝐰 𝐜𝐚𝐧 𝐈 𝐟𝐨𝐥𝐝 𝐚𝐧𝐝 𝐮𝐧𝐟𝐨𝐥𝐝 𝐭𝐡𝐞 𝐌𝐚𝐦𝐦𝐨𝐭𝐡 𝐄𝐗 𝐀𝐅? •
On the joystick there is a button that controls the seat which you see the seat picture near that button. To fold or unfold what you need to do is one of these two options. 1-) Push the seat button and "-" or"+" button on the joystick. Please note that "+" unfolds and "-" folds the wheelchair 2-) Push the seat button and move the joystick stick backward to unfold or forward to fold the wheelchair. To recline with the remote control, pressing on the recline button will fold the wheelchair and the trigger button on the bottom will raise the wheelchair.
• 𝐇𝐨𝐰 𝐭𝐨 𝐩𝐚𝐢𝐫 𝐭𝐡𝐞 𝐫𝐞𝐦𝐨𝐭𝐞 𝐜𝐨𝐧𝐭𝐫𝐨𝐥𝐥𝐞𝐫? •
The remote control comes paired with the wheelchair joystick. If not, while the joystick is off, please press and hold the on/off button and unfold button together for 3 seconds. A red and yellow indicator light on the remote controller will flicker and this means the previous pairing history is deleted and ready to pair with a new joystick. Next, open the joystick and hold the remote control next to the joystick. A beeping sound will be heard and this sound means that the pairing was successful.
• 𝐖𝐡𝐚𝐭 𝐦𝐚𝐭𝐞𝐫𝐢𝐚𝐥 𝐢𝐬 𝐭𝐡𝐞 𝐟𝐫𝐚𝐦𝐞 𝐦𝐚𝐝𝐞 𝐨𝐟? •
The wheelchair is manufactured from aircraft grade aluminum alloy. That makes the frame lightweight .
• 𝐒𝐭𝐨𝐫𝐚𝐠𝐞 𝐥𝐢𝐟𝐞 𝐨𝐟 𝐚 𝐜𝐡𝐚𝐫𝐠𝐞𝐝 𝐛𝐚𝐭𝐭𝐞𝐫𝐲? •
The typical estimated life of a Lithium-Ion battery is about one to two years or 300 to 500 charge cycles, whichever occurs first.
Is the Mammoth EX AF compliant with TSA and FAA regulations?
The main reason a device may or may not be compatible with TSA and FAA regulations is the battery size. The Mammoth EX AF with regular battery is compliant .
For any questions regarding compliance, please contact the Bangeran Customer Support.
• 𝐖𝐡𝐞𝐫𝐞 𝐬𝐡𝐨𝐮𝐥𝐝 𝐭𝐡𝐞 𝐰𝐡𝐞𝐞𝐥𝐜𝐡𝐚𝐢𝐫 𝐛𝐞 𝐩𝐥𝐮𝐠𝐠𝐞𝐝 𝐢𝐧 𝐟𝐨𝐫 𝐜𝐡𝐚𝐫𝐠𝐢𝐧𝐠? •
There is a charging port under the joystick and on the battery. You can charge your wheelchair from either of them.
• 𝐖𝐡𝐞𝐧 𝐢𝐧 𝐦𝐚𝐧𝐮𝐚𝐥 𝐦𝐨𝐝𝐞 𝐡𝐨𝐰 𝐦𝐮𝐜𝐡 𝐫𝐞𝐬𝐢𝐬𝐭𝐚𝐧𝐜𝐞 𝐢𝐬 𝐭𝐡𝐞𝐫𝐞 𝐰𝐡𝐞𝐧 𝐢𝐭'𝐬 𝐩𝐮𝐬𝐡𝐞𝐝? •
You should not feel much resistance. If you feel there is a lot of resistance, the wheelchair may not be in free wheel mode or the weight on the wheelchair may be more than recommended.
• 𝐖𝐡𝐚𝐭 𝐢𝐬 𝐢𝐧𝐜𝐥𝐮𝐝𝐞𝐝 𝐢𝐧 𝐭𝐡𝐞 𝐛𝐨𝐱? •
Electric Wheelchair x 1, Control Joystick x 1, Bluetooth Remote Controller x 1, Charger x 1, User Manual x 1
• 𝐇𝐨𝐰 𝐝𝐨 𝐰𝐞 𝐢𝐧𝐬𝐭𝐚𝐥𝐥 𝐨𝐫 𝐫𝐞𝐦𝐨𝐯𝐞 𝐭𝐡𝐞 𝐛𝐚𝐭𝐭𝐞𝐫𝐲? •
The battery is located under the wheelchair frame positioned upwards. Once the safety clip is released, the battery can easily slide out and be changed.
