axGear HDMI Audio Extractor Spliter HDMI to RCA Composite Optical Audio

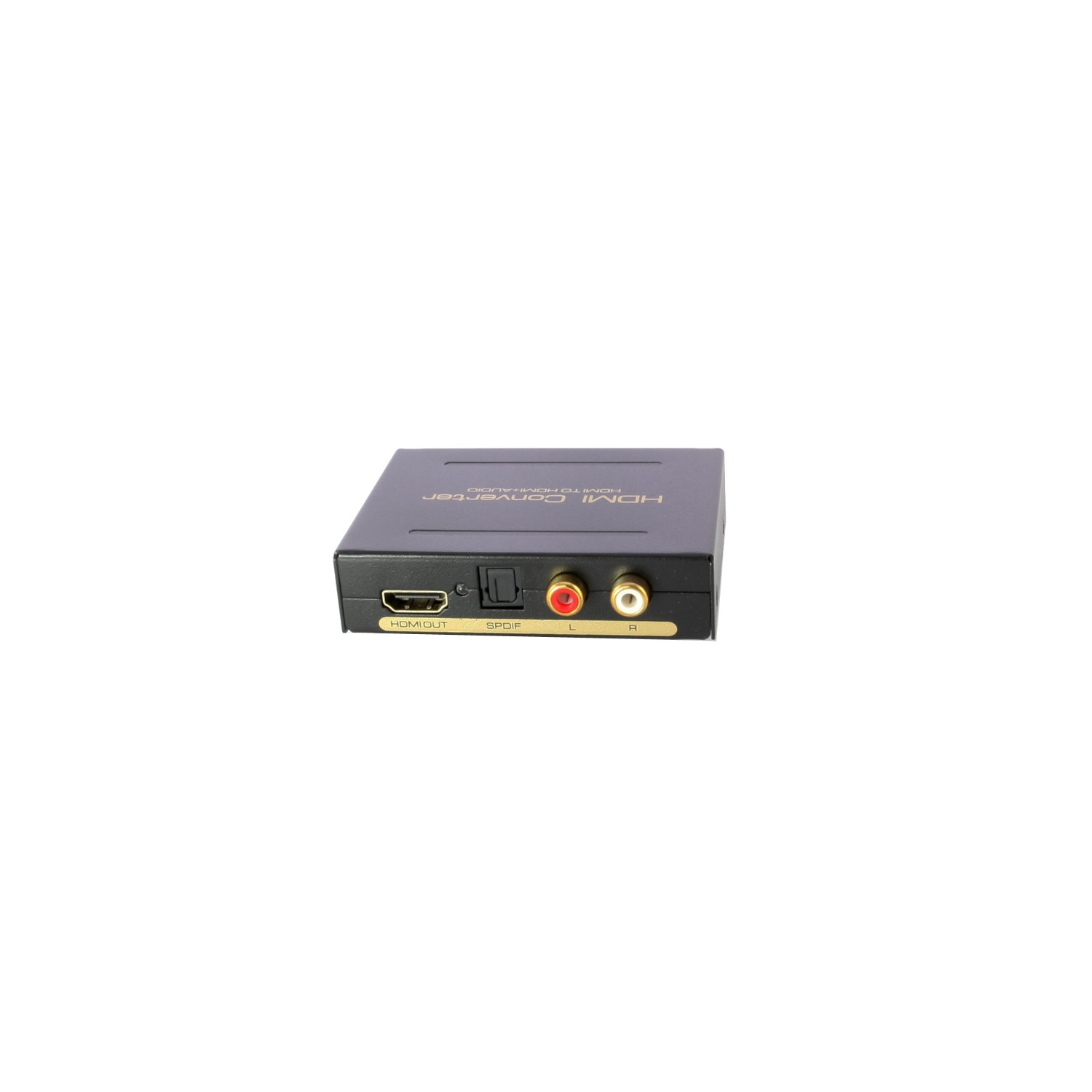

HDMI Audio Extractor to SPDIF RCA Stereo L/R Analog Output Converter The HDMI to HDMI converter allows the HD Source connected to single HD Display and adds extra one L+R

and SPDIF audio out port.

The devices offer solutions for noise, space and security concerns, data center control, information

distribution, conference room presentation, school and corporate training environments.

This device can extract the digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH

analog stereo output through its RCA style L/R analog output AND SPDIF output at the same time.

The SPDIF output can support 5.1CH audio including Dolby Digitla 5.1CH and DTS 5.1CH; it does NOT support

Dolby Digital Plus and PCM 5.1CH and beyond. Product Feature:

Extract the digital audio signal from the HDMI input and convert it to 2 channel analog stereo output or

5.1 channel Audio output

Supports the highest video resolution to 1080p. Supports 225MHz/2.25Gbps per channel bandwidth

Supports 12bit per channel (36bit all channel) deep color. Supports HDCP, Video EDID Pass Through;

Plug & Play

Audio EDID Settings: 2CH for L/R or SPDIF stereo output; 5.1CH for SPDIF Output, Supports

uncompressed audio such as LPCM. Supports compressed audio such as DTS Digital, Dolby Digital

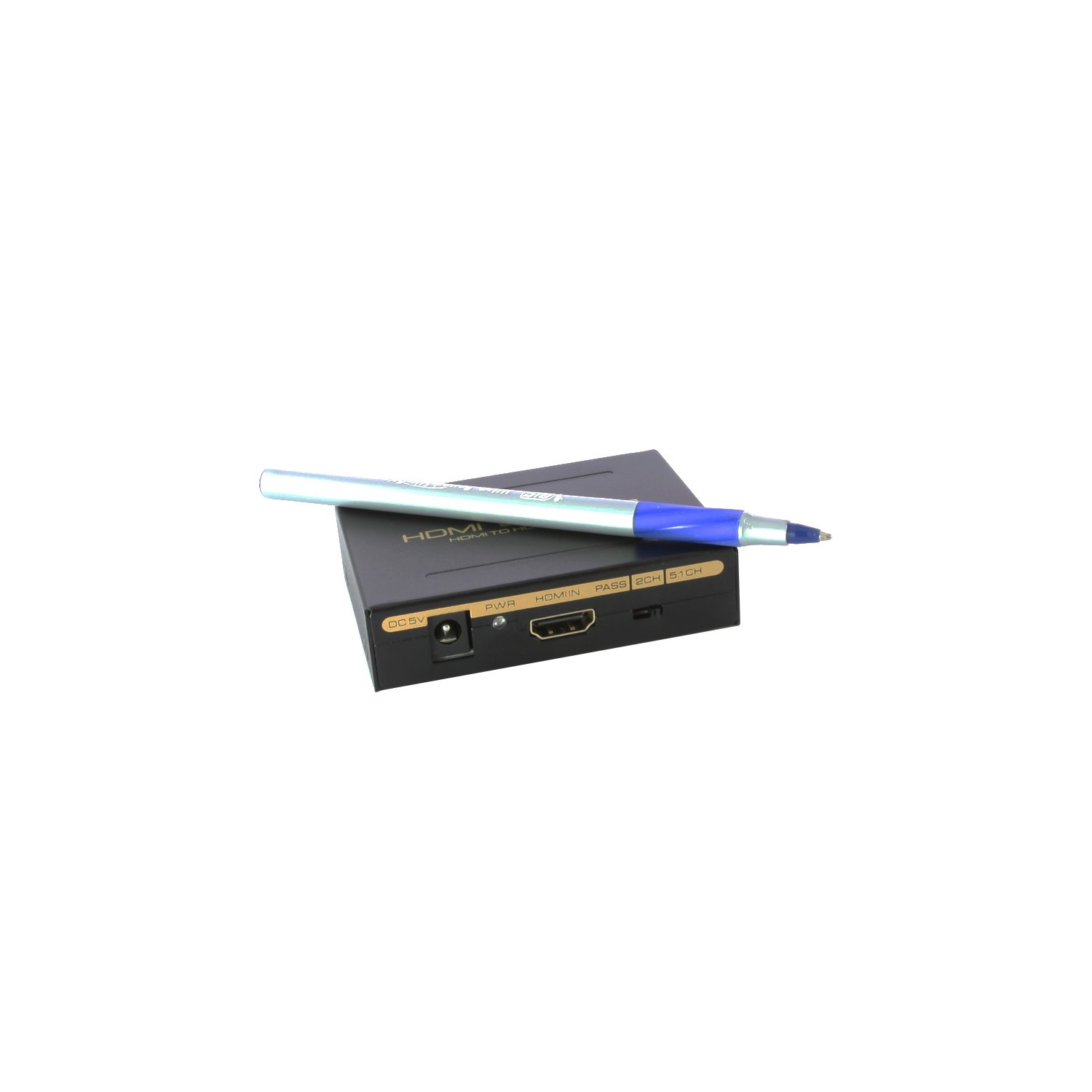

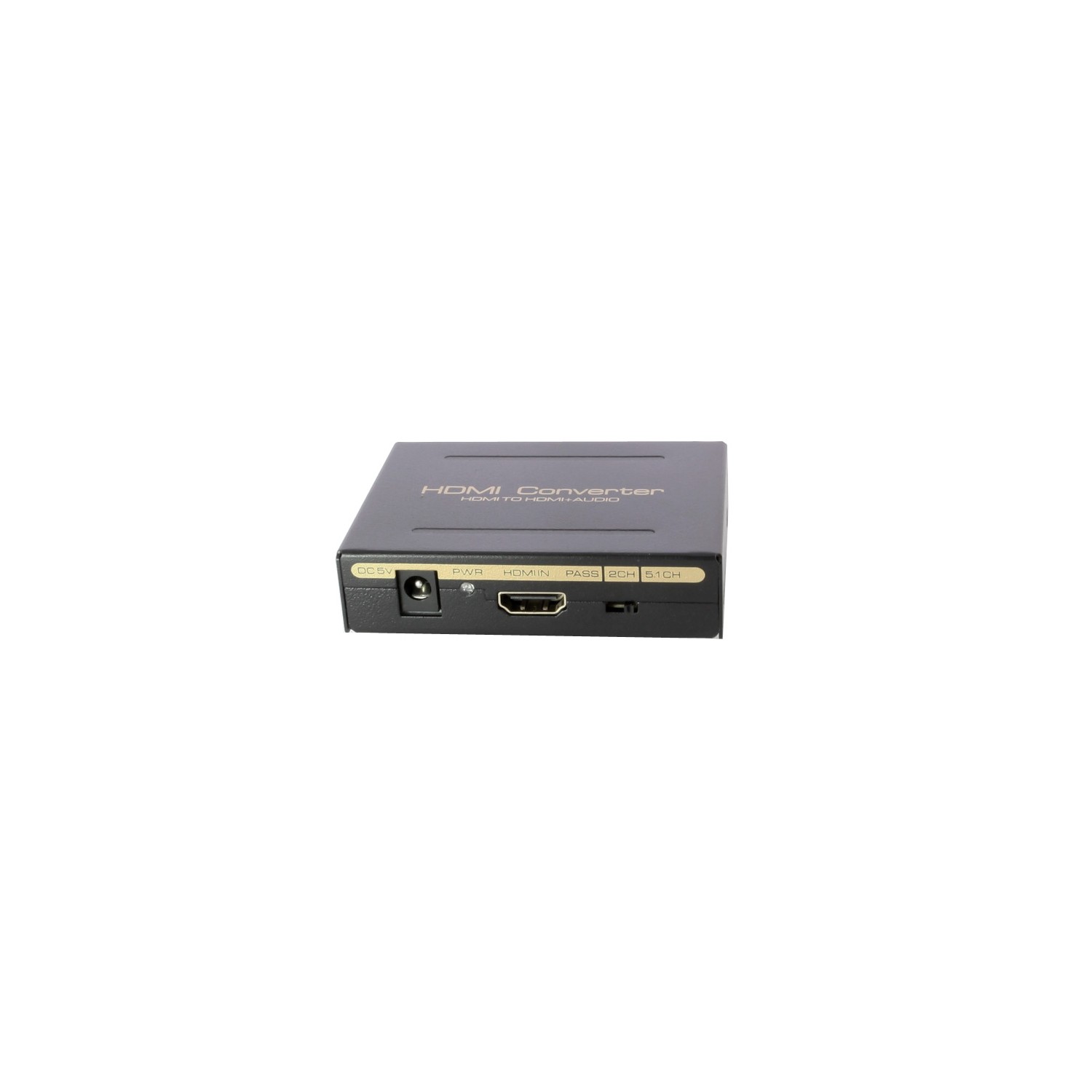

Provides the Best Flexibility through Three NEW Audio EDID Settings: Pass, 2CH and 5.1CH, Support 3D

video (To get 3D, all units connected to the splitter outputs must support 3D). This item supports Apple

TV and various Blu-ray player and satellite receivers Product Specification:

HDMI resolution: 1080P/1080i/720p/576p/576i/480p/480i

Support video color format: 24bit/deep color 30bit,36bit

Audio output: L/R+SPDIF

Max bandwidth: 225MHz

Max baud rate: 6.75Gbps

Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal: 5Volts p-p (TTL)

Input cable distance: within 15m AWG26 HDMI standard cable

Output cable distance: within 20m AWG26 HDMI standard cable

Max working current: 500mA

Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range: (-15 to +55 C;)

Operating Humidity range: 5 to 90%RH (No Condensation)

Dimension (L x W x H): 84.5 x 61.8 x 21 (mm) Package Included:

1x HDMI Audio Extractor

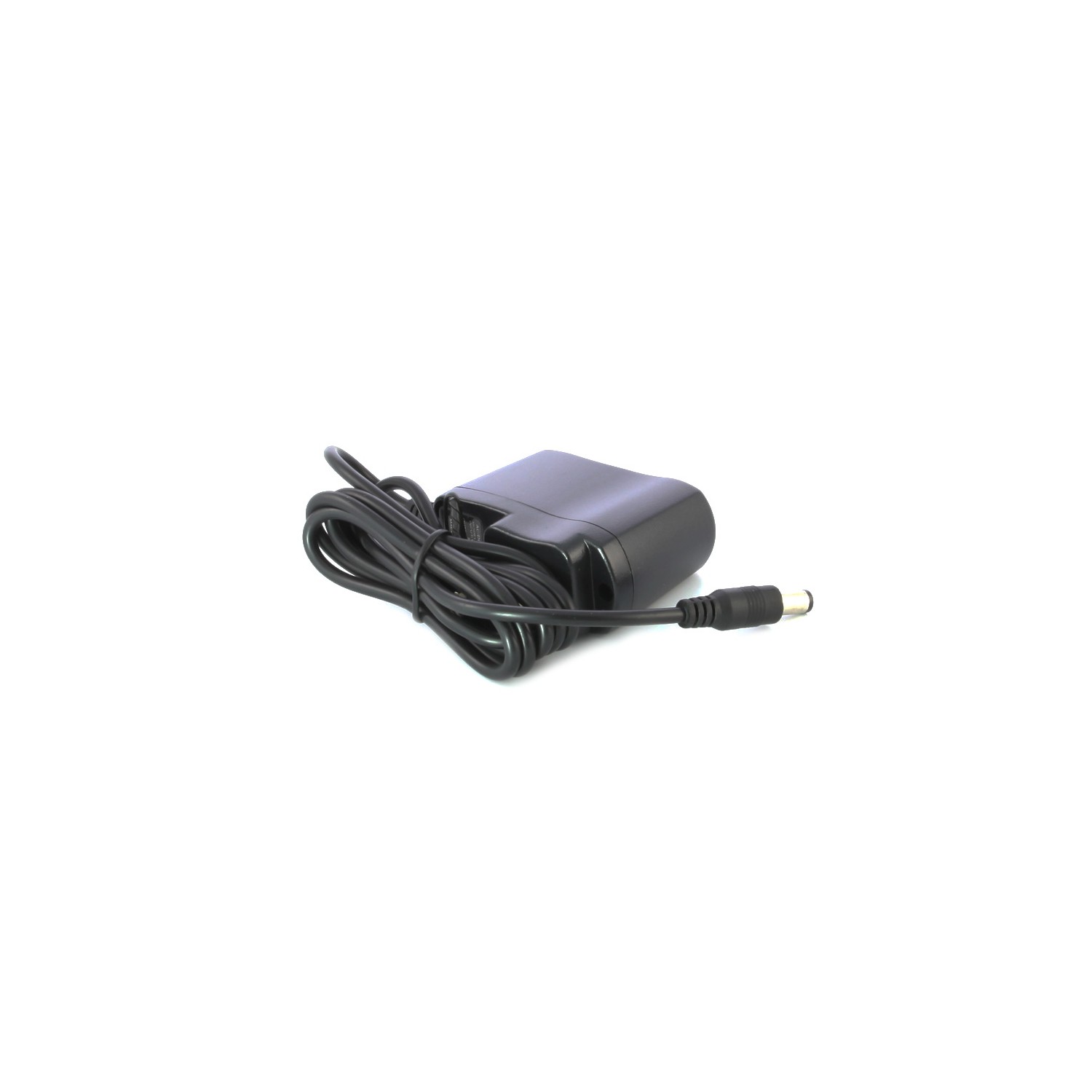

1x DC Power Adaptor

1x Use Manual
