Overview

Universal PCI Bus 3.0 compliant Host Adapter (32 bit bus width; 33 MHZ bus speed; 3v3 & 5 volt PCI bus compatible), Oxford OXuPCI954 Enhanced UART (128 byte TX & RX FIFOs) model, 4 port adapter with EACH port configurable for RS232/RS422/RS485 modes (RGB LED denotes mode of each port)

Axxon LF1177KB Universal PCI 4 Port RS232/422/485 Selectable

Model: LF1177KB
Web Code: 13407382
Sold and shipped by | 5.0 seller rating (1 review)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Read return policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

What's included:

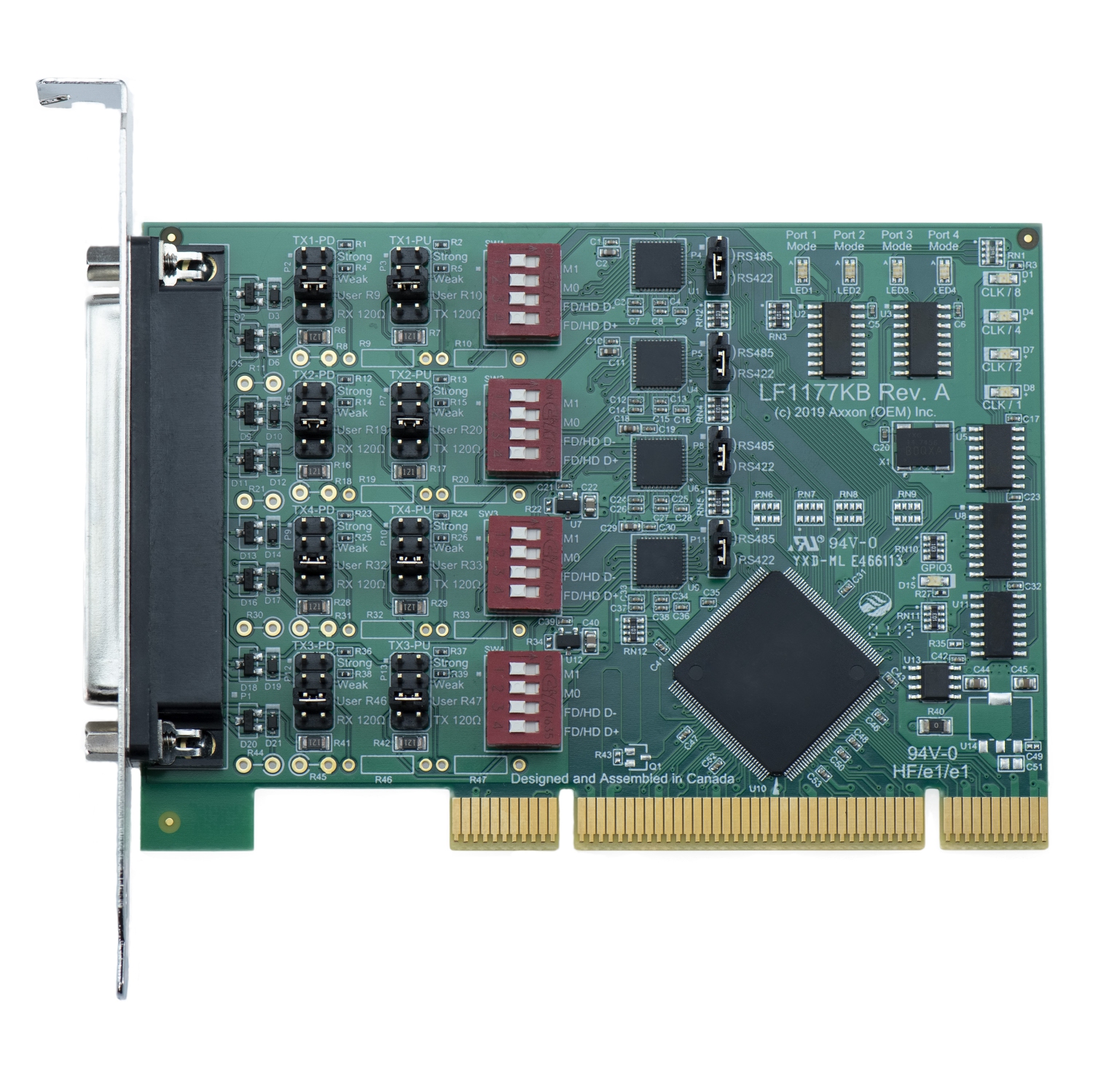

  • LF1177KB Board

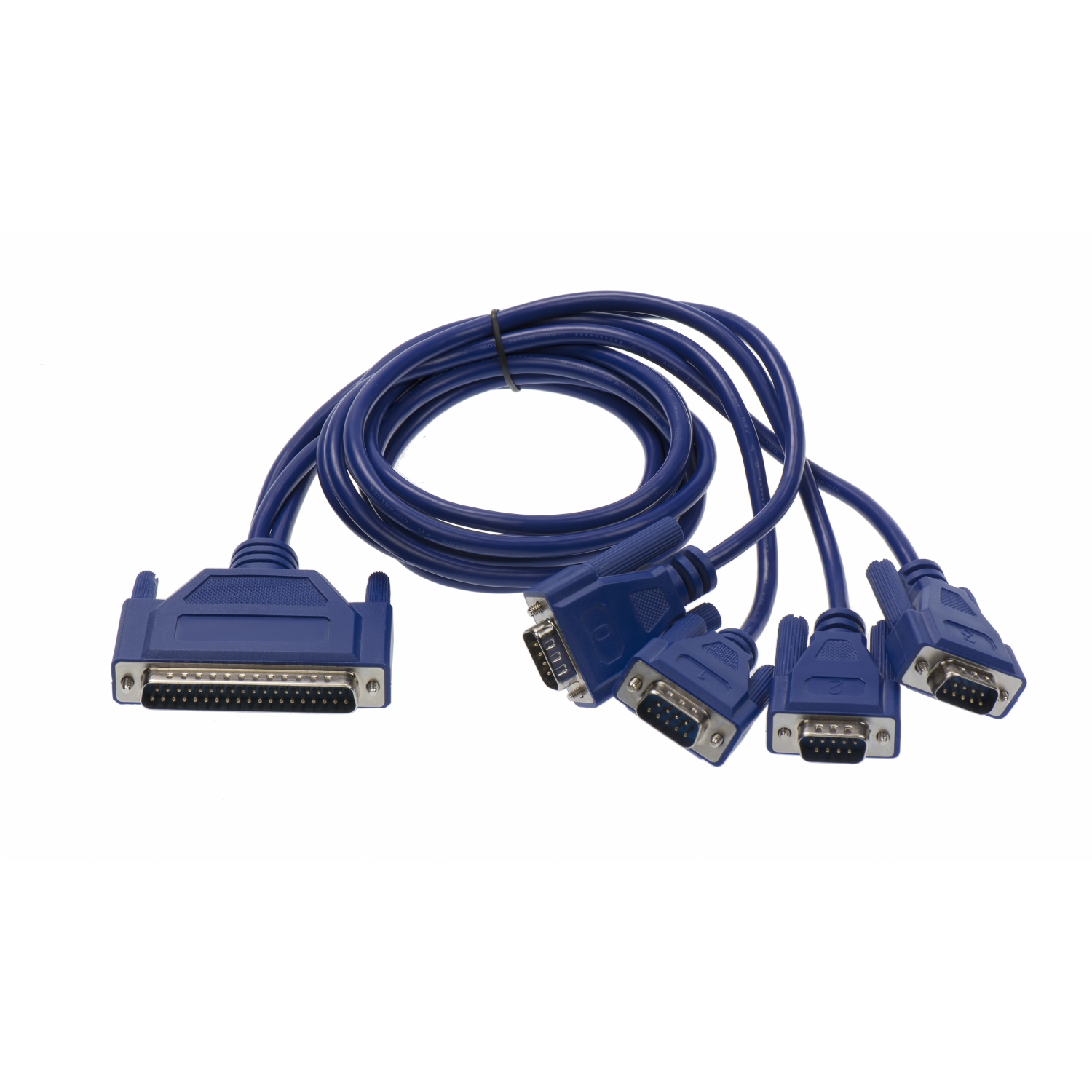

  • 36" Cable (DB37M to 4 x DB9M)
  • Driver CD

RS232 mode supports full 9-wire industry standard DTE pinout (15kv ESD protected); RS485 modes supports 2W (half duplex; D+ / D-) and 4W (full duplex; TX+, TX-, RX+, RX-) (30kv ESD protected); RS485 mode with / without local echo (30kv ESD protected); RS485 transceivers are 1/8th load to permit up to 256 RS485 nodes (if all mated nodes are also 1/8th load); Fail-safe biased RS485 transceivers with support for common and custom biasing of external RS485 nodes, Hardware controlled RS485 state machine enables / disables the RS485 transmitter autonomously Plug & Play support for Windows (32.64 bit) and Linux (2.4.18+ kernels) platforms; Full (standard) Height Circuit board, DB37 Female to 4 x DB9M cable harness (double-shielded) included (36 inches length), X5R or X7R ceramic capacitors are used only for a longer service life (no electrolytics; no tantalums), Halogen Free, Conflict of Minerals, FCC, CE, RoHS & Pb-free compliant 4L FR4 High grade (94V-0) circuit board; Designed & Assembled in Canada under ISO 9001:2015 certified procedures, Support from Design Engineers; 5 year product replacement warranty (less shipping charges)

Product Condition
Brand New
Card Bus
PCI/PCI-X (not PCIe)
Card Type
PCI/PCI-X (not PCIe)
Interface
PCI/PCI-X (not PCIe)
Total Number of Ports
4
Operating Systems
Plug & Play support for Windows (32.64 bit) and Linux (2.4.18+ kernels) platforms
Platform
PC
