SMS Surface Mount System Panel Enclosure - 6 Circuit BlankFeatures:Blank apertures for custom breaker loadingGlass filled polycarbonate mounting boxClear cover allows easy view of circuit breaker statusOverlapping cover for strength and increased gasket protectionOversized, formed in place seamless PUR gasketEasily removable stainless steel h

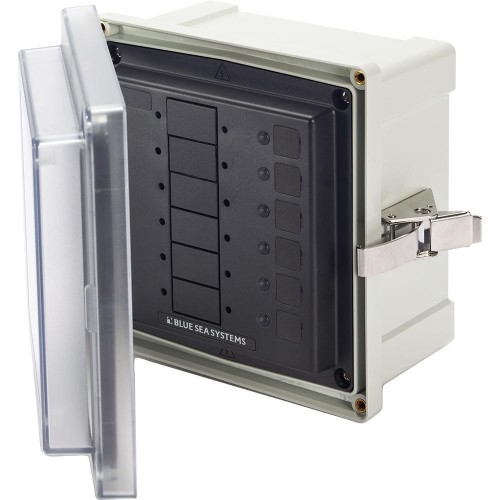

Blue Sea 3113 SMS Surface Mount System Panel Enclosure - 6 Circuit Blank

Model: CW65583
Web Code: 12542214
Sold and shipped by | 4.1 seller rating (315 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

SMS Surface Mount System Panel Enclosure - 6 Circuit BlankFeatures:

Blank apertures for custom breaker loading

Glass filled polycarbonate mounting box

Clear cover allows easy view of circuit breaker status

Overlapping cover for strength and increased gasket protection

Oversized, formed in place seamless PUR gasket

Easily removable stainless steel hinge pin for unobstructed installation

Stainless steel latch secures cover without penetrating the enclosure

Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers

Stainless steel mounting hardware included

Specifications:

Minimum Operating Temperature: -40° C

Maximum Operating Temperature: 85° C

Cover Screws and Hardware: 10-32 Stainless Steel

Enclosure Size: 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm)

Exterior Overall Dimensions: 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm)

Mounting Hardware: 1/4" Diameter, #12 (6 mm)

Weight: 3.15lb (1.43 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Product : BLUE SEA 3113 6 BLANK POSITION PANEL ENCLOSURE Manufacturer : BLUE SEA SYSTEMS Manufacturer Part No : 3113 UPC : 632085031138
