ST Blade Compact Fuse Blocks - 4 Circuits w/CoverProvides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.Compact common source fuse blockAccepts ATO® and ATC® fast acting blade fusesSingle side entry wiringIgnition Protected-meets ISO 8

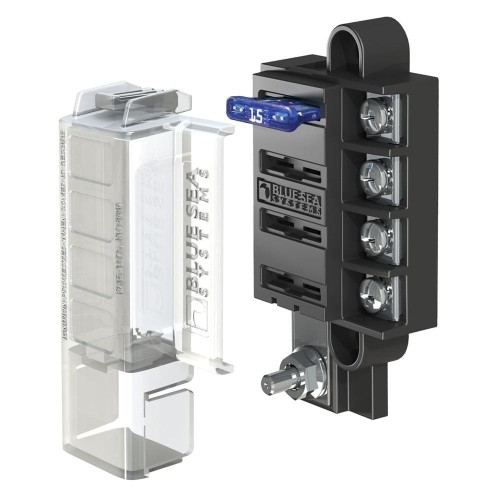

Blue Sea 5045 ST Blade Compact Fuse Blocks - 4 Circuits w-Cover

Model: CW58585
Web Code: 12539774
Sold and shipped by | 4.1 seller rating (311 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

ST Blade Compact Fuse Blocks - 4 Circuits w/CoverProvides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

Compact common source fuse block

Accepts ATO® and ATC® fast acting blade fuses

Single side entry wiring

Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment

Insulating cover meets ABYC/USCG insulation requirements

Tin-plated copper buses and fuse clips

Accepts ring or snap fork type terminals

Small format standard and custom labels available

Specifications

Circuits:4

Maximum Amperage: 100A per block / 30A per circuit

Maximum Voltage:32V DC

Mounting:#8 Screw (M4)

Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

Product : BLUE SEA 5045 ST BLADE COMPACT FUSE BLOCK 4 CIRCUIT W/COVER Manufacturer : BLUE SEA SYSTEMS Manufacturer Part No : 5045 UPC : 632085050450
