187 - Series Thermal Circuit Breakers - Panel Mount90 Amp Circuit BreakerPN:  7043Features:Combines switching and circuit protection into a single deviceAll components meet SAE J1171 external ignition protection requirementsClear, single lever operation"Trip Free" design cannot be held "ON" during fault current conditionWaterproofReces

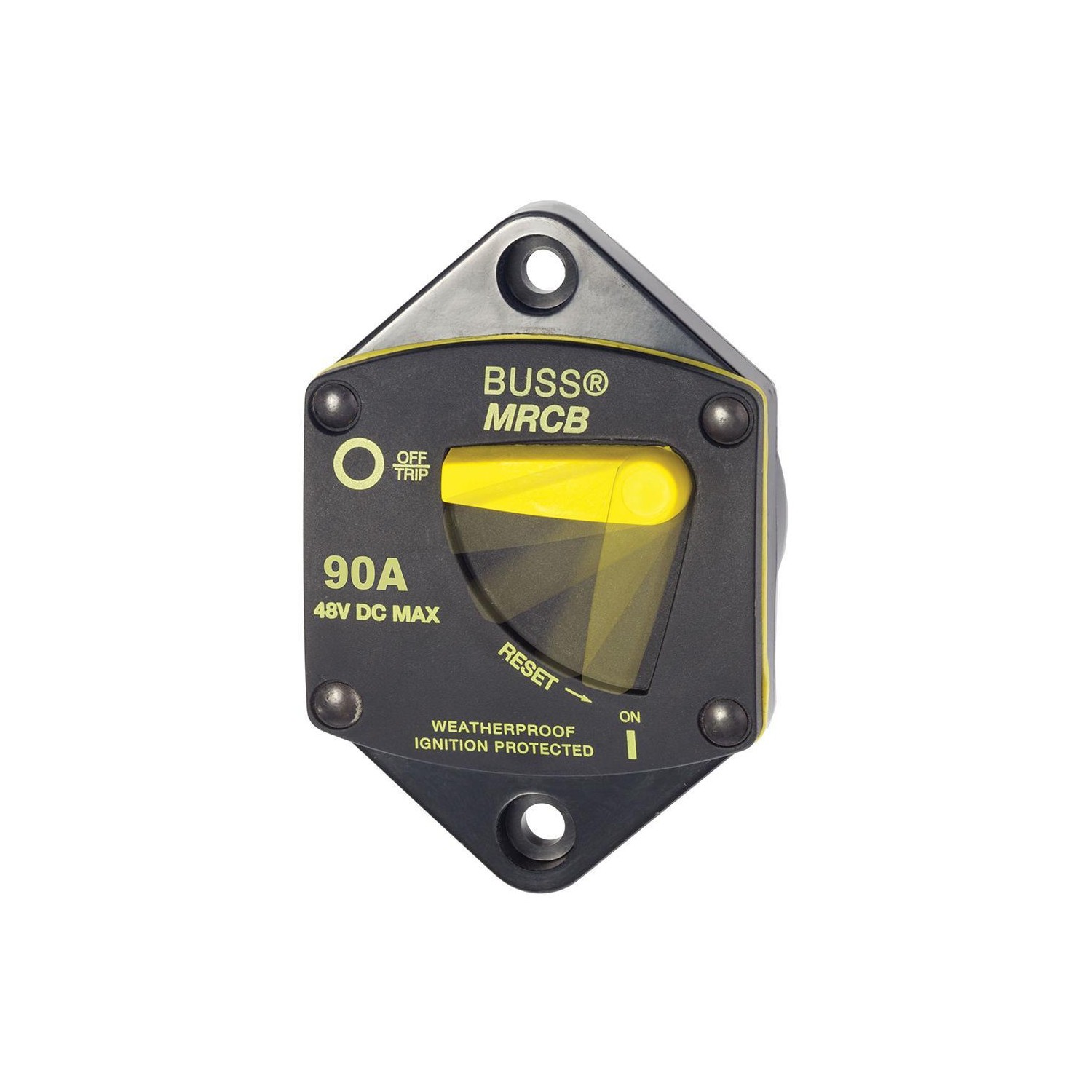

Blue Sea 7043 187 - Series Thermal Circuit Breaker - 90Amp

Model: CW20528
Web Code: 12540364
Sold and shipped by | 4.1 seller rating (317 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Read return policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

187 - Series Thermal Circuit Breakers - Panel Mount90 Amp Circuit BreakerPN:  7043Features:

Combines switching and circuit protection into a single device

All components meet SAE J1171 external ignition protection requirements

Clear, single lever operation

"Trip Free" design cannot be held "ON" during fault current condition

Waterproof

Recessed mounting holes for clean appearance

Self-trimming case eliminates the need for mounting panels or trim bezels

Round case permits easy installation with standard sized hole saw

Large clearance around terminal studs accept heavy gauge wire lugs

Robust 5/16 terminals provide high torque connections

Large lever with vertical/horizontal orientation provides indication of trip status

Ignition protected - safe for installation aboard gasoline powered boats

Specifications



Circuit Breaker Class:

Type III - Switchable / Manual Reset - Trip Free

Type:

Thermally Responsive Bi-Metal Blade

Case Material:

Thermoset Polyester

Voltage Rating:

48 Volts DC Maximum

Interrupt Rating:

5,000 Amperes @12 Volts DC



3,000 Amperes @24 Volts DC



1,500 Amperes @42 Volts DC

Operating Temperature Range:

-25C° to +82C°

Product : BLUE SEA 7043 CIRCUIT BREAKER 90A Manufacturer : BLUE SEA SYSTEMS Manufacturer Part No : 7043 UPC : 632085070434
