A-Series Flat Rocker Circuit Breaker - Double Pole - 20AFeatures:Color actuator indicates "OFF" position"Trip Free" design cannot be held "ON" during fault current conditionInternational ON/OFF symbols support vertical or horizontal mountingSpecifications:Amperage: 20A AC / 20A DCActuator Style: Flat RockerPoles: 2Maximum Voltage: 120V

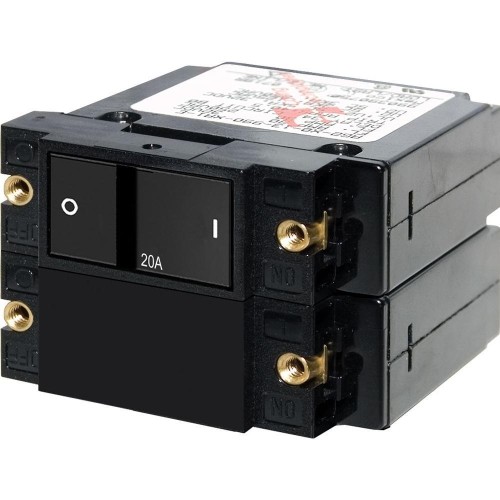

Blue Sea 7413 A-Series Flat Rocker Circuit Breaker - Double Pole - 20A

Model: CW65272
Web Code: 12541734
Sold and shipped by | 4.1 seller rating (311 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

A-Series Flat Rocker Circuit Breaker - Double Pole - 20AFeatures:

Color actuator indicates "OFF" position

"Trip Free" design cannot be held "ON" during fault current condition

International ON/OFF symbols support vertical or horizontal mounting

Specifications:

Amperage: 20A AC / 20A DC

Actuator Style: Flat Rocker

Poles: 2

Maximum Voltage: 120V AC / 240V AC / 32V DC

Circuit Breaker Type: Magnetic Hydraulic - trip free

Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC

Minimum Operating Temperature: -40° C

Maximum Operating Temperature: 85° C

Mounting Screw: #6-32 Stainless Steel

Mounting Screw Torque: 6 in-lb (0.68 Nm)

Screw Terminal Torque: 14 in-lb (1.58 Nm)

Switching Cycles: 10000

Terminal Screw: #10-32 Stainless Steel

Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Product : BLUE SEA 7413 A-SERIES ROCKER CIRCUIT BREAKER 20A Manufacturer : BLUE SEA SYSTEMS Manufacturer Part No : 7413 UPC : 632085074135
