C-Series Flat Rocker Circuit Breaker - Single Pole - 100AFeatures:Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switchingColor actuator indicates "OFF" positionProvides overcurrent protection for inverters, bow thrusters, and windlassesCombines switching and circuit protection into a single device"Trip

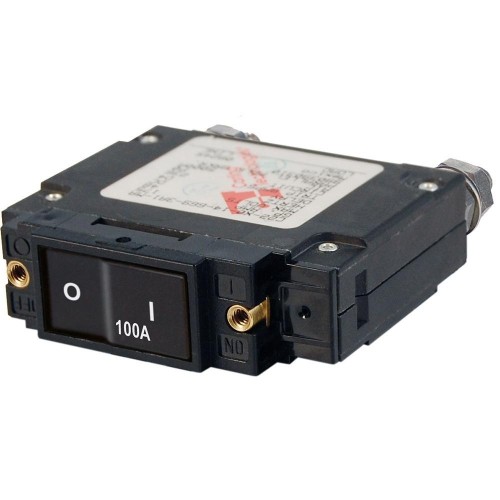

Blue Sea 7549 C-Series Flat Rocker Circuit Breaker - Single Pole - 100A

Model: CW65289
Web Code: 12541670
Sold and shipped by | 4.1 seller rating (311 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

C-Series Flat Rocker Circuit Breaker - Single Pole - 100AFeatures:

Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

Color actuator indicates "OFF" position

Provides overcurrent protection for inverters, bow thrusters, and windlasses

Combines switching and circuit protection into a single device

"Trip Free" - cannot be held closed after trip

Ignition protectedsafe for installation aboard gasoline powered boats

Specifications:

Amperage: 100A AC / 100A DC

Actuator Style: Flat Rocker

Poles: 1

Maximum Voltage: 240V AC / 48V DC

Circuit Breaker Type: Magnetic Hydraulic - trip free

Terminal Stud Torque: 35 in-lb (3.95 Nm)

Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

Minimum Operating Temperature: -40° C

Maximum Operating Temperature: 85° C

Mounting Screw: #6-32 Stainless Steel

Mounting Screw Torque: 6 in-lb (0.68 Nm)

Switching Cycles: 10000

Terminal Stud: 1/4-20 Tin-Plated Brass

Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Product : BLUE SEA 7549 C-SERIES ROCKER CIRCUIT BREAKER 100A Manufacturer : BLUE SEA SYSTEMS Manufacturer Part No : 7549 UPC : 632085075491
