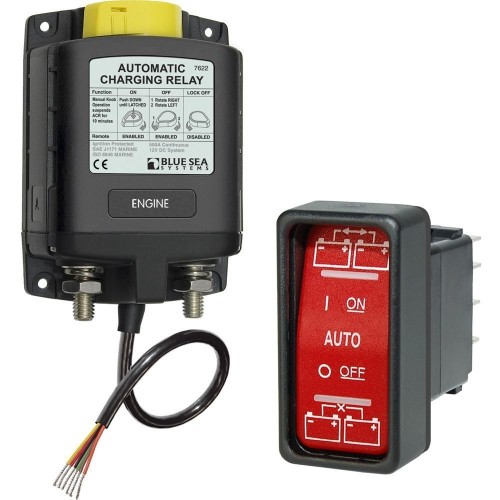

Blue Sea 7622 ML-Series Heavy Duty Automatic Charging Relay

Blue Sea 7622 ML-Series Heavy Duty Automatic Charging Relay

Model Number: CW34967
Web Code: 12543635
Sold and shipped by | 4.1 seller rating (233 reviews)

Available online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.


Overview

7622Manual Control: YesCoil Voltage: 12vFeatures:Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicingIncludes ML-Series Remote Control Contura Switch PN 2146 500 Ampere continuous rating Magnetic Latch (ML)-ACR draws very low current (<10 mA to m
GeneralInterface-Warranty

Warranty

No information available.

Seller Return Policy

Read return policy

7622Manual Control: YesCoil Voltage: 12vFeatures:

Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing

Includes ML-Series Remote Control Contura Switch PN 2146

500 Ampere continuous rating

Magnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state

Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics

Engine Isolation (EI)-Can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output

Senses charging on two battery banks

Supports high-output alternators up to 500 Amps

LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation

3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance

7/8" (22mm) stud length accepts multiple cable terminals

Label recesses for circuit protection

Silver alloy contacts provide high reliability for switching live loads

Product : BLUE SEA 7622 ML SERIES HEAVY DUTY CHARGING RELAY W/ MAN CTR Manufacturer : BLUE SEA SYSTEMS Manufacturer Part No : 7622 UPC : 632085076221
