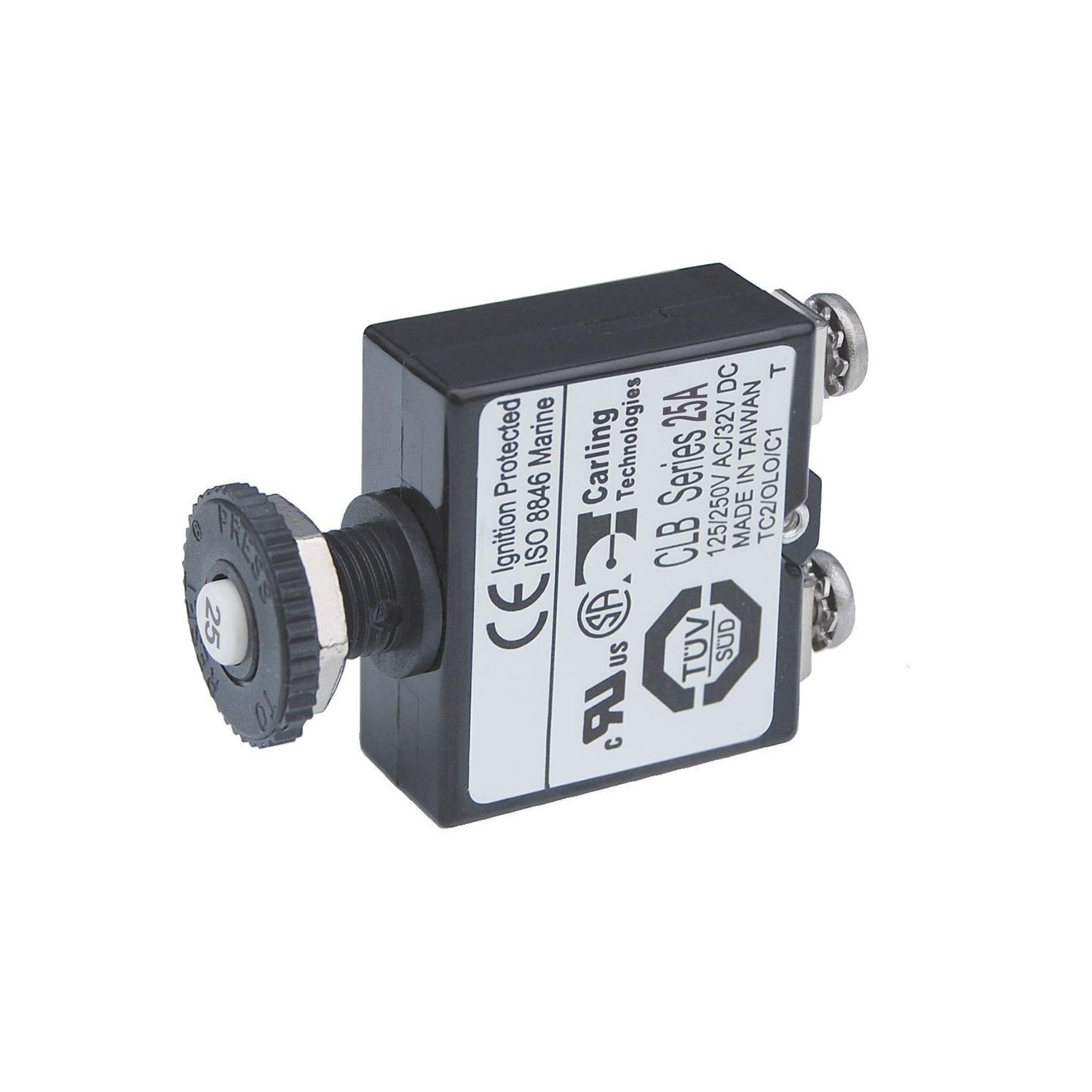

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 25 Amps

Push Button Reset Only Screw Terminal Circuit Breaker - 25 AmpsFeatures:

Branch circuit breakers (can also be used for 24-hour circuit protection)

Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels

Compact design enables high density circuit protection configurations

Push-to-reset operation

"Trip Free" design cannot be held "ON" during fault current condition

Ignition protected - Safe for installation aboard gasoline powered boats

Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

Specifications:

Amperage: 25A

Maximum Voltage: 32V DC

Mounting: Panel Mount 3/8-27 UNS

Circuit Breaker Type: Thermal trip, manual push-button reset only

Terminal Type: #8 Screw

Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V

Minimum Operating Temperature: -10° C

Maximum Operating Temperature: 60° C

Screw Terminal Torque: 6 in-lb (0.68 Nm)

Weight: 0.09lb (0.04 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product : BLUE SEA 2135 CIRCUIT BREAKER 25A PUSH BUTTON Manufacturer : BLUE SEA SYSTEMS Manufacturer Part No : 2135 UPC : 632085021351
