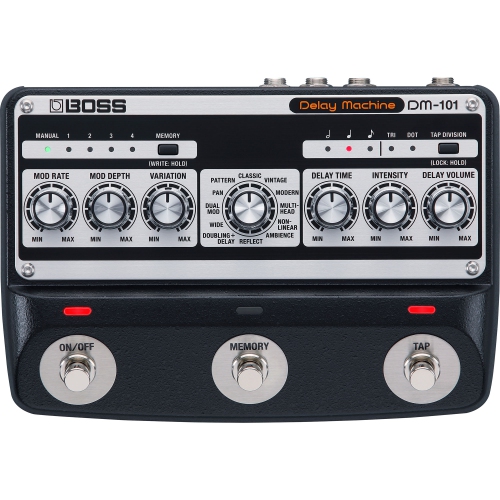

BOSS DM-101 Analog Delay Machine

The ultimate analog delay pedal with 12 unique modes, stereo operation, and advanced modern features.

Meet the Ultimate Analog Delay

Classic sound meets modern power with the DM-101 Delay Machine, the ultimate analog delay. Driven by eight BBDs under smart CPU control, this inspiring pedal delivers 12 unique modes, stereo operation, and a wide array of tonal colours, all while maintaining 100 percent analog signal processing throughout. And with 127 user memories, tap tempo, carryover, MIDI, and more, the DM-101 brings you the features and versatility of an advanced digital pedal - but with the vibrant, characterful sound that's only possible with authentic analog BBD circuitry.

Features* The ultimate analog delay pedal realized with advanced BOSS technology

* Fully analog BBD (bucket brigade device) audio circuitry shaped by precision digital CPU control

* Warm, saturated, and highly musical tone

* Twelve modes deliver a wide range of mono and stereo delay textures, created using up to eight internal BBDs

* Stereo output with flexible signal routing options

* Adjustable modulation rate and depth with dedicated knobs

* Variation knob for controlling multiple parameters that are unique to each mode

* Selectable carryover for maintaining delay trails when the effect is bypassed

* MIDI I/O on mini TRS connectors

* Tap tempo function and tap division switch for creating rhythmic delays

* Four onboard memories plus the current panel settings

* 127 user memories accessible via MIDI program change

* Expandable control via external footswitches, an expression pedal, or MIDI

Sounds from Vintage to Modern

The DM-101 flows effortlessly between gritty vintage echoes and modern analog delay tones with extended high-frequency clarity. Multiple internal circuit elements are switched to define each of the 12 modes, including the number of active BBDs and their connection order, low-pass filter settings, and clocking rates. Twisting the Variation knob cycles through parameters unique to the different modes. And you can always drive delays into saturated self-oscillation by cranking the Intensity knob.

Stereo Delays with True Analog Warmth

A major benefit of the DM-101's CPU control is the ability to realize sophisticated stereo sounds not available with other BBD analog delays. For example, Pan mode routes each BBD and its feedback loop to alternate points in the stereo field, while Dual Mod shifts the modulation phase for each output to generate a wide, spacious delay effect. Six of the 12 modes support stereo operation, providing everything from short reverb-like sounds and expansive modulated delays to pattern delays for intense rhythmic effects.

Complete Creative Command

The DM-101 offers all the creative benefits you expect from an advanced delay pedal. Tap tempo and note subdivisions are available with most modes, and there's carryover for maintaining repeats when the effect is bypassed. You can store and recall favourite setups with four onboard memories and connect up to two footswitches or an expression pedal for extended real-time control. MIDI I/O takes things further, providing remote access to 127 user memories, MIDI sync, and more. The audio outputs are set for blended operation by default, but they can be easily reconfigured for wet/dry rigs and wet-only parallel setups.

DM-101 Delay Modes* Classic - Traditional warm analog delay sound extended with up to 1200 ms of delay time. Adjust the modulation behavior by cycling through triangle, sine, and more complex waveform shapes with the Variation knob.

* Vintage - Retro analog delay sound inspired by the iconic BOSS DM-2 Delay pedal introduced in 1981. Adjust the modulation behavior by cycling through triangle, sine, and more complex waveform shapes with the Variation knob.

* Modern - Uniquely clear analog delay sound with a distinctive high-end tone and up to 840 ms of delay time. Adjust the modulation behavior by cycling through triangle, sine, and more complex waveform shapes with the Variation knob.

* Multi-Head - Emulates a multi-head tape delay while imparting a uniquely analog BBD sound character. Use the Variation knob to cycle through 10 different head combinations.

* Non-Linear - A unique effect that produces consecutive short delays (35-190 ms) that gradually increase in volume. The Variation knob allows you to control the delay times after the initial delay.

* Ambience - Simulates a small space. Change the size and early reflections with the Variation knob.

* Reflect - A stereo delay sound that produces a reverb-style effect. Adjust the pre-delay with the Variation knob.

* Doubling + Delay - A stereo effect that combines a doubled sound with a longer delay. Use the Variation knob to balance the two sounds across the stereo output.

* Wide - A stereo delay with offset left/right delay times for an expansive sound. Use the Variation knob to adjust the delay offset amount.

* Dual Mod - A stereo delay with different modulation phase settings on the left and right outputs. Use the Variation knob to adjust the phase amount (the phase is fully inverted at the maximum setting).

* Pan - A tapped stereo delay with different delay times distributed across the sound field. Use the Variation knob to fine-tune the delay time amounts.

* Pattern - Stereo delay with different rhythmic patterns. Use the Variation knob to choose from the 10 available pattern types.

Specifications- Memory: 127 + Manual

- Nominal Input Level: INPUT: -10 dBu

- Input Impedance: INPUT: 1 M ohm

- Nominal Output Level: OUTPUT A/MONO, OUTPUT B: -10 dBu

- Output Impedance: OUTPUT A/MONO, OUTPUT B: 1 k ohm

- Recommended Load Impedance: OUTPUT A/MONO, OUTPUT B: 10 k ohms or greater

- Delay Modes: 12

- Bypass: Buffered bypass

- Controls

ON/OFF switch, MEMORY switch, TAP switch

MOD RATE knob, MOD DEPTH knob, VARIATION knob, MODE knob, DELAY TIME knob, INTENSITY knob, DELAY VOLUME knob

MEMORY button, TAP DIVISION button

- Connectors

INPUT jack, OUTPUT A/MONO jack, OUTPUT B jack: 1/4-inch phone type

CTL 1, 2/EXP jack: 1/4-inch TRS phone type

MIDI (IN, OUT) jacks: Stereo miniature phone type

DC IN jack

USB port: USB micro B-type (program update only)

- Power Supply: AC adaptor

- Current Draw: 260 mA

- Dimensions (W x D x H): 192 x 133 x 53 mm / 7-9/16 x 5-15/64 x 2-3/32 inches (including rubber foot)

- Weight: 830 g (1 lb 14 oz)

- Included Accessories

AC adaptor

Owner's Manual

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")

Rubber foot x 4
