A Plug-and-Play Wireless Mic Experience
The WL-30XLR brings the freedom of BOSS's leading wireless technology to your favorite XLR dynamic mic. Set up is quick and streamlined, eliminating the connection hassles found with other systems. Performance is rock solid, with 14-channel scanning and long transmission range. And common AA alkaline batteries provide long-lasting operation, plus fast change-out to keep the show rolling. From singers, speakers, and beatboxers to DJs, MCs, and beyond, the WL-30XLR makes it easy for everyone to embrace premium wireless microphone sound.
Step Up to Wireless Freedom
For any performer or speaker who uses a microphone to communicate with an audience, nothing beats the liberation of wireless. Movement is unrestricted, with no cables to trip over and get in the way. And for stand-mounted applications, it eliminates the need to route yet another cable to the audio mixer or stage amp. Once you experience wireless freedom with the WL-30XLR, you'll never want to go back to a mic cable again.
One, Two, Done
The WL-30XLR makes wireless set up simple, thanks to an automatic scanning process that's smooth, reliable, and hassle-free. After connecting the receiver to an XLR mic input on your mixer or other audio destination and the transmitter to your dynamic mic, you can get up and running with a quick two-step process. Just press a button on the receiver to automatically scan 14 channels and find the best one for your environment, and then confirm the setting on the transmitter - that's it!
Premium Performance with BOSS Wireless Innovation
The WL-30XLR leverages the innovative BOSS technologies behind the acclaimed WL-series wireless products for guitar, bass, and other instruments, as well as the Waza-Air and Katana-Air wireless amplification systems. Lightning fast processing provides exceptional sound with ultra-low latency, plus robust line-of-sight transmission up to 230 feet/70 meters.
No Charging Needed
The WL-30XLR's receiver and transmitter each use a single AA alkaline battery, allowing you to quickly refresh their power with no need to wait for charging. Runtime is up to 11 hours, good for multiple gigs and rehearsals. And when the juice runs out, you can swap batteries in seconds and be back in action right away.
Features
* Plug-and-play wireless system for a standard dynamic XLR microphone
* Premium audio performance with lightning-fast BOSS wireless technology
* Fast, two-step visual process for hassle-free set up
* Up to 11 hours of runtime with regular AA alkaline batteries
* Transmission range: 230 feet/70 meters (line-of-sight propagation)
* Rock-solid wireless performance with 14-channel scanning
* Battery LED for checking available runtime

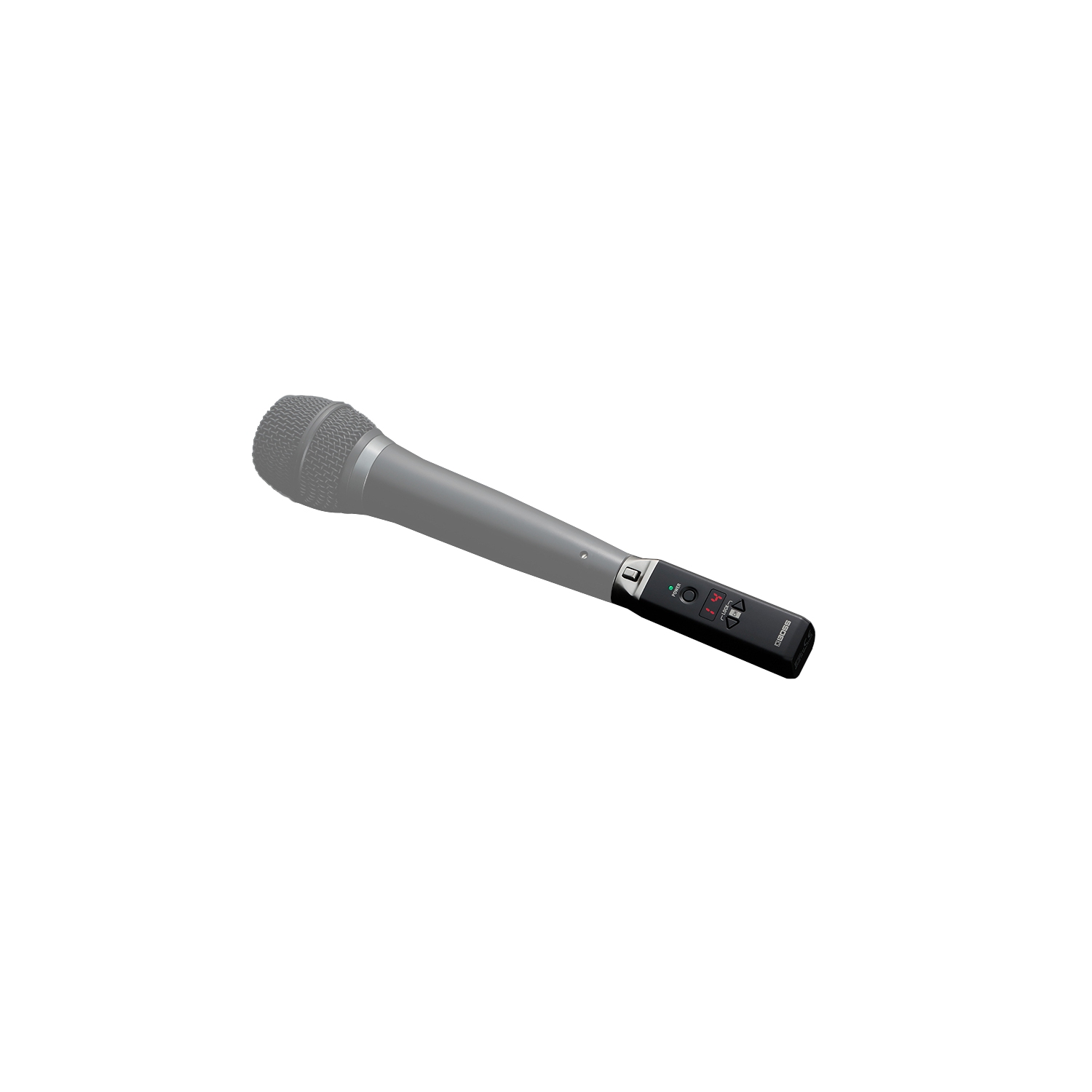

* Light and compact transmitter for comfortable handheld performance

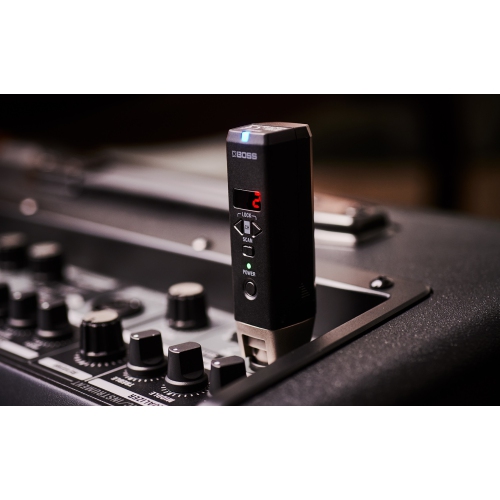

* Receiver connects to an XLR mic input on a mixer, amplifier, audio interface, etc.
* Channel lock function for worry-free operation
Specifications
(Receiver)
Wireless Format: BOSS proprietary digital audio format
Wireless carrier frequency: 2.4 GHz
Compatible Channels: 14
Transmission Range: 230 feet line-of-sight
Latency: 2.3 ms
Dynamic Range: 110 dB or greater
Frequency Response: 20 Hz--20 kHz
Nominal Output Level: -40 dBu
Non Clip Maximum Output level (1 kHz, typ.): 0 dBu
Output Impedance: 600 ohm
Recommended Load Impedance: 10 k ohms or greater
Controls:
* POWER button
* CH button
* SCAN button
Display: 7 segments, 2 characters (LED)
Indicators:
* POWER
* RECEIVE
Connectors: Output plug: XLR type
Power Supply: Alkaline battery (AA, LR6) x 1
Current Draw: 130 mA
Expected battery life under continuous use: Alkaline battery (AA, LR6): Approximately 11 hours
(WL-30XLRT Transmitter)
Nominal Input Level: -40 dBu (4 k ohms)
Non Clip Maximum Output level (1 kHz, typ.): 0 dBu
Controls:
* POWER button
* CH button
Display: 7 segments, 2 characters (LED)
Indicator: POWER
Connectors: Input plug: XLR type
Power Supply: Alkaline battery (AA, LR6) x 1
Current Draw: 120 mA
Expected battery life under continuous use: Alkaline battery (AA, LR6): Approximately 14 hours
(WL-30XLRT Transmitter)
Nominal Input Level: -40 dBu (4 k ohms)
Non Clip Maximum Output level (1 kHz, typ.): 0 dBu
Controls:
* POWER button
* CH button
Display: 7 segments, 2 characters (LED)
Indicator: POWER
Connectors: Input plug: XLR type
Power Supply: Alkaline battery (AA, LR6) x 1
Current Draw: 120 mA
Expected battery life under continuous use: Alkaline battery (AA, LR6): Approximately 14 hours
SIZE AND WEIGHT (Receiver and Transmitter)
9.9 x 2.7 x 2.3 cm (3.9" x 1.1" x 0.9")
90g (3oz)
