Overview

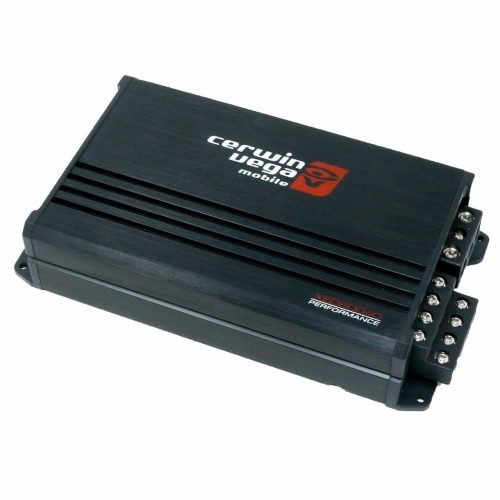

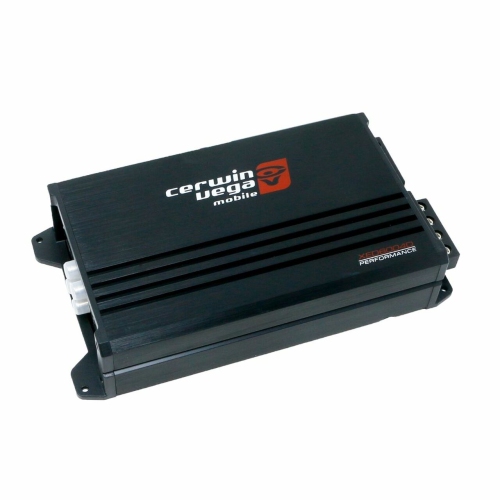

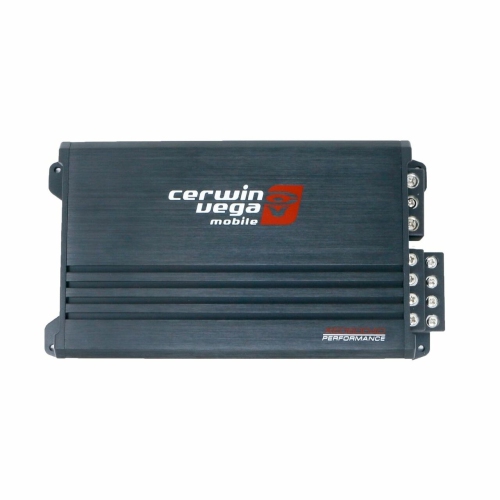

Cerwin Vega XED6004D 600w MAX 4-Channel XED Amplifier

Cerwin Vega XED600.4D Amplifier

Model: XED6004D
Web Code: 15837216

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

The Cerwin Vega XED6004D 4 Channel Amplifier is the perfect addition for anyone looking for amazing power in a compact design. The XED6004D features the latest high-efficiency digital Class D topology. This amp offers 500 Watts max in a compact design, giving you all the power you need without wasting space. And to top it all off, the XED6004D features an ambient backlit logo to be the perfect visual accent to your vehicle's audio system.

Features:

Latest High-Efficiency Class D Topology

Compact Size with Ambient backlit logo

RCA "Pass Thru" output for easy system expansion

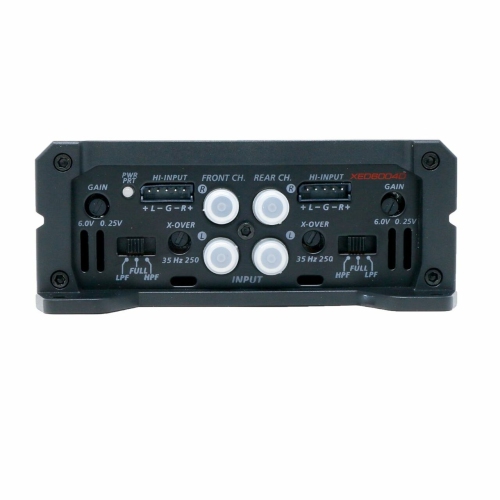

Fully Variable Crossovers (12dB per octave)

Handles HI and LO level input to 12V

2O Stable Stereo and 4O Mono (CH3/4) for 3 Ch mode

Proprietary Vega Bass Boost EQ Up To 12dB

Specifications:

Power Handing:

RMS Power @ 2 ohm: 4 x 120 Watts

RMS Power @ 4 ohm: 4 x 80 Watts

Max Power: 500 Watts

Type: Class D

Power Supply: Full PVM

Power Supply Threshold: 10.0DVC - 16.0DVC

Idle Current: (0.7A)

THD 4 (100Hz @4O): 20.0V

Impedance-Low Input Level: 10 KO

Impedance-High Input Level:100 KO

Output Impedance: 2O

Product Condition
Brand New
2 Ohm Output Power - Full Range
4 x 120W
4 Ohm Output Power - Full Range
4 x 80W
Bass Boost
Yes
Bridgeable
Yes
Bridged Power At 2 Ohms - Full Range
500W
External Bass Control Capable
Yes
High Pass Filter
Variable
Input Voltage
12V
Low Pass Filter
Variable
Mosfet Switching
Yes
Number of Channels
4
Overload Protection
Yes
Protection Indicator
Yes
RCA Inputs (Number of Pairs)
1
RCA Outputs (Number of Pairs)
1

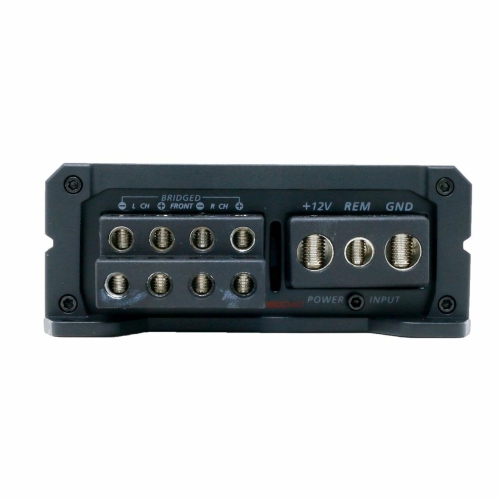

Screw Type Terminals
Yes
Signal to Noise Ratio
-85 dB
Total Max Power
500W
Dimensions
7.1" x 4.7" x 1.8"
