Overview

Coaxial Cable with messenger, Communications cable

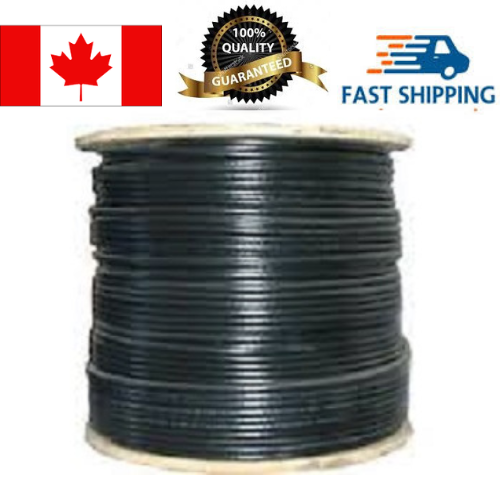

Commscope 75 Ohm Coaxial Drop Cable, Series 6, black PVC jacket with messenger, Communications cable

Model: 4514503
Web Code: 19347458
Sold and shipped by | 4.8 seller rating (76 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

CONSTRUCTION MATERIALS

JACKET MATERIAL PVC

DIELECTRIC MATERIAL Foam PE

MESSENGER WIRE MATERIAL Zinc-coated steel

CENTER CONDUCTOR MATERIAL Copper-clad steel

INNER SHIELD (BRAID) GAUGE 34 AWG

INNER SHIELD (TAPE) MATERIAL Aluminum/Polymer/Aluminum (APA) bonded

INNER SHIELD (BRAID) COVERAGE 60 %

INNER SHIELD (BRAID) MATERIAL Aluminum

GENERAL SPECIFICATIONS

CABLE TYPE Series 6

JACKET COLOR Black

JACKET MARKING Meters

PACKAGING TYPE Reel

MESSENGER WIRE TYPE Solid

CENTER CONDUCTOR TYPE Solid

CENTER CONDUCTOR GAUGE 18 AWG

SHIELD CONSTRUCTION TYPE Dual shield

ELECTRICAL SPECIFICATIONS

CAPACITANCE 53.1 pF/m   |   16.2 pF/ft

DC RESISTANCE NOTE Nominal values based on a standard condition of 20 °C (68 °F)

CHARACTERISTIC IMPEDANCE 75 ohm

DC RESISTANCE, LOOP, NOMINAL 40.90 ohms/kft

CHARACTERISTIC IMPEDANCE TOLERANCE ±3 ohm

NOMINAL VELOCITY OF PROPAGATION (NVP) 85 %

DC RESISTANCE, INNER CONDUCTOR, NOMINAL 30.50 ohms/kft

DC RESISTANCE, OUTER CONDUCTOR, NOMINAL 10.40 ohms/kft

DIMENSIONS

SHIPPING WEIGHT 44.00 Lb/kft

JACKET THICKNESS, NOMINAL 0.7620 Mm   |   0.0300 In

DIAMETER OVER JACKET, NOMINAL 6.909 Mm   |   0.272 In

DIAMETER OVER DIELECTRIC, NOMINAL 4.572 Mm   |   0.180 In

DIAMETER OVER MESSENGER WIRE, NOMINAL 1.295 Mm   |   0.051 In

DIAMETER OVER CENTER CONDUCTOR, NOMINAL 1.016 Mm   |   0.040 In

DIAMETER OVER INNER SHIELD (TAPE), NOMINAL 4.750 Mm   |   0.187 In
