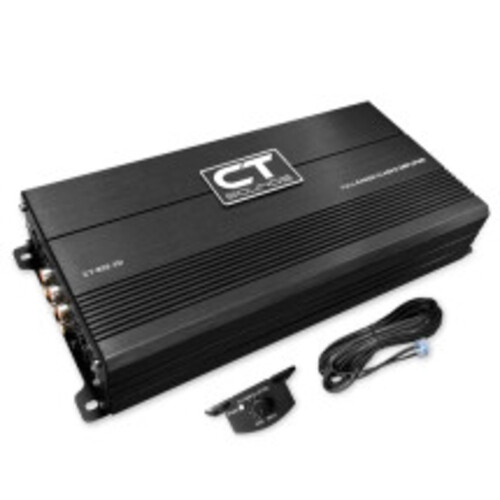

CT Sounds CT-800.5D 5-Channel Car Audio Amplifier - 155W RMS x 4 + 300W RMS x 1

About: CT Sounds CT-800.5D 5-Channel Car Audio Amplifier - 155W RMS x 4 + 300W RMS x 1

CT Sounds engineered the CT-800.5D 1000-watt 5-channel car amplifier for anyone in need of a powerhouse amplifier that fits just about anywhere in your vehicle and won’t destroy your wallet. This 5-channel amp can power an entire system - 4 speakers and a subwoofer with just one amplifier.

This 5-channel amplifier features a Low Pass Filter (LPF), High Pass Filter (HPF), and Bass Boost so you can get the exact sound you want out of your amplifier. The MOSFET power supply and proprietary heat dissipation design ensure that the amplifier runs cool for even the most demanding playlists. Furthermore, the compact chassis and small footprint make it easy to install in any car audio application.

You can sleep easy at night knowing your amplifier is protected from damage due to the amplifier's uniquely engineered protection circuitry featuring high voltage, low voltage, over current, and high-temperature protection.

Product Highlights:

RMS Power: 1Ω @ 14.4v: CH5: 400W x 1-Ch

RMS Power: 2Ω @ 14.4v: CH1-4: 155W x 4-Ch | CH5: 300W x 1-Ch

RMS Power: 4Ω @ 14.4v: CH1-4: 100W x 4-Ch | CH5: 200W x 1-Ch

Features:

Continuously-Variable Input Gain Control

Remote Turn-On / Turn-Off Circuit

MOSFET Pulse Width Modulated Power Supply

Soft Turn-On Circuit

High Voltage / Low Voltage Protection Circuit

Thermal and Speaker Short Protection Circuit

LED Power and Protection Indicators

Specifications:

Amplifier Type: 5-Channel Amplifier

Amplifier Circuitry: Class D

Built-In Crossover: Yes

Bridgeable: Yes

RMS Power @ 1 Ohm: CH5: 400Wx 1-Ch (14.4v)

RMS Power @ 2 Ohm: CH1-4: 155W x 4-Ch (14.4v) | CH5: 300W x 1-Ch (14.4v)

RMS Power @ 4 Ohm: CH1-4: 100W x 4-Ch (14.4v) | CH5: 200W x 1-Ch (14.4v)

RMS Power @ 4 Ohm (Bridged): CH1-4: 320W x 2-Ch (14.4v)

Recommended Fuse: 100A

Power & Ground Input Size: 4 Gauge

Speaker Input Size: 8 Gauge

Gain Adjustment: CH1-4: 0.32v - 4.4v | CH5: 0.22v - 7.5v

Low Pass Filter (LPF): CH1-4: N/A | CH5: 40 Hz - 250 Hz

High Pass Filter (HPF): CH1-4: 40 Hz - 4 kHz | CH5: N/A

Bass Boost: CH1-4: N/A | CH5: 0 dB - 12dB

Bass Boost Frequency: 45 Hz

Frequency Response: 20 Hz - 20 kHz

Signal-To-Noise Ratio (S/N): 94 dB

Damping Factor: 170

Input Impedance: 22K ohms

Input Sensitivity: 220 mV

Operating Voltage: 8.6v - 16v

Minimum Impedance: 1 ohm

Dimensions (L x W x H): 11.42" x 5.63" x 2.19"
