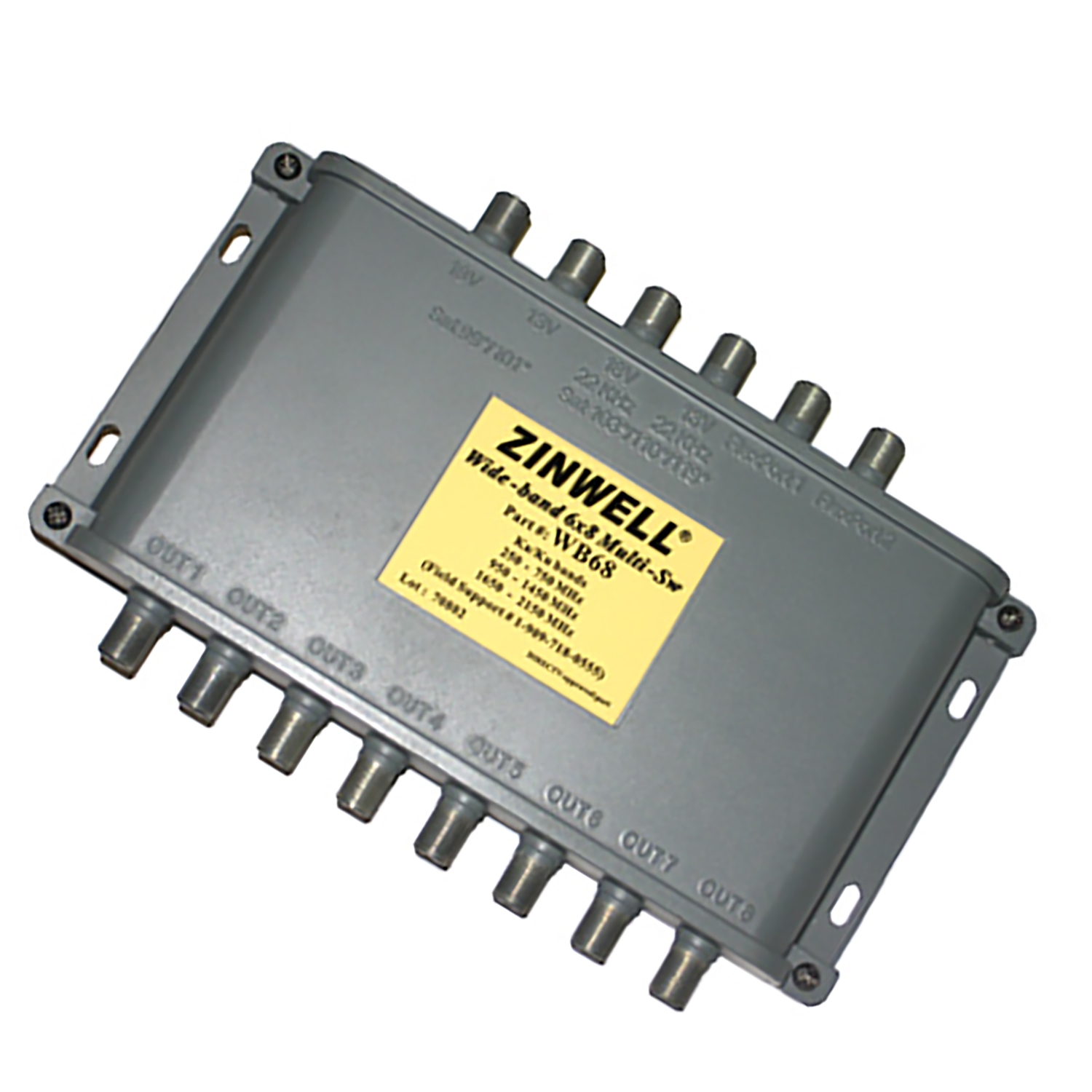

DirecTV 6x8 Multiswitch With Weather Boot [ms6x8wb]

Depending on the availability you will receive one 6X8 MULTISWITCH either: Model MS6X8R1-03 or Model MS6X8WB-Z Besides the packaging and labeling on the switch these two models are identical and both are approved for DirecTV installations. Please refer to the pictures to see for yourself. Specifications: This 6x8 multiswitch is designed to interface with 99/101/103/110/119W satellites plus additional inputs (2), Flexport 1 and Flexport 2. Flexports are used to interface with new DIRECTV satellites such as 95 W and 72.5W or both. This multiswitch needs 4 coaxial wires connected from the 3 or 5 ka/ku lnbf slimline dish in order to work properly.

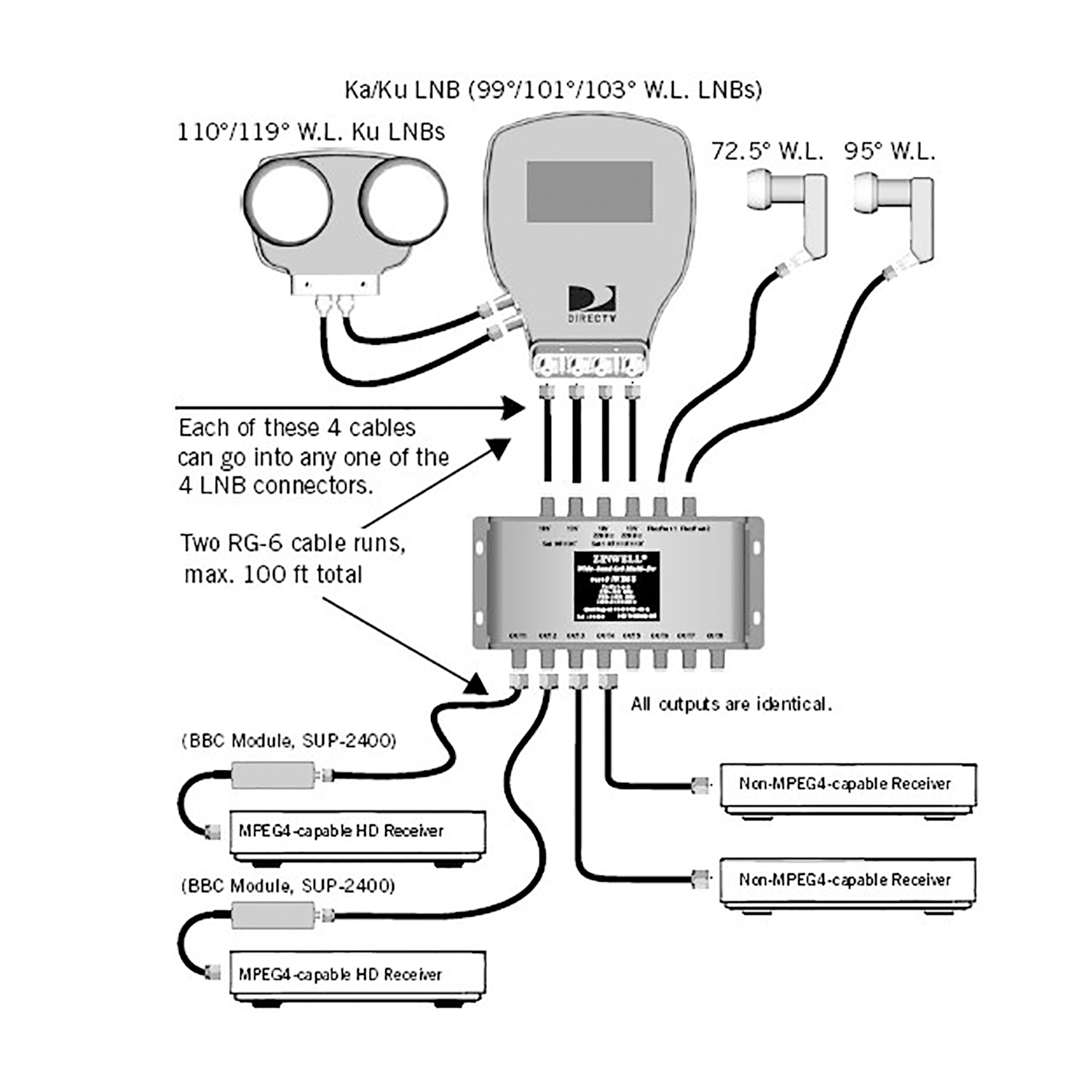

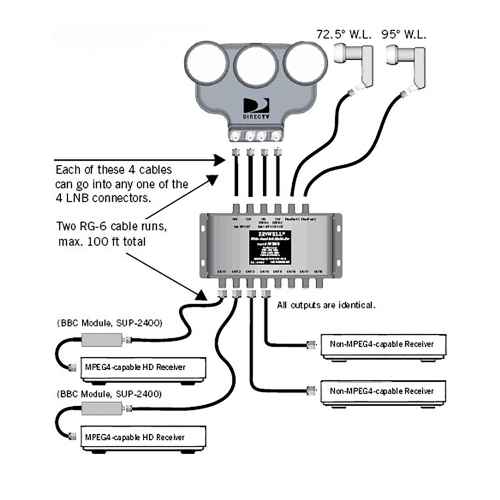

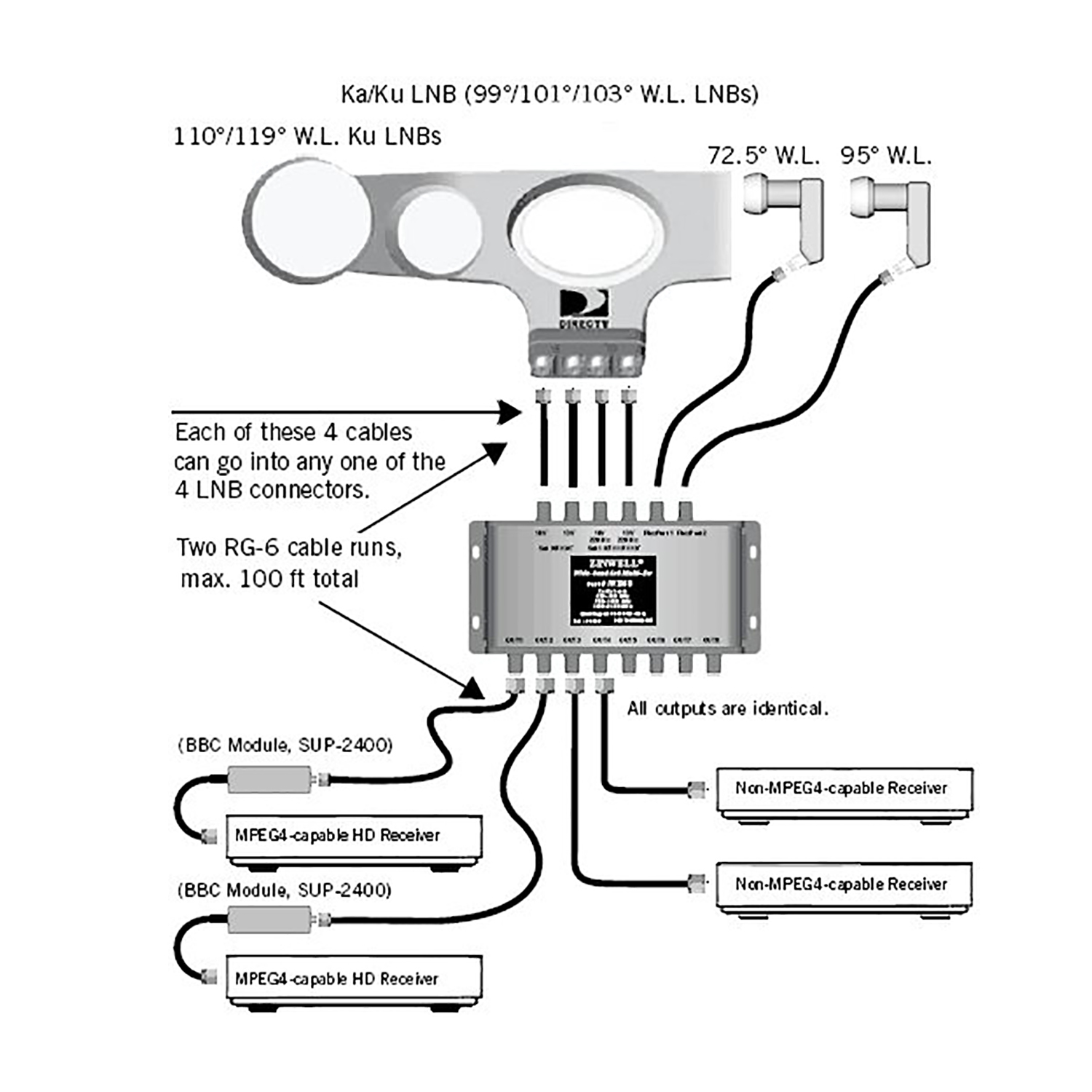

It will NOT work with only 2 wires or with swm lnbf. Features: DIRECTV -approved, with enhanced codes Needed for HD programming Distribute up to 6 DIRECTV satellite inputs to 8 independently-operating receivers Compatible with existing DIRECTV receivers Compatible with newer DIRECTV Advanced Program Guide (APG) receivers Easy connections to all DIRECTV dish antennas, see enclosed application diagrams. Flexports can only be accessed with latest APG (Advanced Program Guide) satellite receivers. Earlier, non-APG satellite receivers can select the first 4 ports only (101/99/103/110/119W satellites) Multiswitch is passive, powered only by the connected DIRECTV satellite receivers.

THIS MULTISWITCH HAS TO BE CONNECTED WITH 4 WIRES FROM THE DIRECTV KA/KU LNBF FOR RECEIVERS TO RECEIVE 3 OR 5 ORBITAL LOCATIONS (101/99/103 OR 101/119/110/99/103). SL5 OR SL3 LNBF WIT H4 OUTPUTS. IT DOES NOT WORK WITH SWM EQUIPMENT OR H25 RECEIVER. ONE MULTISWITCH IS INCLUDED IN THIS SALE. THEY ONLY WORK WITH DIRECTV RECEIVERS, EXCEPT H25 MODEL. This 6x8 Multiswitch is approved by Directv for SAT 101,103,99,119,110,72.5, 95 and International programming.
