Overview

DS18’s 10XL1400-4 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music. DS18’s 10XL1400-4 stands head and shoulders above the mid-range competition.

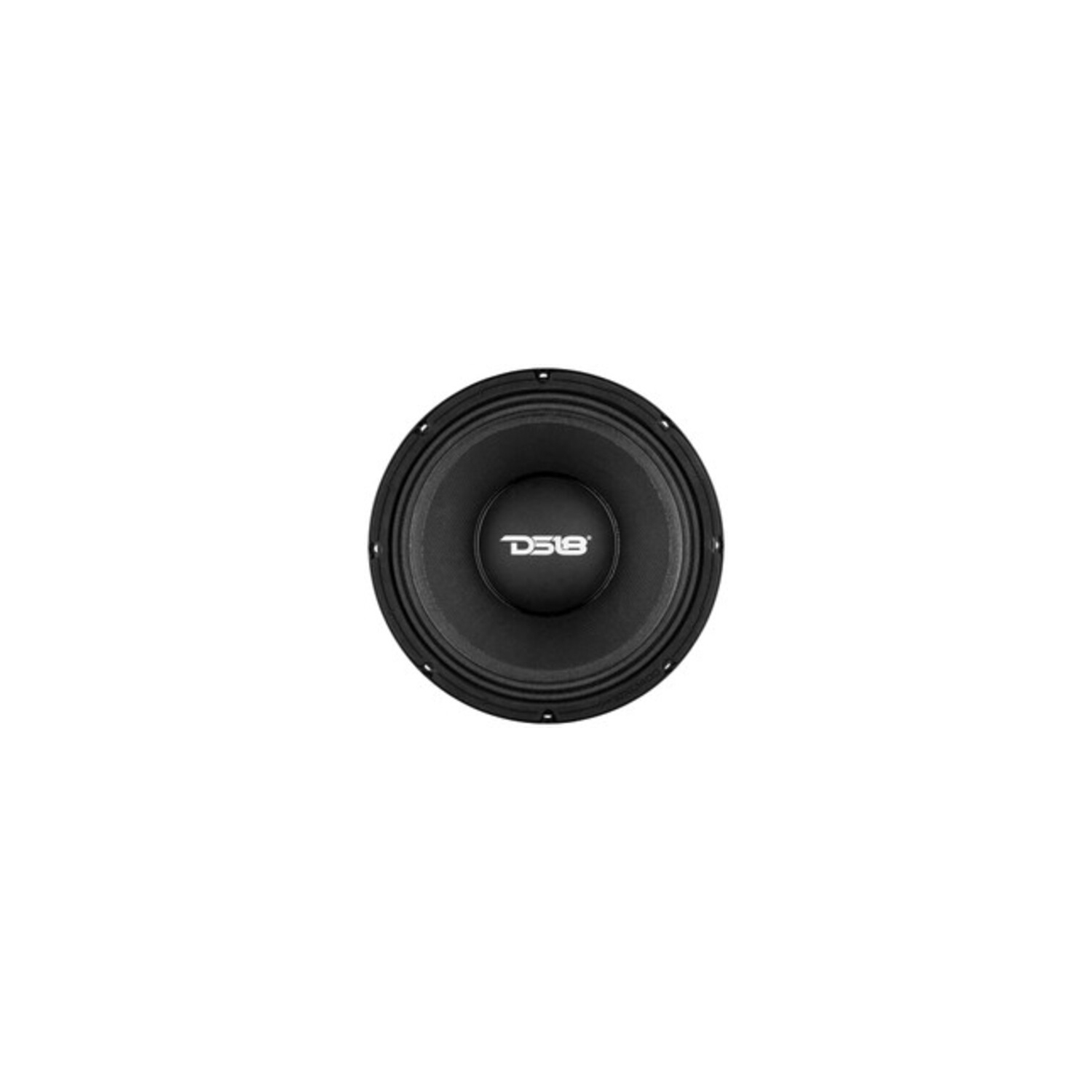

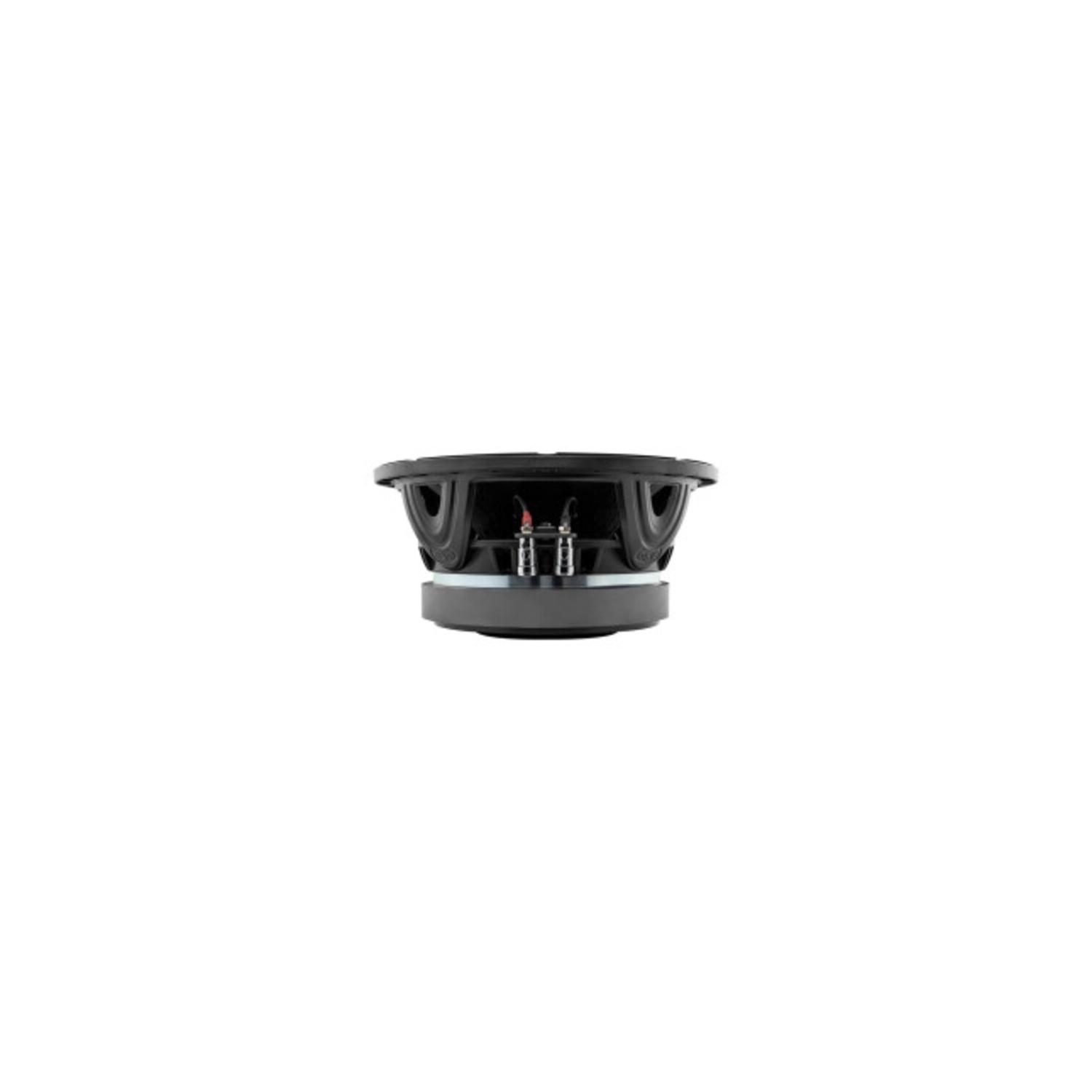

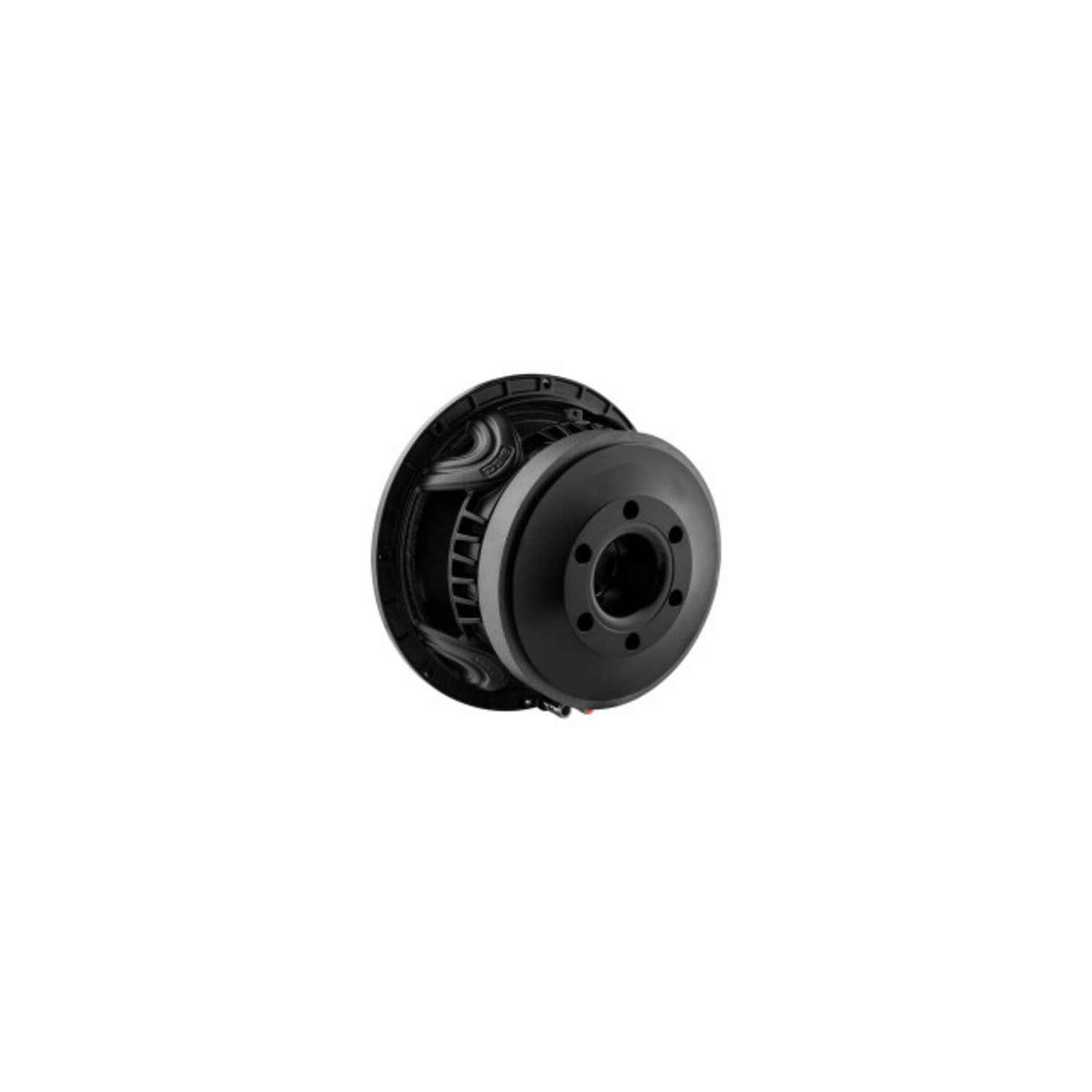

DS18 10XL1400-4 XL 10" Mid-Range Loudspeaker 700W RMS - 4 Ohm

Model: 10XL1400-4
Web Code: 19433502
Sold and shipped by | 4.5 seller rating (166 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Read return policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

About: DS18 10XL1400-4 XL 10" Mid-Range Loudspeaker 700W RMS - 4 Ohm (Each)

DS18’s 10XL1400-4 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music. DS18’s 10XL1400-4 stands head and shoulders above the mid-range competition.

This 10-inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup. With power handling of 700W RMS and 1400W MAX these speakers are guaranteed to blow you away. The frequency response of 60Hz-8KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 98 dB guarantees crystal-clear sound reproduction, even in large venues.

Crafted with precision, DS18’s 10XL1400-4 features a 3.5" Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker's aesthetics but also provides structural integrity. The ferrite magnet weighing in at 93 ounces ensures powerful and accurate bass responses that will leave you amazed. Elevate your audio game with the DS18 10XL1400-4!

Product Highlights:

10" Mid-Range

MAX Power: 1400 Watts

RMS Power: 700 Watts

Impedance: 4-Ohm

Ferrite Magnet

98dB

Specifications:

Nominal Diameter: 10" (254 mm)

Nominal Impedance: 4 Ohms

RMS Power Handling: 700 watts

MAX Power Handling: 1400 watts

Sensitivity (1w/1m): 98dB

Frequency Response: 60Hz-6KHz

Recommended HI Pass Crossover: 80Hz

Sold in Pair or Single: Single

Grill Included: No

Motor:

Voice Coil Diameter: 3.5" (89 mm)

Voice Coil Former Material: Kapton

Winding Material: CCAW (2 Layers IN/OUT)

Cone Material: Non-pressed Paper

Dust Cap Material: Paper

Bullet Material: N/A

Bullet Color/Finish: N/A

Surround Material: Cloth

Basket Material: Aluminum

Basket Color/Finish: Satin Black

Magnet Material: Ferrite

Magnet Weight: 93 Oz

Displacement Volume: 1.44L / 0.051ft3

Thiele & Small Parameters:

Equivalent Volume (Vas): 21L / 0.741ft3

Excursion (one way) (Xmax): 4mm

Free Air Resonance (Fs): 70Hz

Mechanical Factor (Qms): 3.796

Electrical Factor (Qes): 0.39

Total Factor: 0.354

Mechanical Mass Mms: 43.4g

Mechanical Compliance Cms: 0.11mm/N

BL Factor (BL): 13.52

Voice Coil Inductance (Le): 0.11mH

Cone Area (Sd): 363cm2

DC Resistance (Re): 3.6 ohm

Mechanical Mass w/o air Mmd: 50g

Measurements:

Overall Diameter: 10.3" (261.5 mm)

Overall Depth: 4.93" (125mm)

Front Mount Baffle Cutout: 9.2" (233 mm)

Mounting Depth: 4.4" (114 mm)

Motor Diameter: 7.48" (190 mm)
