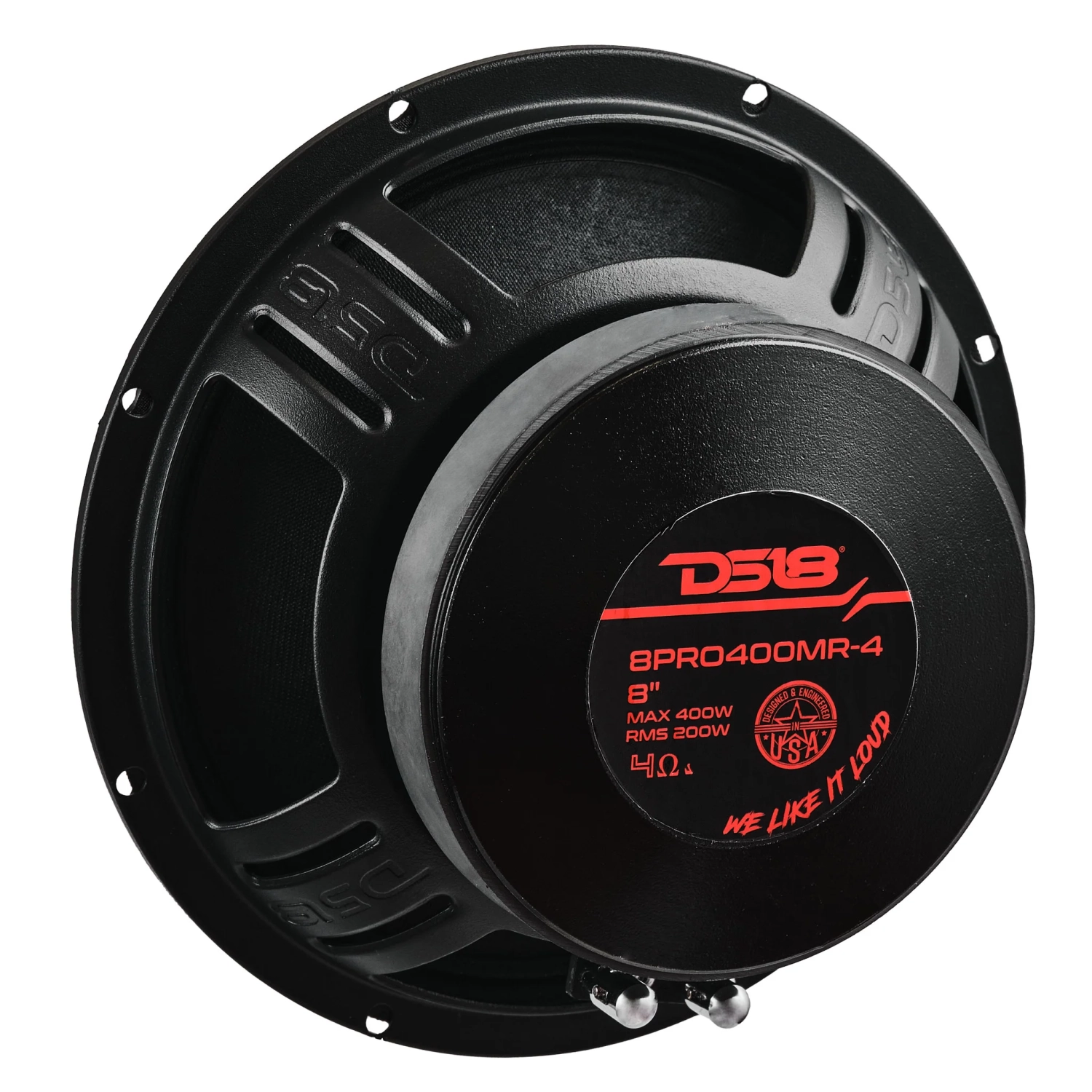

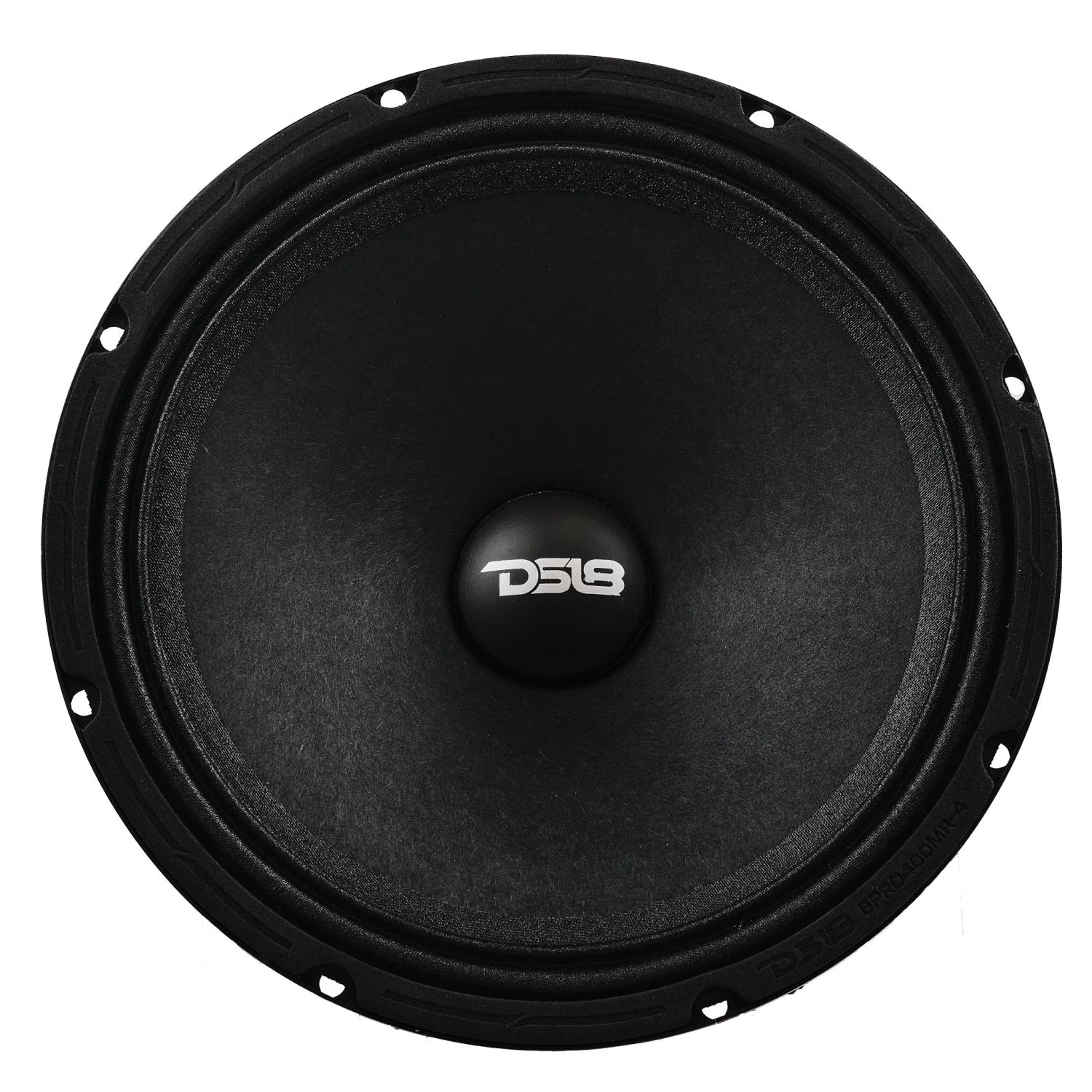

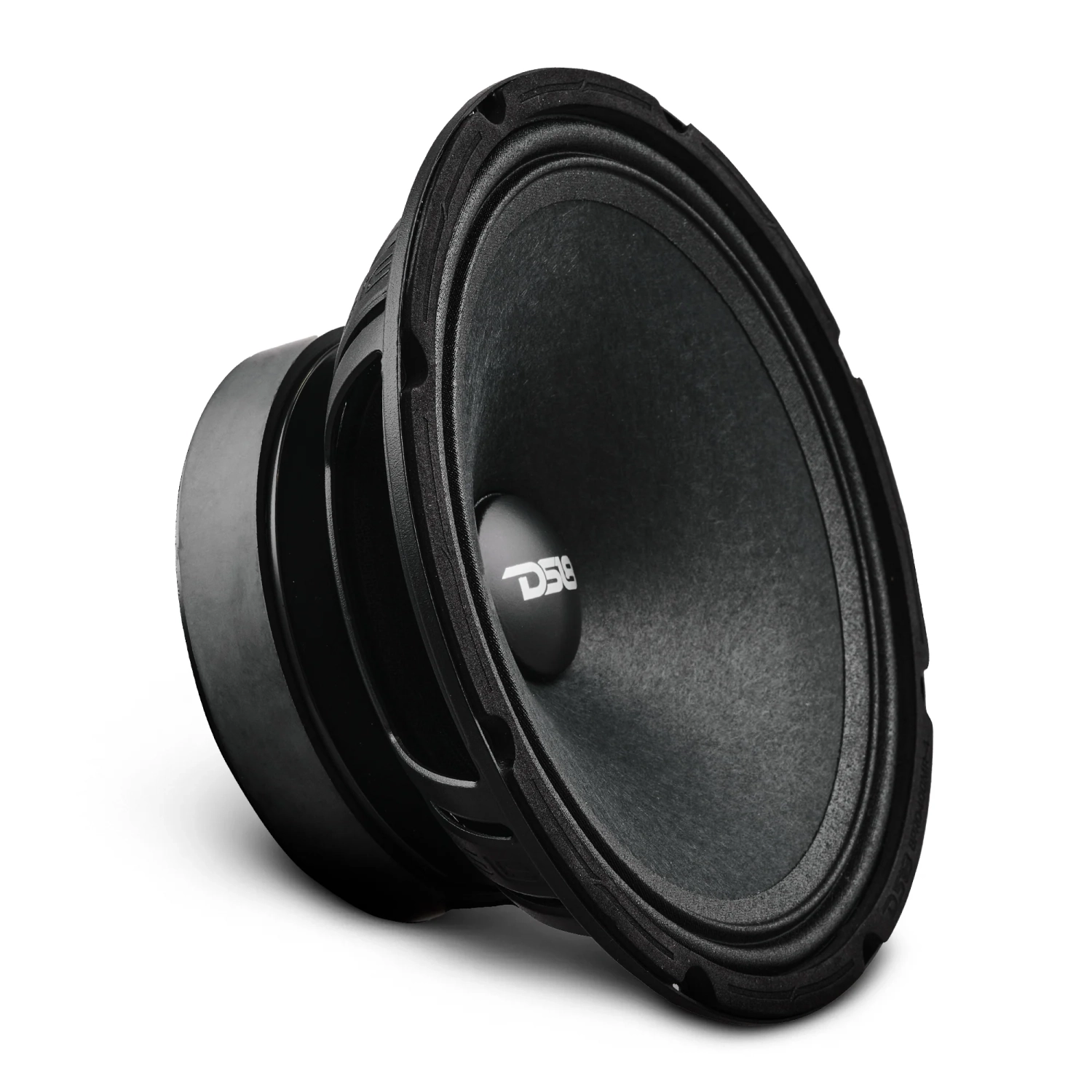

About: DS18 8PRO400MR-4 8" Midrange Speaker 200W RMS - 4 Ohm (Each)
Get superior sound with DS18’s 8PRO400MR-4!
With its 8" nominal diameter and 4 OHMS nominal impedance, the 8PRO400MR-4 delivers exceptional performance and clarity. The RMS power handling of 200W and MAX power handling of 400W, guarantee powerful sound reproduction.
One standout feature of DS18’s 8PRO400MR-4 is its high sensitivity rating of 104 dB, allowing it to effortlessly fill any space with rich, immersive sound. The frequency response range of 100Hz-12.5KHz ensures that every beat is reproduced accurately.
What sets the 8PRO400MR-4 apart is its demodulating rings made of copper. These rings play a crucial role in substantially reducing harmonic and intermodulation distortion associated with voice coil displacement. They also minimize the modulation of magnetic flux during the movement of the voice coil, ensuring a more linear variation of system inductances as input current varies. This results in a cleaner sound output, providing an enhanced audio experience.
The curvilinear cone shape enhances overall dispersion while maintaining optimal performance. The push speaker terminals make installation hassle-free, allowing for secure connections without compromising on sound quality.
DS18’s 8PRO400MR-4 has one of the most impressive motor configurations in our catalog. Its 1.5" voice coil diameter, made of Til material, ensures excellent heat dissipation for extended playtime without any compromise in performance.
Experience audio excellence with DS18’s 8PRO400MR-4!
Specifications:
8" Mid-Range
MAX Power: 400 Watts
RMS Power: 200 Watts
Impedance: 4 Ohm
Ferrite Magnet
104dB
Motor Specifications:
SKU: 8PRO400MR-4
Nominal Diameter: 8" / 203mm
Nominal Impedance: 4 Ohms
RMS Power Handling: 200W
MAX Power Handling: 400W
Sensitivity (1w/1m): 104dB
Frequency Response: 100Hz-12.5KHz
Recommended HI Pass Crossover: 160Hz
Sold in Pair or Single: Single
Grill Included: No
Interleaved Sandwich Voice coil (ISV): No
Demodulating Rings: Copper Ring
Improved Heat Dissipation: No
Cone Shape: Curvilinear
Speaker Terminals: Push 8ga
Motor:
Voice Coil Diameter: 1.5" / 38.6mm
Voice Coil Former Material: Til
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Paper
Bullet Material: N/A
Bullet Color/Finish: N/A
Surround Material: Cloth
Spider Diameter: 4" / 102mm
Leads Connection Type: Spider Crossed
Basket Material: Steel
Basket Color/Finish: Black
Magnet Material: Ferrite
Magnet Weight: 40 Oz
Displacement Volume: 0.56L / 0.02ft3
Thiele & Small Parameters:
Equivalent Volume Vas: 37.3L / 1.31ft3
Excursion (one way) Xmax: 0.75mm
Free Air Resonance Fs: 70Hz
Mechanical Factor Qms: 4.31
Electrical Factor Qes: 0.34
Total Factor Qts: 0.32
Mechanical Mass Mms: 12.72g
Mechanical Compliance Cms: 0.43mm/N
BL Factor BL: 7.44
Voice Coil Inductance Le: 0.03mH
Cone Area Sd: 246.06cm2
DC Resistance Re: 3.5ohms
Mechanical Mass w/o air Mmd: 12.5g
Measurements:
Overall Diameter: 8.19" / 208mm
Overall Depth: 3.72" / 94.6mm
Front Mount Baffle Cutout: 7.36" / 187mm
Mounting Depth: 3.48" / 88.5mm
Motor Diameter: 5.1" / 130mm
