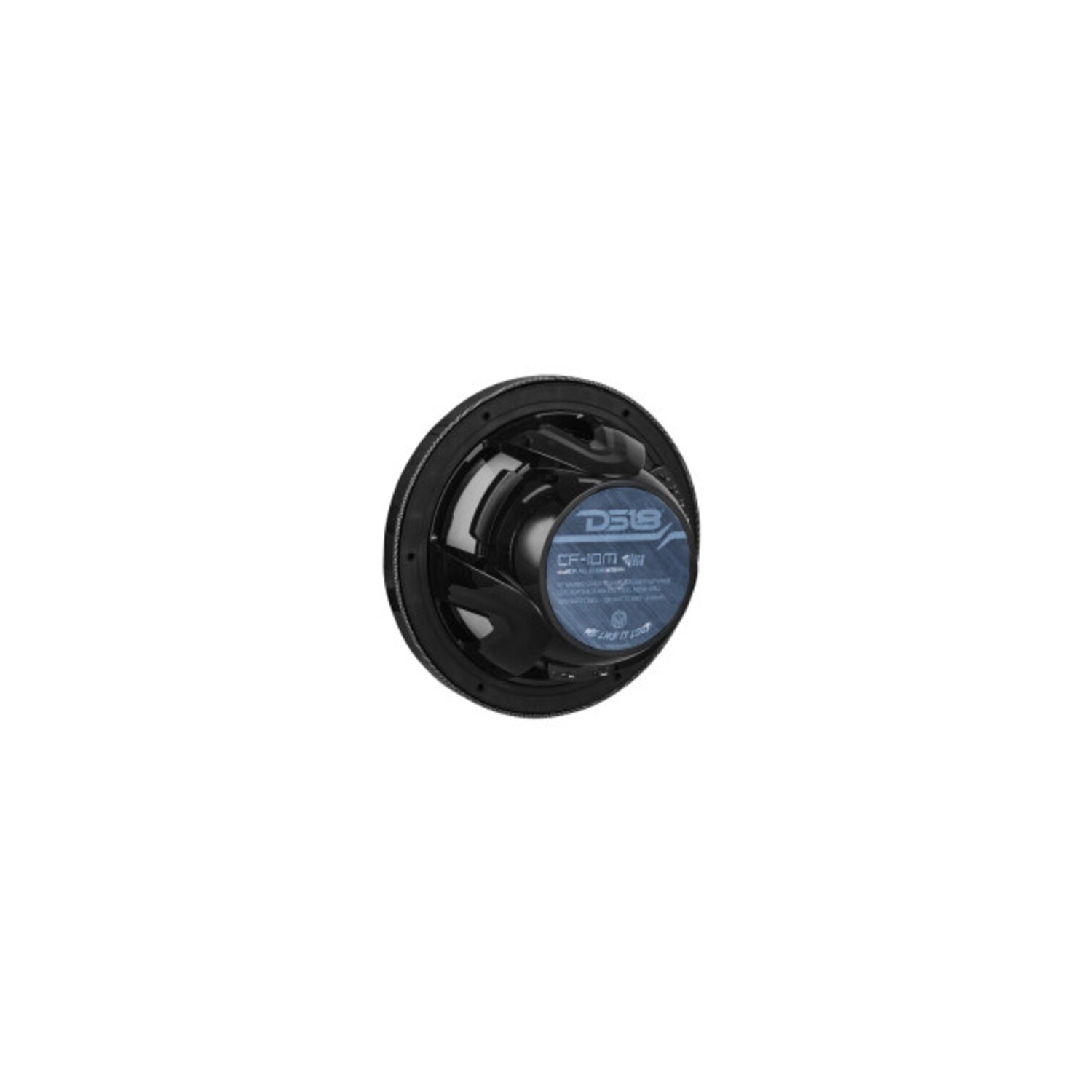

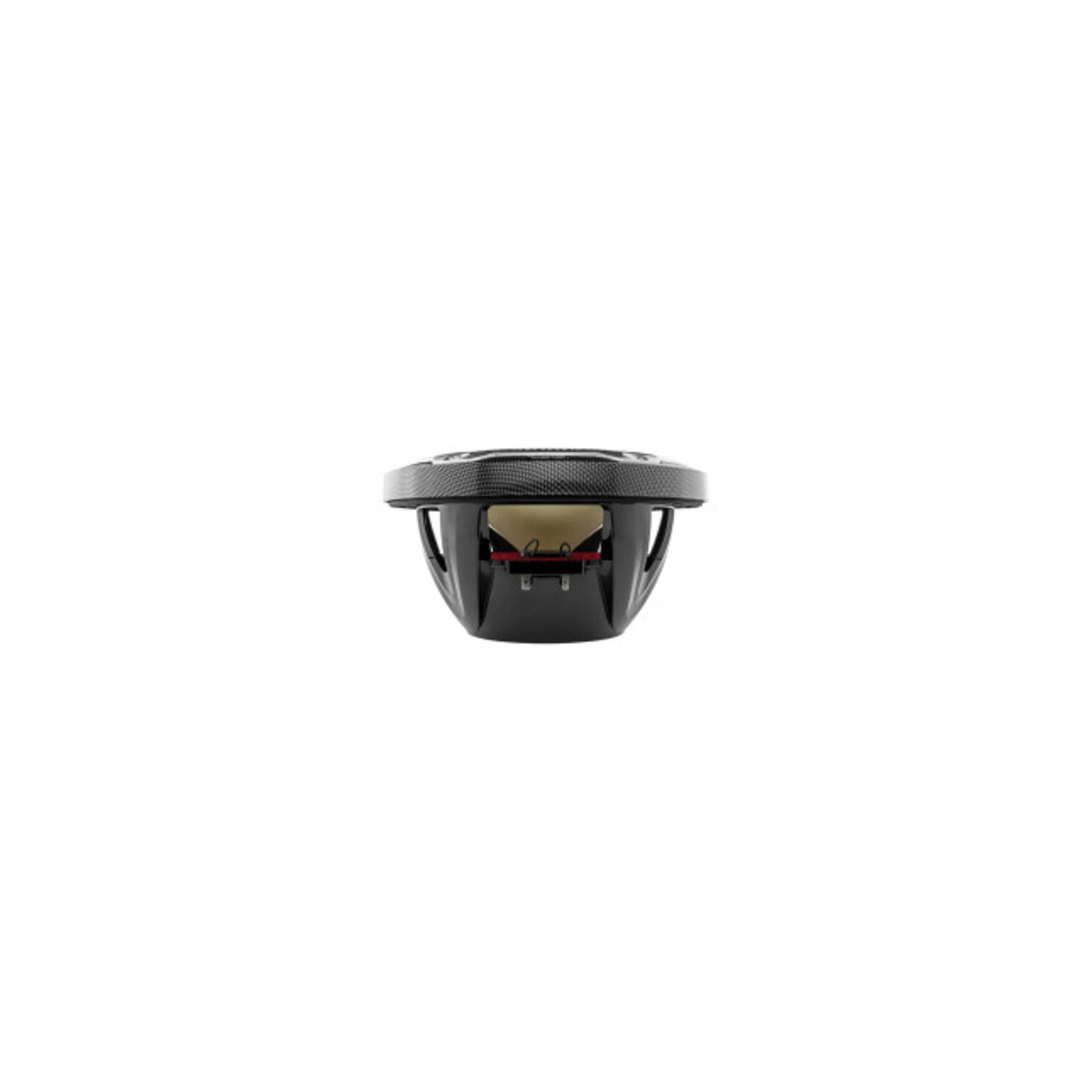

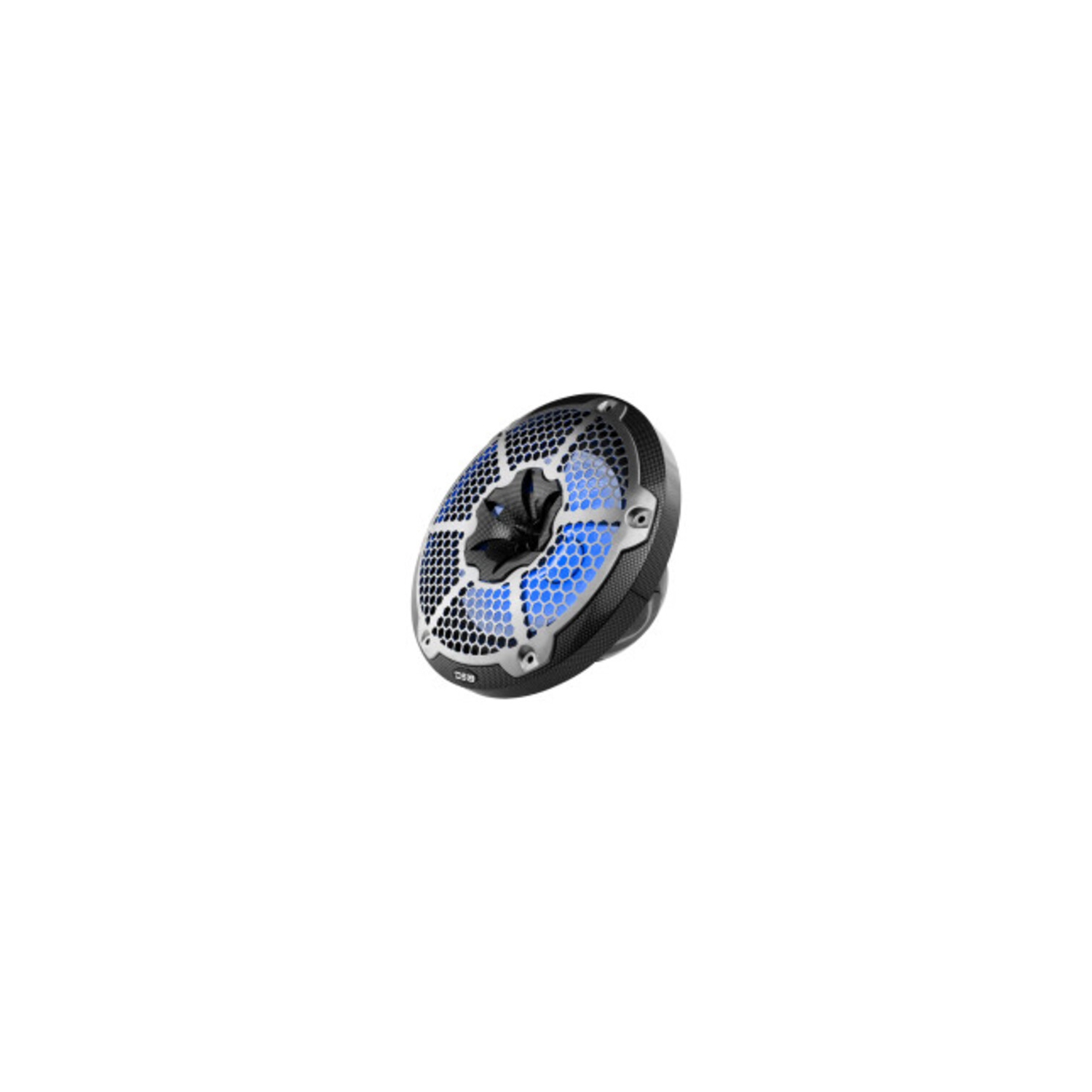

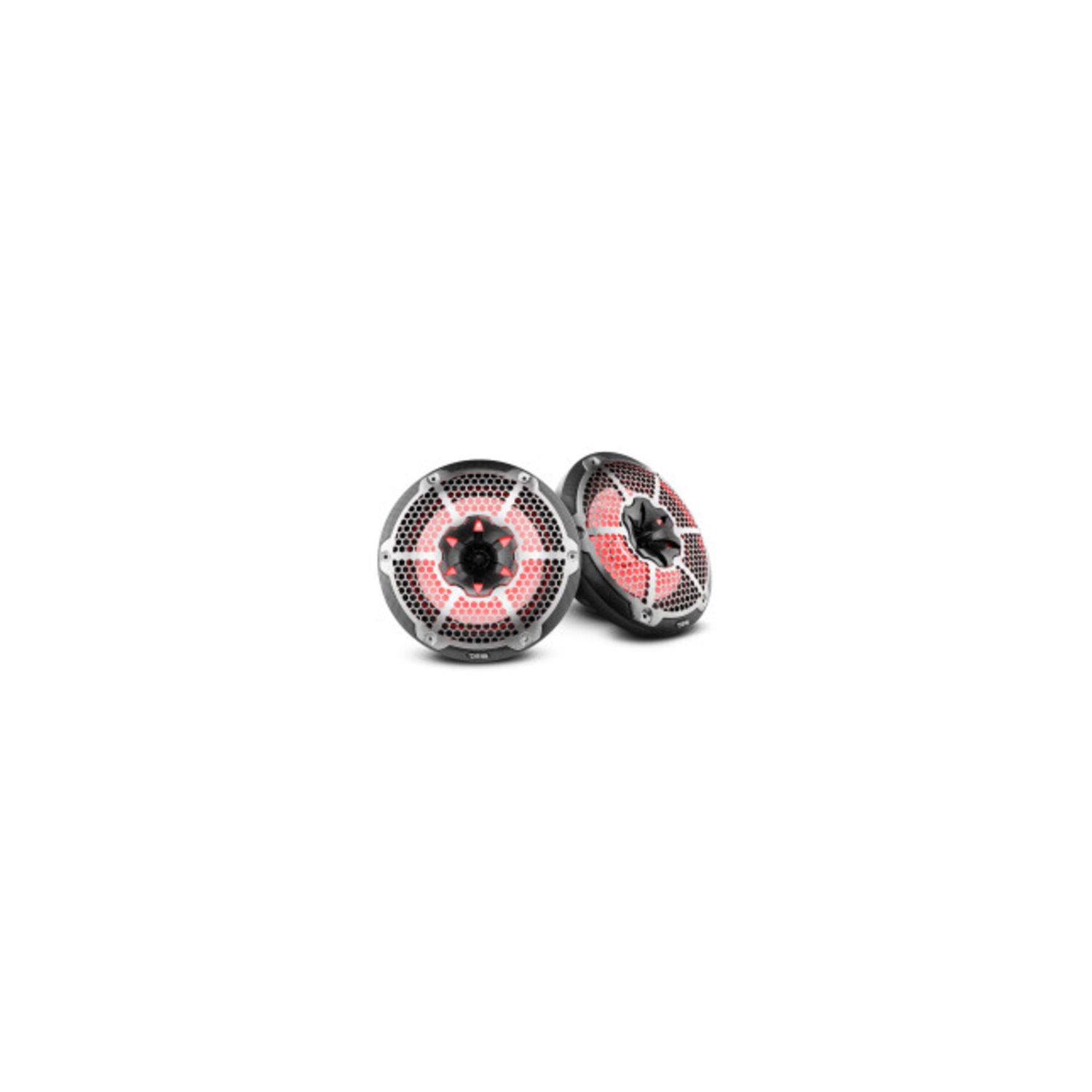

About: DS18 CF-10M NXL 10" 200W RMS 2-Way Coaxial Marine Speaker With LED RGB Lights (Black Carbon Fiber) - 4 Ohm
Prepare to be amazed by the innovative design and exceptional performance of DS18’s CF-10M! Engineered to withstand the harshest elements, the CF-10M speakers feature an impressive IP65 waterproof rating, ensuring durability and longevity. The carbon fiber laminate construction, fortified with protective layers, guarantees a sturdy and reliable speaker that can handle any marine environment. These speakers also come equipped with integrated RGB lighting on the metal mesh grill, allowing you to customize your sound system with vibrant colors. The waterproof cones combined with the mesmerizing LED lights create an eye-catching visual experience that complements your boat's aesthetic perfectly.
When it comes to sound quality, the CF-10M delivers unparalleled performance. The 10-inch speakers produce a rich, full-bodied sound that is unmatched in open-air environments like being out on the water. With RMS Power Handling at 200W and MAX Power Handling of 600W, you will experience every nuance and detail of your favorite music with these powerful speakers. With an integrated tweeter and mid-range woofer, DS18’s CF-10M offer the full range of frequencies and exceptional sound clarity. The exclusive metal mesh grill design not only adds a touch of style but also provides ultimate protection for your investment. Upgrade your marine audio system with DS18’s CF-10M and elevate your boating experience to new heights.
Product Highlights:
10" 2-Way Marine Speaker
RMS Power: 200 Watts
Ferrite & Neodymium Magnets
Impedance: 4 Ohm
RGB LED Lights ~ Metal Mesh Grill
Water Resistant IP65
Features:
UV Compliant: Yes, 100% Stable
Marine Grade Type: IP65
RGB LED: Yes, RGB integrated
Grill Type: Injection Molded Composite (ASA) with 316 Stainless Steel mesh
Pair: Yes
Color / Finish: Carbon Fiber Texture / Gloss
Specifications:
Nominal Diameter: 10" / 254mm
Nominal Impedance: 4 Ohm
RMS Power Handling: 200W
MAX Power Handling: 600W
Sensitivity (1w/1m): 94.3dB
Frequency Response: 35Hz-20Khz
Recommended HI Pass Crossover: 50Hz
Woofer Specifications:
Voice Coil Diameter: 1.5" / 38.6mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Injection Molded Polypropylene + UV Compliant
Surround Material: Butyl (Rubber)
Basket Material: High Temp Injection Molded Composite with UV Protection coating
Magnet Material: Ferrite (Y35) + Neodymium (N35)
Magnet Weight: 50oz + 0.56oz
Tweeter Specifications:
Voice Coil Diameter: 1" / 25.4mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: PEN
Magnet Material: Neodymium (N38H)
Magnet Weight: 0.51oz
Thiele & Small Parameters:
Equivalent Volume (Vas): 197.13L / 6.96ft3
Excursion (one way) (Xmax): 6mm
Free Air Resonance (Fs): 42Hz
Mechanical Factor (Qms): 6.874
Electrical Factor (Qes): 0.838
Total Factor (Qts): 0.747
Moving Mass (Mms): 11.37g
Compliance (Cms): 1.264mm/N
Bl Factor (Bl): 3.4
Voice Coil Inductance (Le): 0.60712mH
Cone Area (Sd): 333.29 cm2
DC Resistance (Re): 3.2ohms
Efficiency Bandwidth Product (EBP): 50.12
Speaker Measurements:
Overall Diameter: 10.7" / 274mm
Overall Depth: 5.7" / 144.7mm
Front Mount Baffle Cutout: 8.75" / 222mm
Mounting Depth: 4.2" / 106.6mm
Motor Diameter: 5.3" / 135mm
Gross Single Unit Weight: 20.5 lb
Single Unit Box Dimensions (W x L x H): 23" x 12.75" x 7.5"
