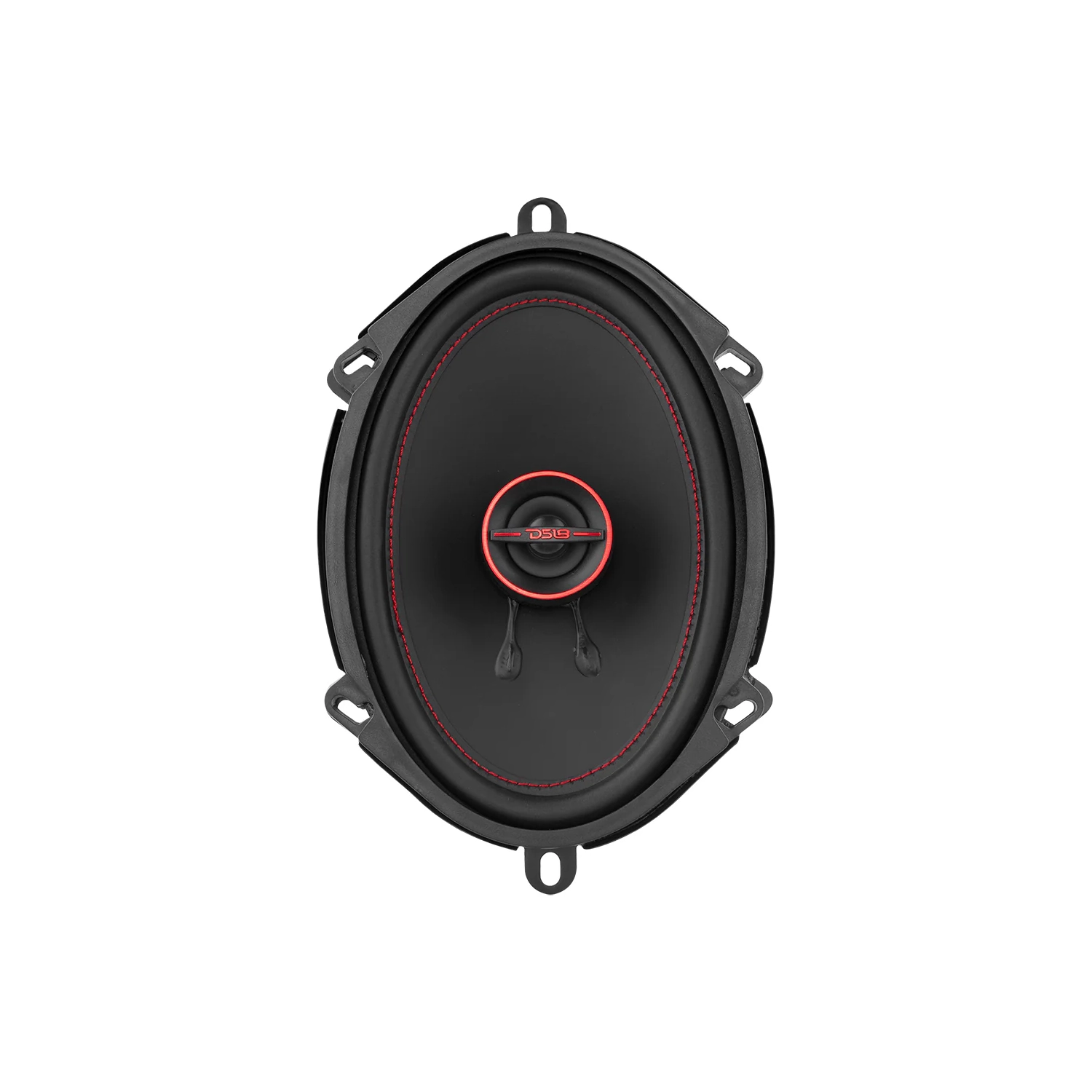

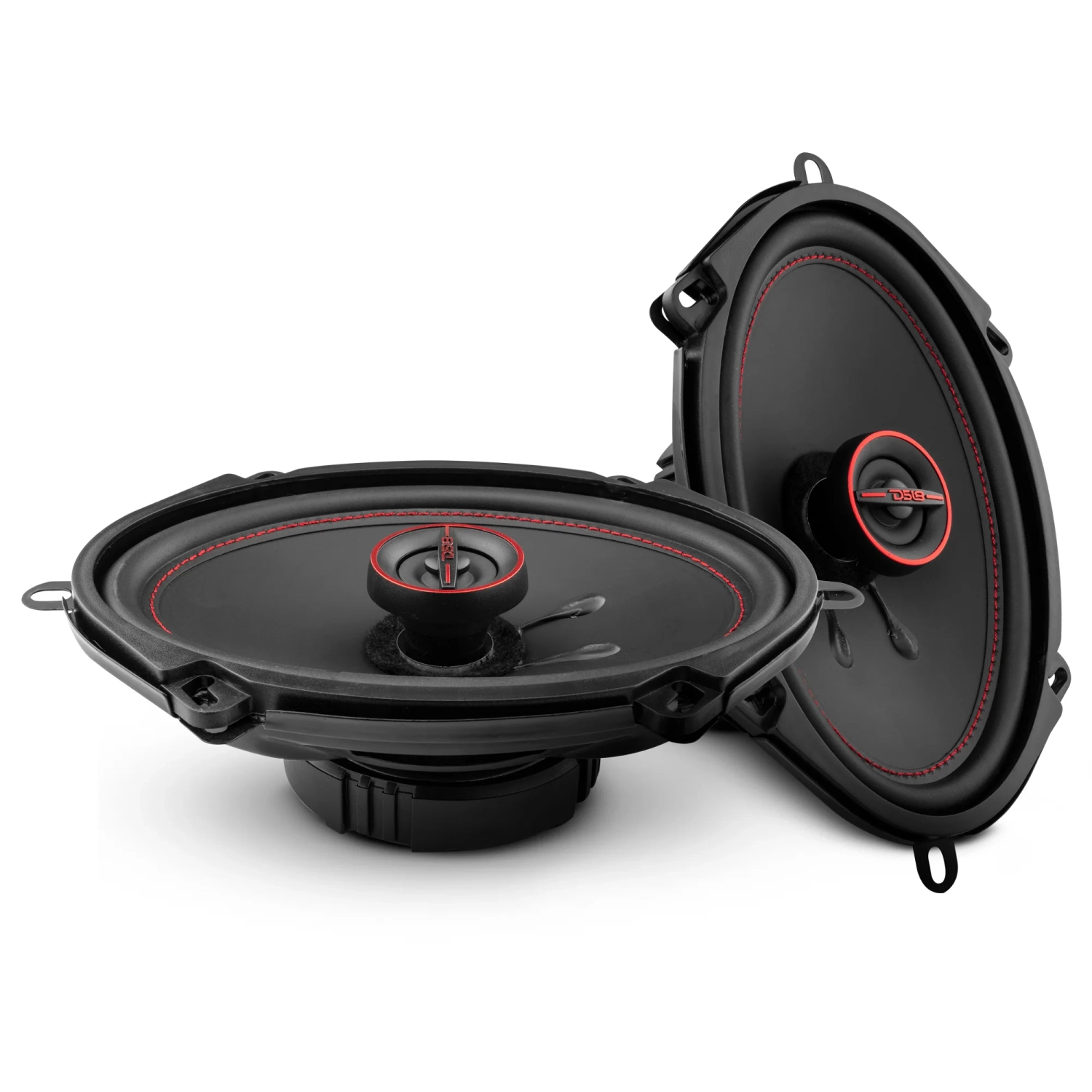

About: DS18 G5.7XI 5x7" 2-Way Coaxial Car Speaker 50W RMS - 4 Ohm
The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.
The G5.7Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.
The G5.7Xi is notable for its 2-way design consisting of a woofer, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G5.7Xi's 2-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 40Hz.
These speakers get loud extremely easily with a MAX Power Handling of 150W and RMS Power Handling of 50W.
Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G5.7Xi will deliver. Order yours today and take the first step towards audio perfection on the road.
Product Highlights:
•5X7" 2-Way Coaxial
•MAX Power: 150 Watts
•RMS Power: 50 Watts
•Impedance: 4 Ohm
•Barium Ferrite & Neodymium Magnets
•Pair ~ 85dB
Specifications:
•SKU: G5.7XI
•Nominal Diameter: 5X7" / 127x177mm
•Nominal Impedance: 4 Ohms
•RMS Power Handling: 50W
•Maximum Power Handling: 150W
•Sensitivity (1w/1m): 85dB
•Frequency Response: 40Hz-20KHz
•Recommended HI Pass Crossover: 70Hz
•Number of ways: 2
•Pair or single: Pair
•Grill Included: No
Woofer Specifications:
•Voice Coil Diameter: 1" / 25.5mm
•Voice Coil Former Material: ASV
•Winding Material: EISV
•Cone Material: Paper
•Surround Material: Rubber
•Basket Material: Steel
•Basket Color/Finish: Black Matte
•Magnet Material: Barium Ferrite
•Magnet Weight: 7.8Oz / 221g
Thiele & Small Parameters:
•Equivalent Volume Vas: 6.2L / 0.21ft3
•Excursion (one way) Xmax: 2.7mm
•Free Air Resonance Fs: 82Hz
•Mechanical Factor Qms: 4.1
•Electrical Factor Qes: 2.2
•Total Factor Qts: 1.4
•Mechanical Mass Mms: 13.2g
•Mechanical Compliance Cms: 250mm/N
•Bl Factor Bl: 3.4
•Voice Coil Inductance Le: 172uH
•Cone Area Sd: 134.7cm2
•DC Resistance Re: 3.7 Ohms
•Mechanical Mass w/o air Mmd: 11.5g
Tweeter Specifications:
•Nominal Diameter: 1" / 25.5mm
•Voice Coil Diameter: 0.5" / 13.25mm
•Voice Coil Former Material: ASV
•Winding Material: EISVM
•Diaphragm Material: Mylar
•Magnet Material: Neodymium
•Magnet Weight: 1.8g
Speaker Measurements:
•Overall Diameter: 5.57" x 7.6" / 141.5 x 193mm
•Overall Depth: 2.63" / 66.8mm
•Front Mount Baffle Cutout: 4.9" x 7" / 126 x 180mm
•Mounting Depth: 2.13" / 54mm
•Motor Diameter: 3.4" / 86mm
•Tweeter Protrusion: 0.5" / 12.8mm
•Gross Single Unit Weight: 0.68KG
•Single Unit Box Dimensions W x L x H: 235 x 85 x 310mm
•Quantity of Units in Master Carton: 10 PRS/CTN
•Gross Master Carton Weight: 18 KG
•Master Carton Dimensions W x L x H: 490 x 450 x 330mm
