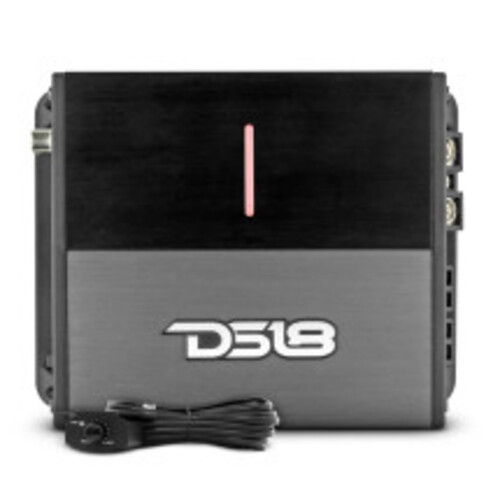

About: DS18 ION700.2D ION Compact Full Range 2-Channel Amplifier - 2 x 350W RMS

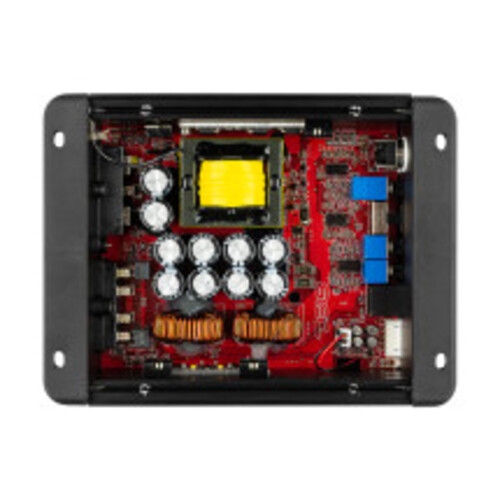

Introducing DS18’s ION700.2D, the perfect digital micro amplifier addition to your car audio system for boosting performance and efficiency for a premium listening experience! Hi-level Inputs and Tiffany RCA’s allow this amplifier to be easily integrated into any existing audio setup and ensure optimal signal transfer for crystal clear sound. The ION700.2D miniature size and surface mount component technology allows it to be placed almost anywhere in your build without taking up too much space. The full variable crossover switch lets you customize your audio settings to your preferences for enhanced audio clarity across all frequencies. You also have the ability to adjust the amplifier's 45Hz Bass Boost level up to 12dB. Fine tune these levels with the convenient remote level knob control!
Safety was a top priority in the creation of DS18’s ION700.2D amplifier. The power, protection, and clipping LED indicator always keeps you informed of the amplifiers status. While short circuit thermal, DC offset, and high/low voltage protection features, give you the comfort of knowing that your amplifier will operate reliably and safely. Additionally, protective coating prevents moisture corrosion on the PCB, guaranteeing longevity and durability. The ION700.2D has power ratings of 700W at 4-ohm bridged, 2 x 350W at 2 ohms, and 2 x 240W at 4 ohms; perfect power ratings to turbocharge every component in your system! Experience the power and precision of DS18’s ION700.2D!
Product Highlights:
2 Channel Full Range
Class D
2 - 4 Ohm Stable
2 X 240 Watts @ 4 Ohm
Power / Clip / Protection Indicator
Compact
Specifications:
Total Watts (Peak): 2100W
RMS Power @ 4 ohm: 2 x 240W
RMS Power @ 2 ohm: 2 x 350W
RMS Power @ 1 ohm: N/A
RMS Power @ 4 ohm Bridge: 700W
Frequency Response: 10Hz-20KHz
Signal to Noise Ratio: >95dB
Efficiency @ 4 ohm: 88%
Damping Factor: 210
Input Impedance: 27K ohms
Channel Separation: 59dB
Total Harmonic Distortion (THD): 0.01%
Low Level Input Range: 0.2-6V
High Level Input: Yes

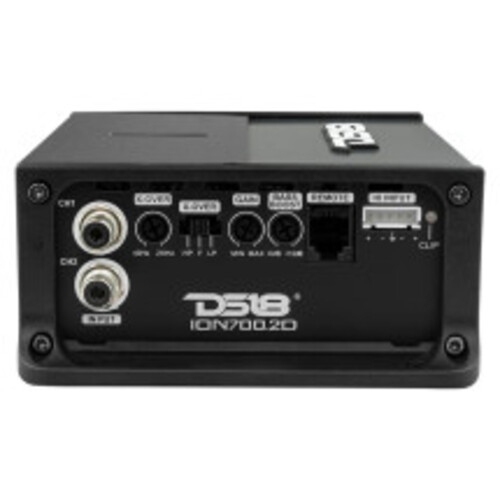

Selectable X-Over: LPF/HPF/FULL
X-Over Filter Range: 40Hz-2KHz
Bass Boost Range: 0~12dB
Bass Boost Frequency: 45Hz
Features:
Amplifier Class: Digital
Amplifier Type: Full-Range Stereo
Number of Channels: 2
Minimum Impedance: 2 Ohm (St) / 4 Ohms (Bridge)
Led Indicator: Power / Protect / Clipping
Power Input Terminal Size: 4 AWG
Fuse Size: 60A (external)

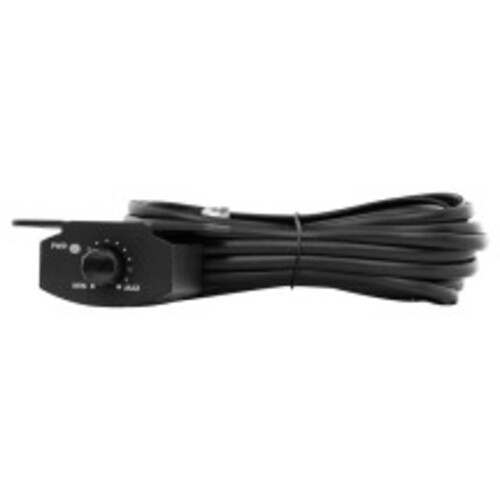

Remote Level Control: Yes
Cooling Fan: No
Thermal Protection: Yes
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Clipping Protection: Yes
Body Color / Finish: Aluminum Black / Silver
Hi-Level Speaker connector: Yes
Tiffany RCA Terminal: Yes
LED Clip Indicator: Yes
High Efficiency Micro Digital Design: Yes
Measurements:
Overall Length: 6.14" (156 mm)
Overall Wide: 4.72" (120 mm)
Overall Height: 2" (52 mm)
Heatsink Length: 4.84" (123 mm)
Gross Single Unit Weight: 0.75Kg
