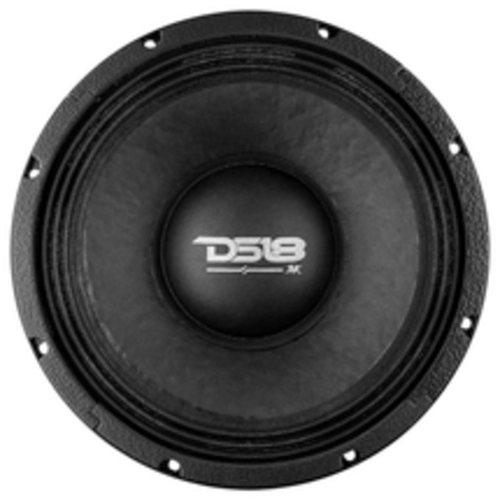

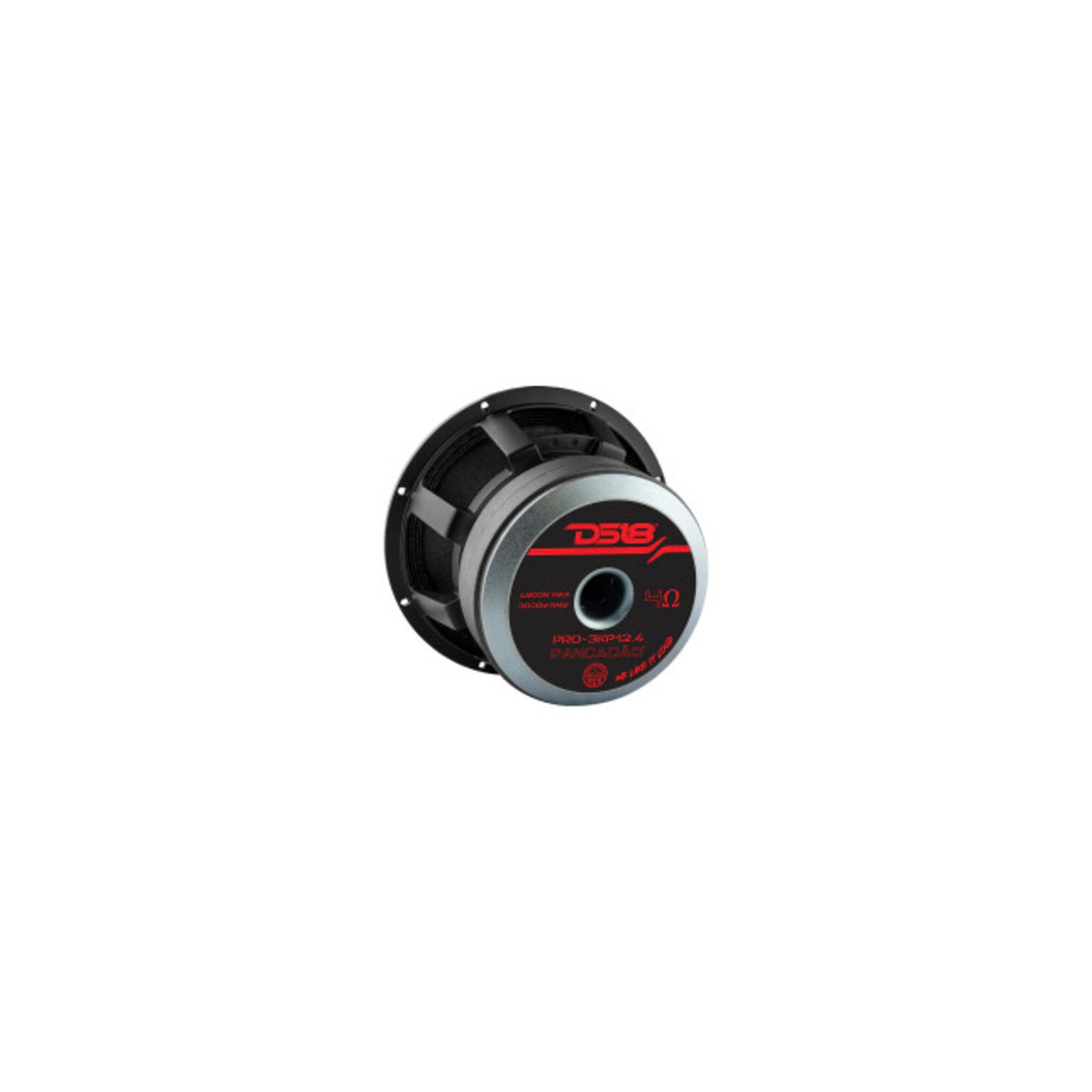

DS18 PRO-3KP12.4 12" PANCADÃO Mid-Bass Loudspeaker 3000W RMS - 4 Ohm

About: DS18 PRO-3KP12.4 12" PANCADÃO Mid-Bass Loudspeaker 3000W RMS - 4 Ohm (Each)

Prepare to be blown away by DS18’s PRO-3KP12.4 PANCADÃO Mid-Bass Loudspeaker - the ultimate addition to any high-performance pro audio system. This speaker is not for the faint-hearted. With a name that means "hard-hitting bass" in Brazilian Portuguese, this speaker delivers just that. Featuring a large high-strength ferrite magnet and reinforced aluminum basket, the PRO-3KP12.4 is built to handle insane amounts of power and get LOUD like no other. Its 3000 Watts RMS Power Handling and 4500 Watts MAX Power Handling make it one of the most powerful mid-bass speakers on the market. But that's not all - this speaker is a true "do-all" woofer, capable of playing an incredible range of frequencies from hard-punching mid-bass to mid-high vocals, all at an unbelievable volume. With a sensitivity of 95.8dB and a frequency response of 60Hz-9kHz, the PRO-3KP12.4 sets a new standard for sound quality.

DS18’s PRO-3KP12.4 PANCADÃO Mid-Bass Loudspeaker is designed to be versatile enough to fit in any sound system, and this is further emphasized by the range of impedances available for this speaker. The PRO-3KP12.4 is offered in a 4-Ohm configuration, which makes it compatible with a wide range of amplifiers and audio systems: but, these speakers also come in 2-ohm configurations. This flexibility in impedance options allows the speaker to work seamlessly with different audio setups, ensuring that you get the best performance out of your sound system. If you're looking for a speaker that will set your sound system apart from the rest, look no further than the PRO-3KP12.4 PANCADÃO Mid-Bass Loudspeaker.

Product Highlights:

12" Mid-Bass

MAX Power: 6000 Watts

RMS Power: 3000 Watts

Impedance: 4-Ohm

Ferrite Magnet

95.8dB

Specifications:

Nominal Diameter: 12" (304 mm)

Nominal Impedance: 4 Ohm

RMS Power Handling: 3000W

MAX Power Handling: 6000W

Sensitivity (1w/1m): 95.8dB

Frequency Response: 60Hz-9KHz

Recommended HI Pass Crossover: 70Hz

Sold in Pair or Single: Single

Grill Included: No

Motor:

Voice Coil Diameter: 4" (101.6 mm)

Voice Coil Former Material: Fiber Glass

Winding Material: CCAW

Cone Material: Non-Pressed Paper

Dust Cap Material: Paper

Surround Material: Cloth

Basket Material: Aluminum

Basket Color/Finish: Black

Magnet Material: Ferrite

Magnet Weight: 250 oz

Thiele & Small Parameters:

Equivalent Volume (Vas): 22.019L

Excursion (one way) Xmax: 7mm

Free Air Resonance (Fs): 67.8Hz

Mechanical Factor (Qms): 10.511

Electrical Factor (Qes): 0.282

Total Factor (Qts): 0.274

DC Resistance (Re): 2.8 ohms

Recommended Enclosures:

Ported Internal Volume: 50L / 1.78ft3

Port Size *Square (W x H x L): 4.72" x 12.8" x 9" (120 x 325 x 230 mm)

Port Tuning Frequency Fb: 76Hz

Ported Box Output Response F3: 65Hz

Measurement:

Overall Diameter: 12.36" (314 mm)

Overall Depth: 7.75" (197 mm)

Front Mount Baffle Cutout: 11.18" (284 mm)

Mounting Depth: 7.2" (183 mm)

Motor Diameter: 8.66" (220 mm)

Gross Single Unit Weight: 51 lb

Single Unit Box Dimensions (L x W x H): 15" x 15" x 11"
