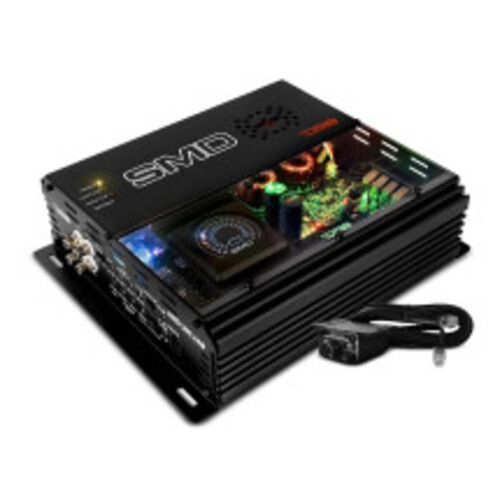

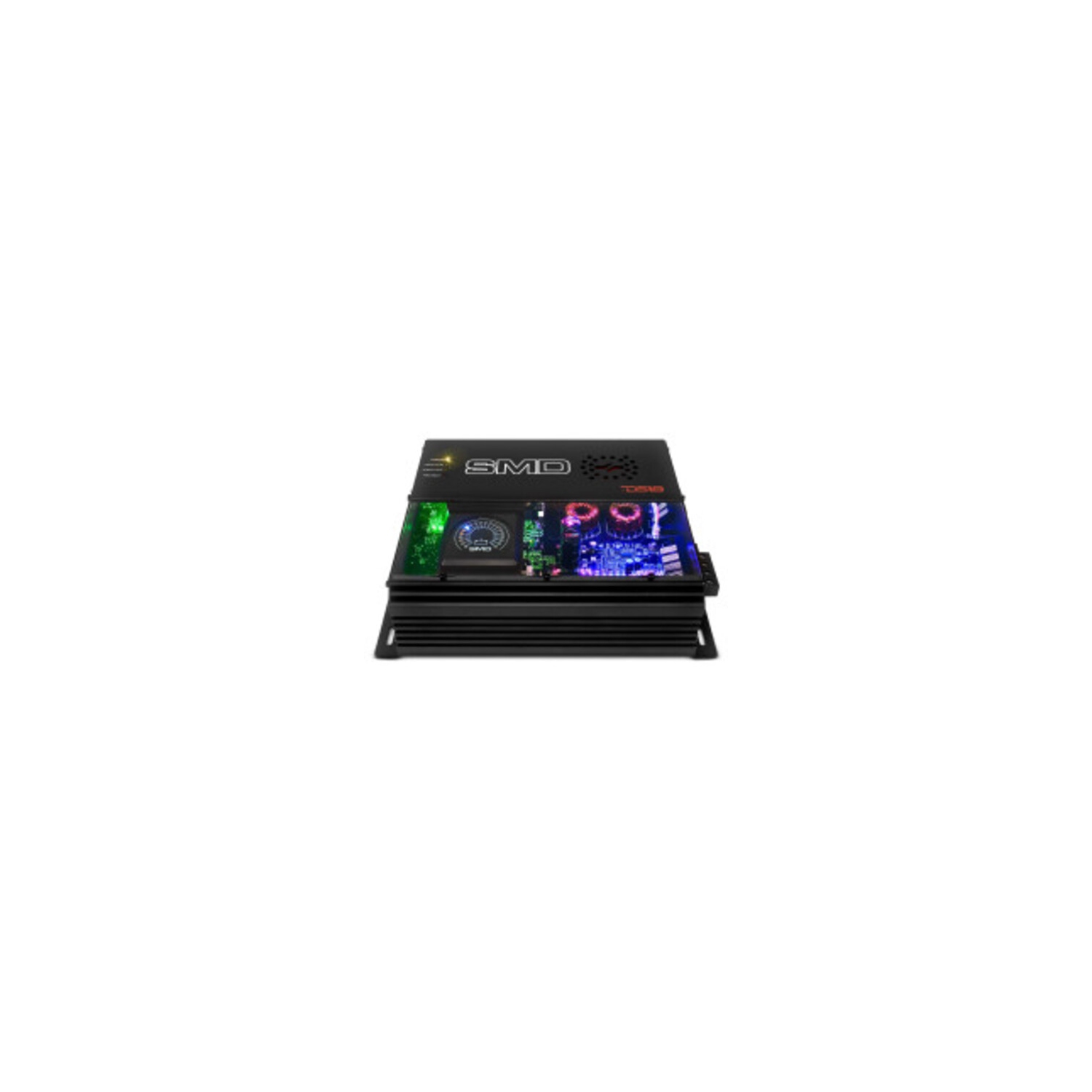

About: DS18 SMD-200.4AB 4-Channel Class AB Amplifier with Voltmeter and Digital LED Lights
Introducing the SMD-200.4AB— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.
Manufactured using premium components from Korea, this amplifier guarantees the reliability and powerful sound quality that Steve Meade Designs is known for. The SMD-200.4AB is not only visually striking but also engineered for top-tier performance. It delivers an impressive 150W x 4 RMS at 4-ohm, 200W x 4 RMS at 2-ohm, and 400W x 2 RMS bridged at 4-ohm: driving even the most demanding setups with ease.
The SMD-200.4AB is designed for audiophiles seeking superior sound quality. As a Class AB amplifier, it prioritizes clarity and detail, delivering pristine audio performance. Equipped with a precision attenuation knob for easy bass control, it maintains a .10% THD, ensuring exceptional Total Harmonic Distortion levels. With 4 AWG power and ground inputs and a 120A fusing requirement, it’s built for robust power delivery. Additional features include selectable 2/4 channel inputs and Tiffany RCA connectors for the highest quality signal transfer in your setup.
Product Highlights:
4 Channel Stereo Full Range
Exclusive SMD Design ~ Class AB
2 - 4 Ohm Stable ~ 4 X 200 Watts @ 2 Ohms RMS
VM-1 Voltmeter ~ Fans ~ Input Selector
Acrylic Window ~ Digital LED Lighting w/ Remote
Bass Knob ~ LED Indicators ~ Made in Korea
Features:
Amplifier Class: Analog AB
Amplifier Type: Stereo Full-Range
Number of Channels: 4
Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridge
Led Indicator: Power / Protection / Clip
Power Input Terminal Size: 4 AWG
Recommended Fuse Size (Not Included): 120A
Cooling Fan: Yes
Thermal Protection: Yes
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Clipping Protection: Yes
Body Color / Finish: Black
Input Mode Selectable: Yes (2/4ch)
Metal Adjustment Knobs with Click Position: Yes
Professional Tiffany RCA Connectors: Yes
Remote Level Knob with Clip indicator: Yes (Metal Case)
Reliable Heavy Duty Korean Board Design
High-Power Class AB Circuit Design
Exclusive SMD design with VM-1 Voltmeter
Front Acrylic Window and Digital RGB Lighting

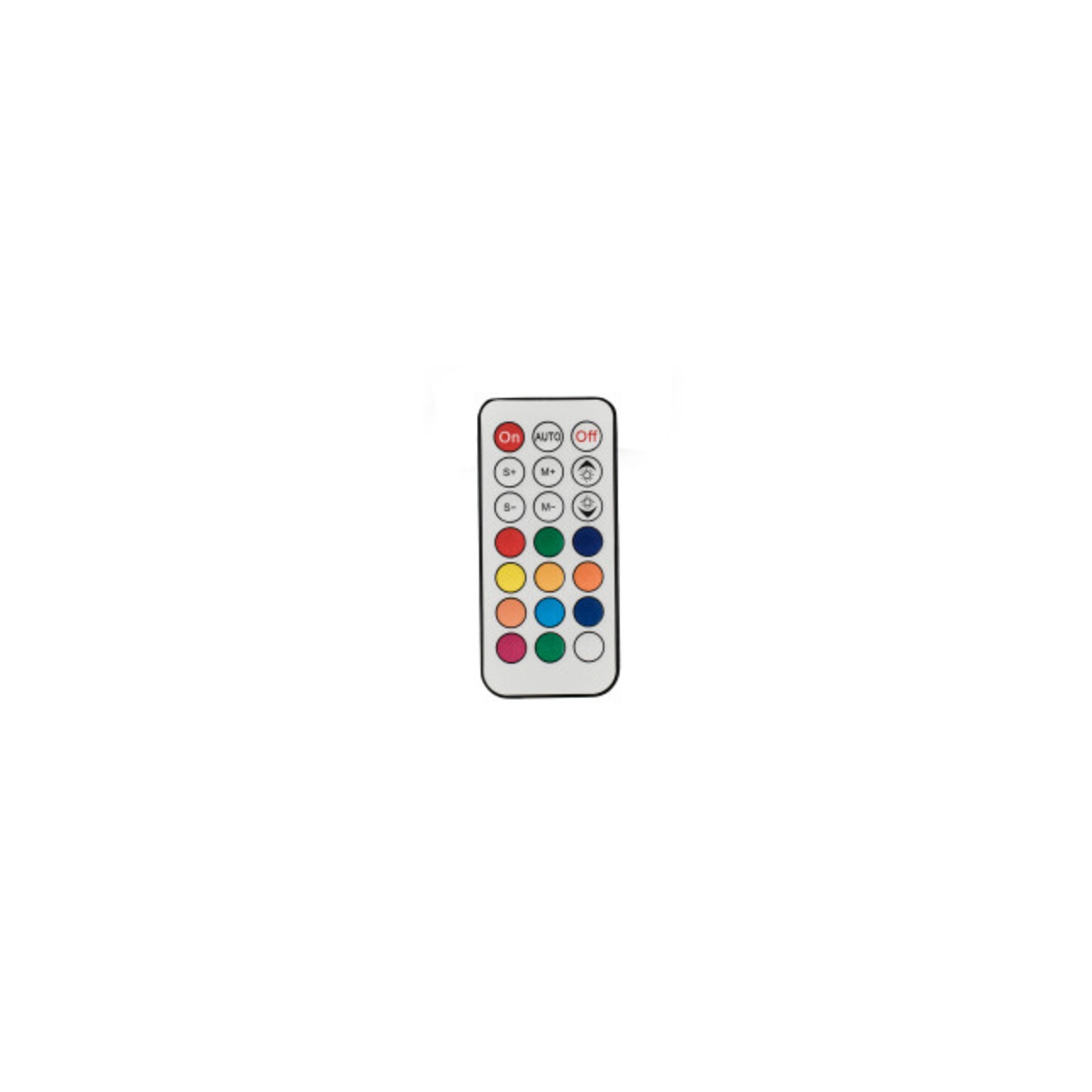

IR Remote Control for LED patterns and colors
Specifications:
RMS Power @ 4 ohm: 150W x 4
RMS Power @ 2 ohm: 200W x 4
RMS Power @ 1 ohm: N/A
RMS Power @ 4 ohm Bridge: 400W x 2
Operational Voltage: 8.5-16.5v
Frequency Response: 10Hz-24KHz
Signal to Noise Ratio: >98dB
Efficiency @ 4ohm: >62%
Damping Factor: 140
Input Impedance: 22K ohm
Channel Separation: >50dB
Total Harmonic Distortion (THD): 0.10%
Low Level Input Range: 200mV-6V
High Level Input: NO
Selectable X-Over: HPF/FULL/LPF
X-Over Filter Range: 50Hz-2KHz
Bass Boost Range: 0~9dB
Bass Boost Frequency: 30Hz-60Hz
Phase Selector: 0~180
Measurements:
Overall Length: 11" (282 mm)
Overall Width: 9.15" (232 mm)
Overall Height: 3" (76 mm)
Heatsink Length: 9.4" (240 mm)
Gross Single Unit Weight: 7.2Lb (3.3Kg)
