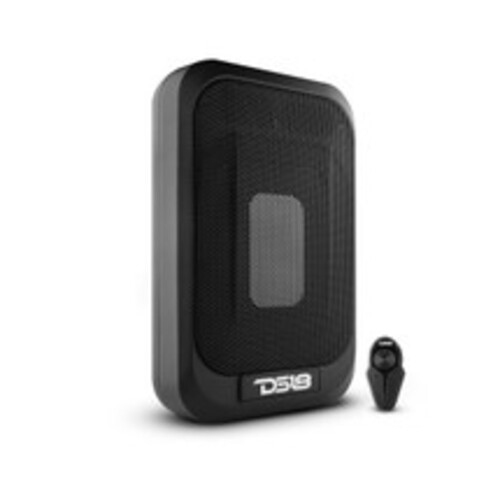

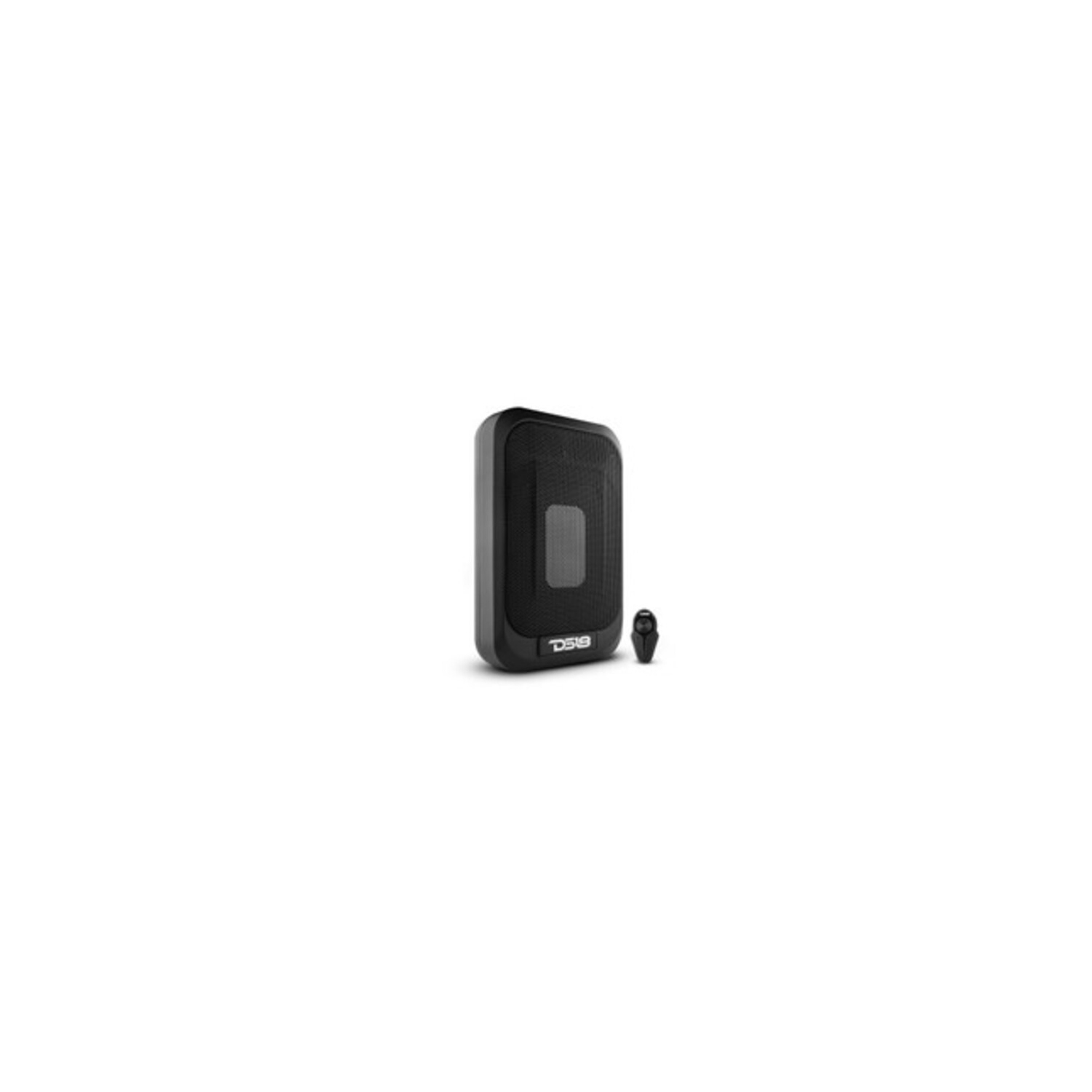

About: DS18 SQBASSX2 7" x 9” 230W RMS Amplified Under Seat Car Subwoofer with a 4” x 6” Passive Radiator
For powerful bass that defies its size, look no further than DS18’s SQBASSX2! Designed with the enthusiast in mind, the SQBASSX2 exemplifies the DS18 standard for engineering. This subwoofer was made for vehicles that want explosive bass but don’t have the space for oversized subs or enclosures. The SQBASSX2 integrates a 7" x 9" subwoofer into a compact enclosure, amplifies it with a 4" x 6" passive radiator, and delivers unmatched bass precision and tonal richness.
What sets the SQBASSX2 apart is its ability to fit effortlessly under most conventional car seating, rear cubbies, or medium-sized storage compartments. It’s compact size gives it a modest presence, but its impact is anything but subtle. With a range of 34Hz to 400Hz, the SQBASSX2 ensures every bass note is felt and heard. The SQBASSX2 effortlessly delivers earth-shaking lows, creating an immersive audio experience that transports you to the very heart of your music. Its impressive 230W RMS power rating makes sure every drop sends shivers down your spine.

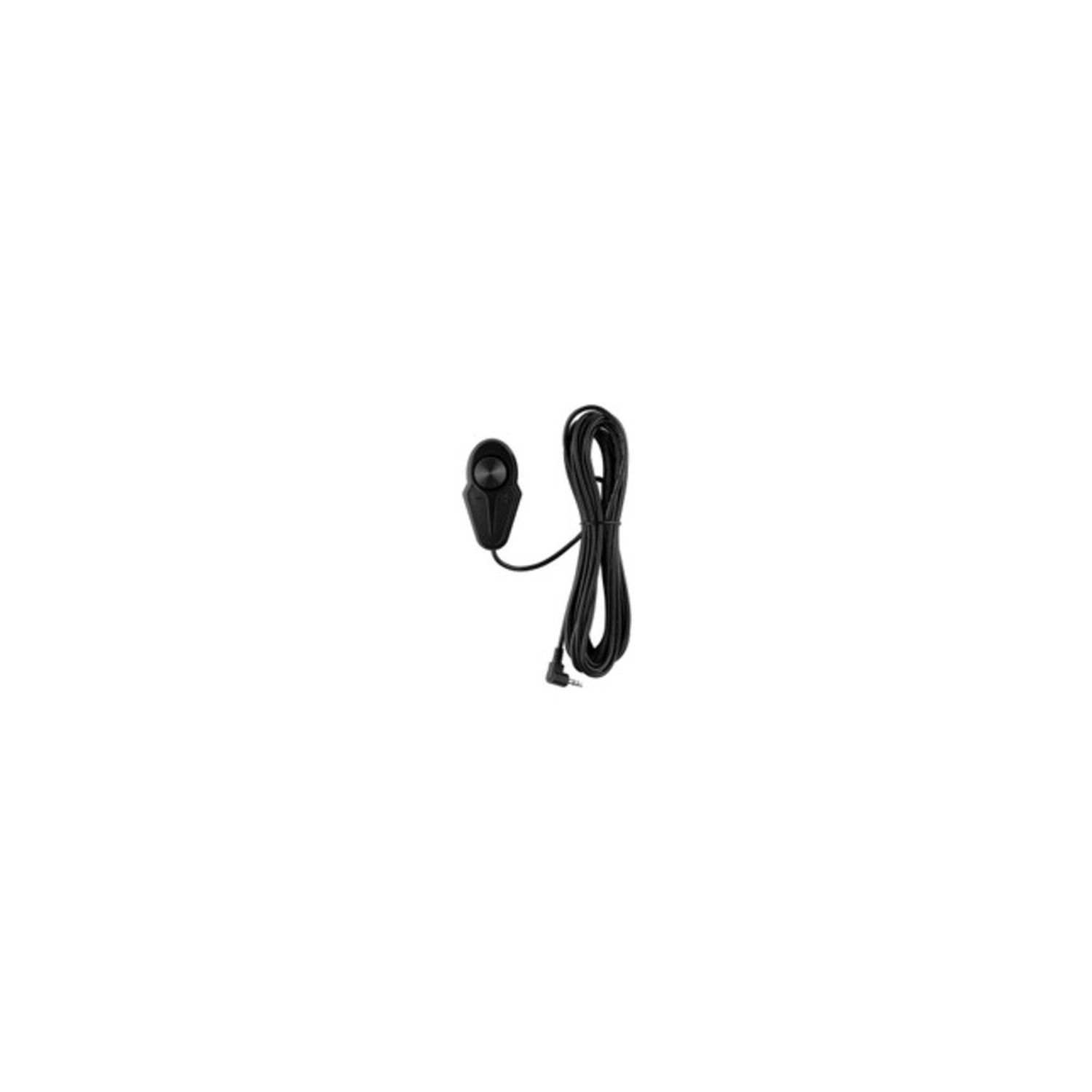

The SQBASSX2 doesn’t just meet DS18’s power standard; it also has the precision you love in DS18’s products. Equipped with its own volume control knob, the SQBASSX2 dares you to find your system’s sweet spot. Tailor the bass to your musical preferences, whether it's the driving rhythms of rock, the thumping beats of hip-hop, or the smooth melodies of jazz. The low pass crossover, adjustable from 50Hz to 150Hz, ensures that the bass seamlessly integrates with your existing audio system. And with the included remote knob and a generous 5-meter cable, you have full control at your fingertips, allowing you to fine-tune the bass with ease. Unleash the full potential of your car audio system with DS18’s SQBASSX2!
Product Highlights:
7X9" Subwoofer Enclosure
Amplified with Subwoofer Control Knob
RMS Power: 230 Watts(1200 Watts Peak)
Impedance: 2-Ohm
Under Car Seat
80dB
Specifications:
SKU: SQBASSX2
Speaker Type / Size: 7x9" + 4x6"
Total RMS Power Handling: 230W
Total MAX Power Handling: 1200W
Sensitivity (1w/1m): 80dB
Frequency Response: 34-400Hz
Remote Knob Cable Length: 16ft / 5m
Remote Knob Adjust Range: 0-30dB
Auto Turn-On: Yes, Signal Sensing
Speaker Specifications:
Cone Material: Polypropylene
Surround Material: Rubber
Basket Material: Steel
Magnet Material: Ferrite
Body / Housing Material: Aluminum
Amplifier Specifications:
Amplifier Class: Digital
Amplifier Type: Subwoofer Monoblock
Number of Channels: 1Ch
Minimum Impedance: 2ohm
Signal to Noise Ratio: >80dB
Total Harmonic Distortion (THD): <0.5%
Low Level Input Range: 0.1-5 Volts
High Level Input: 0.5-10 Volts
Selectable X-Over: LPF Fixed
X-Over Filter Range: 50-150Hz
Phase Selector: 0-180?
Led Indicator: Power/Protect
Power Input Terminal Size: 12Ga Wired
Fuse Size: 15A
Remote Level Control: Yes, Included
Thermal Protection: Yes
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Measurements:
Overall Height; 2.8" / 71mm
Overall Width: 7.9" / 200mm
Overall Depth: 12.1" / 308mm
Gross Single Unit Weight: 11lb
Single Unit Box Dimensions (W x L x H): 14.75" x 9.75" x 5"
