Overview

Surface mount component technologyFR4 two layers circuit trace design high output levels and low harmonic distortion (T.HD.)Extremely low standby current consumptionShort/High & low voltage multi protectionsQuick Disconnect DC-DC converter switch power supply

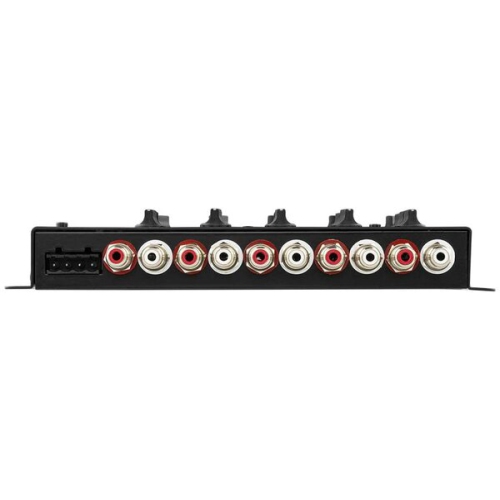

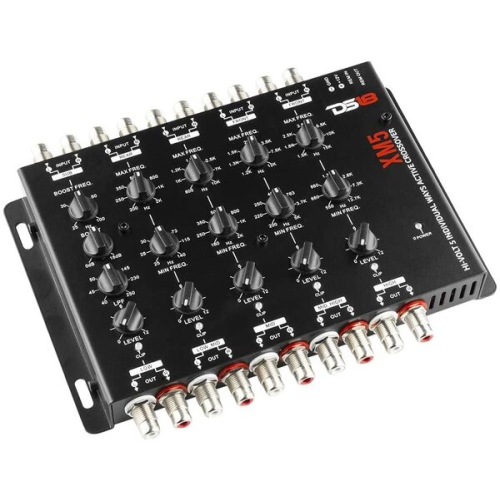

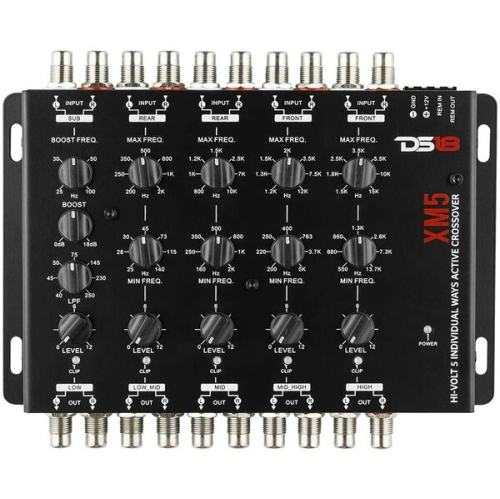

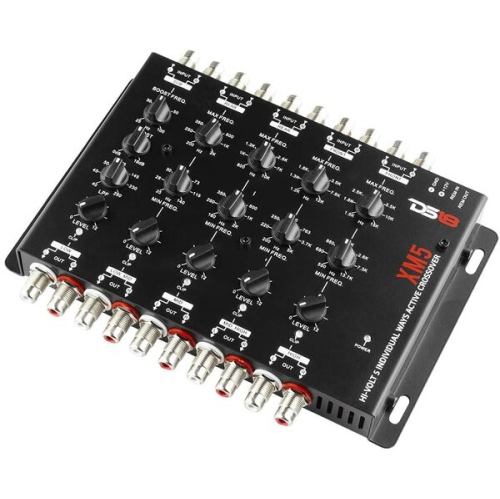

DS18 XM5 5 Way Pro Audio Crossover

Model: XM5
Web Code: 15753360
Sold and shipped by | 4.4 seller rating (157 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

Specifications:

LOW WAY (mono)

Cutoff Frequency (LPF): Variable 40-250 Hz (-25dB/Octave)

Boost Frequency: Variable 25-100Hz

Bass Boost: Variable0-18 dB

LOW_MID Way (Stereo)

Minimum Cutoff Frequency: Variable 25-140Hz (-12dB/Octave)

Maximum Cutoff Frequency: Variable 200-2KHz (-12dB/Octave)

MID WAY (STEREO)

Minimum Cutoff Frequency: Variable 160-2KHz (-12dB/Octave)

Maximum Cutoff Frequency: Variable 800-10KHz (-12dB/Octave)

MID_HIGH WAY (STEREO)

Minimum Cutoff Frequency: Variable 200-5KHz (-12dB/Octave)

Maximum Cutoff Frequency: Variable 1.2-12KHz (-12dB/Octave)

HIGH WAY (STEREO)

Minimum Cutoff Frequency: Variable 550-13.7KHz (-12dB/Octave)

Maximum Cutoff Frequency: Variable 1.5-15KHz (-12dB/Octave)

Product Condition
Brand New
