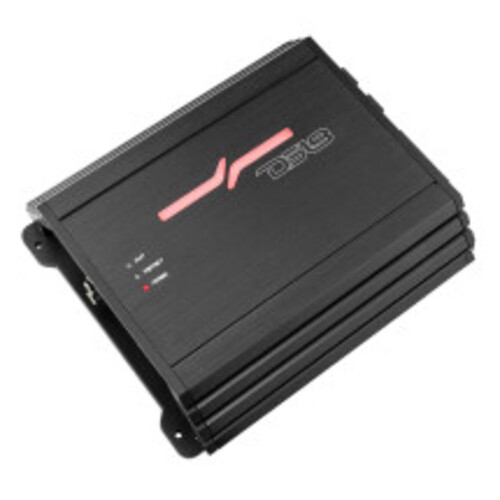

About: DS18 ZR500.1D ZR Series Class D 500W RMS Monoblock Amplifier
The ZR series is a game-changer, crafted to optimize your sound system and unleash its true potential! With DS18's ZR500.1D, the possibilities are endless. It boasts an impressive array of tuning options, including Lowpass, Subsonic, as well as a Gain Knob and Bass Boost Switch Selector that allows you to fine-tune every song to your desired frequency. This level of customization ensures that each note is reproduced with impeccable precision and tailored to your unique listening preferences.
Delivering a commendable 200W RMS @ 4-Ohm, 300W RMS @ 2-Ohm, and 500W RMS @ 1-Ohm, the ZR500.1D provides the perfect amount of power to fuel your bass. It effortlessly propels your speakers to their maximum potential, creating a rich and immersive audio environment. The ZR500.1D is a testament to DS18's commitment to excellence. Its Full Range design ensures maximum efficiency, while the impressive 2400 Peak Wattage makes sure all your speakers get the juice they deserve. With a frequency response of 10Hz – 220Hz, this amplifier faithfully reproduces the deepest lows with remarkable clarity and accuracy.
The ZR500.1D is designed to optimize your sound system for powerful performance during every session. The LED indicators for Clipping, Power, and Protect provide valuable visual feedback that ensure optimal performance. The power and ground terminals are designed to accommodate 4 Ga wires, ensuring a secure and reliable connection. Additionally, the selectable X-Over options grant you the ability to fine-tune your bass, allowing for seamless integration with your existing sound system and putting you in complete control of your soundstage.
Experience the DS18 difference today with the ZR500.1D and discover a new dimension of car audio excellence.
Product Highlights:
1 Channel Subwoofer Monoblock
Class D
1 ~ 4 Ohm Stable
1 x 500 Watts @ 1 Ohm
Clip/Protection Indicator
Bass Control Knob
Features:
Amplifier Class: Digital
Amplifier Type: Monoblock Subwoofer
Number of Channels: 1
Minimum Impedance: 1 Ohm
Led Indicator: Clipping/protect/power

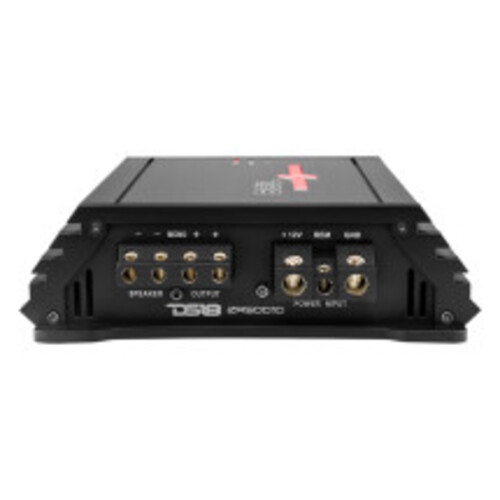

Power Input Terminal Size: 4 GA
Fuse Size: 60 A

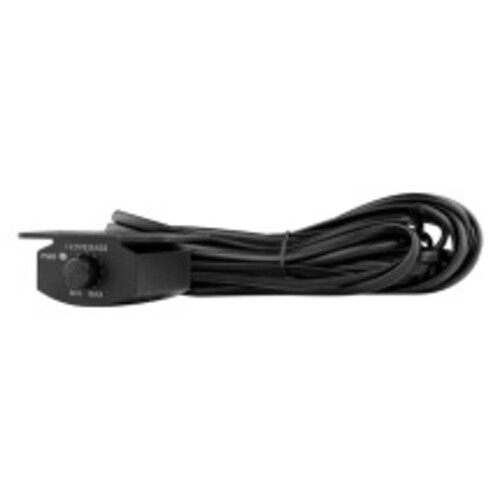

Remote Level Control: Yes / Dash Mount
Cooling Fan: No
Voltmeter: No
Thermal Protection: Yes
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes 16 Volts
Clipping Protection: Yes
Body Color / Finish: Black Aluminum Brush
Specifications:
Total Watts (Peak): 1500W
RMS Power @ 4 Ohm: 200W
RMS Power @ 2 Ohm: 300W
RMS Power @ 1 Ohm: 500W
Frequency Response: 10-220Hz
Signal to Noise Ratio: >95dB
Efficiency @ 4 Ohm: 85%
Damping Factor: 160
Input Impedance: 20K ohm
Channel Separation: N/A
Total Harmonic Distortion (THD): 0.01%
Low Level Input Range: 0.2-6V
High Level Input: No
Selectable X-Over: LPF Fixed
X-Over Filter Range: 50-220Hz
Bass Boost Range: 0/6/12dB
Bass Boost Frequency: 45Hz
Infrasonic Filter: 10-50Hz
Phase Selector: No
Measurements:
Overall Length: 8.46" / 215mm
Overall Wide: 7.24" / 184mm
Overall Height: 2" / 53mm
Heatsink Length: 7" / 180mm
Gross Single Unit Weight: 3.15lb
