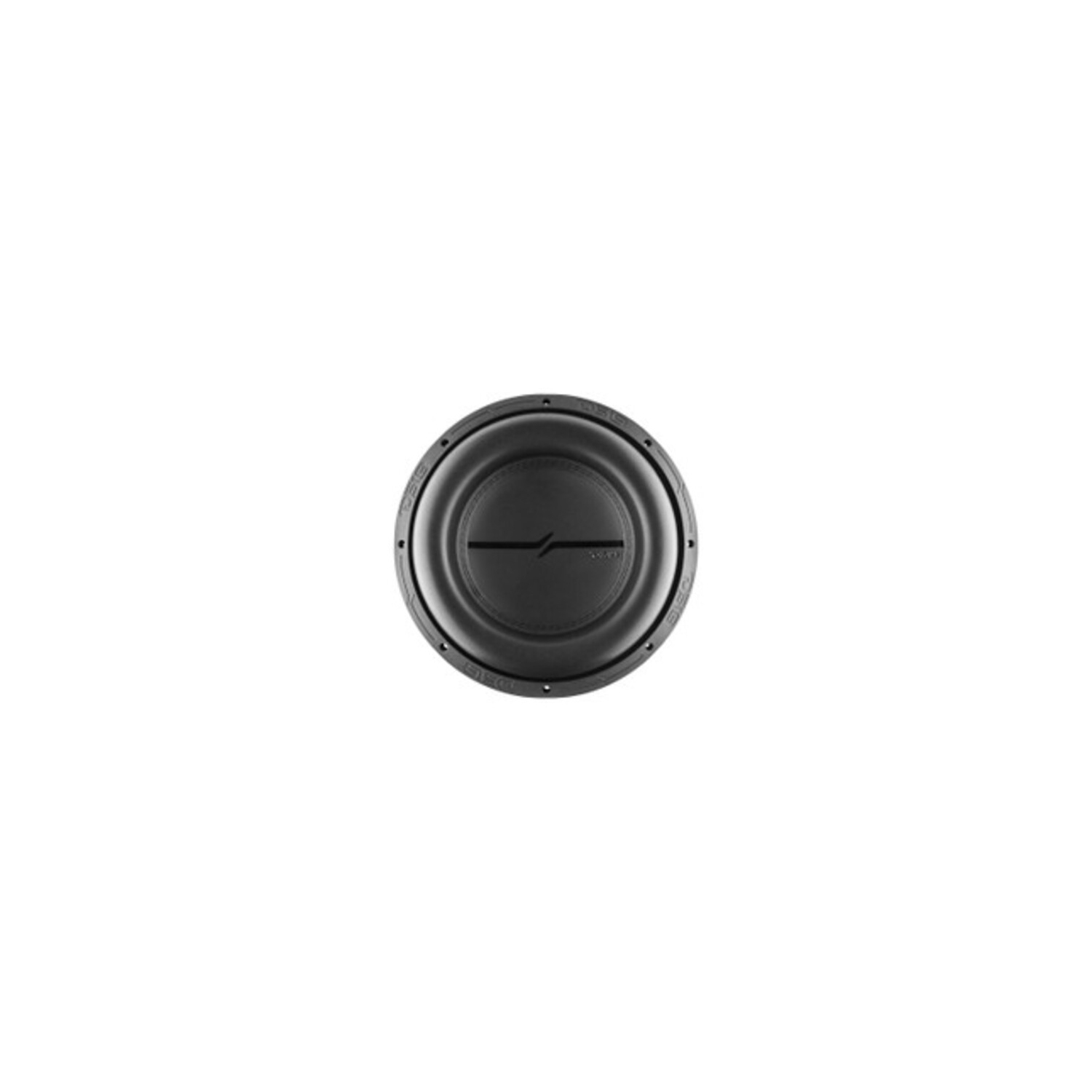

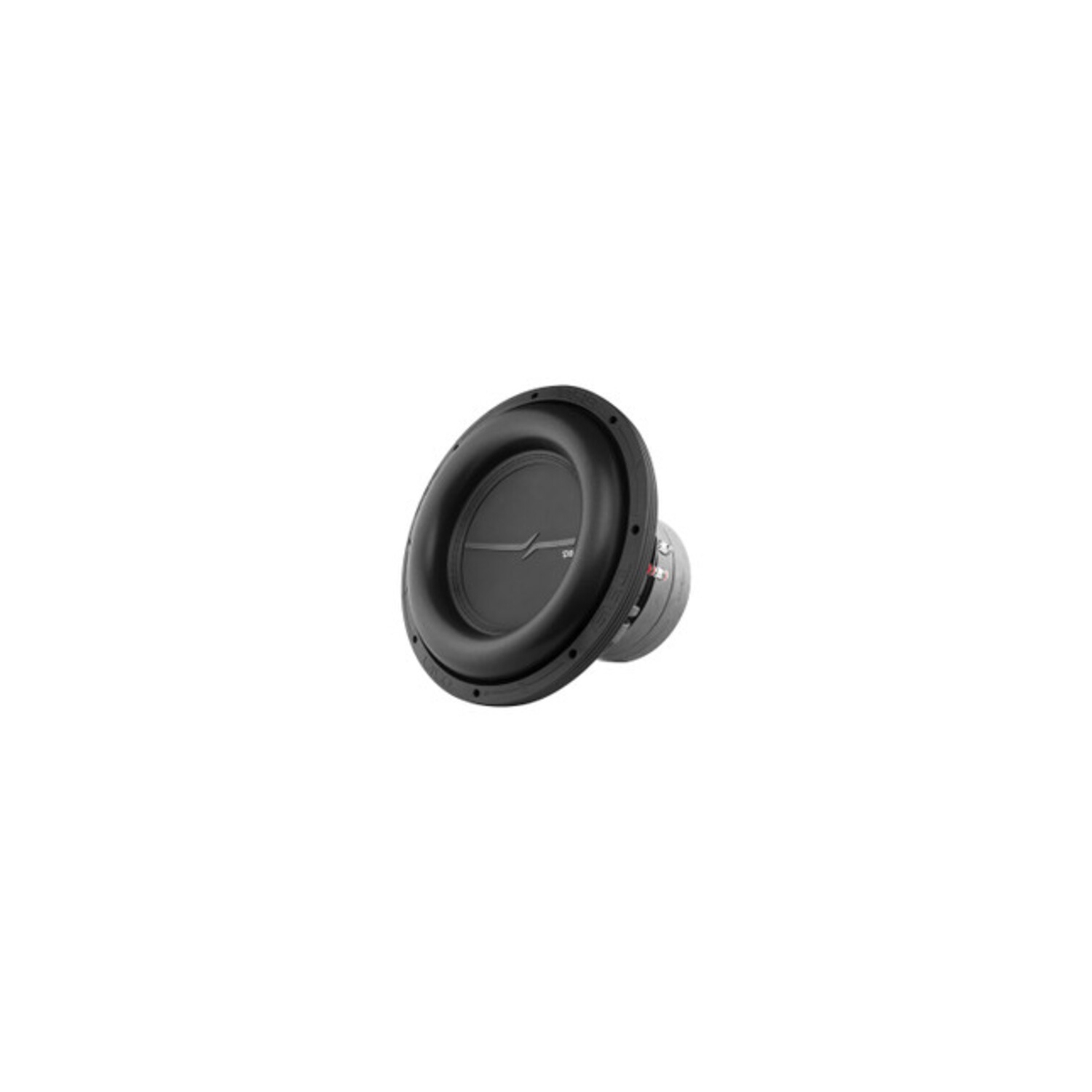

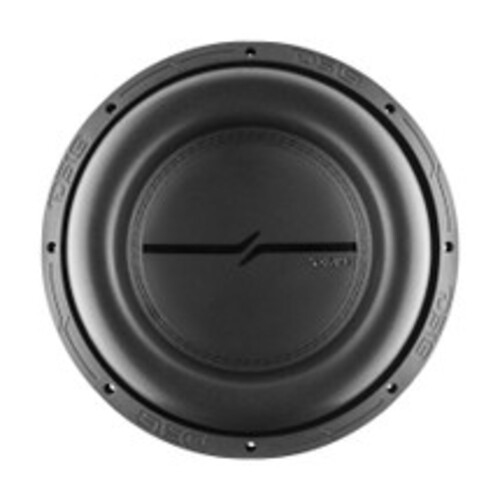

About: DS18 ZXI12.2D 12" High Excursion Car Subwoofer 1000W RMS - Dual 2 Ohm
Experience bass like never before with DS18’s ZXI12.2D: the ultimate subwoofer for enthusiasts who crave thunderous bass! The ZXI subline is renowned for its high excursion capabilities, and the ZXI12.2D is no exception. This subwoofer handles wattage as high as 2000W while delivering smooth ultra-low frequency responses. The ZXI12.2D’s lower than normal FS (Resonant Frequency), allows it to excel in larger boxes with lower tuning. Whether you prefer sealed or ported boxes, the ZXI12.2D will excel in both, giving you the flexibility to optimize placement in any vehicle. It’s dual 2-ohm configuration and 3-inch voice coils, makes the ZXI12.2D a force to be reckoned with. Handling a staggering 1000W RMS power and 2000W of MAX power, ensuring you get the full potential out of your system. The large foam surround and non-pressed paper cone work in perfect harmony, delivering crisp, smooth bass that permeates every corner of your vehicle.

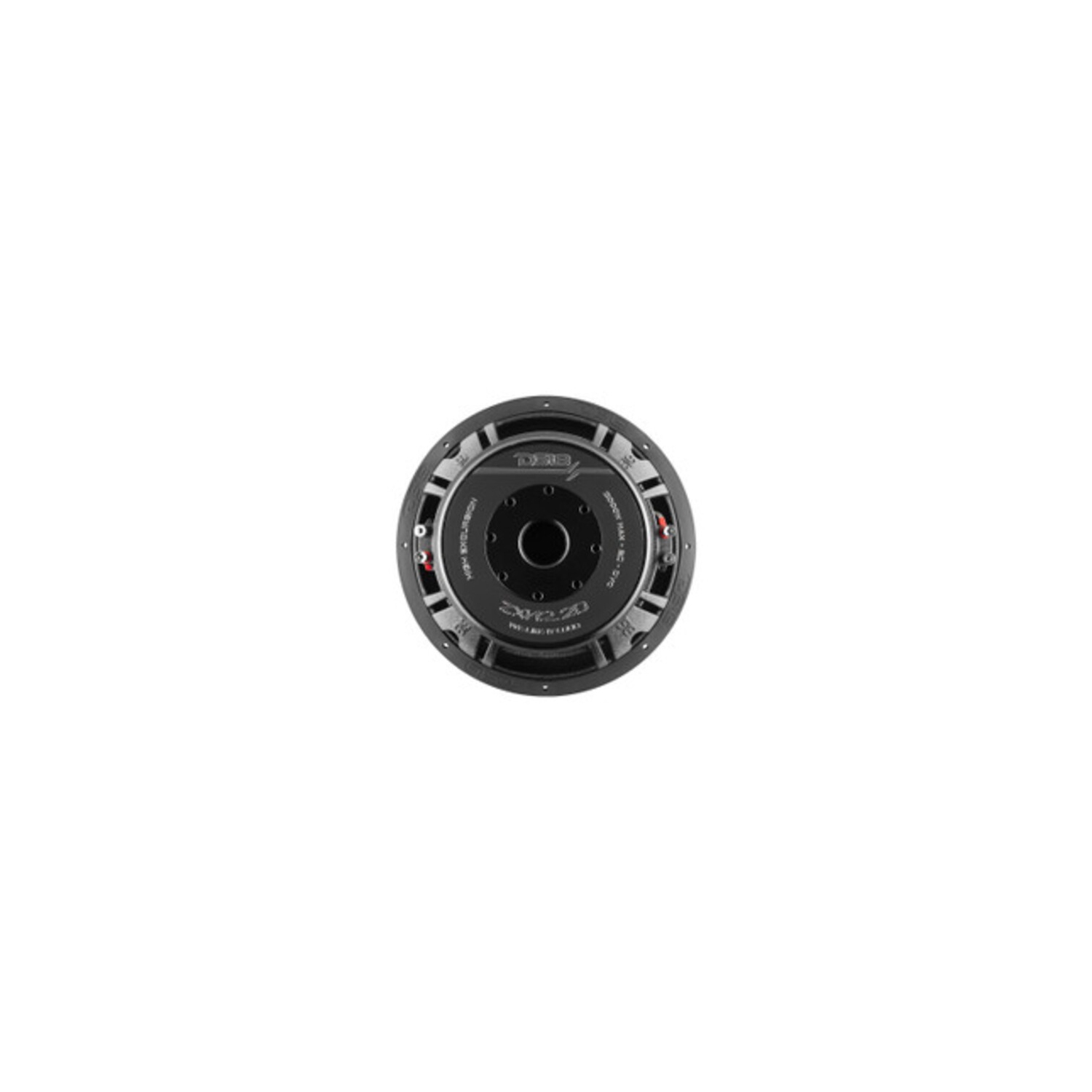

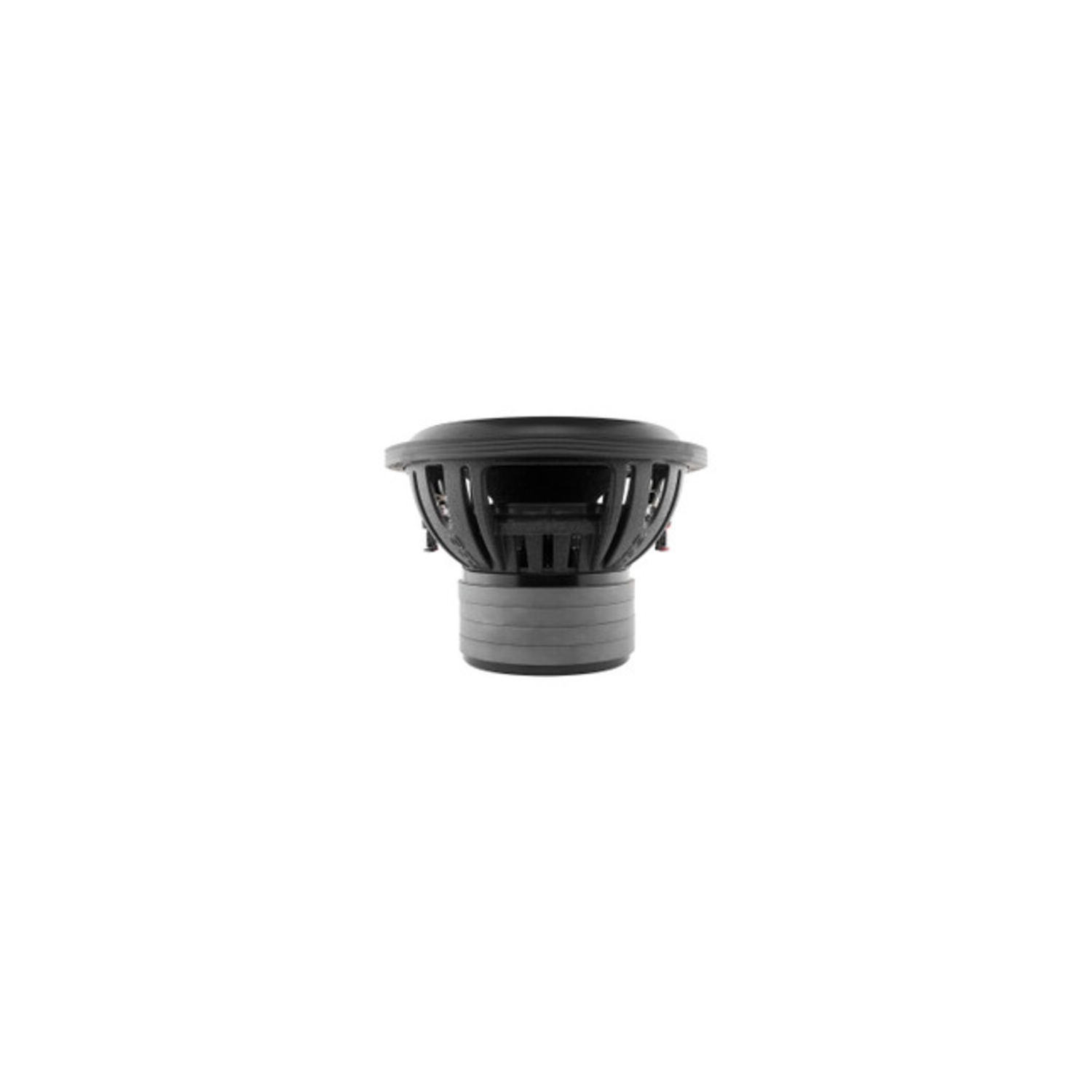

The ZXI12.2D goes beyond raw power and precision. It features a strong stamped basket adorned with show-quality DS18 logos on the frame, magnet boot, magnet, and dust cap. The quad stacked magnets on the ZXI12.2D offer a multitude of benefits, including increased magnetic field strength, improved power handling, enhanced cone control, higher excursion capabilities, greater durability, and superior heat dissipation. Not only will it impress your ears, but it will also outlast any vehicle. This subwoofer is designed to provide you with crisp and clear bass for years to come. Immerse yourself in bass that is both thunderous and refined, thanks to DS18's commitment to quality and innovation
Products Highlights:
12" High Excursion Subwoofer
MAX Power: 2000 Watts
RMS Power: 1000 Watts
Impedance: 2-Ohm 3" DVC
Quad Stacked Ferrite Magnet
89.2dB
Specifications:
Nominal Diameter: 12" (304.8 mm)
Nominal Impedance: 2 + 2 ohms
RMS Power Handling: 1000W
Maximum Power Handling: 2000W
Sensitivity (1w/1m): 89.2dB
Frequency Response: 15Hz-1.7KHz
Recommended Lo Pass Crossover: 90Hz
Motor:
Voice Coil Diameter: 3" (76.2 mm)
Voice Coil Former Material: Black Aluminum
Winding Material: CCAW
Cone Material: Non-Pressed Paper
Dust Cap Material: PPI
Surround Material: Foam
Basket Material: Aluminum
Basket Color/Finish: Black Sandblasted
Magnet Material: Ferrite
Magnet Weight: 224 Oz (4 x 56 oz)
Displacement Volume: 3.99L / 0.14 ft3
Thiele & Small Parameters:
Equivalent Volume (Vas): 15.23L / 0.53ft3
Free Air Resonance (Fs): 31Hz
Mechanical Factor (Qms): 5.268
Electrical Factor (Qes): 0.576
Total Factor (Qts): 0.528
Moving Mass (Mms): 242.643g
Compliance (Cms): 0.075mm/N
Bl Factor (Bl): 15.55
Voice Coil Inductance (Le): 12.6 mH
Diaphragm Area (Sd): 530.93cm2
DC Resistance (Re): 2.0+2.0 ohms
Efficiency Bandwidth Product (EBP): 53.8
Recommended Enclosures:
Sealed Internal Volume: 21.2L / 0.75ft3
Sealed Box Output Response F3: 42Hz
Ported Internal Volume: 39.6L / 1.4ft3
Port Size *Square (W x H x Long): 1.23" x 12.28" x 24.35" (32.1 x 312 x 618.4 mm)
Port Tuning Frequency FB: 32Hz
Ported Box Output Response F3: 26Hz
Measurements:
Overall Diameter: 12.55" (319 mm)
Overall Depth: 9.13" (232 mm)
Front Mount Baffle Cutout: 11.1" (282 mm)
Mounting Depth: 7.55" (192 mm)
Motor Diameter: 7.08" (180 mm)
Gross Single Unit Weight: 35lbs
Dimensions (W x L x H): 14.5" x 14.75" x 11.5"
