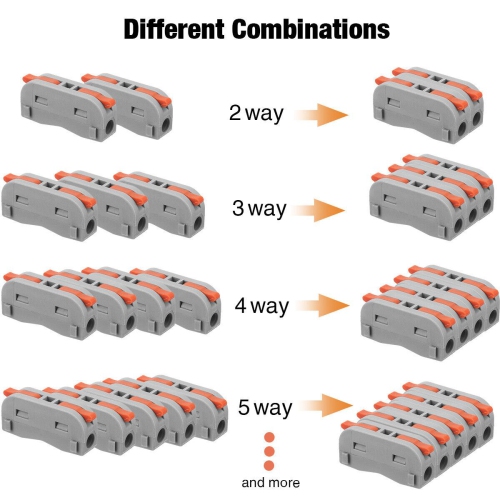

Electrical Connection Block Connection Terminal Cable Connector Conductor Clamp with Actuation Lever Bilateral Can Be Freely Combined Spring Pressure Lever for Cables

Descripation:

Higher Security: These wire connectors are universal for both hard and soft wires. You can use them to control multi lights with one switch. Selecting the best flame retardant insulating material modified nylon PA66, which has a long service life, no corrosion, anti-aging and pressure 4KV, and against electrical shock. Purple copper deflector, tin-plated exterior, refusing to oxidize with air.

Perfect Adaptability: Universal connectors are suitable for solid wire with 0.08 to 4 mm²/28-12AWG and for flexible wire with 0.08 to 2.5 mm²/28-14AWG. It is widely used in building wiring and could meet the connections requiring.

Wide Application: They work with almost every gauge of normal household wiring: ceiling fans, sockets, switches, cars, motorcycles, ships, loudspeakers, lamps, electrical boxes, chandeliers, light switches, fan controls, etc.

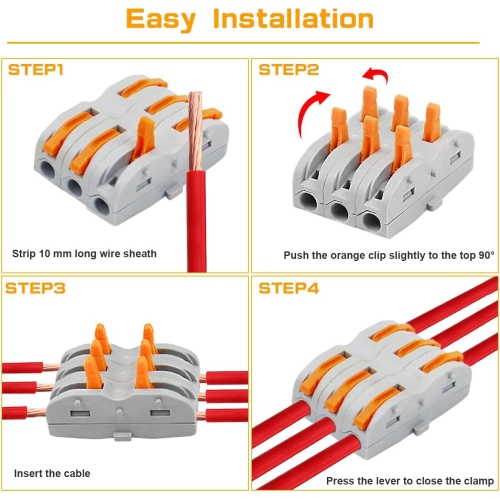

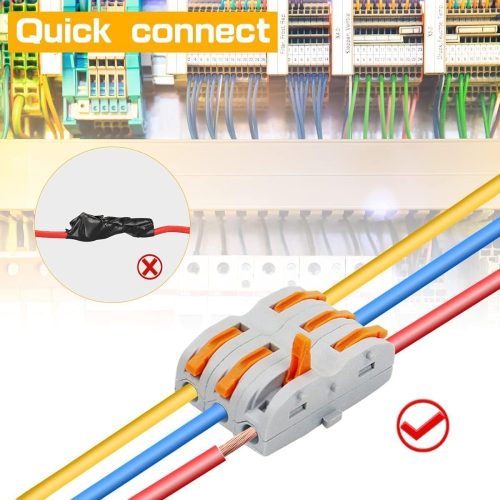

Easy to Operate: First remove the wire jacket (9-10mm), just push the orange clip slightly to the top 90°, insert the cable and switch off the switch. Instead of traditional electrical tape and intertwined butt connectors, technological innovation reduce wiring time by 70%, freeing up a good amount of space and time.

Can be Reused: Each connection terminal has a detection connection and can be recycled as well. Every junction independent shrapnel, different wire managed separately, the different diameter can connect security. There is a test hole in every connector surface, electric test can be completed without removing the tape, intuitive and easy.

Features:

Rated voltage: 600V(1 in 1 out)

Rated current: 32A

Applicable wire: 0.2-2.5（4）mm² /AWG 28 -14（12

Material of conductive part: electrolytic copper tin plating

Clamping spring: stainless steel

Shell: flame retardant PA66 insulating material

Max Operating Temperature: -40°C ~ 105°C

Color: Grey+Orange

Strip length: 9 - 11mm

Max. Continuous Service Temperature: 85°C

Interface type : AC / DC

Contact Material : Copper / Stainless Steel

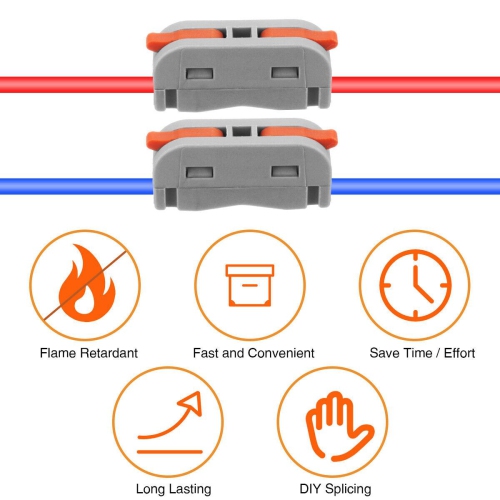

Features : Fire resistance / flame retardant

Package Includes:

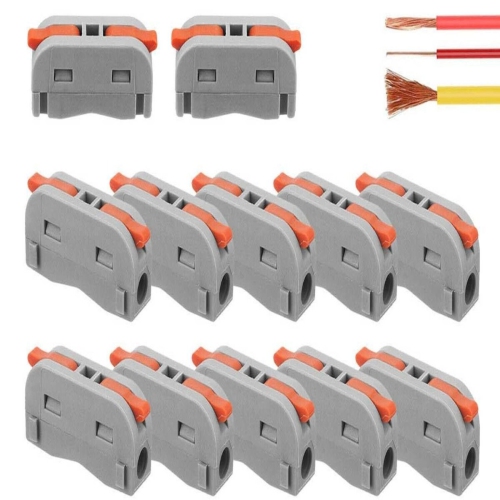

20pcs x Terminal Block Electric Cable Connector
