AT A GLANCE
·1 x Speedlite, 1 x Bare Bulb Flash Heads
·
·1 x Lithium Battery, 1 x Charger
·
·Built-In Wireless X System Receiver
·
·HSS: 1/8000 sec, Battery: 500 FP Flashes
·
·Optional X1 Wireless TTL Transmitter
·
·Supports Nikon, Canon, Sony TTL
·
·Supports Olympus, FUJIFILM TTL
·
·Flash Exposure Compensation
·
·TTL, Manual, and Stroboscopic Modes
·
·Firmware USB Updates, 1 x Carry Case

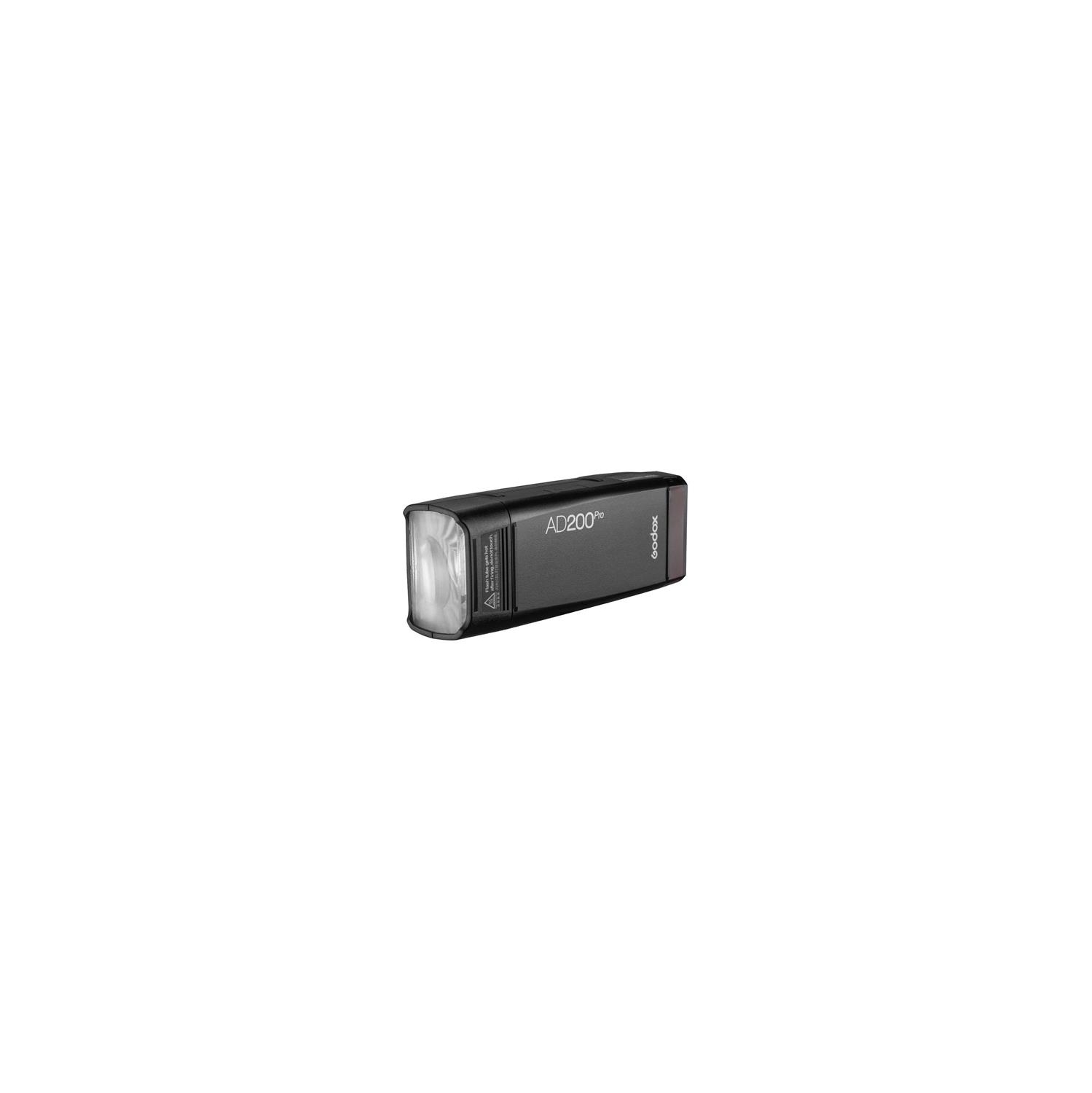

· DESCRIPTIONAn enhanced version of its predecessor, the AD200Pro TTL Pocket Flash Kit from Godox is built around a unique flash source with a standard speedlight head and a bare bulb head that give you the option of two distinctly different qualities of light. The kit comes with the two heads, lithium battery, charger, and carry case.The speedlight head outputs the standard look of an on-camera flash that can be modified using an optional softbox, beauty dish, or umbrella. The bare bulb head features a removable flash tube and produces 360 degrees of soft, bright, nearly shadowless light. The head uses optional reflectors that focus the beam angle and give you directional control. The AD200Pro has impressive core features such as 200Ws of power adjustable in 9 steps from 1/256 to 1/1, recycling from 0.01 to 2.1 seconds, and flash durations as short as 1/15,380 sec. The flash runs on a removal, rechargeable lithium battery that will give you up to 500 full power flashes and thousands of lower power flashes.The AD200Pro has 3 flash modes: Manual, TTL, and Multi (Stroboscopic). Manual outputs the user's choice of power, modeling light, first or second curtain sync, etc. Multi controls the stroboscopic rate up to 90 times (90 Hz). TTL takes advantage of the flash head's built-in X1 receiver. Optional X1 TTL transmitters are available for Nikon, Canon, Sony, Olympus, and FUJIFILM cameras. They will also detect a separately purchased LED head. The 32-channel wireless system controls flash mode, first and second curtain sync, High-Speed Sync up to 1/8000 second, power level, modeling lamp, and ready beeper at distances up to 328'. Firmware updates are obtainable on the Godox website.Built-In 2.4 GHz Wireless X System
Built-in wireless receiver: control triggering power level, alert beep with optional wireless transmitter. Compatible with Nikon, Canon, Sony, Olympus, Panasonic and Fuji TTL.Bare Bulb and Speedlight Flash Heads
Bare bulb and speedlite flash heads are included to vary your quality of light. Color temperature is a steady 5600K over the entire power range.Large Capacity Lithium Battery Pack
The 14.4 V / 2900 mAH battery pack gets 500 full power flashes with 0.01 to 2.1 sec. recycling.AV Panel
Easily readable digital panel displays your adjustmentsAccessories
Barn Doors, color filters and diffusers are available to personalize your work.Numerous Control Functions
·9-Step Power Range: 1/1 to 1/256
·
·Supports flash exposure compensation
·
·1/8000 sec high-speed Sync
·
·First and second curtain sync
·
·Modeling lamp
·
·Manual flash
·
·Multi flash
·
·Custom functions
· SPECIFICATIONSMaximum Watt/Seconds 200
Compatibility
·TTL with Canon, Nikon, Sony cameras with optional X1-C, X1-N, and X1-S transmitters
·
·TTL with Olympus/Panasonic, Fuji cameras with optional X1T-O and X1T-F transmitters
·Control
·Manually on unit
·
·Via X1 Transmitter Which Will Wirelessly Control:
·
·Flash Mode: TTL, Manual, Multi (Stroboscopic), power level
·
·Modeling lamp on/off, Beeper on/off
·
·First and second curtain sync, High Speed Sync
·Guide Number
At Full Power
·Speedlite Flash Head: 170.6' (52 m) ISO 100 @ 35 mm
·
·Bare Bulb Flash Head: 197' (60 m) ISO 100 with AD-S2 reflector @ 28 mm
·
·Colour Temperature 5600K (+/-200K)
Recycle Time 0.01 to 2.1 sec
Flash Duration
Speedlite Flash Head at t0.1: 1/220 to 1/15,380 sec
Bare Bulb Flash Head at t0.1: 1/220 to 1/13,510 sec
Flash Variability 9 Steps: 1/256 to 1/1
Flash Delay Yes, 0.01 to 30 sec
Flash Modes
TTL, Manual, Multi (Stroboscopic)
Stroboscopic: up to 90 times (99 Hz)
Modeling Light Uses Speedlite Head: Auto turn off after 30 minutes
Sync Mode
High-speed sync up to 1/8000 sec
First curtain sync and second curtain sync
Flash Exposure Compensation Yes, plus or minus 3 stops in 1/3 stop increments
Flash Ready Indicator
LED, beep
Flash hibernates automatically after 30 minutes of non-use
Built-in Slave Cell
S1 and S2 optical slave modes
2.4 GHz radio system
Wireless & Radio Specifications
Function: Slave or Off
Channels: 32
Groups: 5 (A, B, C, D, E)
Range: 328' (100 m)
Mounting
1/4"-20 female threads
AD-E Holder (stand mount)
Fan Cooled No
Replaceable Flashtube Yes, in bare bulb head
Connectors
3.5 mm sync input
Wireless control port
USB port
Battery
Lithium, 14.4 V / 2900 mAH
Power remaining indicator
Number of Flashes @ Full Power 500
Dimensions 6.7 x 3.0 x 2.0" / 172 x 75 x 54 mm Without Flash Head
Weight 20.8 oz / 590 g Without Flash Head and Battery
Package Weight 4.225 lb
Box Dimensions (LxWxH) 9.9 x 7.5 x 3.9"
·
