Overview

UL 467 listed #6 through #14 AWG ground wire

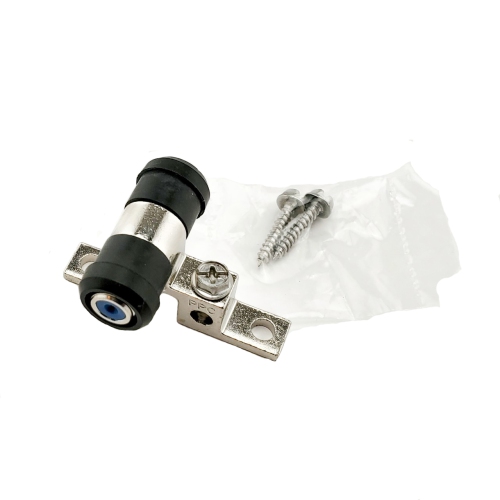

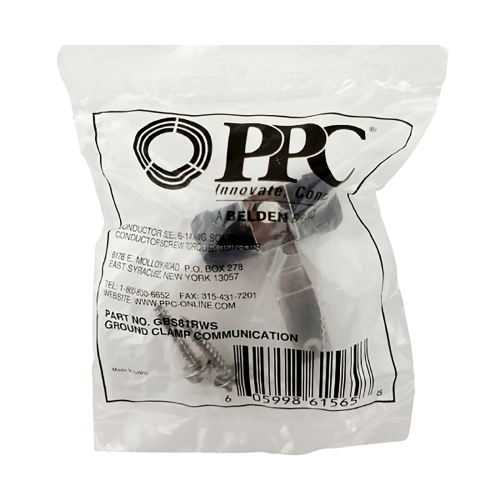

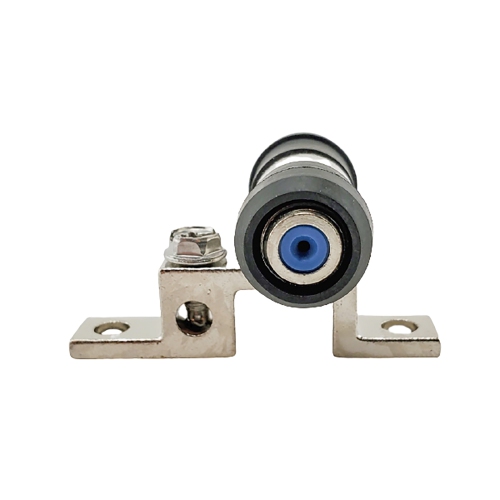

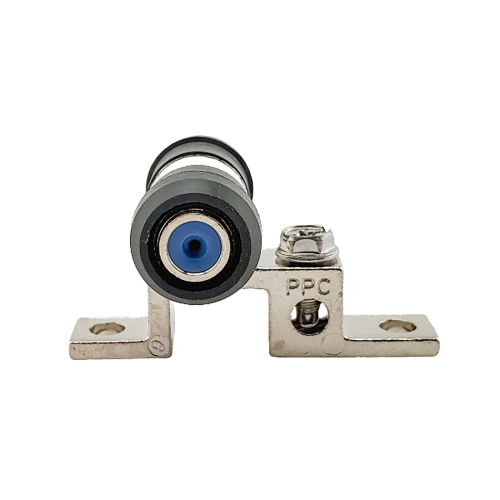

Ground Block Clamp with F81 and Weather Boot PPC GBS81RWS

Model: GBS81RWS
Web Code: 15936477
Sold and shipped by | 4.4 seller rating (9 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

Overview

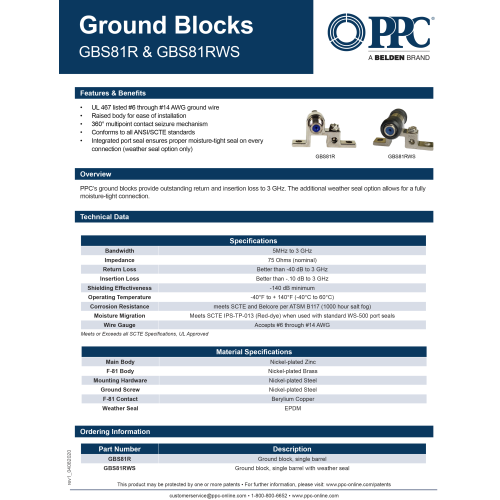

PPC’s ground blocks provide outstanding return and insertion loss to 3 GHz. The additional weather seal option allows for a fully moisture-tight connection.

Specifications

Bandwidth: 5MHz to 3 GHz

Impedance: 75 Ohms (nominal)

Return Loss: Better than -40 dB to 3 GHz

Insertion Loss: Better than -.10 dB to 3 GHz

Shielding Effectiveness: -140 dB minimum

Operating Temperature: -40°F to + 140°F (-40°C to 60°C)

Corrosion Resistance: meets SCTE and Belcore per ATSM B117 (1000 hour salt fog)

Moisture Migration: meets SCTE IPS-TP-013 (Red-dye) when used with standard WS-500 port seals

Wire Gauge: Accepts #6 through #14 AWG

Material Specifications

Main Body: Nickel-plated Zinc

F-81 Body: Nickel-plated Brass

Mounting Hardware: Nickel-plated Steel

Ground Screw: Nickel-plated Steel

F-81 Contact: Berylium Copper

Weather Seal: EPDM



Product Condition
Brand New

Dimensions

Weight
0.05 kg
