Overview

Product Feature:Extract the digital audio signal from the HDMI input and convert it to 2 channel analog stereo output or5.1 channel Audio outputSupports the highest video resolution to 1080p. Supports 225MHz/2.25Gbps per channel bandwidth

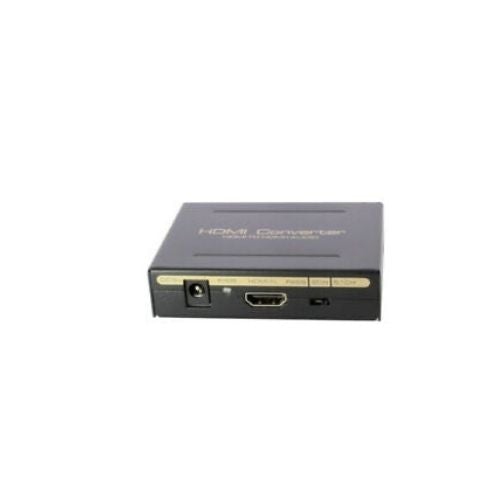

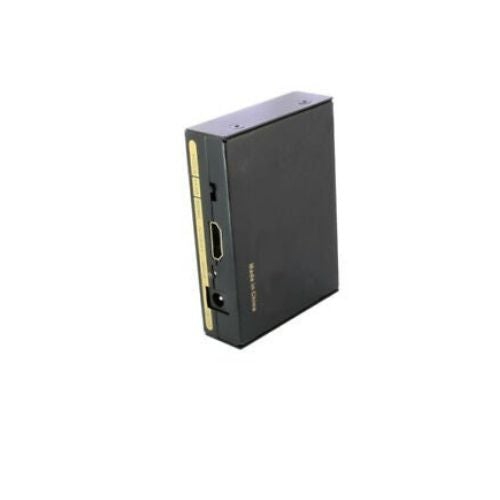

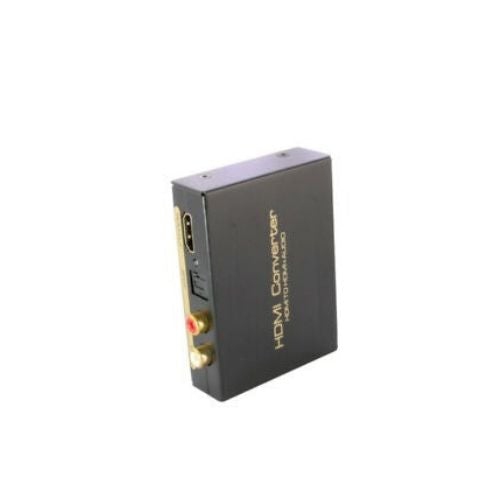

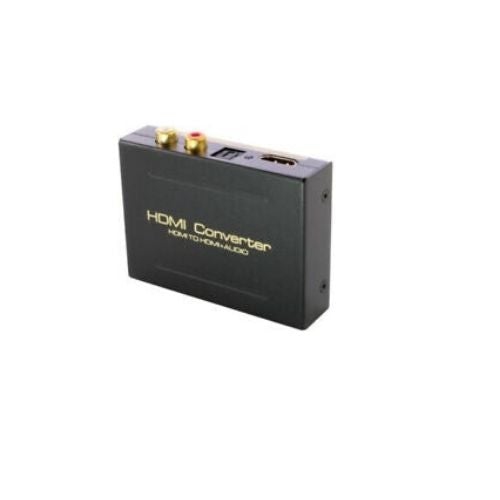

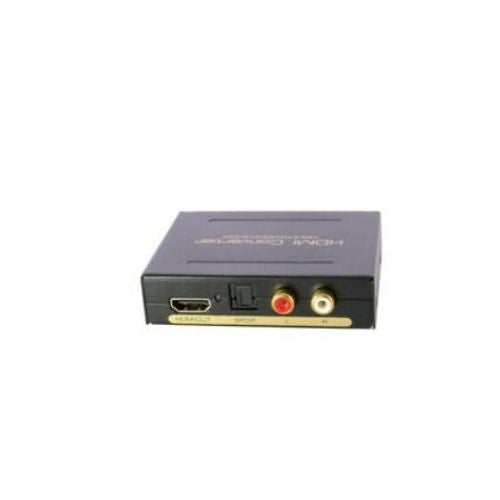

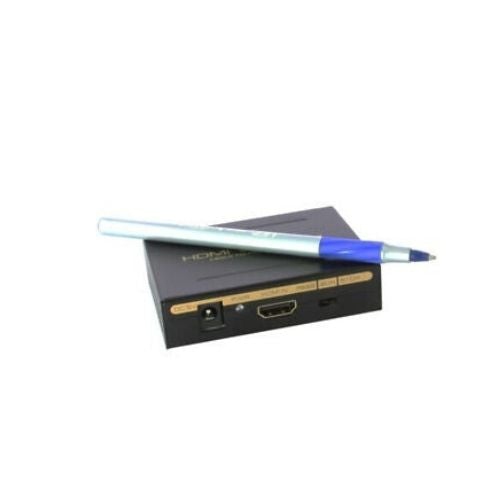

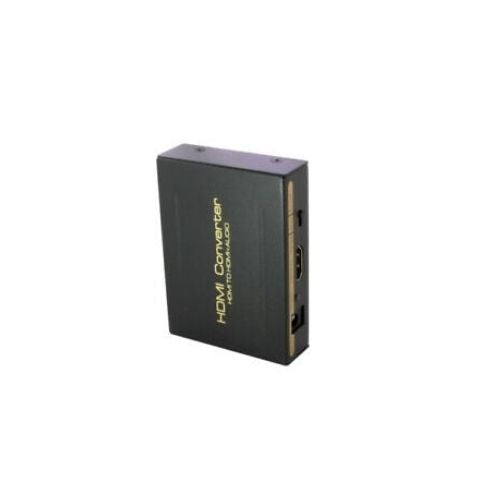

HDMI Audio Extractor Spliter HDMI to RCA Composite Optical Audio

Model: ced_42266447642869
Web Code: 15943218
Sold and shipped by | 4.6 seller rating (126 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

Product Feature:

Extract the digital audio signal from the HDMI input and convert it to 2 channel analog stereo output or

5.1 channel Audio output

Supports the highest video resolution to 1080p. Supports 225MHz/2.25Gbps per channel bandwidth

Supports 12bit per channel (36bit all channel) deep color. Supports HDCP, Video EDID Pass Through;

Plug & Play

Audio EDID Settings: 2CH for L/R or SPDIF stereo output; 5.1CH for SPDIF Output, Supports

uncompressed audio such as LPCM. Supports compressed audio such as DTS Digital, Dolby Digital

Provides the Best Flexibility through Three NEW Audio EDID Settings: Pass, 2CH and 5.1CH, Support 3D

video (To get 3D, all units connected to the splitter outputs must support 3D). This item supports Apple

TV and various Blu-ray player and satellite receivers

Product Specification:

HDMI resolution: 1080P/1080i/720p/576p/576i/480p/480i

Support video color format: 24bit/deep color 30bit,36bit

Audio output: L/R+SPDIF

Max bandwidth: 225MHz

Max baud rate: 6.75Gbps

Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal: 5Volts p-p (TTL)

Input cable distance: within 15m AWG26 HDMI standard cable

Output cable distance: within 20m AWG26 HDMI standard cable

Max working current: 500mA

Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range: (-15 to +55 C;)

Operating Humidity range: 5 to 90%RH (No Condensation)

Dimension (L x W x H): 84.5 x 61.8 x 21 (mm)

Package Included:

1x HDMI Audio Extractor

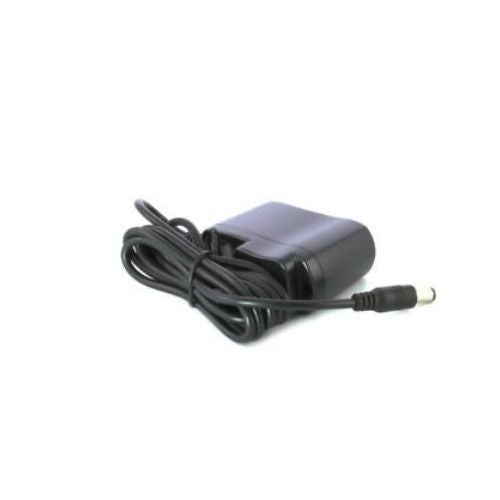

1x DC Power Adaptor

1x Use Manual
