About: Infinity Perfect 4SPKSYS 80W RMS 4-Speaker System for Select 2014-Up Harley-Davidson Road Glide and Street Glide Models
This speaker and amp kit is designed to bring powerful Infinity sound to 2014-22 Harley-Davidson Street Glide and 2015-22 Road Glide motorcycles equipped with factory fairings and saddlebags. The kit includes two pairs of Infinity Kappa Perfect speakers, plus a 4-channel amplifier and all the gear you'll need to install them. Everything goes in without cutting or splicing, and you won't need to have your dealer re-flash the factory receiver.
Fine fairing speakers
Infinity Kappa Perfect speakers are built to perform in motorcycle applications, with an IPX5 waterproof rating that ensures they'll stand up to the elements. Infinity uses a basalt fiber Plus One™ woofer for durability and responsiveness, while the 1" edge-driven dome tweeters deliver smooth highs that cut through wind and road noise.
This kit includes a pair of 6-1/2” Infinity Kappa Perfect speakers for the fairing, plus another pair of 6”x9” models for the saddlebags. Thanks to their removable tweeter design, you can install these speakers as components or coaxials.
A small amp with big power
Infinity's Kappa Perfect 5004A amplifier puts out four channels of 75 watts RMS from a chassis about the size and shape of a standard building brick. This compact, rugged amp is made for powersports use, so your speakers will get all the power they need to rock while you roll.

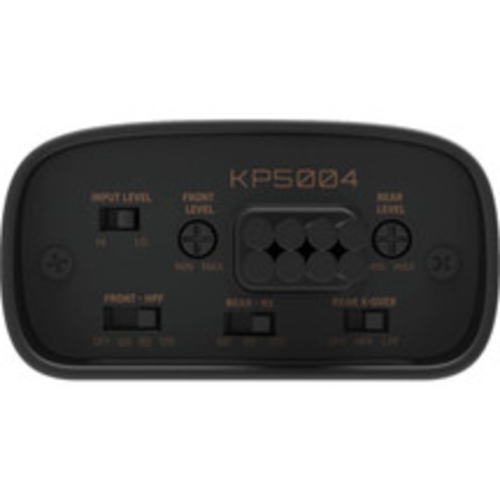

A removable weather-proof panel protects the controls, while the tough aluminum chassis and conformal-coated circuit boards will help keep the music playing even when the going gets dirty or wet.
Installation made easier
This kit comes with all the brackets and harnesses you'll need to install everything in your Harley-Davidson. As we mentioned earlier, this is about as close to “plug and play” as an installation gets, plus you won't need to re-flash the factory receiver.
Specifications:
designed for 2014-2022 Harley-Davidson Street Glide and 2015-2022 Road Glide motorcycles with factory fairings and saddlebags
system includes 6-1/2" Infinity Kappa Perfect speakers, 6"x9" Kappa Perfect speakers, and an Infinity Kappa Perfect 5004A amplifier

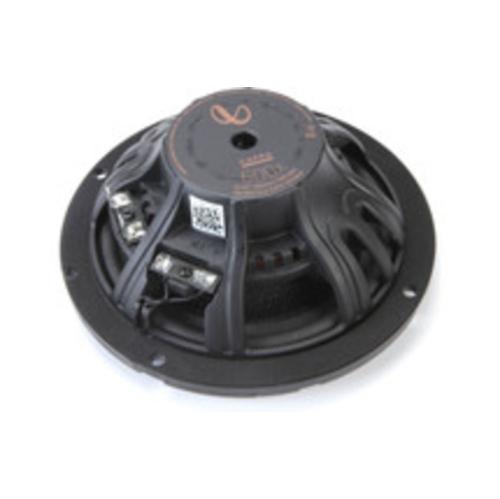

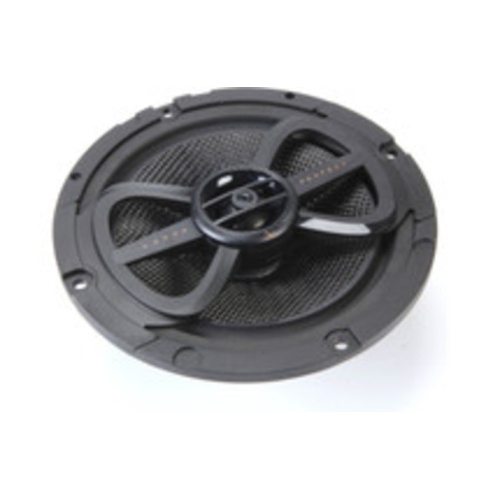

Infinity Kappa Perfect 600X 6-1/2" speakers
component speaker system includes 2 woofers and 2 tweeters with inline crossovers
6-1/2" Plus One basalt fiber woofer cone with hi-roll rubber surround
1" edge-driven polyphenylene sulfide dome tweeter
removable tweeter works with component and coaxial configurations
IPX5 weather-resistance rating
Street Glide, Road Glide, and Tour Pak grilles included
handles up to 80 watts RMS (240 watts peak power)
frequency response: 60-20,000 Hz
sensitivity: 95 dB at 2.83 volts

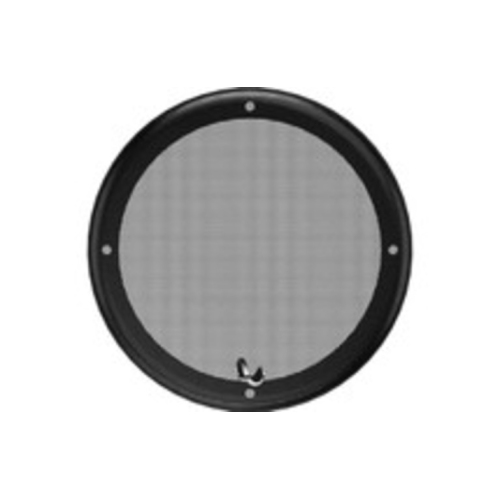

grilles included
Infinity Kappa Perfect Series 6"x9" speakers
component speaker system includes 2 woofers and 2 tweeters with inline crossovers
6"x9" Plus One basalt fiber woofer cone with hi-roll rubber surround
edge-driven polyphenylene sulfide dome tweeter
removable tweeter works with component and coaxial configuration
handles up to 100 watts RMS (300 watts peak power)
frequency response: 50-20,000 Hz
sensitivity: 95 dB at 2.83 volts
grilles included
warranty: 3 years
Infinity Kappa Perfect 5004A 4-channel amplifier
compact 4-channel amplifier
75 watts RMS x 4 at 4 ohms
Class D amp technology (frequency response: 20-20,000 Hz)
selectable high-pass filter (60, 80, 120 Hz at 12 dB/octave) on front channels
selectable high- or low-pass filter (60, 80, 120 Hz at 12 dB/octave) on rear channels
weather-resistant aluminum chassis and conformal-coated circuit board
dimensions: 11"W x 1.75"H x 3.3"D

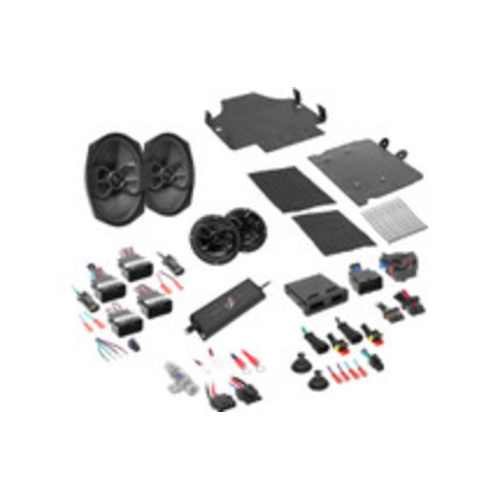

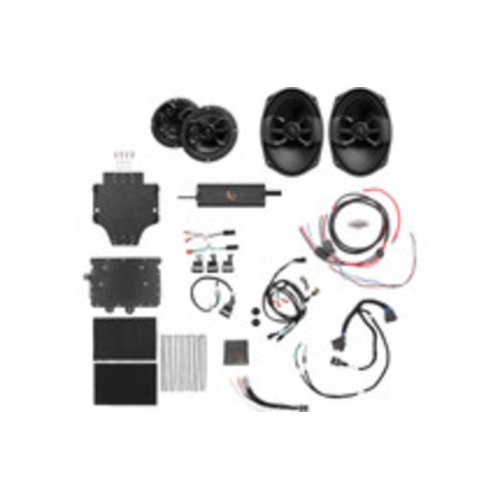

What's in the box:
This Harley-Davidson audio system includes 9 individually packaged items:
Infinity Kappa Perfect 600X Speakers:
Two 2-way speakers
Two 16" Lengths of wire with in-line crossovers
2 Surface mount tweeter housings
2 Tweeter opening covers
2 Street Glide grilles
2 Road Glide grilles
2 Tour-Pak grilles
Tweeter removal tool
Eight 5/8" Screws
Four 5/8" Flat head screws
Installation instructions
Template on box
3 Infinity logo badges
Infinity Kappa Perfect 900X:
Two 6x9 2-way speakers
Two 16" Lengths of wire with in-line crossovers
2 Surface mount tweeter housings
2 Tweeter opening covers
2 Grilles
2 Mounting brackets
2 Speaker protectors
2 Templates
Tweeter removal tool
Eight 1" Screws
Eight 1/2" Screws
Four 5/8" Flat head screws
Installation instructions
Infinity Kappa Perfect 5004A Amplifier:
4-Channel amplifier with attached 6.5" input harnesses and 8.5" power/ground & output harnesses (inline 40A ATO fuse)
2 Cover plates
Spare 40A ATO fuse
Four 5/8" screws
Four 4mm counter-sunk screws
Four 6" wire ties
2 Decals
QR Codes for owner's manual (En/Sp/Fr)
Safety instructions
Saddle Tramp BC-DSPX-HD2:
DSP/interface module
3' T-Harness
16" Input harness
Saddle Tramp BC-AMP06:
Amplifier mounting plate (Street Glide)
Two 8.5"x6" sheets of hook-and-loop fastener
Thirteen 7.5" wire-ties
Installation instructions
BC-AMP04:
Amplifier mounting plate (Road Glide)
Three sheets of hook-and-loop fastener (7.5"x5" / 3"x3" / 5"x1.5")
Four 3/4" bolts
Four 12mm machine screws
4 Lock-nuts
Saddle Tramp BC-9726:
4 Amp bypass connectors
Two saddlebag speaker harnesses
4-Pin connector (un-pinned)
Saddle Tramp HM-9723:
8.5' Rear speaker Y-harness
Two 26" rear speaker harnesses
Eight 6" wire-ties
6 Cable holders with 3M adhesive backing
HM-9703 Amplifier Wiring Kit:
6' Power & ground harness with attached 22" turn-on wire
12" Power wire lead (bare-ended wire on one end / ring terminal on other end)
Mini-ANL fuse holder
60A Mini-ANL fuse
