Overview

Product highlights:8-channel car amplifier with digital signal processing40 watts RMS x 8 at 4 ohms60 watts RMS x 8 at 2 ohmsDSP and EQ tuning tool adjustments made via USB connection to a Windows PCinputs: 6 assignable preamp and speaker-level (RCA adapters included)save up to 10 presetsoutputs: 8 powered and processed

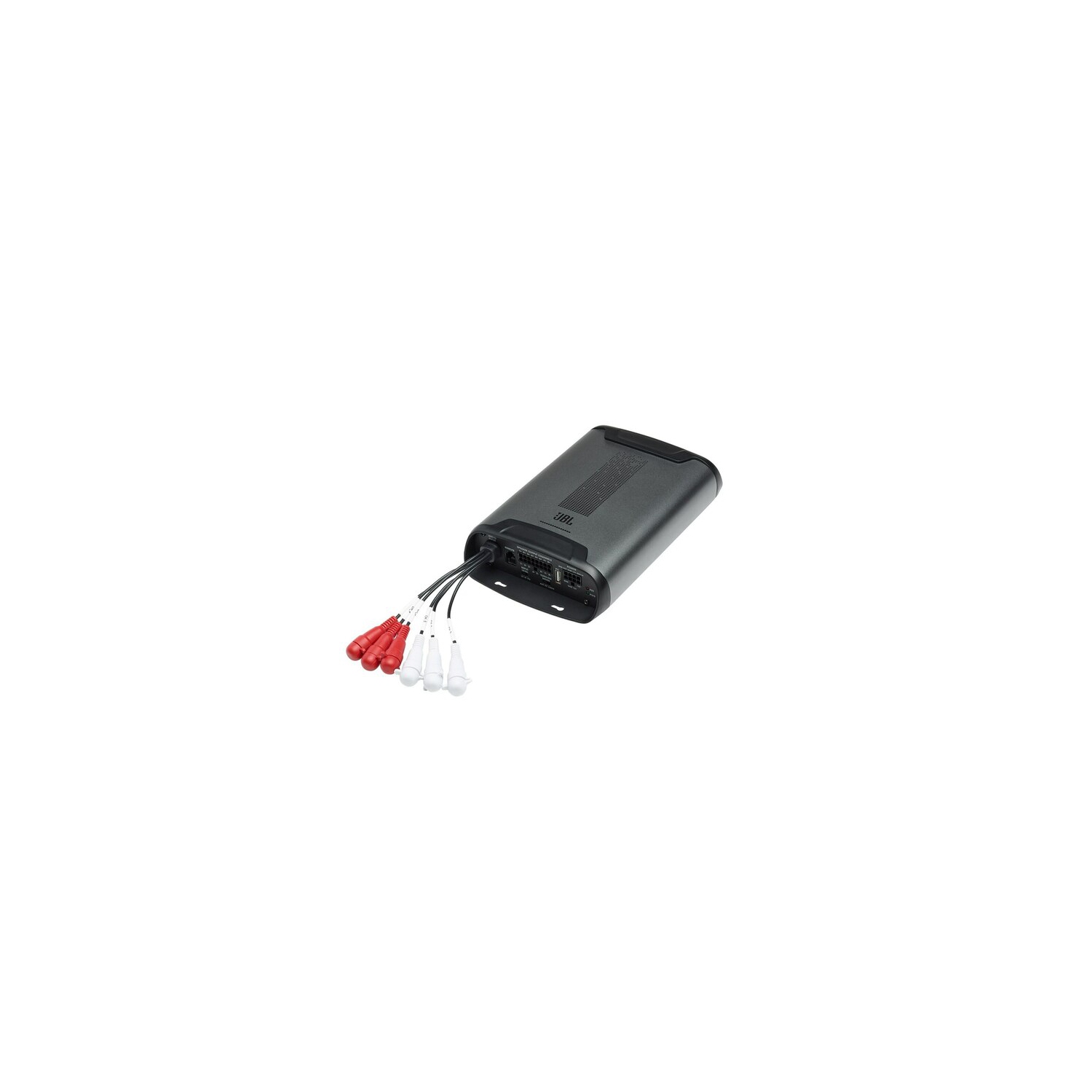

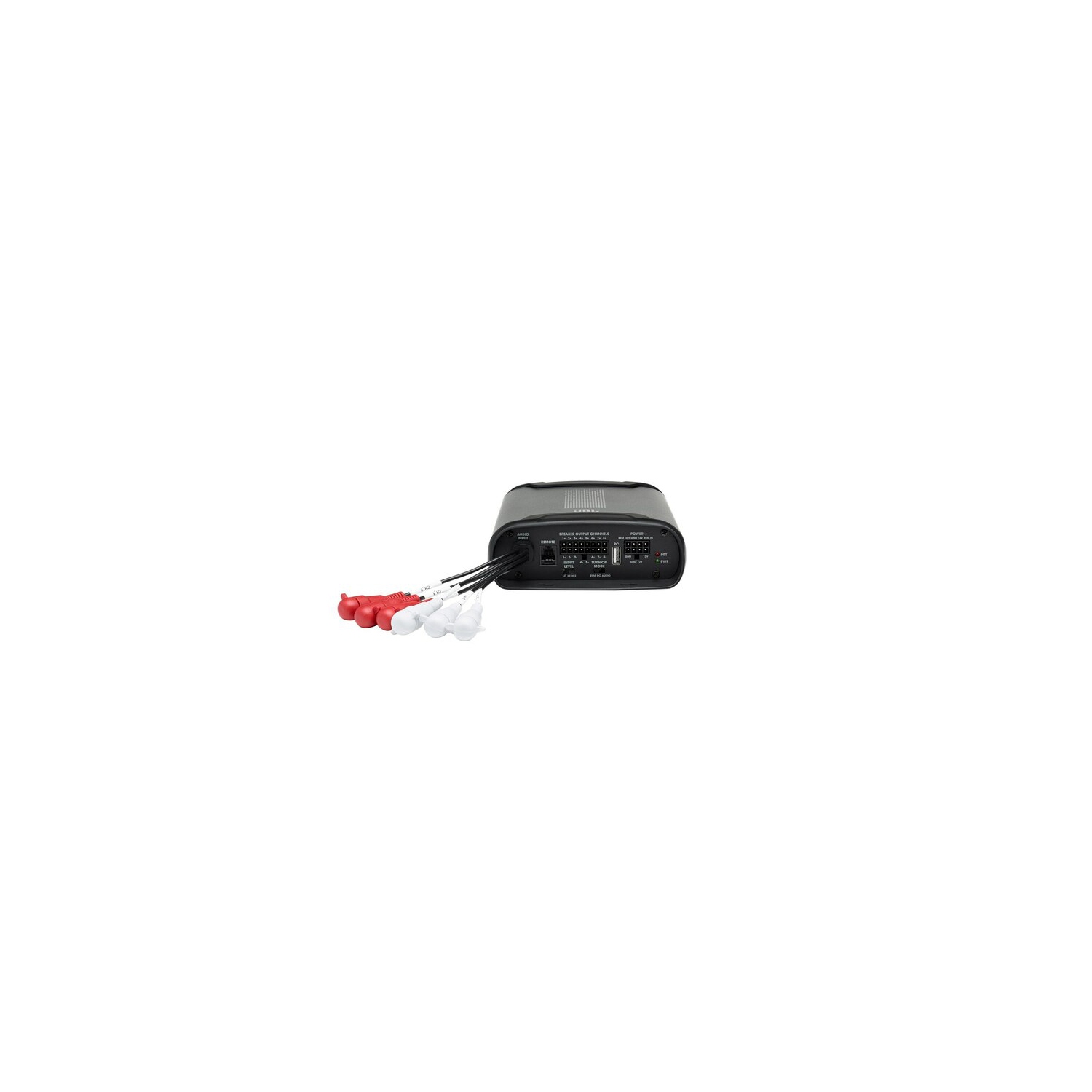

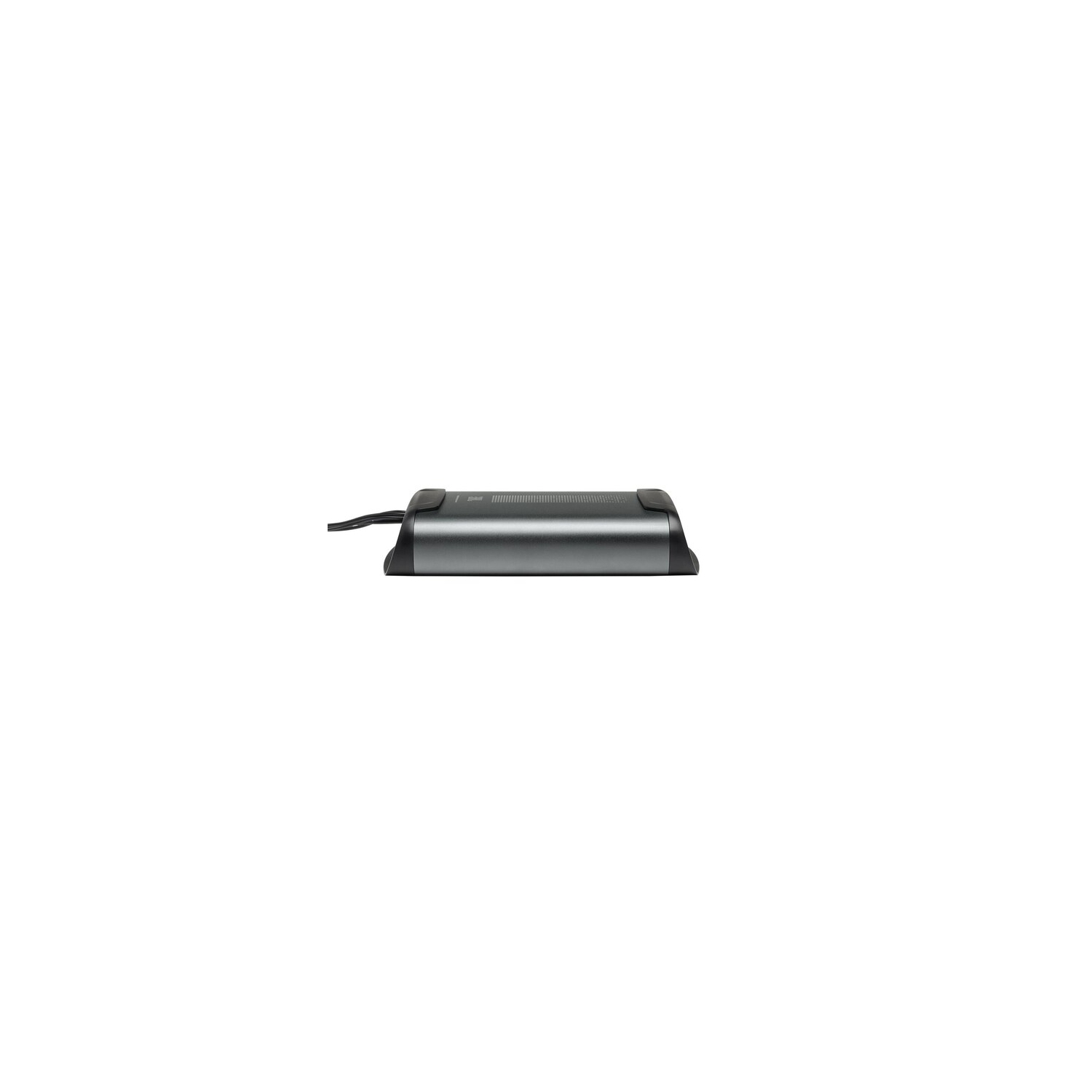

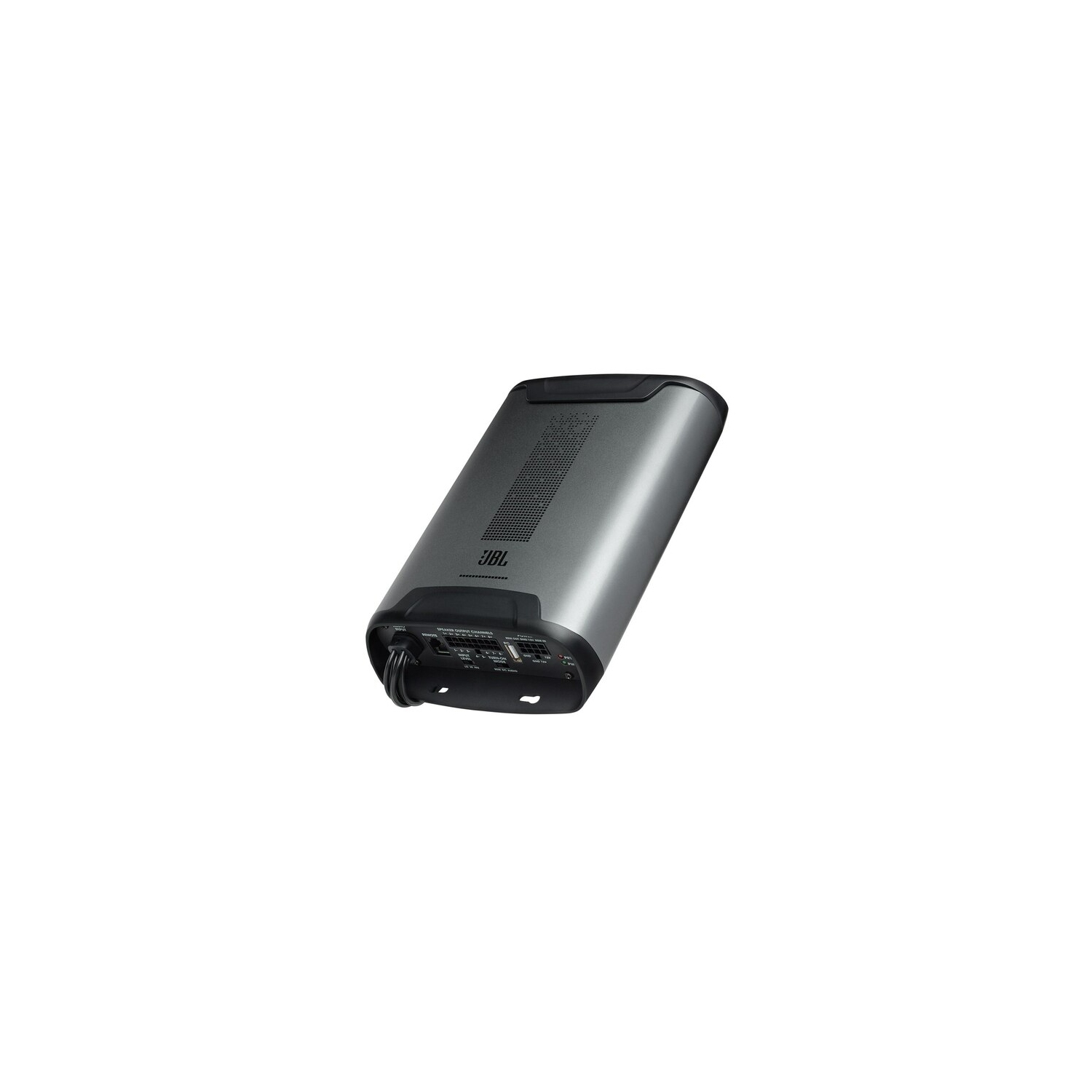

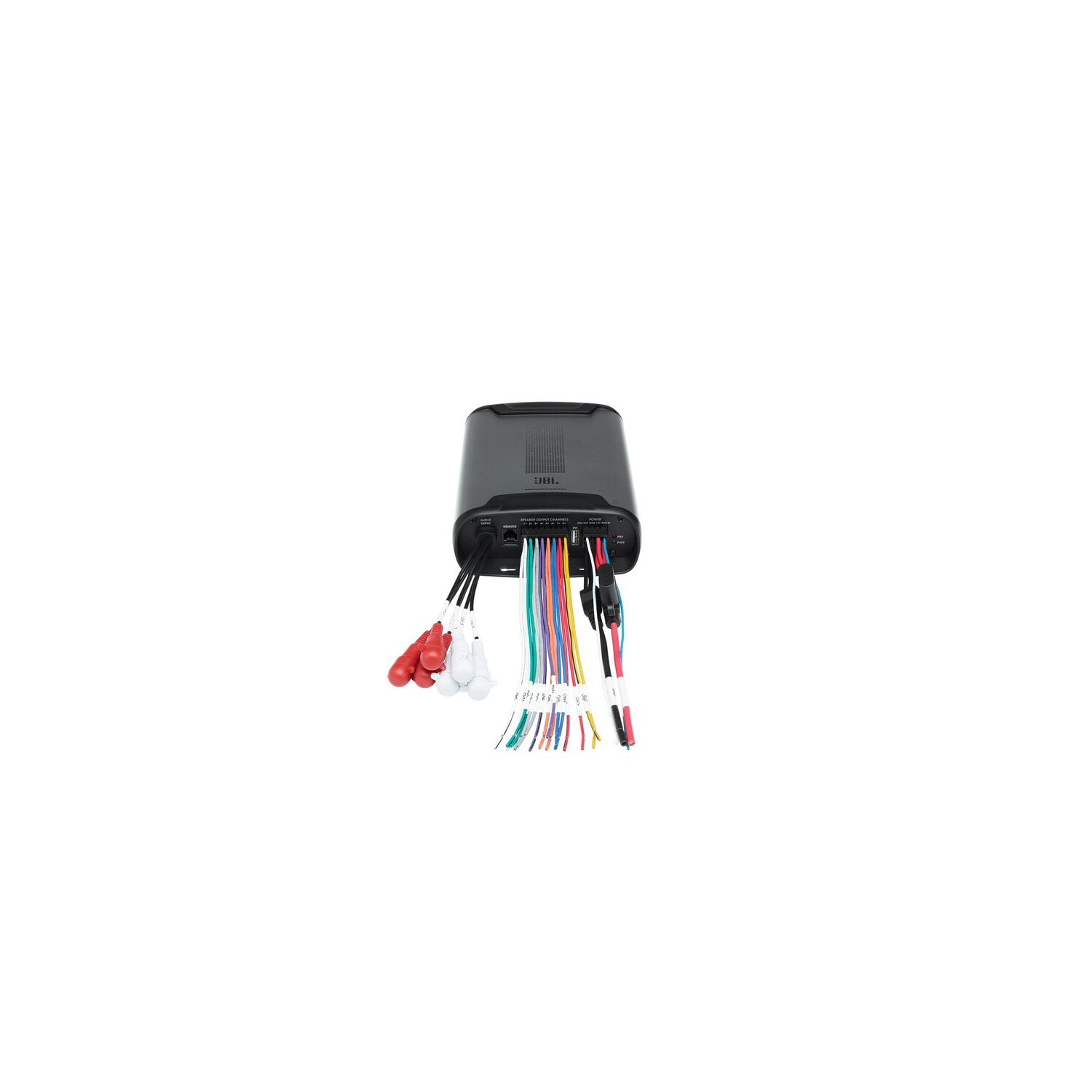

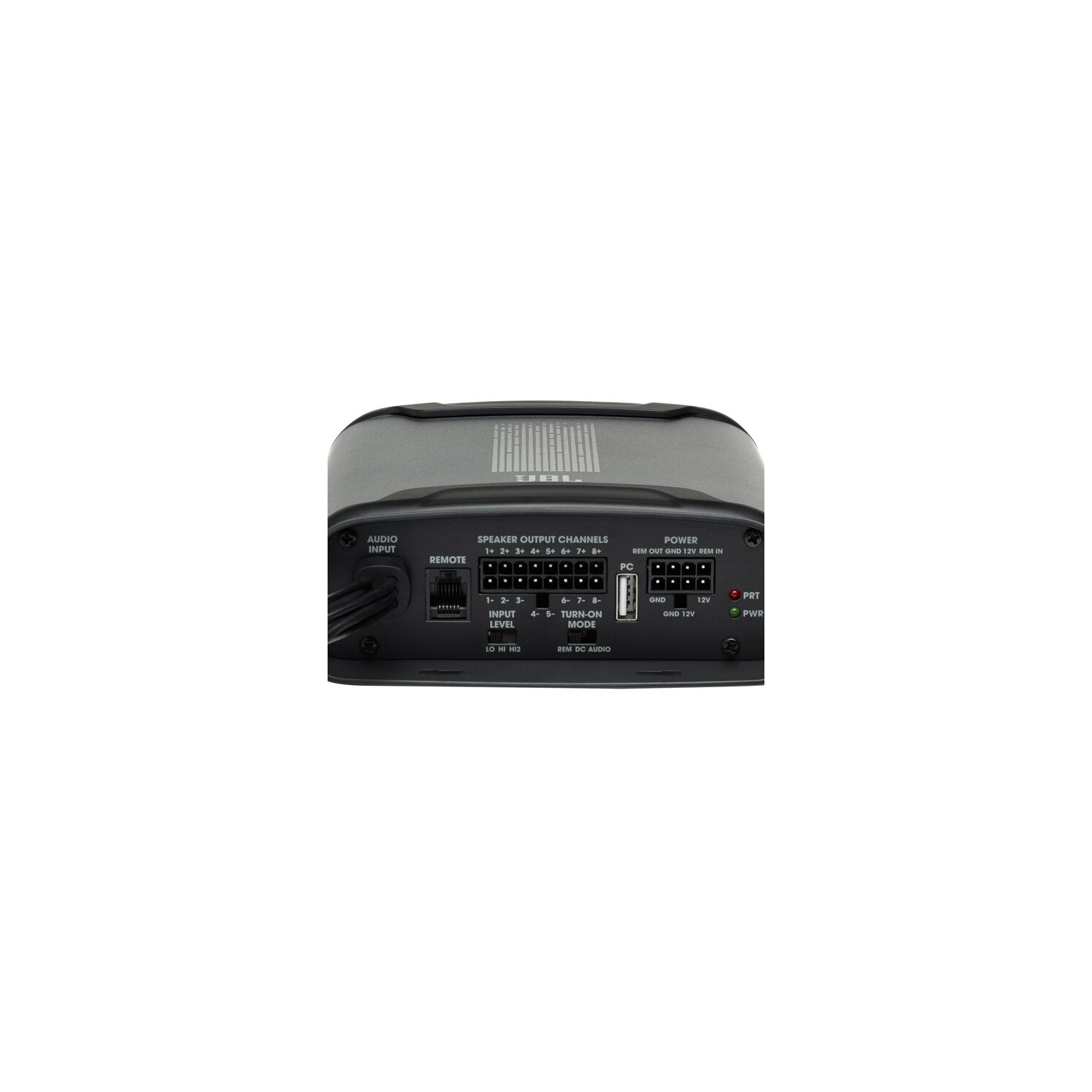

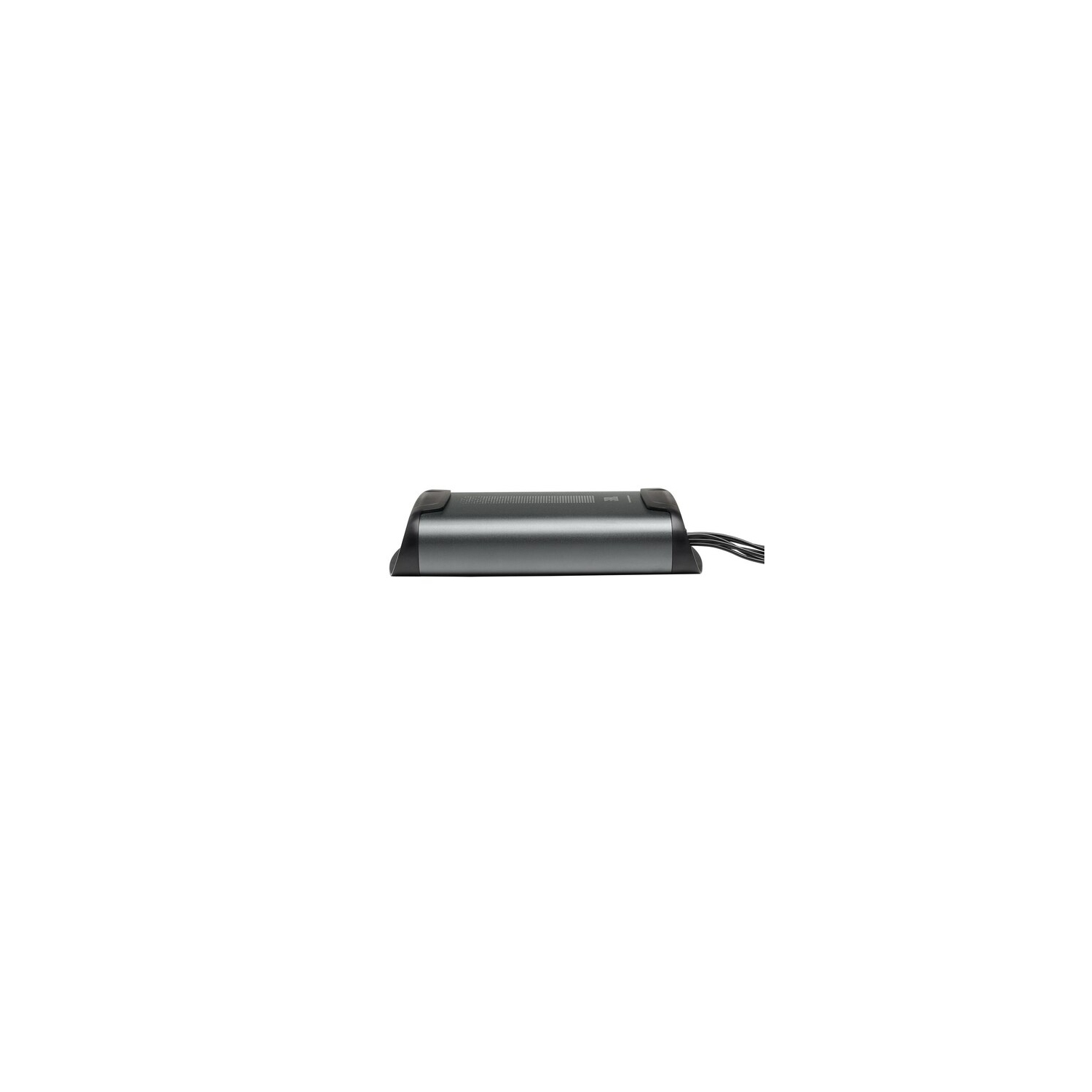

JBL DSP4086AM 8-Channel Car Amplifier with Digital Signal Processing - DSP4086

Model: DSP4086AM
Web Code: 15753042
Sold and shipped by | 4.5 seller rating (166 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Read return policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

What's included:

  • JBL DSP4086 owner's manual 8-Channel DSP amplifier w/ attached 6" 6-RCA input harness Remote bass level control 16.5' Remote level control cable (RJ-12 connectors both ends) 8" Power/ground/Rem harness (inline 40A ATO fuse) 8" 16-Pin speaker output harness 70" USB Cable (type-A both ends / 2.0) 6 Inupt adapters (RCA to set-screw) Spare 40A ATO fuse Four 15mm screws Two 10mm screws 4 Large flat-washers 4 Small flat-washers 4 Lock-washers Four 6-1/2" wire ties Owner's manual (Eng/Span/Fren/Others

JBL DSP Amplifier is an audio processor for fine-tuning of aftermarket audio systems. It is a self-contained audio system with 6-channel audio inputs, 8-channel powered audio outputs, an easy to use tuning interface a novice can understand and detailed tuning capabilities to satisfy even experienced installers.

With a USB connection to access the tuning interface using a Windows PC, you can control fully variable crossovers, selectable 0-to-48dB slopes, time delay, 31-band parametric or graphic EQ adjustment, assignable input to output mixer with input channel summing, channel gain, master volume control, clipping indicator to ensure the audio output is not distorted and ability to save up to 10 presets.

Adjustment Details:

32-band EQ (selectable parametric or graphic)

adjustable high-, low-, and band-pass filters (20-20,000 Hz)adjustable delay: 0 to 12ms in 0.2ms increments

selectable filter slopes 6, 12, 18, 24, 30, 36, 42, 48 dB/octave)

phase adjustment: 0 or 180°

programming done by a Windows-run PC

Other Features:

includes wired remote for ch 7/8

fuse rating: 40A x 1

wiring and hardware not included with amplifier dimensions: 5-11/16"W x 2"H x 9-3/8"D

8-gauge power and ground leads recommended

warranty: 1 year

Our 60-day money-back guarantee

MFR # DSP4086AM
