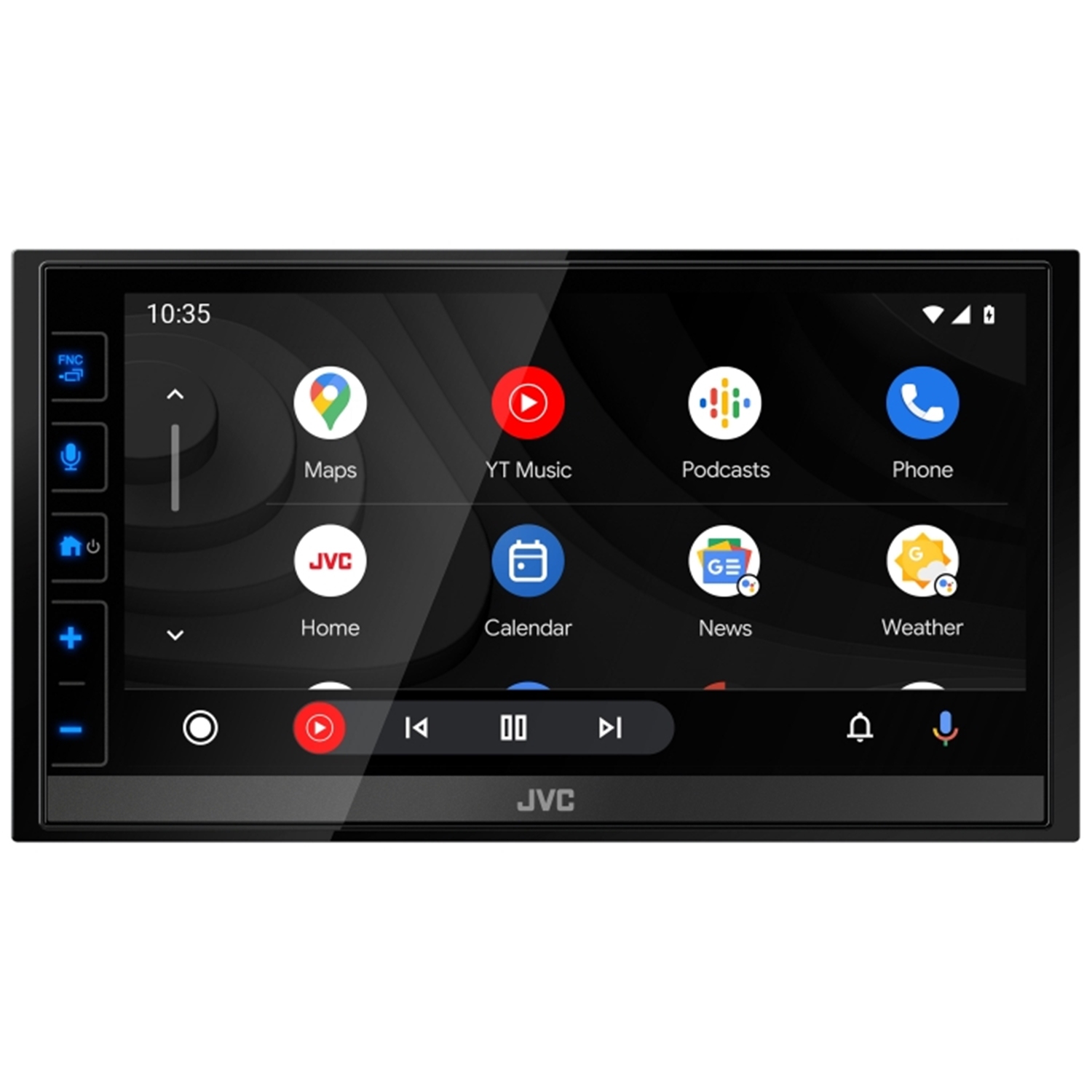

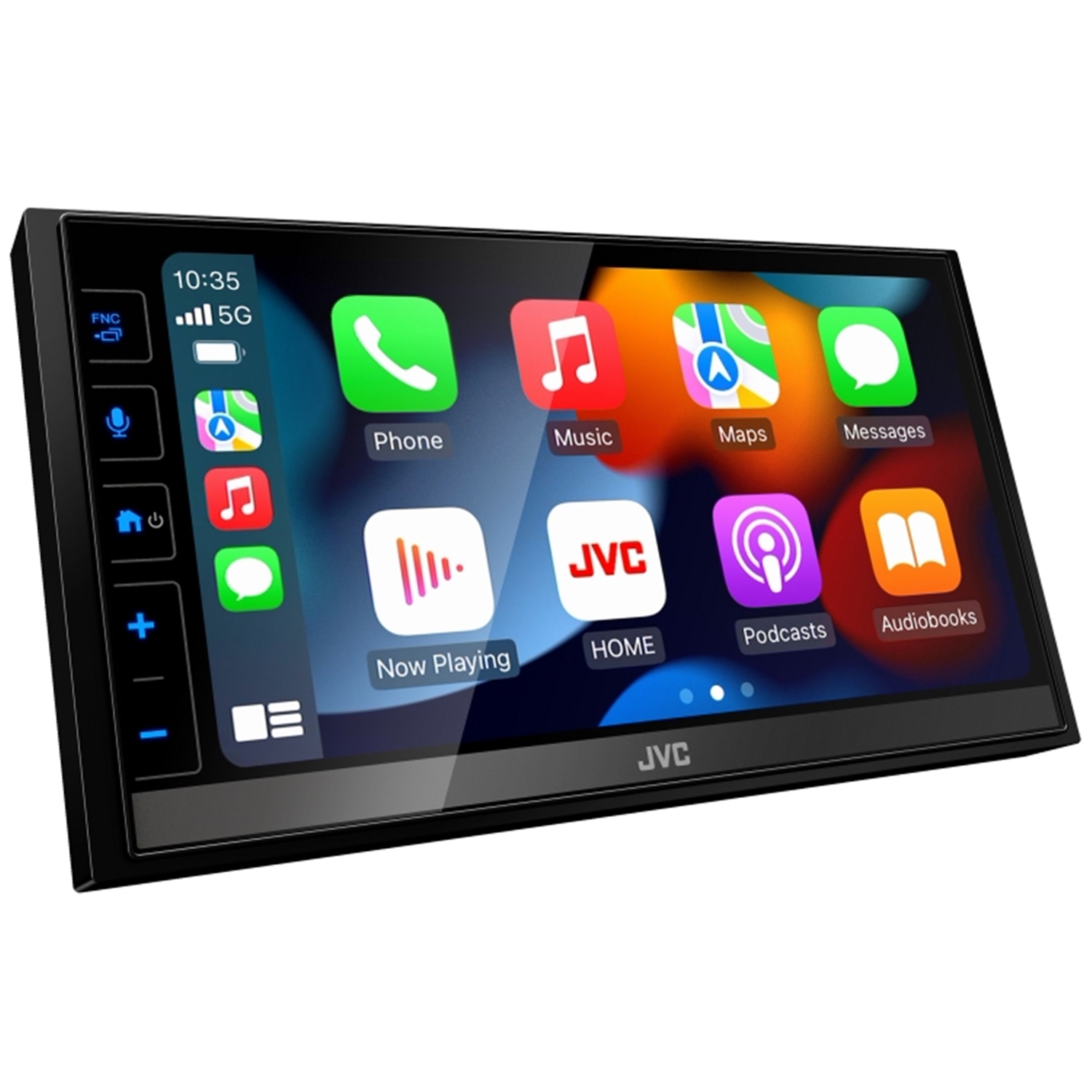

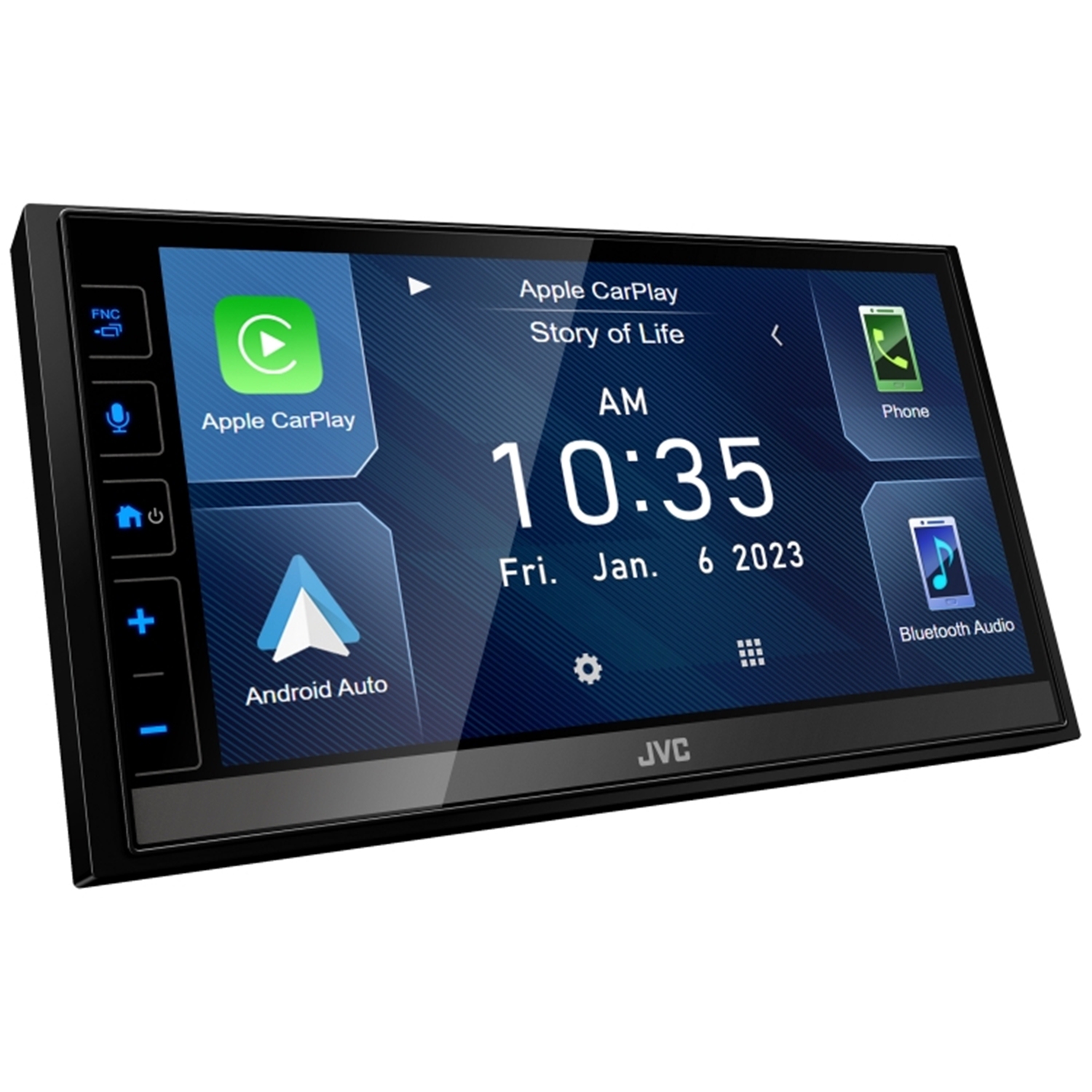

Digital Media Receiver With 6.8" Touch Screen, Bluetooth Control
Smartphone integration
JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on the big screen, in comfort and safety.
3 camera input
Allows users to add a rear view (backward) camera and 2 additional front or blind spot cameras, further enhancing driver safety and convenience.
Gesture touch control
Simply touch and move your finger on the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.
Sound optimization
From advanced technologies that enable playback of premium Hi-Res audio sources to the vast array of sound tuning features to fine-tune and customize the acoustics exactly the way you want them, count on JVC to deliver the music to your ears.
Permanent connection of 2 telephones
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by pressing a button on the receiver.
Specifications
Monitor
Screen size: 6.8 inch VGA screen
Touch screen: Capacitive
Gesture touch control: Yes
Customizable GUI: Yes
Key Illumination Color:Variable
Dimmer: Yes
Multilingual display: Yes (English / Spanish / French)
Screenshot: Yes
Bluetooth control
Built-in Bluetooth: Yes (wired-mic included)
Hands-free calling: Yes (HFP1.8 wideband speech)
Permanent connection of 2 telephones: Yes
Audio streaming and control (A2DP, AVRCP): Yes
Supported audio formats: AAC / SBC
5 BT audio connection: Yes
Voice dialing (voice-enabled mobile phone required): Yes
Phone Book Access Profile (PBAP): Yes
Phone book alphabet search:Yes
Automatic pairing for iPhone/Android: Yes
Wi-Fi control
Built-in Wi-Fi: Yes
Android control
Android Auto: Yes (via Wi-Fi or USB)
Mirroring for Android: Yes (via USB) * Requires mirroring app
Android Music Playback: Yes (via Bluetooth(R))
iPod/iPhone control
CarPlay: Yes (via Wi-Fi or USB)
iPhone Music Playback: Yes (via USB(CarPlay) or Bluetooth(AVRCP))
USB
USB port x 1 (high speed)
Position: Rear
USB powered: Yes (1.5A high current charging)
Drive change mode for mass storage class (selectable from internal/external memory): Yes
radio tuner
SiriusXM Ready: Yes
Radio Data Broadcast System (RBDS): Yes
Preset stations: 20 (FM: 15 channels, AM: 5 channels)
FM frequency range: 87.9 - 107.9 MHz
AM frequency range: 530-1700 kHz
Audio
Maximum output power (front and rear): 50Wx4
Full bandwidth (front and rear): 22W x 4 (Full bandwidth power, at less than 1% THD)
Equalizer: Yes (13 band graphic equalizer)
Preset Equalizer: Yes (8 Presets + 4 User)
Bass Boost: Yes
High Pass Filter / Low Pass Filter: Yes / Yes
3-way X'over: Yes
Digital Track Expander: Yes
Space improvement: Yes
Audible Response: Yes
Sound lift: Yes
Volume Link Equalizer: Yes
Time alignment: Yes

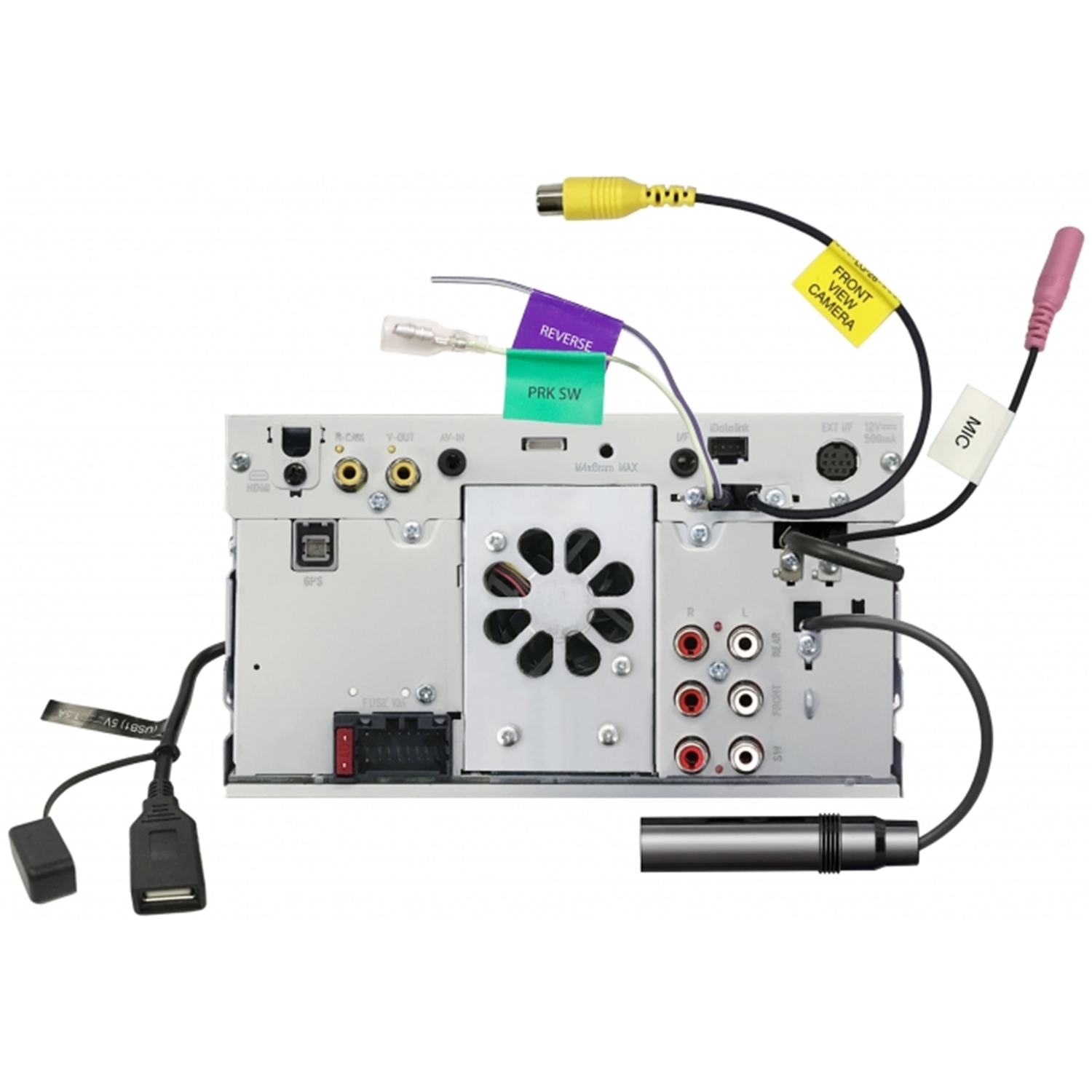

Entrances and exits
AV input: mini-jack (switchable AV-IN or Camera-IN) x 1
Video output: RCA x 1
HDMI socket: Yes
Rear view camera: Yes
Front View Camera Input: Yes
Line output terminals: 3 pairs (front + rear + subwoofer)
Pre-output level/impedance: 4.0V / 10k ohms
General
iDatalink Maestro Ready: Yes
Backup Memory: Yes
face type
Viewing angle adjustment: Yes (0 - 20 degrees, default: 0 degrees)
Short frame: Yes (2-15/16 inches, 75 mm)
Wireless Remote: Ready (RM-RK258 required)
Steering Wheel Remote Ready: Yes
Dimensions (W x H x D)
Installation size: 7-1/16" x 3-15/16" x 2-15/16" (180 x 100 x 75 mm)
Lester: 2.7 pounds. (1.2 kg) including sleeve and trim plate
Unit weight individually packaged: 4.2 lbs. (1.9kg)
