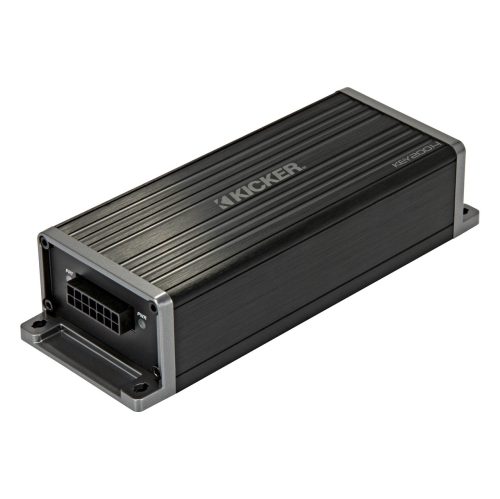

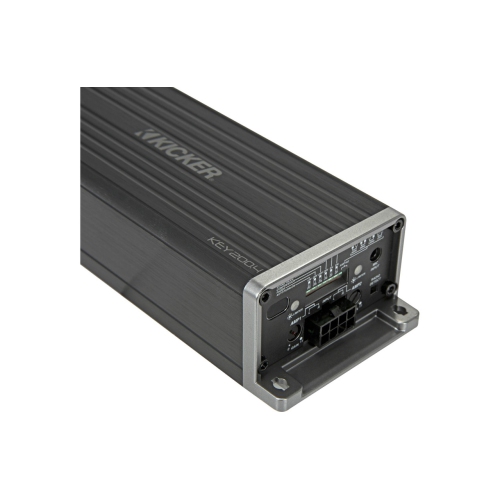

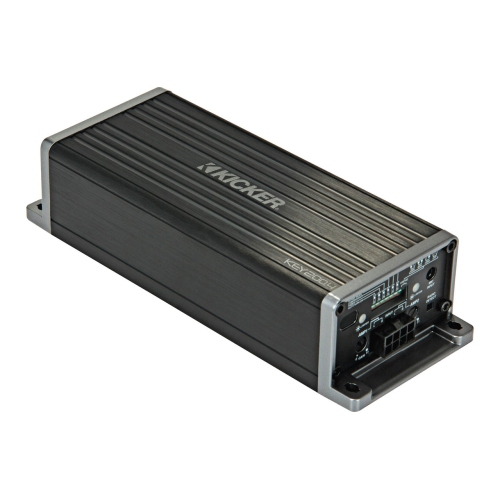

About: Kicker 47KEY2004 4-Channel Car Amplifier with Automatic Tuning DSP
Now you can get fantastic, high-fidelity sound without shelling out a lot of money for complicated gear or spending too much time tuning the system after installation. Kicker's KEY200.4 compact car amplifier features automatic signal processing that tailors the sound for your specific vehicle's interior space. This 4-channel compact power pack will send 50 watts RMS to each of your front and rear speakers — way more more than twice the power of a typical aftermarket receiver, three or four times the power of a typical factory radio.
A Better Sound. Automatically.
The KEY200.4 Smart Amplifier uses AI-driven DSP to dramatically improve the quality of your audio in a matter of minutes. Press one button and you’re done!
Little Amp. Big Difference.
Measuring less than eight inches long and only two inches high, KEY amps fit nearly anywhere. Mount them behind your radio, under the seat, or in your trunk with ease.
Ready for Your Ride
KEY amplifiers are fully compatible with nearly every stock and aftermarket radio on the road today, including newer vehicles equipped with start-stop systems.
Packed With Power
KEY Smart Amps deliver more than enough juice to rock your ride. With 500 watts RMS to your subs (from the KEY500.1) and 50 watts per channel to the door speakers (from the KEY200.4), the KEY family of amplifiers deliver the sound you’ve been looking for.
The Ideal Integration Solution
The revolutionary KEYLOC® automatically detects the frequency range of your speaker leads, with no oscilloscope or RTA. It’s every installers’ go-to solution!
Specifications:
4-channel car amplifier/sound processor
50 watts RMS x 4 at 4 ohms
CTA-2006 compliant
non-bridgeable — minimum impedance of 4 ohms per channel
Class D amp technology
KEY Auto Setup customizes the signal for your vehicle
calibration mic and activation button included
pink noise test tones available
automatic adjustments include 40-band EQ, 24 dB/octave crossover filters, time alignment
Bi-Amp mode applies tweeter/woofer crossover settings during KEY Auto Setup
Selectable high-pass filters (off, 60, 80, 120 Hz; 24 dB/octave)
Switchable auto compression
Automatic limiter with clip lights
Preamp and speaker-level inputs
DC offset sensing turn-on with speaker-level inputs
Radio-Detect circuit supplies speaker load for receiver to sense
Wiring and hardware not included with amplifier
Fuse rating: 20A x 1
Dimensions: 7-3/8"W x 1-11/16"H x 2-3/4"D
What's in the Box:
4-Channel amplifier
12" Power/ground/speaker output harness
12" Input harness
Loop wire w/ inline fuse holder (20A fuse installed)
Calibration microphone w/ attached 11.5' cable and inline Activation button (cable terminated in a 3.5mm TRS plug)
16" Rubber microphone strap
Two 12" wire ties
Four 1" screws
Quickstart guide
