About: Kicker 51LX12005 LX-Series 5-Channel Amplifier with Digital Signal Processing
The KICKER LX-Series is a perfect marriage of SQL design and high-powered output, utilizing feedback from the industry to deliver the most requested features while maintaining the highest performance possible. All multi-channel amplifiers are bridgeable and come with a wired control center (LXCC). LX Amps with sub sections come with a robust remote level control (LXRC) featuring SHOCwave2.0™.
From the Ground Up
The LX-Series represents KICKER’s high-power premium amplifier line designed in-house from the ground up. Precision control, next-level flexibility, designed for performance, built to last.
Incrementally dial in entire system with the included LX Control Center
Monitor and adjust sub section with the included LXRC Dash Remote
Class-D design for lower current draw, longer playing times, and lower operating temperatures
Gain-match LEDs show you perfect gain setting

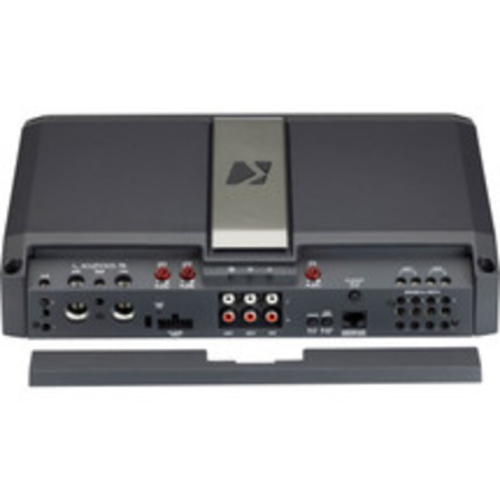

Customize the appearance with reversible center panel and choice of 11 RGB LED accent colors
Equipped with FIT+™ technology, accepting low- and high-level signals up to 40V, with differential inputs designed to eliminate unwanted noise for crystal-clear sound
LX features choice of turn-on modes and comprehensive protections for thermal, circuit, and voltage stability, ensuring reliable performance
Comes With The LX Control Center (LXCC)
Diagnostic Readouts: Monitor battery voltage, LED output clip indication, amp temperature, and protection status in real time
Precision Control: Adjust gain trim, left-channel time delay, and selectable crossover type, slope, and frequency. Allows for both HP, LP or BP crossovers for all full-range channels
Parametric Bass Boost: 0-6dB with adjustable center frequency and Q for the sub channel
Cable Length – integrated 3.28 feet (1m), directly into amp
Specifications:
5-channel car amplifier with digital signal processing
125 watts RMS x 4 + 300 watts RMS x 1 at 4 ohms
175 watts RMS x 4 + 550 watts RMS x 1 at 2 ohms
350 watts RMS x 2 bridged at 4 ohms + 700 watts RMS x 1 at 1 ohm
Class D amp technology
Frequency response: 20-20,000 Hz
Channel gain knobs with clip lights
Adjustable RGB LED accent lighting and reversible center panel with Kicker logo

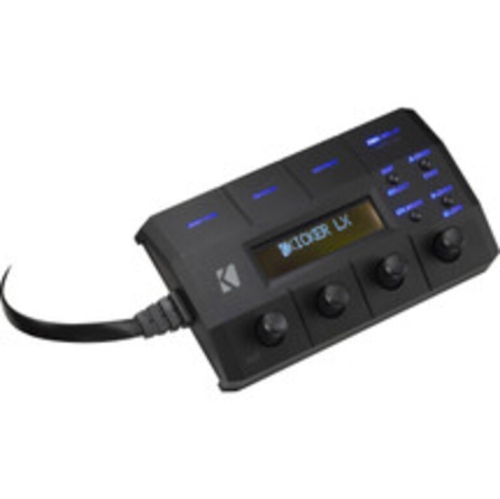

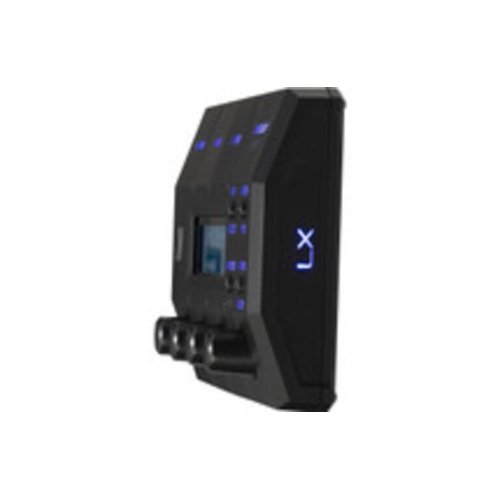

LXCC Control Center:
Plug in for amp setup only — unplug during normal operation
Dimensions: 5.9"W x 3.4"H x 1.3"D with 39.3" cable
LCD screen with 4 function/adjustment controls and 4 option selectors
Displays amplifier ID, system voltage, amplifier temperature (C°)
Gain Trim
Fine-tune channel gains for balance: -9 to +3 dB
Hi-Pass
Adjustable frequency: 20-5000 Hz for AMP 1-2; 10-80 Hz, 24 dB/oct (subsonic filter) for SUB
Selectable crossover type: Linkwitz-Riley or Butterworth
Selectable crossover slope: 12, 18, or 24 dB/octave
Lo-Pass
Adjustable frequency: 40-5000 Hz for AMP 1-2; 40-160 Hz for SUB
Selectable crossover type: Linkwitz-Riley or Butterworth
Selectable crossover slope: 12, 18, or 24 dB/octave
Time Delay
Adjustable delay time for AMP 1-2 left channels: milliseconds
Switchable phase for SUB
Adjustable KickEQ+ parametric bass boost for SUB: 0-6 dB at 20-80 Hz, 1-5 bandwidth
Channel Mode
Select Stereo, Mono (L+R), or Mono (L-R)

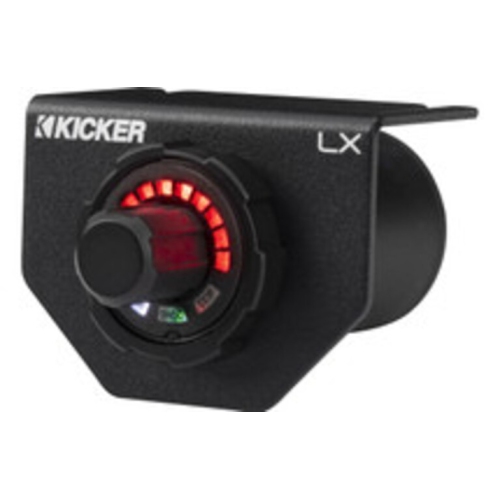

LXRC Wired Remote Control:
Plug in for normal operation — unplug during amp setup
Functions include subwoofer volume control
Clip indicator LED
SHOCwave2.0T sub-harmonic bass restoration
Graphic battery voltage meter
Controls RGB LED brightness
More Info:
Compatible with start-stop vehicle systems
Preamp and speaker-level inputs
Speaker wire adapters included
Speaker-level inputs handle up to 40V (400W)
Signal-sensing turn-on with speaker-level input
Wiring, fuse, and hardware not included with amplifier
1/0-gauge amp wiring kit with fuse or 1/0-gauge power and ground leads with a 100-amp fuse recommended
Dimensions (W x H x D): 12.63" x 2.43" x 8.42"

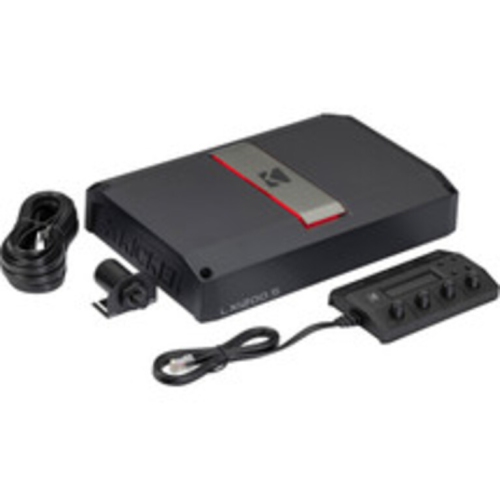

What's in the Box:
5-Channel amplifier
LXCC Control Center with attached 39" cord (terminated in an RJ-45 connector)
LXRC Remote bass control with attached mounting bracket
19.5' Remote bass control cable (terminated in RJ-45 connectors on both ends)
10" Speaker-level input harness
Four 1-3/8" screws
Two 3/8" screws
3mm Allen key
Owner's manual
Power chart
Power certificate
