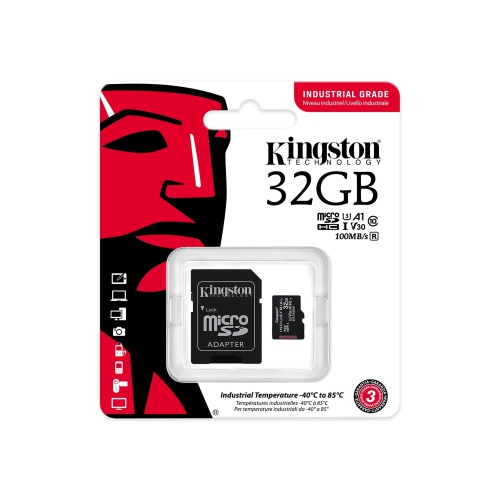

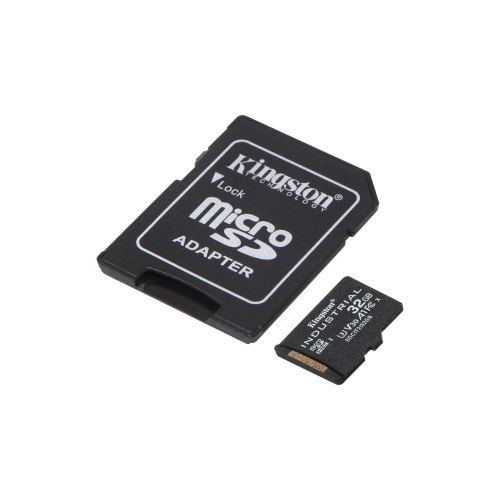

Kingston Technology - Industrial Micro SD Card with SD Reader, 32GB Capacity, Class 10, UHS-I, U3, V30, A1

Kingston's industrial microSD card has been designed and tested to withstand the harshest environmental conditions. With its service temperature range of -40 to 85°C, it operates normally in desert heat or freezing conditions. The card leverages industry-leading pSLC mode to deliver speeds of up to 100MB/s. It boasts a maximum of 1,920TBW with 30,000 P/E cycles, not to mention an integrated feature set tailored to specific endurance, performance and industrial requirements. Kingston's industrial microSD card comes with a UHS-I SD adapter. It is available in capacities between 8 and 64 GB.

Resistance to extreme temperatures

Designed and tested to withstand temperatures between -40 and 85°C for use in severe conditions.

High endurance and reliability

Up to 1,920TBW and 30,000 E/P cycles to meet the demands of a wide range of industrial applications.

UHS-I compliance

Speeds of up to 100MB/s and compatibility with U3, V30 and A1 for Android applications.

Built-in industrial-grade features

Robust ECC engine, wear leveling, bad block management and optional health monitoring tool to manage card life

Specifications

Available capacities: 8GB, 16GB, 32GB, 64GB

Performance: Class 10, UHS-I, U3, V30, A1

Endurance: Up to 1,920TBW 30,000 P/E cycles

NAND: TLC in pSLC mode

Dimensions microSDHC card: 11mm x 15mm x 1mm

SD adapter dimensions: 24mm x 32mm x 2.1mm

Format: FAT32 for SDHC and ExFAT for SDXC

Operating and storage temperature: 40°C to 85°C

Voltage: 3.3V

Industrial features:

. Management of erroneous blocks

. Robust ECC motor

. Protection in the event of a power failure

. Distribution of wear

. Auto-refresh protection of reading distribution

. Dynamic data refresh

. SiP - Encapsulated system

. Elimination of unused data

. Status check

Thermal Cycle Testing: Sequential testing at extreme and varied temperatures

Vigorous Variations in Humidity and Temperature: Hundreds of hours of testing to ensure durability at varying levels of humidi
