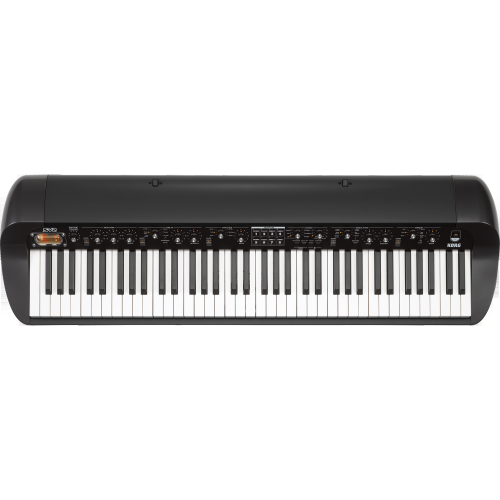

Korg SV-2 Stage Vintage Piano, 73-Key - Black

Available with either 88 keys or 73 keys, the SV-2 models are the latest additions to the Stage Vintage series, featuring more of everything that makes an SV great. The combination of an intuitive live panel, the premier keybed, the ultimate realization of coveted vintage sounds, the clarity of world-class pianos, the warmth and character of period-proper effects, and the distinctively smooth shape will continue to inspire musicians from around the globe.

More. More. More.

The SV-2 contains over ten times the sample data available in previous SV models, providing ample memory for many all-new piano and keyboard sounds. The SV-2 is home to 72 compelling sounds, and provides 64 memory locations to store edited Favourites for instant access during performance. Using the SV-2 Editor software, users are now free to create their own split and layered programs and save them to one of the Favourites locations. In fact, a single favourite can access up to three timbres at once - a piano/bass split with a layer of strings, for example. While user splits must be created using the SV-2 Editor, the split point on the keyboard can be adjusted directly from the front panel. Plus, polyphony of the SV-2 now stands at 128 voices, allowing more effective layering of sounds or sustained chording.

Plenty of Pianos

The SV-2 remains, at heart, a stage piano. At the touch of a button, you can summon the most outstanding grand piano sounds from around the world including exemplary pianos from the leading German, Italian, Austrian, and Japanese instrument makers. For a more intimate setting, choose one of the authentic Japanese or German upright pianos. Also included are a real honky-tonk piano and a genuine "tack" piano. Last but not least, the SV-2 contains two gorgeous harpsichords, one French and one Italian. Featured alone, layered with another sound, or split across the keyboard, these outstanding piano sounds deliver a strong foundation while delivering additional performance options.

Agility and Expression

All SV-2 Stage Vintage instruments share the finest KORG RH3 graded-hammer action keybed. As on a grand piano, the weighting of the keys is graduated across the keyboard; heavier in the lower registers and becoming lighter in the upper registers. This RH3 keybed is remarkably sensitive to the nuances of every performance, accurately delivering every expressive element. Selecting one of the eight distinct velocity curves allow the keyboard response to match any playing technique of performance style. Authentic to the end, the SV-2 offers eight tuning schemes including equal, grand piano stretch, electric piano stretch, electric grand, upright stretch, detuned and two user-definable types (configurable using the free SV-2 Editor). The overall tuning, or concert pitch, of the SV-2 can be adjusted to match another instrument or a previously recorded track. Needless to say, the SV-2 can be transposed into any key.

Making it Real

The SV-2 features six independent stages of studio-grade signal processing, highlighted by the KORG Valve Reactor. This Valve Reactor circuit delivers the added warmth or snarl that only a true 12AX7A vacuum tube can provide. As with the sounds themselves, all of the effect models are faithful to the originals and are designed to match the performance, limitations, and behavior of the chosen effect. Effect stages include:

- 3-BAND EQUALIZER (Bass, Middle and Treble)

- PRE FX (Red Compressor, Treble Boost, U-Vibe, Vibrato, Tremolo, VOX Wah)

- AMP MODEL (Clean, Twin, Tweed, AC30, Boutique, Organ, plus several types of Cabinet Simulators and Noise Reduction)

- MODULATION FX (Classic Chorus, Black Chorus, Orange Phaser, Small Phaser, MX Flanger, Rotary)

- REVERB/DELAY (Room, Plate, Hall, Spring, Tape Echo and Stereo Delay)

- TOTAL FX (Stereo Mastering Limiter, Stereo Limiter)

Specifications SV-2 /SV-2S

Keyboard: 73 keys (E1 to E7), Velocity-sensitive KORG RH3 (Real Weighted Hammer Action 3)

Touch selection: Eight curves

Tuning: Master Transpose, Master Tune, Tuning curves

Sounds

Sound generation: EDS-X (Enhanced Definition Synthesis - eXpanded)

Maximum Polyphony128 notes

Multi Sound: Layer, Split

Factory Sounds: 72 (6 Basic sounds x 2 sets, 6 variations)

Favorite sounds: 64 (8 banks x 8 variations) for saving of customized settings

Effects

Structure: 6 effects (5 effects + 1 total effect)

Equalizer: Bass, Mid, Treble

Pre FX: Red Comp, Treble Boost, U-Vibe, Vibrato, Tremolo, VOX Wah (Auto or Pedal control)

Amplifier models: Clean, Twin, Tweed, AC30, Boutique, Organ Amp + Cabinet Models, Valve Reactor Technology 12AX7 (ECC83) valve

Modulation: Classic Chorus, Black Chorus, Orange Phaser, Small Phaser, MX Flanger, Rotary (Slow/Fast control)

Ambient: Room, Plate, Hall, Spring, Tape Echo, Stereo Delay (Tap tempo)

Total FX (only editable with SV-2 Editor): Stereo Mastering Limiter, Stereo Limiter

Panel controls

Sound Select: TYPE knob, VARIATION knob, FAVORITES 18 switches

Effect Control: Equalizer: On/Off switch, BASS knob, MID knob, TREBLE knob

Volume: Master Volume

Switches: Transpose, Local Off, Touch, Function

Demo Songs: 72 songs (one song for each preset sound)

Input/Output connections

Audio Output: L, R connector (XLR balanced), L/MONO jack, R/MONO jack (6.3 mm [1/4"] unbalanced)

Headphone: Headphone jack（6.3 mm [1/4] stereo jack)

Audio Input: L/MONO jack, R/MONO jack (6.3 mm [1/4"] unbalanced)

MIDI: IN, OUTUSB

USB: 2.0 Type B connector (doubles the MIDI Interface)

Damper Pedal: KORG DS-2H (included), DS-1H(sold separately)

Pedal 1: PS-1 foot switch, PS-3 foot switch (sold separately)

Pedal 2: Volume/Expression, XVP-20, EXP-2, PS-1 foot switch, PS-3 foot switch (sold separately)

Amplification (SV-2S)

Speakers: 2 x 2.5" with 2 x 3" passive radiator

Amplification power: 2 x 15 W

Main Specifications

Power Supply: Internal switching adapter, AC 100~240 V, 50/60 Hz

Power Consumption: SV-2 - 16 W / SV-2S - 25 W

Dimensions (W x D x H, excluding music stand):

SV-2／SV-2S (73key): 1143 mm x 347 mm x 157 mm/45.0" x 13.66" x 6.18"

SV-2／2V-2S (88key): 1356 mm x 347 mm x 157 mm/53.39" x 13.66" x 6.18"

Weight (excluding music stand)

SV-2 (73key): 17.2 kg/37.92 lbs

SV-2 (88key): 20.35 kg/44.86 lbs

SV-2S (73key): 18.3 kg/40.34 lbs

SV-2S (88key): 21.45 kg/47.29 lbs

Other

Included Items: Power cable, Music stand, DS-2H damper pedal, Quick Guide
