SMA attenuators are used to reduce the input power, and therefore enable RF Explorer to measure stronger signals. It is also used to protect the input SMA port of RF Explorer when unknown strong signals may be in the environment, so you can use this attenuator on demand. You can easily unplug the attenuator when measurement is for weak signals.

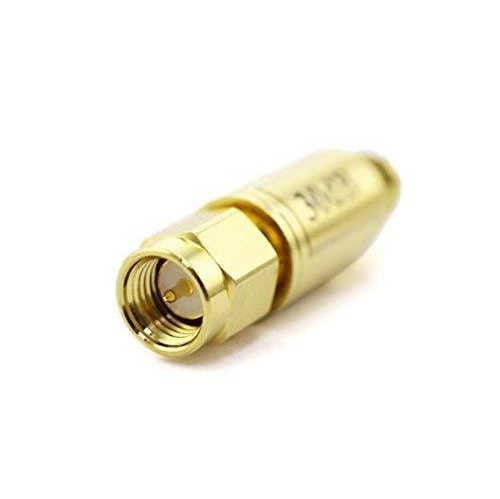

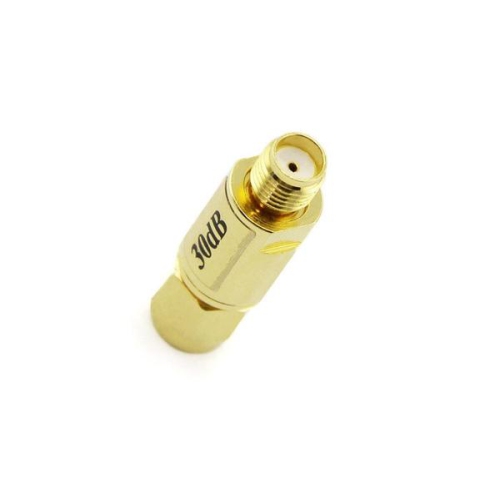

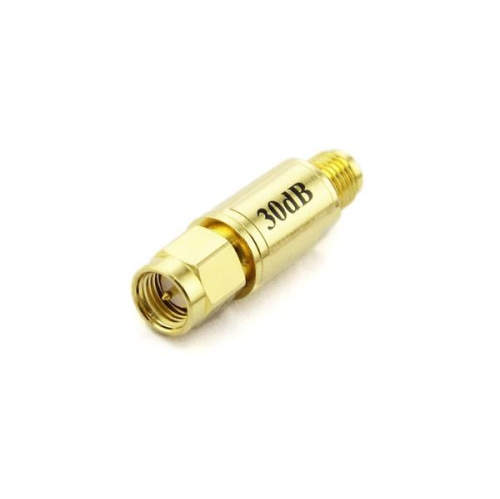

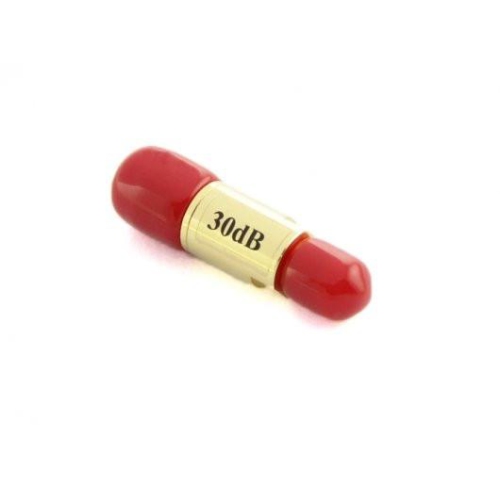

LATNEX SMA Attenuator RF 2 Watt Power - Range DC-6.0GHZ 50 ohm Impedance with Male to Female (30dB)

Model: SMA-30dB
Web Code: 12909400
Sold and shipped by | 4.4 seller rating (26 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

You can also daisy chain multiple attenuators to get additional values. For instance a 10 dB + 30dB attenuators connected in series will give you 40dB total attenuation.

RF Explorer firmware includes an “Offset DB” feature in the Attenuator Menu, you should specify (+030) dB in this setting when the attenuator is connected in order to get correct readings on screen.

This powerful 30dB attenuator will work reliably up to 6GHz and 2W input power.

Features:

Reliable V.S.W.R

Easy maintenance

Wide broadband frequency application

Directional 2 Watt rating

Specifications:

Frequency range: DC - 6.0 GHz

Impedance (Nominal): 50Ω

Power rating: 2 Watt (+33dBm)

Attenuation: 30 dB

Tolerance: +/- 0.5dB/max

V.S.W.R (Max): 1.22 : 1

Connector type: SMA male - female
