SMA attenuators are used to reduce the input power, and therefore enable RF Explorer to measure stronger signals. It is also used to protect the input SMA port of RF Explorer when unknown strong signals may be in the environment, so you can use this attenuator on demand. You can easily unplug the attenuator when measurement is for weak signals.

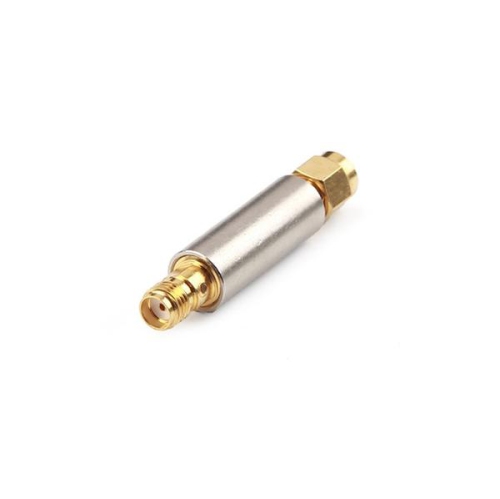

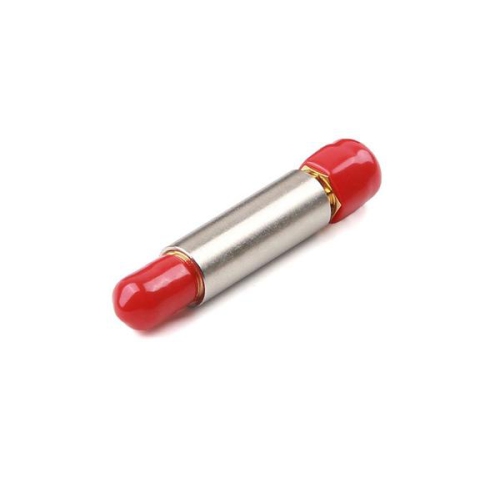

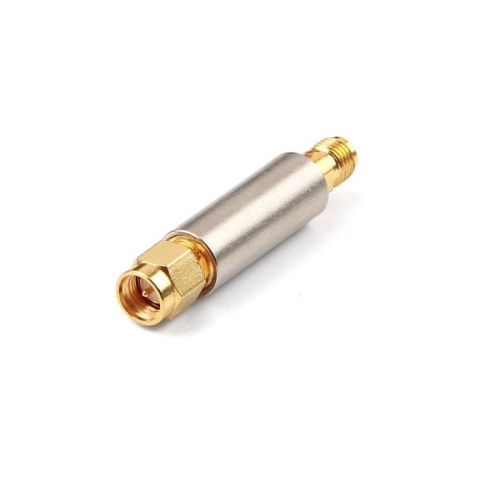

LATNEX SMA Attenuator RF 2 Watt Power - Range DC-6.0GHZ 50 ohm Impedance with Male to Female (60dB)

Model: SMA-60dB
Web Code: 12909983
Sold and shipped by | 4.4 seller rating (26 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

This robust attenuator is custom made, high quality exceptional value 60dB total attenuation. You will not find attenuators of this range anywhere else in the market, the only other option is to daisy chain two 30dB attenuators together. Therefore, this unit is cost effective option to measure high power RF signals. A 60dB attenuation enables any RF Explorer unit to measure signals of up to 2Watt (33dBm) power without distortion with a single attenuator, as opposed to connecting multiple attenuators in daisy chain.

RF Explorer firmware includes an "Offset DB" feature in the Attenuator Menu, you should specify (+060) dB in this setting when the attenuator is connected in order to get correct readings on screen.

Features:

Reliable V.S.W.R

Easy maintenance

Wide broadband frequency application

Directional 2 Watt rating

Single attenuator enough to measure up to 2Watt power with RF Explorer

Specifications:

Frequency range: DC - 6.0 GHz

Impedance (Nominal): 50Ω

Power rating: 2 Watt (+33dBm)

Attenuation: 60 dB

Tolerance: +/- 2dB/max

V.S.W.R (Max): 1.25 : 1

Connector type: SMA male - female
