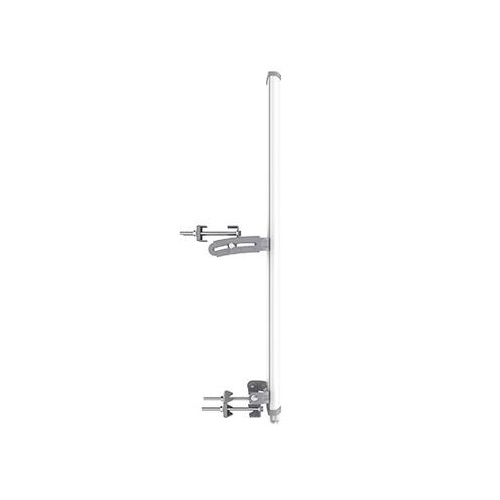

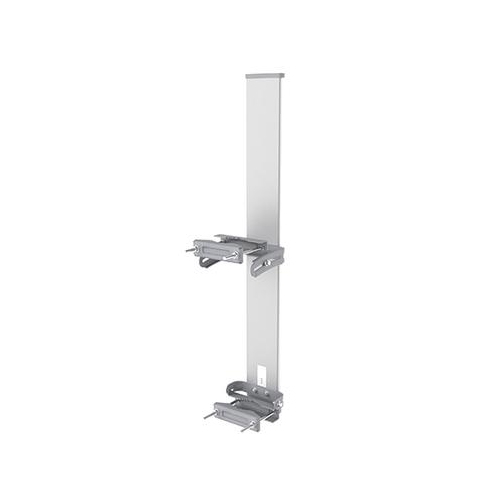

Ligowave 5-Ghz 2X2 Mimo Base Station with Integrated Dual-Polarized 20-dBi 90-Degree Sector Antenna

Benefits

• The all-in-one design reduces the risk of cable failures and decreases the signal loss, as the radio is connected directly to the antenna. Such integration allows saving tower space and improves the cost which helps to speed up your ROI

• Metal enclosure works as a deflector eliminating interference caused by backlobes and rejecting noise when multiple base-stations are co-located on a single tower

• New operating system includes all the essential features for point-to-multipoint networks. User interface is built using HTML 5 technology with responsive design. Among the new features there are IPv6 bridge and router support, SSDP and Bonjour device discovery options, flexible traffic shaping and SSTP client

• Starting from v7.52 Infinity firmware image can be used on a LigoDLB series devices for the outdoor hotspot and other related applications

• WNMS is a FREE enterprise grade Wireless Network Management System. A single software solution simplifies a large number of management and monitoring tasks for the network administrator

• LigoDLBac series devices are backwards compatible with LigoDLB devices using iPoll mode, which helps to expand or upgrade existing networks with the latest technologies over time

Technical Specifications

• Radio Frequency: 5.150 - 5.850 GHz

• Channel size 5, 10, 20, 40 MHz

• Stream MIMO 2x2

• Wireless protocol Proprietary iPoll 3 or standard 802.11n

• Operating mode: Point to Multi Point

• Receive sensitivity at 20 MHz channel: 95 dBm +/-2dB@BPSK -92 dBm +/-2dB@QPSK -84 dBm +/-2dB@16QAM -78 dBm +/-2dB@64QAM -70 dBm +/-2dB@256QAM

• Network Ethernet interface 10/100/1000 Base-T

• Aggregated data throughput 500 Mbps

• Antenna Gain: 20 dBi

• Beamwidth horizontal: 90 deg, vertical: 8 deg

• Tilting +15 degrees

• Powering Method 802.3af
