Connector:
1x M-key (type 2280-D5-M) M.2 socket for M. 2 NGFF PCIe based SSD.
Convert M. 2 NGFF PCIe based SSD to work in main board PCIe x4 bus slot.
Supports PCIe 2.0 and PCIe 3.0 motherboard.
Movable M. 2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 and 2242 M. 2.
Supports M. 2 NGFF PCIe 80mm, 60mm, 42mm SSDs.
Supports dual-sided M. 2 SSD module with 1.5 mm component height on the top and bottom side.
Supports industrial operating temperature range: -40 - 85 ºC.
M. 2 PCIe SSD gets power from motherboard PCIe bus slot 3.3V.
Software: No driver installation required. Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe and PCIe-AHCI.
Note: NVMe native driver for Windows 7 and Windows Server 2008 R2 is available from Microsoft Knowledge Base.
Note: Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only.
Hardware Requirement:

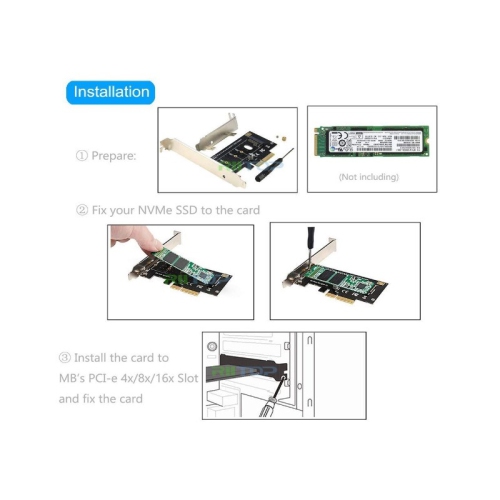

1x Empty PCIe 2.0(or 3.0) x4, x8, or x16 slot.
Type: PCI Express Controller Card
External USB Ports: No

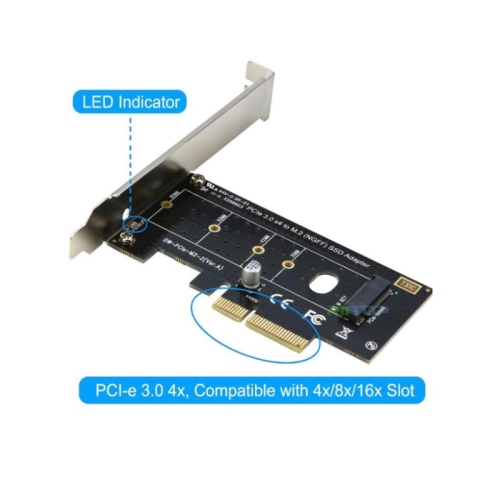

Compatibility: PCIe 3.0 or PCIe 2.0 x4, x8, or x16 slot; M Key PCIe M.2 NMVe SSD (2230/2242/2260/2280mm)
Specifications: Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 and 2242 M.2. Supports M.2 NGFF PCIe 80mm, 60mm, 42mm SSDs.

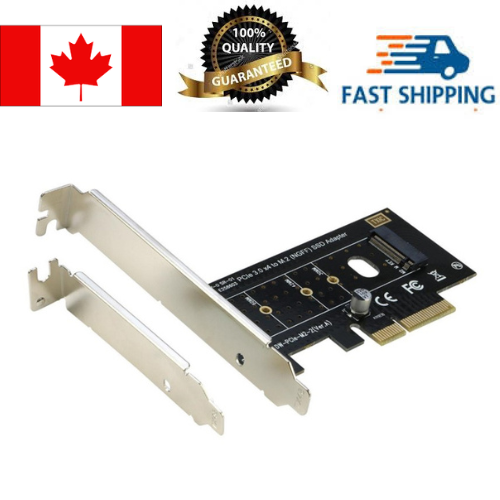

Features: Connector: 1x M-key (type 2280-D5-M) M.2 socket for M.2 NGFF PCIe based SSD. Convert M.2 NGFF PCIe based SSD to work in main board PCIe x4 bus slot. PCI Express 3.0 x4 Lane Host adapter Low Profile Form Factor board with both Regular size and Low Profile bracket included. Supports PCIe 2.0 and PCIe 3.0 motherboard.
Dimensions: 4.72x4.17x2.05 inch.
Weight: 40g /0.09lb.
Package Contents:
1x M. 2 PCIe SSD to PCIe 3.0 x4 Host Adapter Card.
1x Screwdriver.
Mounting Screws
Note:

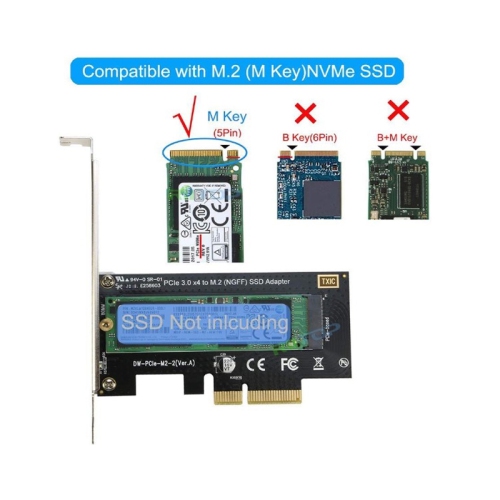

1. Not compatible with a “B” key M. 2 PCIe x2 SSD or “B” key M. 2 SATA SSD.
2. Need mainboard with a freedom PCI-e x4 or above slot (PCIe v 3.0 will be faster in transfering).
3. Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only, Win7 and Windows Server 2008 R2 are NOT compatible with NVME SSD.
4. If you wish to boot off using M. 2 SSD, your motherboard needs to support it. Due to BIOS limitations, not all motherboards support booting off M. 2 SSD so please consult your motherboard manual or vendor for more details on how to enable this function.
5. M. 2 PCIe-NVMe mode SSD requires the use of Intel 9 series (Z97 H97 Z170 X99) or higher version chipset motherboard with Windows 8 or higher version operating system.
6. If add in PCI-e 2.0 slot, the transfer speed will be 16Gbps
