Network Bus ExtenderPart #: NBE100-01Maretron's NBE100 (Network Bus Extender) allows you to extend the maximum node count, network trunk length and cumulative drop length of any NMEA 2000 network. The NBE100 solves bus errors and other electrical issues caused by exceeding any of these limitations and makes design of large networ

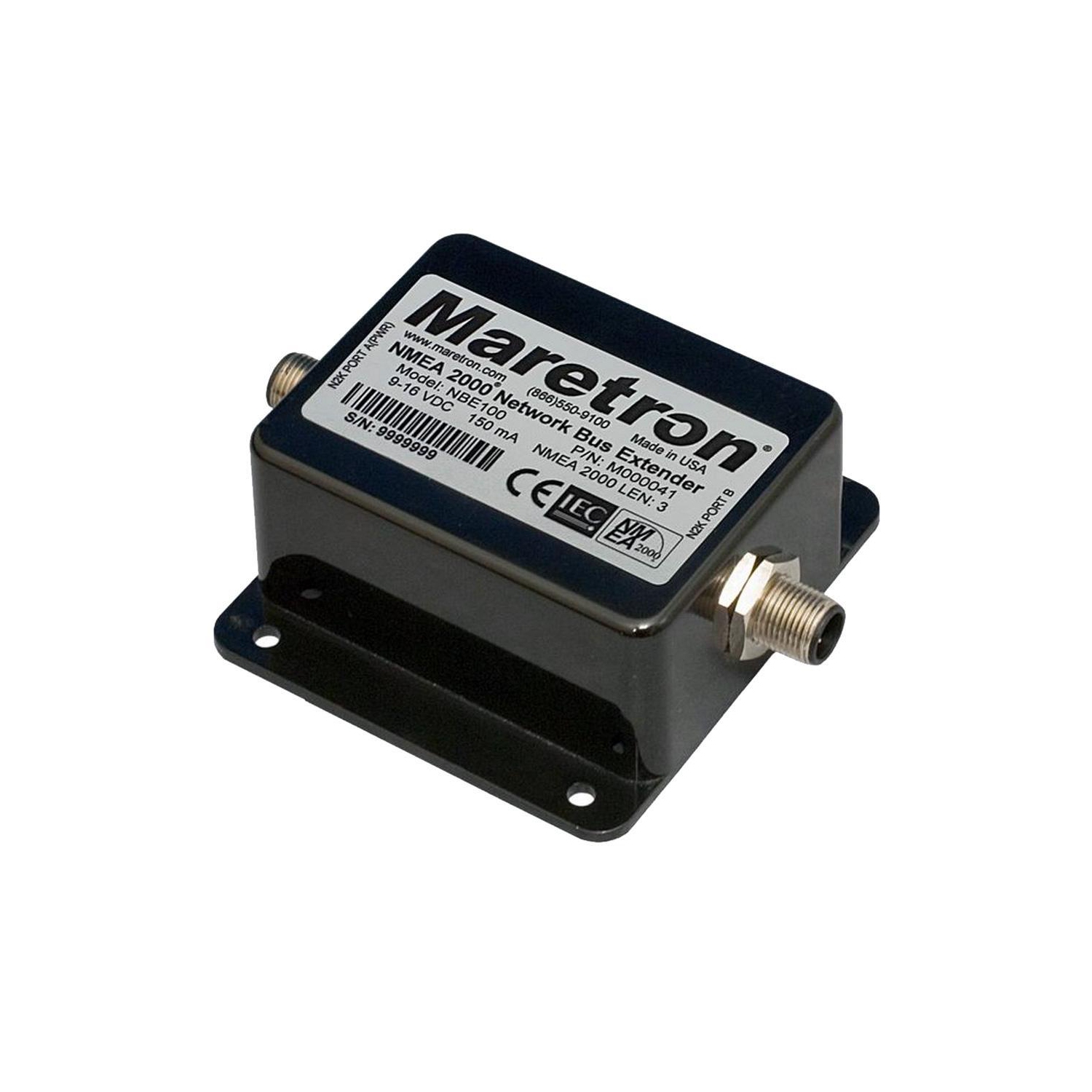

Maretron NMEA 2000 Network Bus Extender

Model: CW41854
Web Code: 12542303
Sold and shipped by | 4.1 seller rating (317 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Read return policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

Network Bus ExtenderPart #: NBE100-01Maretron's NBE100 (Network Bus Extender) allows you to extend the maximum node count, network trunk length and cumulative drop length of any NMEA 2000 network. The NBE100 solves bus errors and other electrical issues caused by exceeding any of these limitations and makes design of large networks easier. NMEA 2000 networks have a maximum of 50 nodes allowed on a single network, a maximum network trunk length of 200m and a maximum cumulative drop length of 78m. If you have a network that exceeds any of these specifications, you can simply disconnect the network trunk in the middle and connect the ends to the NBE100, along with additional termination resistors. This will split the network into two electrical segments, each of which can have up to 50 nodes, for a total of 100 nodes on the logical network. The NBE100 will transparently route NMEA 2000 messages between the two network segments, making them work as a single logical NMEA 2000 network. Advanced priority-based message routing ensures that higher-priority messages are always prioritized over lower-priority messages, enabling predictable and reliable network operation.Features:

Segments a single large NMEA 2000 network into two smaller electrical segments

Allows you to exceed the 50 node limitation on a NMEA 2000 network

Allows you to exceed the 200m trunk length limitation on a NMEA 2000 network

Allows you to exceed the 78m cumulative drop length limitation on a NMEA 2000 network

Allows all NMEA 2000 devices to operate as if they were still on a single NMEA 2000 network

Priority-based message routing ensures higher-priority messages get through the bus extender first

Optically isolates network segments, increasing signal integrity and network reliability Product : MARETRON NMEA 2000 NETWORK BUS EXTENDER NBE100 Manufacturer : MARETRON Manufacturer Part No : NBE100-01 UPC : 873804003078

Product Condition
Brand New
