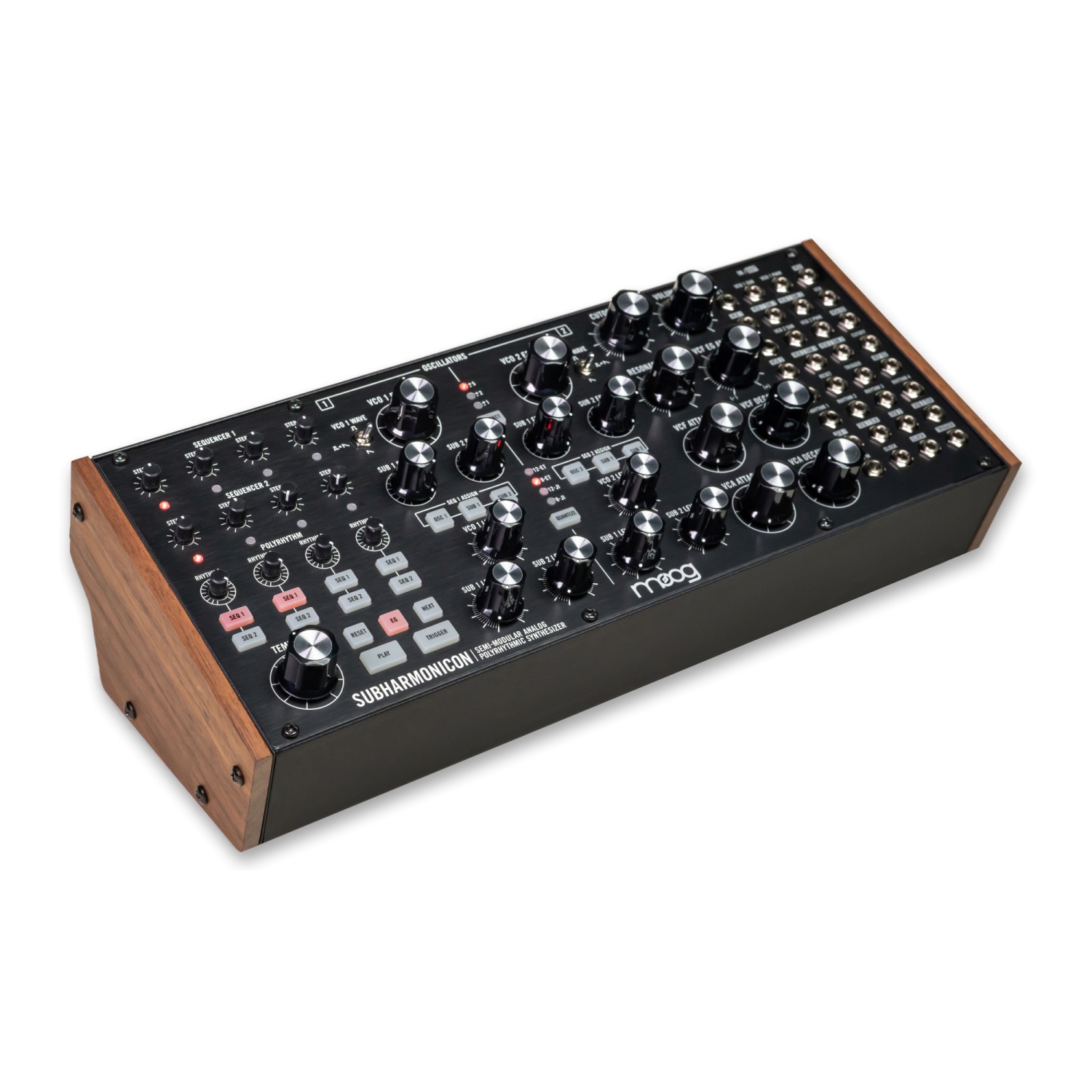

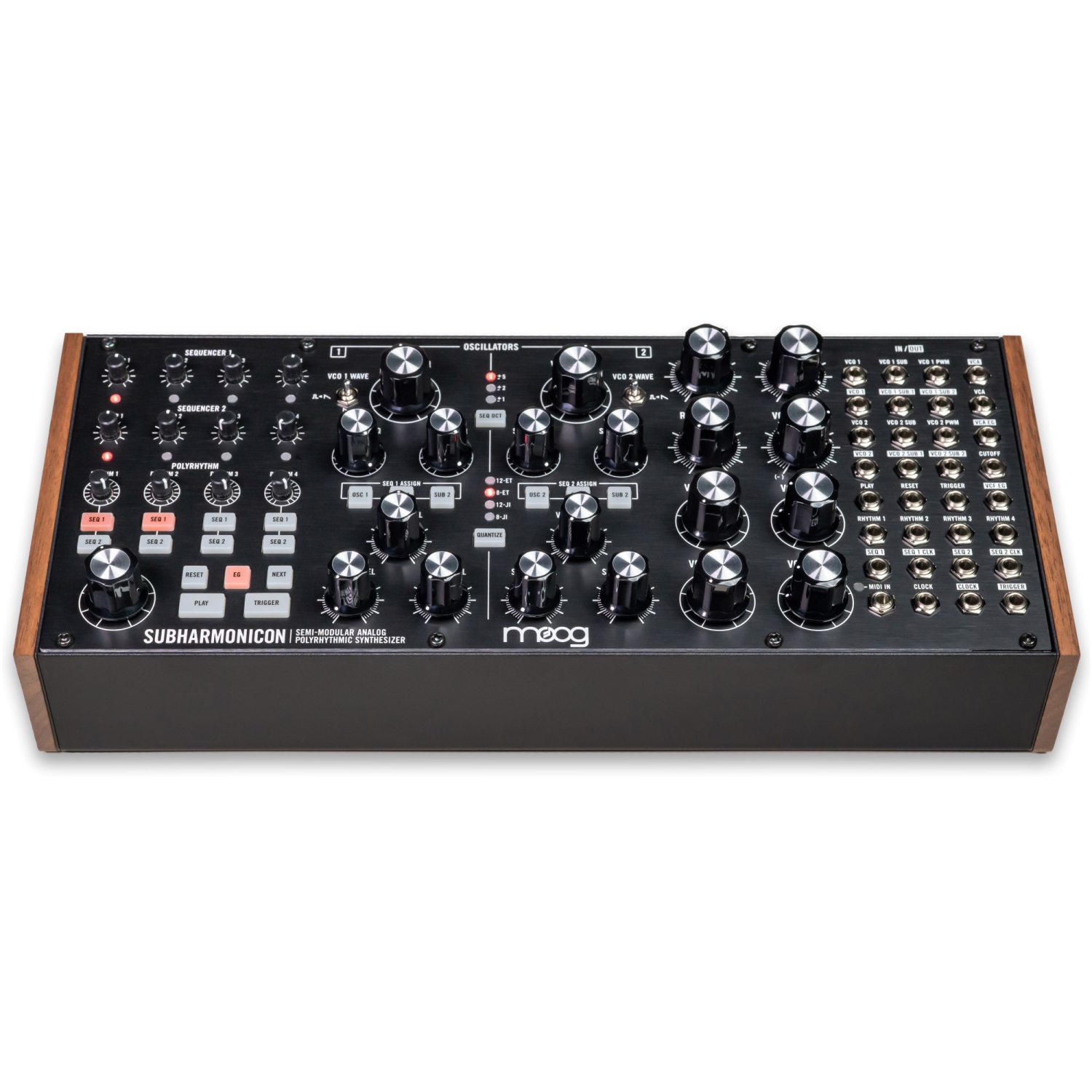

Subharmonicon is a semi-modular polyrhythmic analog synthesizer that employs a 6-tone sound engine and multi-layered clock generator to explore the world of subharmonics, polyrhythms, and the unique relationships they create.
Subharmonicon's characteristic sound starts with two analog VCOs and four Subharmonic Oscillators for a total of six powerful sound sources. Each subharmonic tone is mathematically derived from one of the two main VCOs, giving the resulting chord shapes a beautifully coherent quality. Onboard quantization lets you dial in perfect intervals every time with selections for multiple tuning systems. Choose from contemporary Equal Temperament settings, the heavenly intervals of Just Intonation, or the unlimited freedom of no quantization at all.
Animating Subharmonicon's distinctive chord shapes is done through a polyrhythmic pair of 4-Step Sequencers. Each sequencer is clocked by any or all of four Rhythm Generators that output mathematical divisions of the master tempo. Layer multiple Rhythm Generators on top of each other to create complex polyrhythms and discover inspiring new patterns and styles. Delve into Subharmonicon's dual Envelope Generators, Moog Ladder Filter, and analog VCA to call up dynamic articulations ranging from lush pads and blurred edges to percussive plosives and ritualistic rhythms.
Although no patching is required to start creating, exploring Subharmonicon's modular patchbay unlocks worlds of possibilities as you make novel connections and plug into new ideas. The 32-point 3.5mm patchbay can be patched into itself, expanding Subharmonicon's onboard capabilities, or interfaced with Mother-32, DFAM, and other external Eurorack-compatible gear (MIDI Type A adapter included for DIN to 3.5mm MIDI input). Use as a standalone synth with included +12V DC power supply or simply remove the front panel to install into any Eurorack system.
Subharmonicon conforms to the 60HP Eurorack format; features aluminum rails, finished wood side pieces, an extensive patchbay; and can perform as a standalone electronic instrument.
The Moog Subharmonicon is a versatile analog labyrinth of subharmonically derived synthesis and polyrhythmic sound, equally suited for losing oneself and simultaneously finding oneself.
Features
2 VOLTAGE CONTROLLED OSCILLATORS (VCOs) - Each VCO features two additional subharmonic oscillators
POLYRHYTHM SECTION: 4 RHYTHM GENERATORS - Each rhythm generator can be set to drive a single sequencer or both
TWO 4-STEP SEQUENCERS - Each sequencer controls any combination of its associated VCO, SUB 1, and SUB 2
2 ENVELOPE GENERATORS - Two Attack/Decay envelope generators control the VCF and VCA
RESONANT MOOG FILTER - 4-pole (-24 db/octave) low-pass Moog ladder filter
PATCHING - 32-point modular patchbay offering 17 inputs and 15 outputs
Specifications
ANALOG SOUND ENGINE
SOURCES: VCO 1, SUB 1, SUB 2 / VCO 2, SUB 1, SUB 2
FILTER: Self-Oscillating Ladder Filter, Low-Pass, 4-Pole (-24 dB/Octave)
ENVELOPES: VCA EG (Attack, Decay); VCF EG (Attack, Decay)
ANALOG SEQUENCERS (x2)
STEPS: 4 Steps per Sequencer, selectable Quantization
CLOCK: Driven by any and all of the Rhythm Generators
RHYTHM GENERATORS (x4)
RHYTHM: Derived by dividing the Tempo by an integer value (1-16)
CLOCK: 20 BPM to 3,000 BPM (Beats Per Minute; 1 Pulse Per Quarter-note), MIDI Clock, EXT CLOCK
PATCHBAY
JACKS: 32 x 3.5mm
INPUTS: 17 Input Jacks
OUTPUTS: 15 Output Jacks

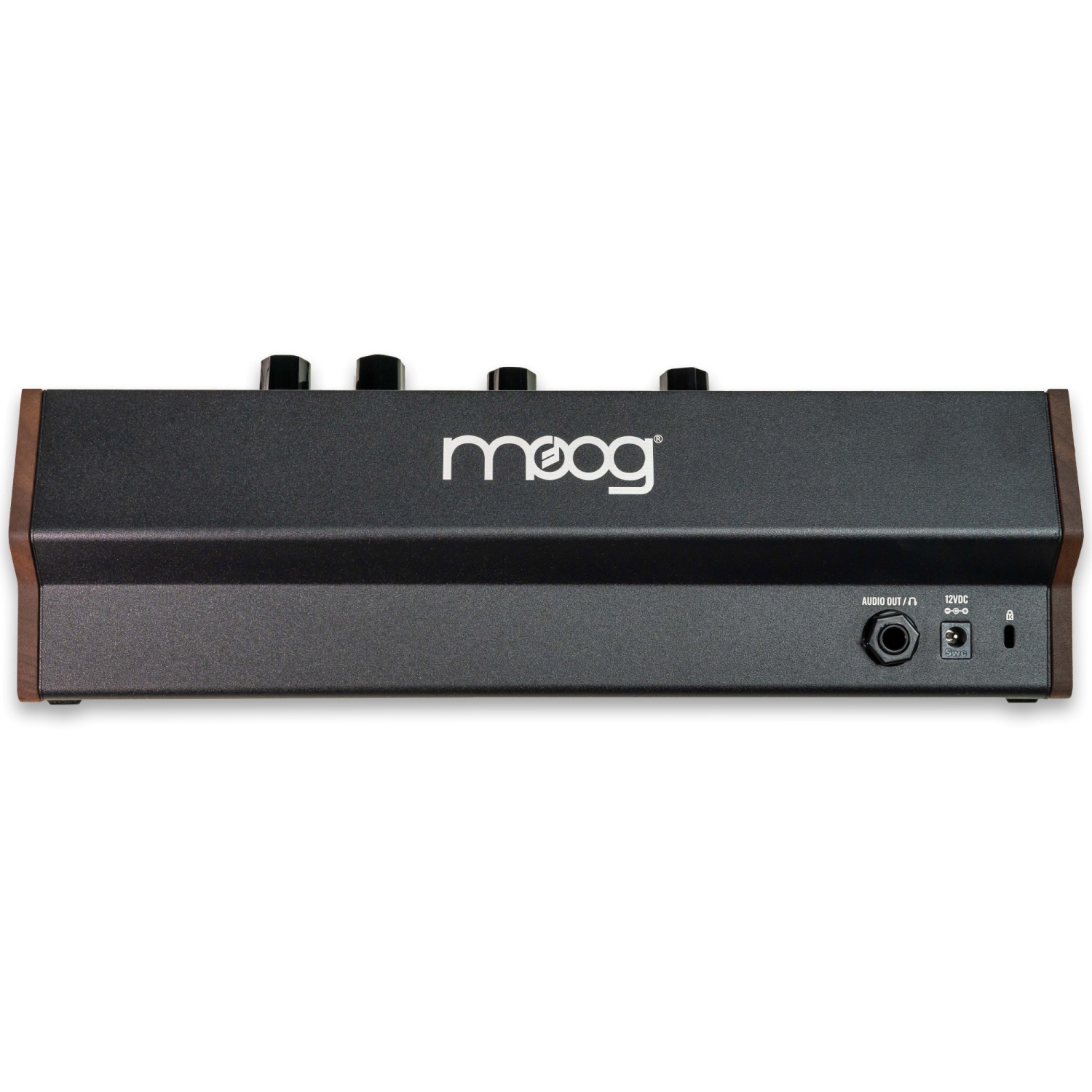

REAR PANEL
AUDIO: 1/4" TRS Headphone or 1/4" TS Instrument
POWER: Power Supply connection
SECURITY: Kensington Lock slot
DIMENSIONS
SIZE (WxDxH): 12.57" x 4.21" x 5.24"
WEIGHT: 3.5 lbs
POWER SUPPLY (INCLUDED)
STYLE: Wall adapter; barrel connection; center-pin positive
INPUT: 100 240VAC; 50 Hz 60 Hz
OUTPUT: +12VDC; 1200mA
POWER CONSUMPTION
TYPICAL: 4.8 Watts
EURORACK SPECS
CURRENT DRAW: 360mA (maximum) from +12VDC (10-pin header)
MOUNTING DIMS: 60HP (1"/26mm Module Depth)
In the Box:
- Subharmonicon Semi-Modular Analog Polyrhythmic Synthesizer
- Power Supply
- DIN Socket to 3.5mm Plug (Type A) MIDI Adapter
- Patch Sheet Overlays
- Owner's Manual
- Patch Cables
- Registration Card
