Built in speaker simulation is an integral part of the CLASSIC Series circuitry. Each model is tuned to match the speaker/cabinet of that amplifier.

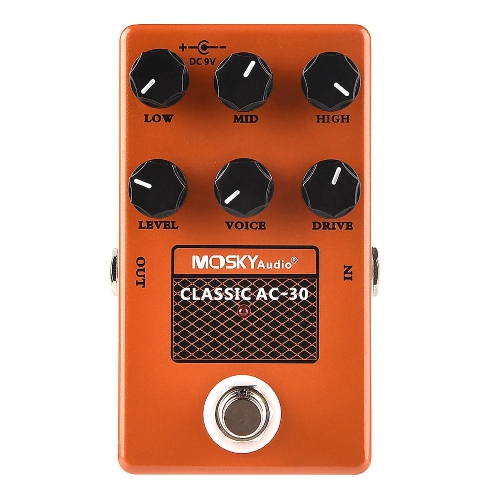

Mosky Audio Classic AC-30 Speaker Simulation Level Drive Voice Guitar Effect Pedal

Model: AC-30
Web Code: 16653182
Sold and shipped by | 4.1 seller rating (18 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

Classic AC-30

Built in speaker simulation is an integral part of the CLASSIC Series circuitry. Each model is tuned to match the speaker/cabinet of that amplifier. It is designed for a smooth, even response as

would be achieved by a multiply-miked cabinet, without the peaks, valleys, and notches associated with single miking.The shape of the speaker curve will not adversely effect or interfere with thefrequency response of your own cabinet.There is no need to defeat the speaker simulation circuit when using it with a guitar amplifier.The speaker simulation works in tandem with the EQ controls to custom tailor the overall sound.

GUIDE TO CONTROLS

LEVEL: Adjusts the output level of the unit. This control has an exceptionally wide range for maximum compatibility with a variety of equipment.LOW, HIGH, MID: On-board post-EQ section gives you full control, like having a studio mixing board at your fingertips. Unlike passive tone controls that only cut, these active controls cut and boost ±12dB. Low is tuned to 125 Hz; High frequency is 3.2 kHz. Mid is custom tuned for each model.DRIVE: Adjusts the overall amount of gain and overdrive, similar to when the output section of a tube amp is being pushed.The first half of the rotation will increase the volume as well as the overdrive.

VOICE*: Voiced differently for each pedal in the series. It sweeps through various

tonal possibilities associated with each style of amplifier. In addition to modifying the frequency response, Voice also influences the attack and drive characteristic of each particular amplifier style. Therefore, you may need to adjust your gain and tone settings after tweaking the Voice control.

-Input Impedance 1MΩ

-Output Impedance 1KΩ

-Power Supply : DC9V 100mA,Center negative

-Dimension(L*W*H):11.5*6.5*5CM

-Weight:300g

Note:

Power supply not included.

Please use a 9V DC power adapter whose polarity is negative centre otherwise, the product may not work properly.

Package List:

1 * Effect Pedal

1 * User Manual(English

Product Condition
Brand New
Pedal Type
Distortion Pedal
