Overview

If you need high-throughput firewall, routing, and VPN performance, look no further. The Netgate® 8200 with pfSense® Plus software is the fastest Intel® Atom®-based firewall we offer, in a whisper-quiet rack mount configuration. It is ideal for remote offices, edge deployments, managed service providers, and enterprise networks.

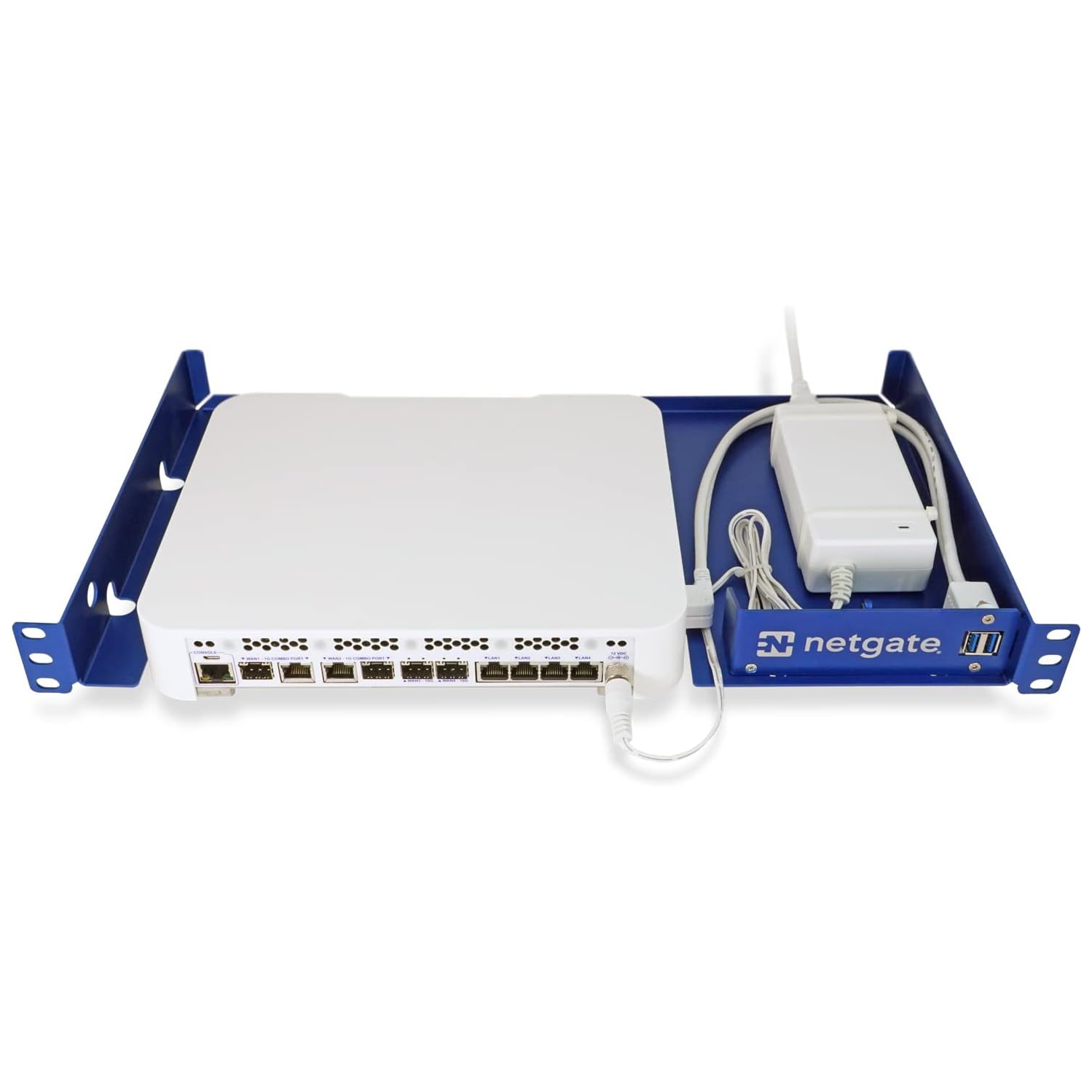

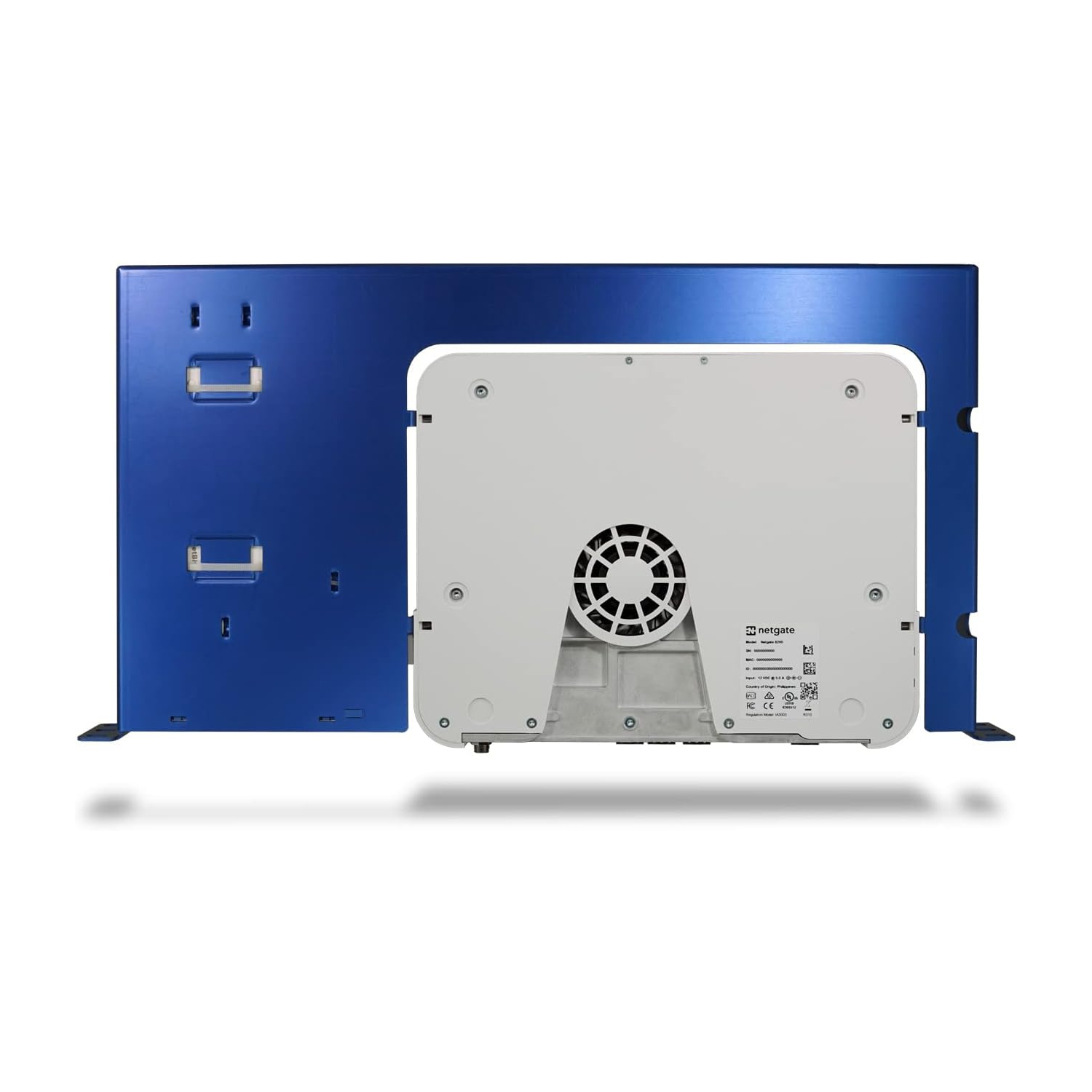

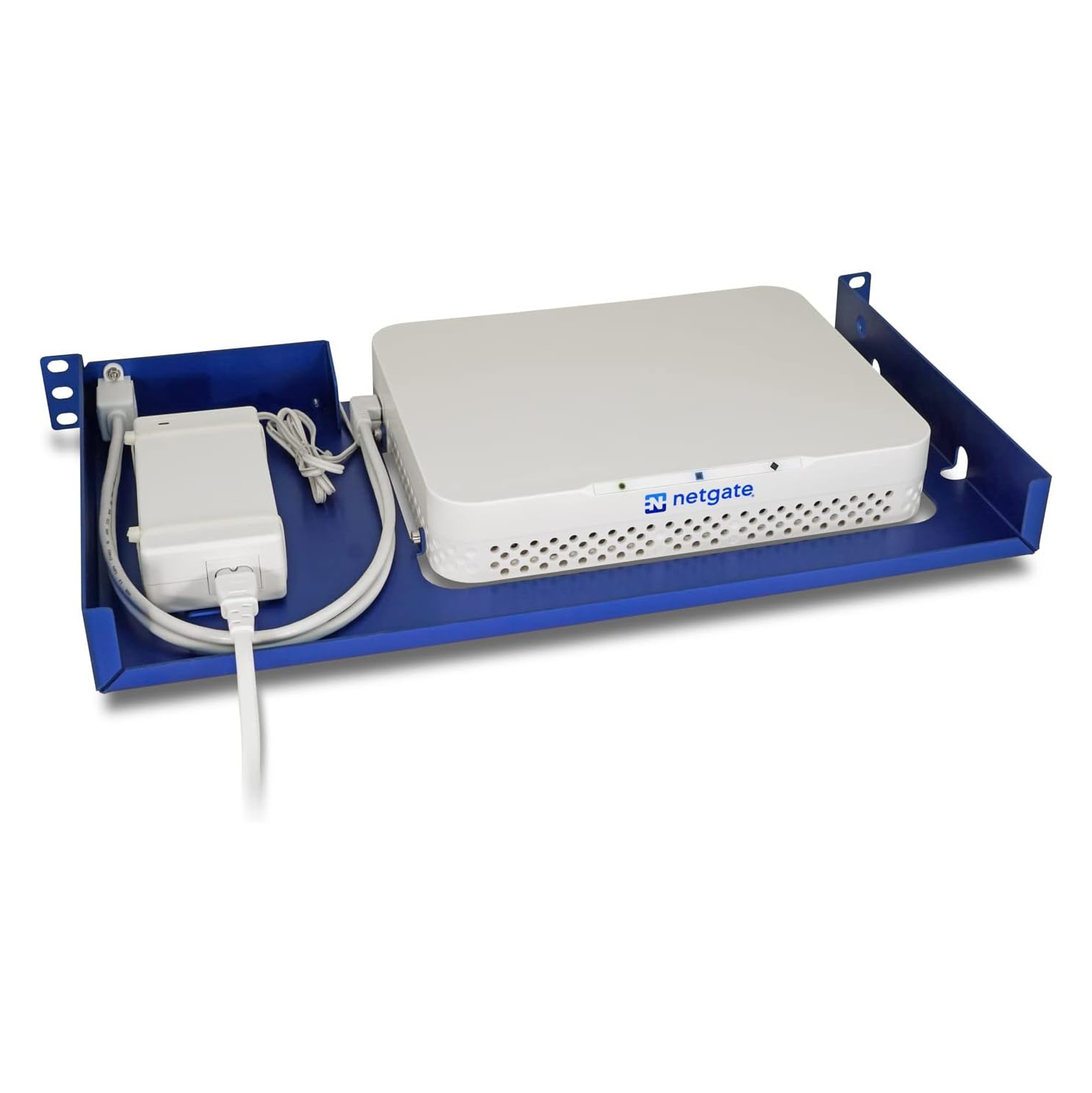

Netgate 8200 MAX pfSense+ Security Gateway

Model: Netgate_8200_Max
Web Code: 17539970
Sold and shipped by | 3.3 seller rating (7 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Read return policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

Double the cores, double the memory, double the power.

Combining the power of an 8-Core Intel Atom C3758R CPU with integrated QuickAssist & AES-NI along with 16 GB of memory, the Netgate 8200 provides:

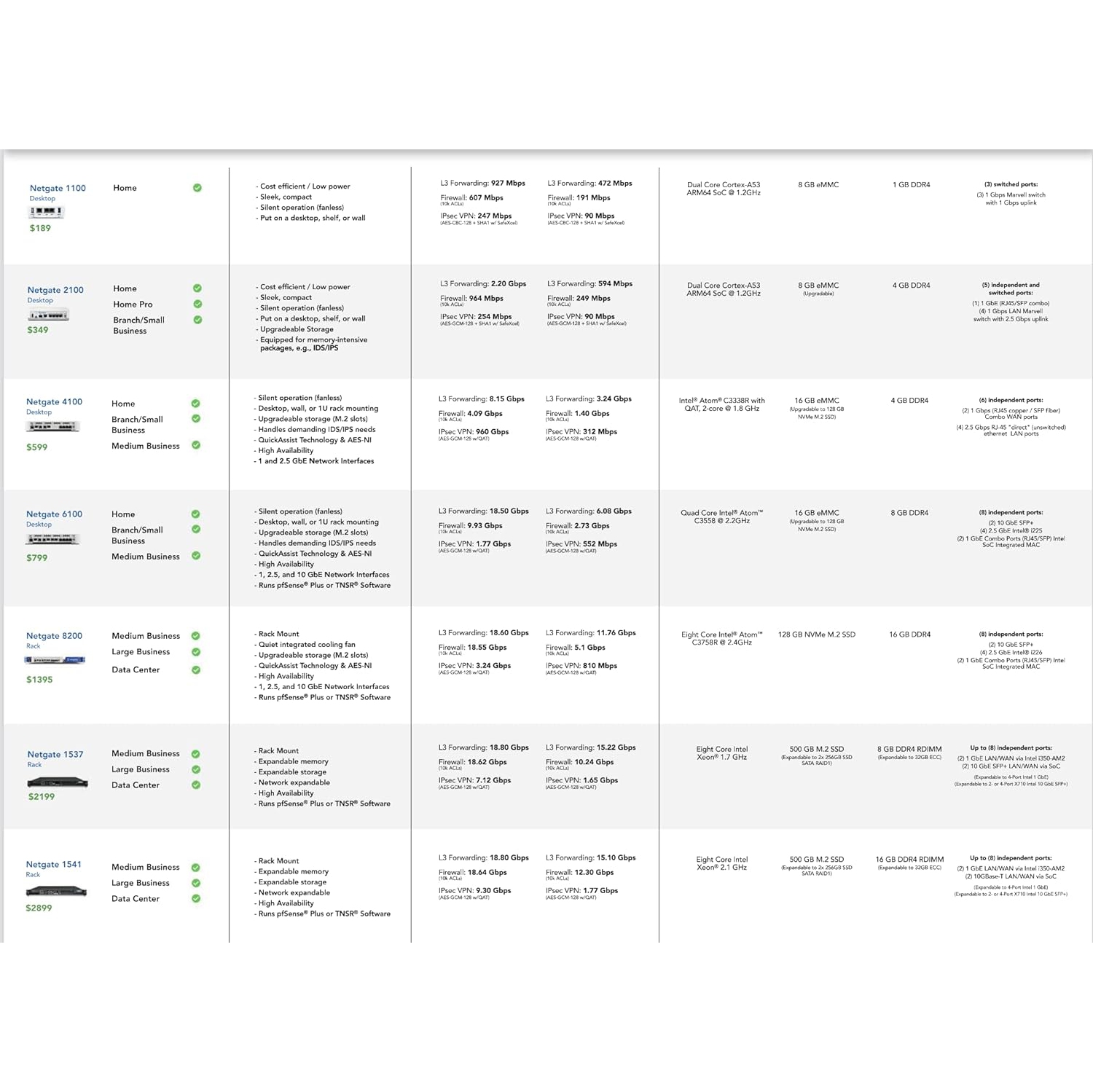

- Over 80% greater firewall and VPN throughput than the Netgate 6100

Double the firewall performance and over 70% more VPN throughput than the outgoing Netgate 7100

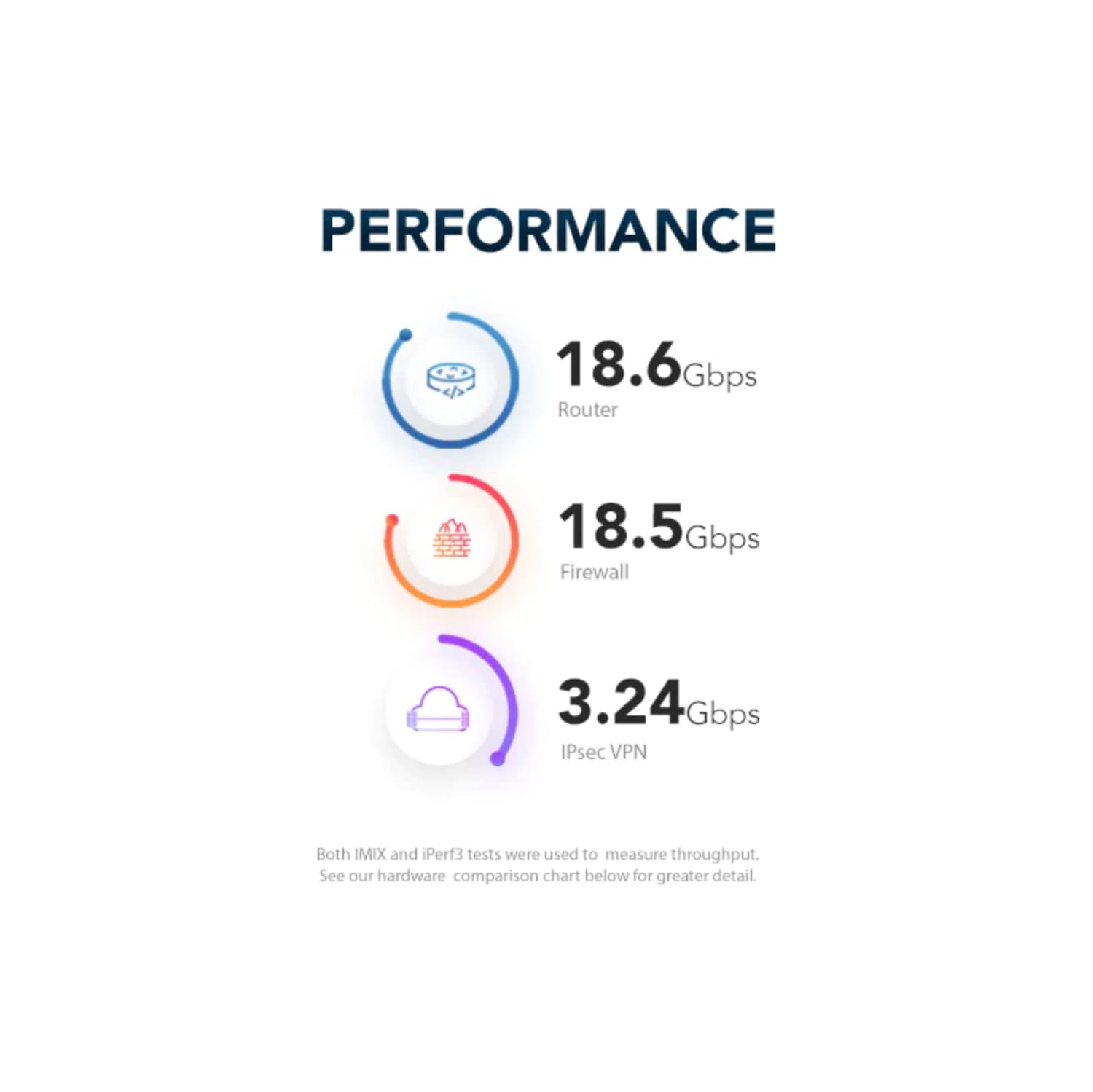

L3 Forwarding

-IPERF3 Traffic: 18.60 Gbps

-IMIX Traffic: 11.76 Gbps

Firewall

(10k ACLs)

-IPERF3 Traffic: 18.55 Gbps

-IMIX Traffic: 5.1 Gbps

IPsec VPN

(AES-GCM-128 w/QAT)

-IPERF3 Traffic: 3.24 Gbps

-IMIX Traffic: 810 Mbps

HARDWARE SPECIFICATIONS:

CPU: Intel Atom C3758R with QAT, 8-core @ 2.4 GHz (Denverton family)

Physical Network I/O ports:

- (2) 10 Gbps SFP+ WAN ports

- (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) combo WAN ports

- (4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet (LAN) Intel i226 ports

Storage: 128 GB NVMe M.2 SSD (B+M Key)

Memory: 16 GB DDR4 w/o ECC, single channel (soldered down)

Physical Expansion Card Slots:

- 2x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0)

- 1x Mini-PCie Slot (Wi-Fi Only)

Console Port: 1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)

USB Ports: 2x USB 3.0 jacks (USB-A female) Located on right side rear / lead out to right side front panel of 1U rack

Certifications: FCC (Class B), IEC / CE, CB, UL, RoHS, RCM, UKCA
